Introduction to P-N Junction Diode

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Today, we’ll discuss the P-N Junction Diode, which is formed by joining p-type and n-type semiconductors. Can anyone tell me what happens when we apply voltage to this junction?

Student 1
Student 1

I think it allows current to flow in one direction!

Teacher
Teacher

Exactly! When we apply a voltage in the forward direction, current flows. This is known as forward bias. Now, can anyone explain what happens if we reverse the voltage?

Student 2
Student 2

The current doesn’t flow, right? It’s blocked.

Teacher
Teacher

Correct! This state is called reverse bias. Remember, in forward bias, current flows, in reverse bias, it blocks current. We can use the acronym 'F-B for Flow' and 'R-B for Block' to remember this!

Student 3
Student 3

What about the breakdown? Does it mean current starts flowing again?

Teacher
Teacher

Great question! Yes, in reverse bias, there's a small leakage current until we reach a voltage where breakdown occurs. At this point, current can suddenly increase significantly.

Student 4
Student 4

So what are the main uses of this diode?

Teacher
Teacher

We primarily use it for rectificationβ€”converting AC to DC, signal clipping to protect circuits, and in various protection circuits. To summarize, the P-N Junction Diode is essential in electronics, allowing controlled current flow.

V-I Characteristics of the Diode

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Let’s look at the V-I characteristics of the P-N Junction Diode. Who can describe what happens during forward bias?

Student 1
Student 1

The current increases exponentially after reaching about 0.7 volts for silicon.

Teacher
Teacher

Exactly! This is the threshold voltage. It's critical to note how the current behaves. What can we say about the reverse bias?

Student 2
Student 2

There’s just a tiny leakage current until breakdown.

Teacher
Teacher

Correct! The reverse bias is essential for understanding how diodes protect circuits. Everyone, make sure to visualize this with a graph; it helps in understanding the exponential rise in current.

Student 3
Student 3

What happens at breakdown?

Teacher
Teacher

At breakdown, the diode starts conducting heavily in reverse, which can lead to damage if it's not used properly. To help remember, think of the phrase 'Breakdown means Heavy Current.'

Student 4
Student 4

Can we see this characteristic in the practical world?

Teacher
Teacher

Absolutely! Many applications in circuits rely on these characteristics, especially in rectifiers and signal processing. Remember, understanding these V-I characteristics helps us in various applications!

Applications of P-N Junction Diode

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Now let's discuss applications. Can anyone name a common application of the P-N Junction Diode?

Student 1
Student 1

I heard it’s used for rectification!

Teacher
Teacher

That's right! Rectification is a major use, converting AC to DC. Can anyone explain how that works?

Student 2
Student 2

It only allows one half of the AC cycle through, which gives us pulsating DC.

Teacher
Teacher

Perfect! This is fundamental to power supplies. What about signal clipping?

Student 3
Student 3

Isn’t that when it cuts off voltage spikes?

Teacher
Teacher

Exactly! It protects sensitive components from voltage surges. What about protection circuits?

Student 4
Student 4

They stop reverse current, right?

Teacher
Teacher

Correct! Protection circuits utilize diodes to ensure that sensitive components are not damaged. To wrap up, remember: Diodes are key to rectification, signal clipping, and circuit protection.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

A P-N Junction Diode allows current to flow in one direction and is essential for various electrical applications.

Standard

The P-N Junction Diode, created by combining p-type and n-type semiconductors, enables current flow in one direction (forward bias) while blocking it in the reverse direction. Its V-I characteristics illustrate the exponential increase in current during forward bias and the leakage current observed during reverse bias, with applications in rectification, signal clipping, and protection circuits.

Detailed

Detailed Summary

The P-N Junction Diode is a fundamental semiconductor device formed by the junction of p-type (positive) and n-type (negative) semiconductors. This junction creates a unique property where it only allows current to flow in one direction, known as forward bias, and prevents current flow in the opposite direction, termed reverse bias.

V-I Characteristics

In forward bias, as the voltage exceeds a threshold (approximately 0.7V for silicon), the current through the diode increases exponentially. Conversely, in reverse bias, only a minuscule leakage current flows until breakdown occurs, leading to significant conduction.

Applications

Due to these characteristics, P-N junction diodes have several practical applications including:
- Rectification: Converting AC to DC power.
- Signal Clipping: Protecting circuits from voltage spikes.
- Protection Circuits: Shielding sensitive components from reverse current damage.

The P-N Junction Diode is crucial in the field of electronics, serving as the foundation for many devices, including rectifiers, transistors, and integrated circuits.

Youtube Videos

PN junction Diode Explained | Forward Bias and Reverse Bias
PN junction Diode Explained | Forward Bias and Reverse Bias

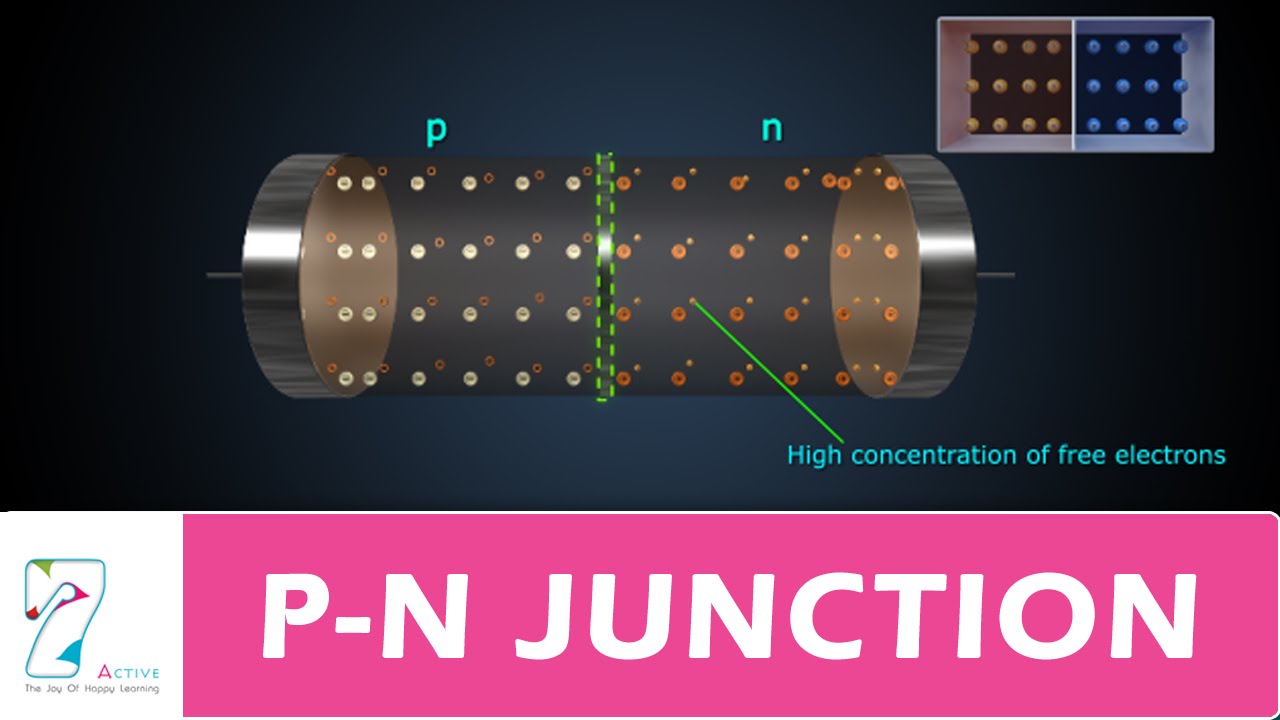

P-N JUNCTION
P-N JUNCTION

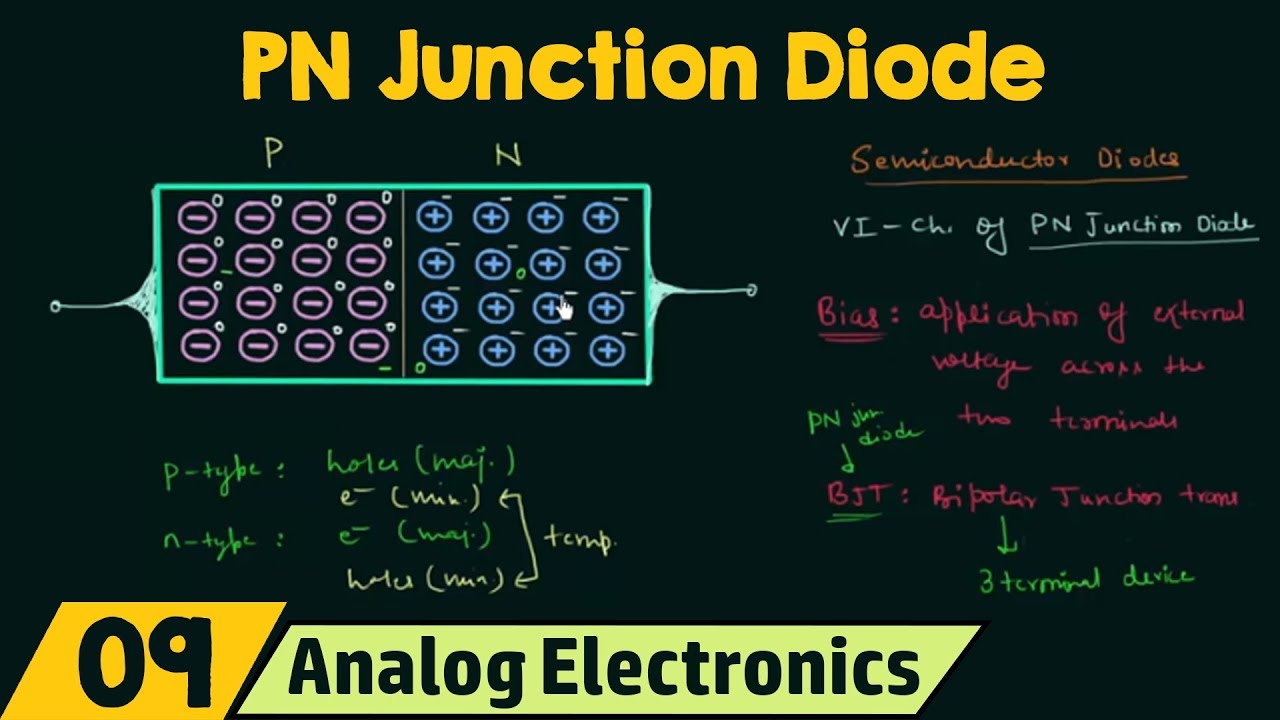

PN Junction Diode (No Applied Bias)
PN Junction Diode (No Applied Bias)

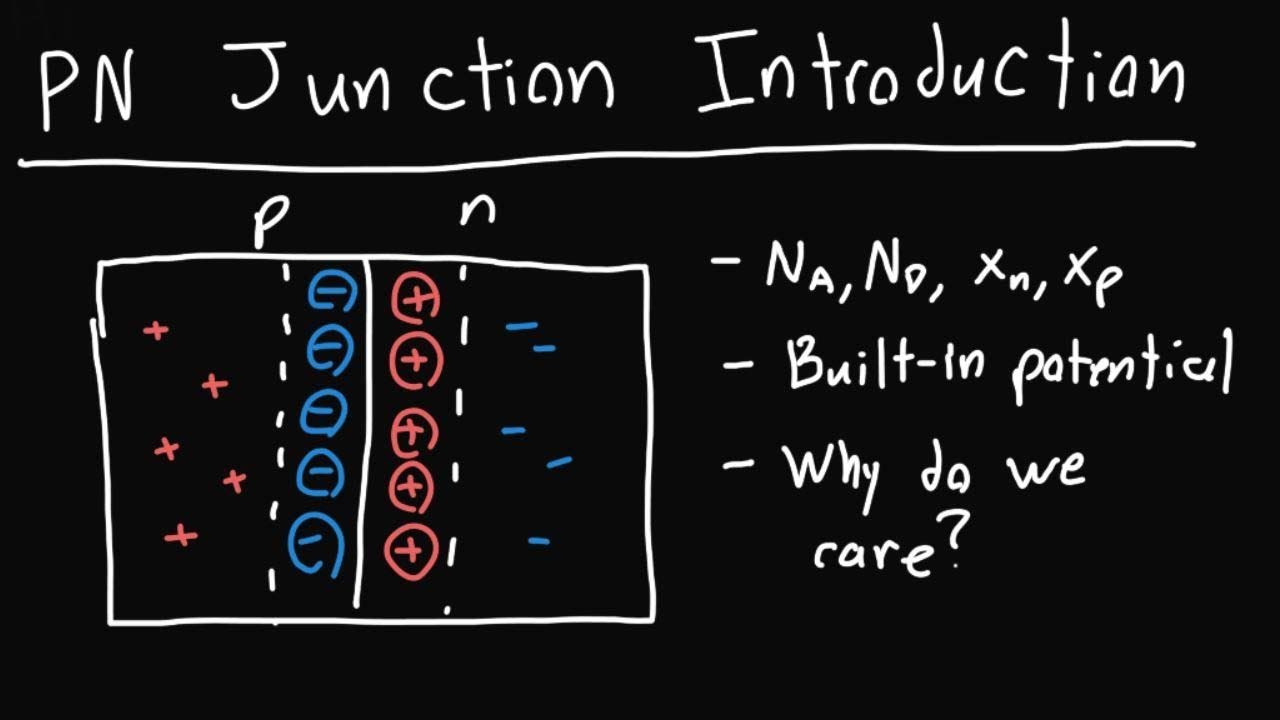

PN Junction Introduction
