12.1.1. Activity 12.2

• Fix a sheet of white paper on a drawing board using some adhesive material.

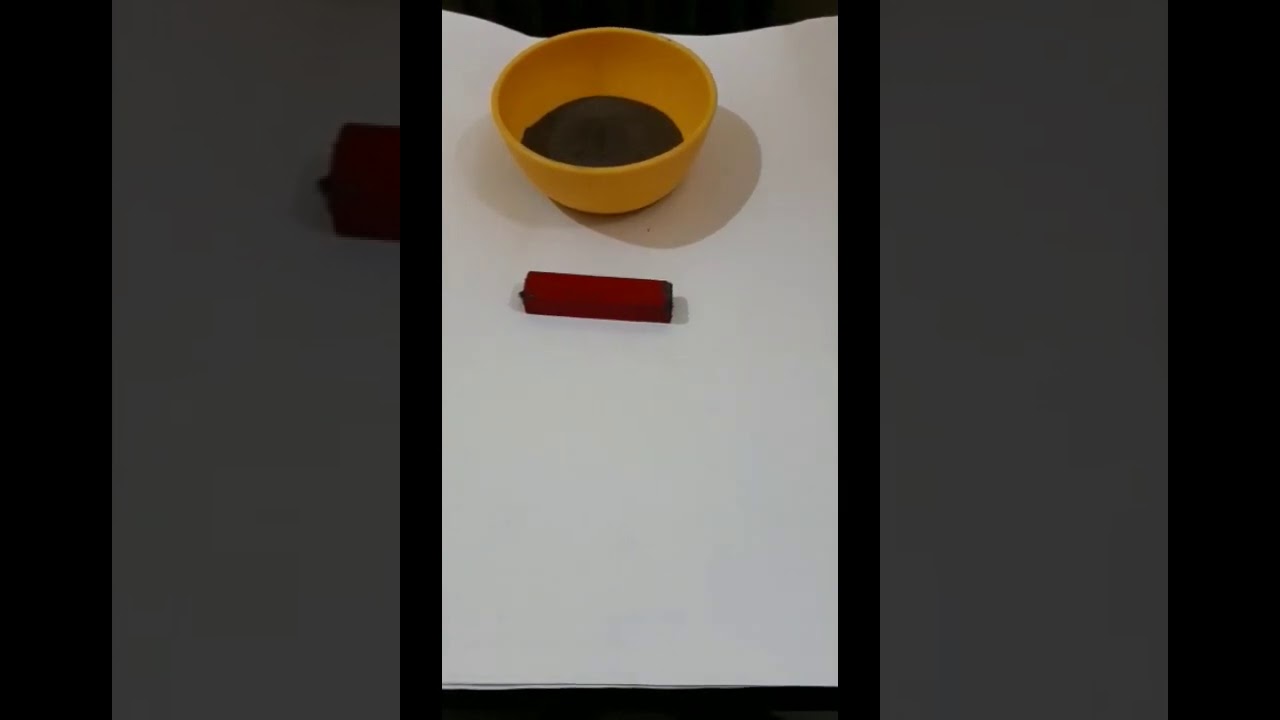

• Place a bar magnet in the centre of it.
• Sprinkle some iron filings uniformly around the bar magnet (Fig. 12.2). A salt-sprinkler may be used for this purpose.
• Now tap the board gently.

This part describes the initial steps to set up a demonstration of magnetic fields. First, you attach a piece of white paper to a drawing board; this is your working surface. Then, you place a bar magnet at the center of this paper. The bar magnet is the subject of your experiment because it creates a magnetic field around it. After that, you sprinkle iron filings evenly around the magnet. The purpose of using iron filings is that they are small particles that can respond to magnetic fields. Finally, tapping the board gently helps the iron filings move and settle into patterns after they begin to interact with the invisible magnetic field created by the magnet.

Think of this setup like a snow globe. When you shake a snow globe, the snowflakes swirl around and settle as it stops moving. Similarly, tapping the board causes the iron filings to move and settle according to the magnetic forces acting on them.

What do you observe? Iron filings near the bar magnet align themselves along the field lines. The iron filings arrange themselves in a pattern as shown in Fig. 12.2.

In this step, you make observations about what happens after you have set up the experiment. When the iron filings are sprinkled around the bar magnet, they align themselves according to the invisible lines of force generated by the magnet. These lines of force indicate the direction and strength of the magnetic field. The pattern they form is not random; instead, it reflects the shape of the magnetic field around the magnet, giving a visual representation of where the magnetic force is strongest and how it spreads out into the space surrounding the magnet.

Imagine pouring sand into a mold that is shaped like a star. When you lift the mold, the sand retains the star shape because it followed the contours of the mold. Similarly, the iron filings take shape according to the magnetic field created by the bar magnet.

Why do the iron filings arrange in such a pattern? What does this pattern demonstrate? The magnet exerts its influence in the region surrounding it. Therefore the iron filings experience a force. The force thus exerted makes iron filings to arrange in a pattern.

This segment explains why the iron filings form specific patterns around the bar magnet. The magnet produces an invisible force field around it called the magnetic field. This field influences the iron filings, causing them to align with the lines of force. The alignment shows us not only the direction of the magnetic field but also indicates where the field is strongest. The areas where the filings cluster are places where the magnetic force is most effective, while areas with fewer filings show a weaker magnetic effect.

Consider a game of tug-of-war. The stronger team pulls harder on the rope, making the weaker team's position more precarious. The iron filings are like the weaker team, being pulled and arranged by the magnetic force of the stronger team, which is the magnet.

The region surrounding a magnet, in which the force of the magnet can be detected, is said to have a magnetic field. The lines along which the iron filings align themselves represent magnetic field lines.

In this final chunk, we define what a magnetic field is. A magnetic field is an area around a magnet where its magnetic force can have an effect on objects, such as iron filings. The pattern formed by the filings illustrates the magnetic field lines, which are used to visualize how magnetic forces work. Each line represents the path that a north pole of a magnet would take if it could move freely within the field. Understanding these patterns helps us predict how different magnets will interact with various materials.

Picture a spider weaving a web. The threads of the web showcase where the spider can reach and exert its influence. Similarly, the magnetic field lines illustrate where a magnet can exert force, affecting nearby magnetic materials like the iron filings.

--
