4.8.1 - Friction
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Friction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we are going to explore friction. Can anyone tell me what friction is?
I think friction is what stops things from moving.
Exactly, Student_1! Friction is a force that opposes motion between two surfaces in contact. It can prevent objects from starting to move or slowing them down.
But is there more than one type of friction?
Great question! There are two main types: static friction and kinetic friction. Who wants to explain the difference?
Static friction is what holds a stationary object in place, while kinetic friction occurs when the object is sliding.
Well put, Student_3! Let's remember that static friction can increase up to a maximum point when resisting motion.
How does static friction work in real life?

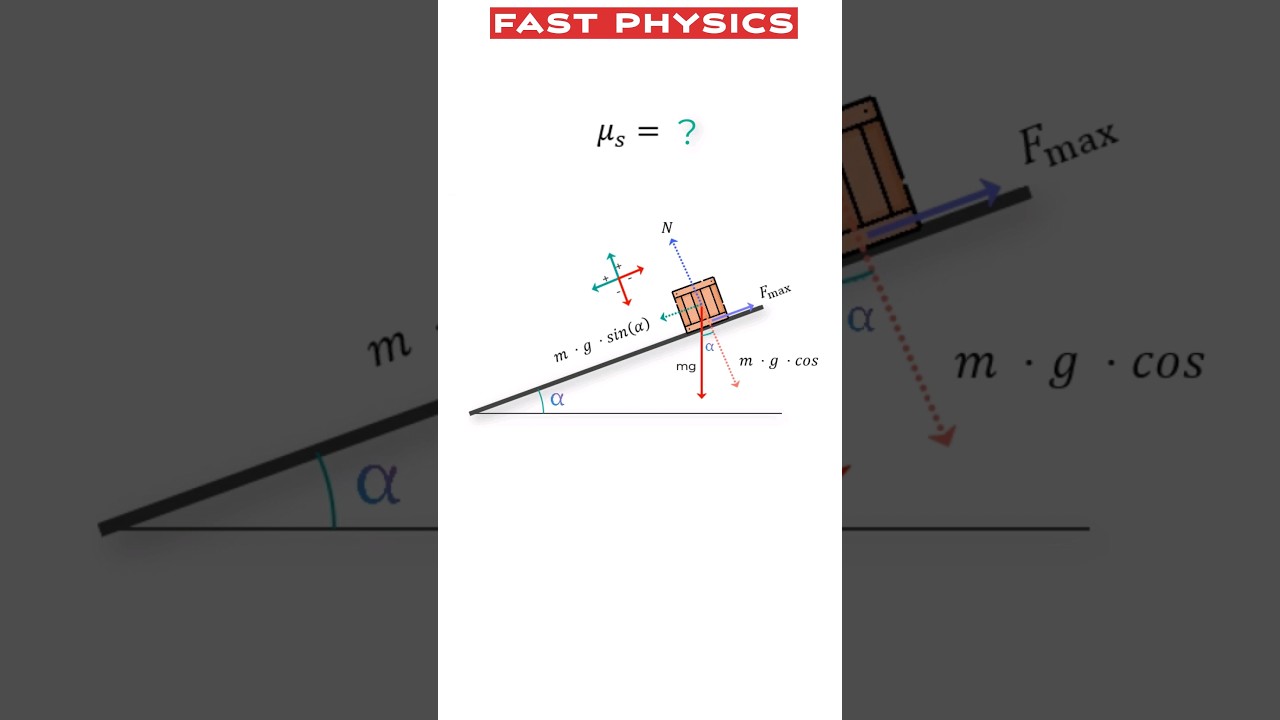

Think about a book on an inclined surface. It won't slide until the force exceeds static friction. That's an example of how we can visualize these concepts!
To summarize, friction acts on contact surfaces, has different types, and is crucial for preventing unwanted motion.
The Role of Normal Force
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss normal force. Can anyone tell me what it is?
Isn’t it the force that acts perpendicular to a surface?
Spot on! The normal force is essential because it directly affects the maximum value of static friction. The more vertical weight an object has on a surface, the greater the static friction it can exert.
So if I have a heavier object, I will need more force to move it?
Correct! More weight means more normal force, which increases static friction. This is governed by the equation: \( f_{s,max} = \mu_s N \).
And what about kinetic friction? Does it depend on the normal force too?
Yes it does, but unlike static friction, kinetic friction remains relatively constant with motion. It can be calculated using: \( f_k = \mu_k N \).
In summary, friction’s behavior is closely related to the normal force acting on an object.
Applications of Friction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
How many of you realized how essential friction is in our daily lives?
It's crucial for walking and driving!
Exactly! Friction allows cars to grip the road, and it’s also what lets us walk without slipping. Without it, we'd slide all over.
Are there situations where we want to reduce friction?
Yes, very much so! In machines, we often want to reduce friction to improve efficiency. Lubricants like oil help achieve that.
What about when stopping a vehicle? Isn't friction what slows us down?
Indeed! Kinetic friction plays a pivotal role when brakes are applied, allowing us to stop safely. This illustrates the dual nature of friction: sometimes beneficial, sometimes a hindrance.
To summarize, while friction is essential for many activities, understanding when to enhance or reduce it is key for safety and efficiency.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Friction is a force that opposes relative motion between contacting surfaces. This section discusses static and kinetic friction, their dependence on the normal force, and practical implications in everyday situations, emphasizing the significance of coefficients and real-world applications.
Detailed
Friction
Friction is a fundamental force that opposes the relative motion of two surfaces in contact. It plays a crucial role in various mechanics applications, acting to prevent motion as well as facilitating movement under controlled conditions. This section elaborates on the behavior of static friction, which prevents motion until a threshold is reached, and kinetic friction, which acts when surfaces are sliding against each other.
Key Types of Friction
-
Static Friction (fs): This force prevents a body from starting to move and varies with the applied force up to a maximum limit, denoted as \(f_{s,max}\). It is proportional to the normal force (N) and is described by the equation:
\[ f_s \leq \mu_s N \]
where \( \mu_s \) is the coefficient of static friction. -
Kinetic Friction (fk): Once motion begins, the friction force opposing the motion is known as kinetic or sliding friction. It is expressed simply as:
\[ f_k = \mu_k N \]
where \( \mu_k \) is the coefficient of kinetic friction and is typically less than \( \mu_s \).
Practical Applications
- Friction is not only pivotal for everyday tasks such as walking and driving but is also a crucial consideration in engineering for the design of various mechanical systems.
- Understanding the limits of static friction can prevent slipping and enhance safety in vehicular motion.
Through this discussion of friction, we also see a reflection of material properties and surface interactions, demonstrating that actions governing motion are not merely physical phenomena but deeply follow the laws of nature governing forces.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Static Friction
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Let us return to the example of a body of mass m at rest on a horizontal table. The force of gravity (mg) is cancelled by the normal reaction force (N) of the table. Now suppose a force F is applied horizontally to the body. We know from experience that a small applied force may not be enough to move the body. But if the applied force F were the only external force on the body, it must move with acceleration F/m, however small. Clearly, the body remains at rest because some other force comes into play in the horizontal direction and opposes the applied force F, resulting in zero net force on the body. This force fs parallel to the surface of the body in contact with the table is known as frictional force, or simply friction.
Detailed Explanation
Friction is a force that opposes the relative motion between two surfaces in contact. When a body is at rest on a table, the gravitational force pulling it down is balanced by the normal force from the table pushing it up. If you apply a force to try to move the body, and that force is not strong enough to overcome friction, the body will stay still. The static friction force (fs) becomes active when you try to move the body and works to counteract your applied force, maintaining equilibrium until the applied force exceeds the limit of static friction.
Examples & Analogies
Think of trying to push a heavy box across a floor. At first, it doesn’t move no matter how much you push because the static friction between the box and the floor is holding it in place. Only when your push is strong enough to exceed this frictional limit does the box start to slide.
Maximizing Static Friction
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Note that static friction does not exist by itself. When there is no applied force, there is no static friction. It comes into play the moment there is an applied force. As the applied force F increases, fs also increases, remaining equal and opposite to the applied force (up to a certain limit), keeping the body at rest. Hence, it is called static friction. Static friction opposes impending motion.
Detailed Explanation
Static friction is not a fixed force; it adjusts based on the amount of force applied up to a maximum limit. This maximum value of static friction depends on the nature of the surfaces in contact and can be mathematically expressed as \( f_{s,max} = \mu_{s} N \), where \( \mu_{s} \) is the coefficient of static friction and N is the normal force.
Examples & Analogies
Imagine trying to push a heavy furniture item. At first, you can apply a small force, but until you push hard enough to exceed the friction holding it back, it won't budge. This is like a rubber band that stretches, but only so far until it snaps—once your push is strong enough, the furniture overcomes friction and moves.
Kinetic Friction
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
If the applied force F exceeds the maximum value of static friction (fs(max)), the body begins to slide on the surface. It is found experimentally that when relative motion has started, the frictional force decreases from the static maximum value to a new value called kinetic or sliding friction (fk). Kinetic friction, like static friction, is found to be independent of the area of contact. Further, it is nearly independent of the velocity.
Detailed Explanation
Once an object starts moving, it experiences kinetic friction instead of static friction. Unlike static friction, which increases with applied force up to its maximum, kinetic friction has a relatively constant value once motion has started. This kinetic friction can be expressed as \( f_k = \mu_k N \), where \( \mu_k \) is the coefficient of kinetic friction. This coefficient typically has a lower value than the coefficient of static friction.
Examples & Analogies
Think about sliding a book across a smooth table. Once you push the book hard enough that it starts moving, you notice it glides with less effort compared to trying to start pushing it initially. This is because once it's sliding, the resistance (kinetic friction) is less than the resistance (static friction) you faced when it was still.
The Role of Friction in Motion
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Frictional force opposes impending or actual relative motion between two surfaces in contact. It is the component of the contact force parallel to the surfaces in contact, which opposes relative motion. Static friction provides the necessary up-step force to stop a moving object or prevent an object from slipping, while kinetic friction helps a system regulate motion once it has started moving.
Detailed Explanation
Friction is crucial in everyday activities; it allows us to walk, drive, and even hold objects without them slipping out of our hands. Without friction, sliding or rolling motions wouldn't be controllable. For instance, in machines, friction helps in braking systems which enable vehicles to stop safely, showing how both types of friction are essential.
Examples & Analogies
Consider riding a bicycle. The tires grip the ground due to friction, allowing you to accelerate and turn. If there were no friction, the tires would spin in place, and you'd have no control over the bike! Friction essentially enables the interaction of surfaces to produce motion, stopping, or steering.
Key Concepts
-
Static Friction: Prevents motion until a maximum is reached.
-
Kinetic Friction: Opposes motion once it starts, generally lower than static.
-
Coefficient of Friction: Characterizes friction for specific surfaces.
-
Normal Force: Acts perpendicular to the contact surface and affects friction.
Examples & Applications
When pushing a heavy box across the floor, static friction prevents it from moving until enough force is applied.
A car coming to a stop utilizes kinetic friction to slow down effectively.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Friction's here to keep us tight, preventing slips from left to right.
Stories
Imagine a car trying to drive on ice; friction is what gives it the grip it needs to move safely without slipping away.
Memory Tools
Remember 'Friction Fights Moving': Friction helps stop and control every slide.
Acronyms
FALL
Friction Acts to Limit Lift
reminding us how friction maintains stability during motion.
Flash Cards
Glossary
- Friction
A force that opposes the relative motion between two surfaces in contact.
- Static Friction
Friction that resists the start of sliding motion between two surfaces.
- Kinetic Friction
Friction that opposes the motion of two surfaces sliding past each other.
- Normal Force
The force perpendicular to the surface that supports the weight of an object.
- Coefficient of Friction
A dimensionless constant that represents the ratio of the force of friction between two bodies and the normal force pressing them together.
