12.4 - Transfer of Charge
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Electroscope
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are learning about how charges can be transferred and detected. Can anyone tell me what an electroscope is?
Is it a tool to measure electric charges?
Great guess! An electroscope is indeed used to detect electric charge. It shows us if something is charged or not.
How does it work?
When a charged object touches the electroscope, charge transfers to the foil strips, making them repel each other. Can anyone guess what happens next?
They move apart because they have the same charge?
Exactly! Charges that are the same repel each other.
What happens if we touch the electroscope with our hand?
Touching it allows the charges to escape into the ground, and the strips will come back together. This process is called earthing.
So, in summary, an electroscope helps us see if an object is charged by using the principles of static electricity and charge interaction.
Charging and Discharging
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s discuss how an object becomes charged. When we rub two different materials together, like a plastic rod and a wool cloth, what do you think happens?
Does the plastic get charged?
Yes! The plastic rod becomes negatively charged while the wool becomes positively charged.
And if we bring them near each other, what will happen?
They will attract each other—opposite charges attract. What about if two negatively charged things come close?
They will repel each other!
Correct! Now reflect on why it’s important to ground our electroscope when we handle it?
Grounding helps release any unwanted charge?
Exactly! This keeps us safe from unexpected electrical discharges, which is crucial in dealing with electricity.
The Importance of Earthing
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's discuss earthing. Why do you think earthing is used in electrical systems?
Is it to prevent shocks?
Correct! Earthing prevents electric shocks by allowing excess charge to safely dissipate into the ground.
So, if something goes wrong, the electricity won't harm us?
Exactly! Just like water flows to a lower level, excess charge goes into the earth—making it a safe path.
It sounds really important for safety!
Absolutely! Understanding these concepts can save lives, especially during thunderstorms when lightning strikes can occur.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section delves into the transfer of electrical charge through conductors, elucidating how charges interact with each other, including repulsion and attraction. It demonstrates how an electroscope works to detect whether an object carries an electric charge, while emphasizing the process of earthing to ensure safety from electrical shocks.
Detailed
Transfer of Charge
This section outlines the process in which electrical charge can be transferred between objects, highlighting the role of conductors and the concept of an electroscope. When a charged object, like a charged refill, touches a conductor such as a metal paper clip, the charge transfers to other conductive materials attached to it, such as aluminium foil strips hanging from the clip. The experiment demonstrates how like charges repel one another and unlike charges attract.
Key Concepts:
- Electroscope: A device used to detect electric charge based on the principle that charged objects can transfer their charge to conductive materials.
- Charging and Discharging: When the electroscope's foil strips are touched by a charged object, both strips receive the same charge and repel each other. Touching the metal clip with a hand allows the strips to lose charge to the earth, collapsing back to a neutral position. This grounding process, known as earthing, is critical for safety.
Significance:
Understanding charge transfer is vital for grasping broader concepts in electricity and electronics, establishing a foundation for electrical safety, including how earthing protects us from electrical faults.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Activity with Electroscope
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Take an empty jam bottle. Take a piece of cardboard slightly bigger in size than the mouth of the bottle. Pierce a hole in it so that a metal paper clip can be inserted. Open out the paper clip as shown in Fig. 12.4. Cut two strips of aluminium foil about 4 cm × 1 cm each. Hang them on the paper clip as shown. Insert the paper clip in the cardboard lid so that it is perpendicular to it (Fig. 12.4). Charge a refill and touch it with the end of the paper clip. Observe what happens. Is there any effect on the foil strips? Do they repel each other or attract each other? Now, touch other charged bodies with the end of the paper clip. Do foil strips behave in the same way in all cases? Can this apparatus be used to detect whether a body is charged or not? Can you explain why the foil strips repel each other?
Detailed Explanation
This activity demonstrates how to create a simple electroscope, which is used to detect electric charge. First, you prepare the apparatus with a jam bottle, cardboard, and aluminium foil. When you charge a plastic refill and touch it to the metal paper clip, the electrical charge transfers from the refill to the paper clip. This charge then also travels to the two strips of aluminum foil. Since both foil strips now carry the same type of charge, they repel each other, causing them to open up. You observe the foils' behavior to determine if an object is charged by seeing if the foils repel (meaning the object touched has charge) or not.
Examples & Analogies
Think of the aluminum foil strips as two friends who have just had the same great news—that they both won a small prize. When they meet, instead of hugging, they can't get closer because they’re both so excited! Just like the same charges repel, friends sometimes jump away when they are overexcited. This illustrates how like charges repel each other in electricity.
Understanding Earthing
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The aluminium foil strips receive the same charge from the charged refill through the paper clip (remember that metals are good conductors of electricity). The strips carrying similar charges repel each other and they become wide open. Such a device can be used to test whether an object is carrying charge or not. This device is known as electroscope.
Detailed Explanation
The electroscope works on the principle of electric charge transfer. When the charged refill touches the metal paper clip, the charge moves through to the foil strips. Since these strips are conductors, they allow the charge to flow easily. When charged, the same charge on both strips causes them to push away from each other due to the repelling property of like charges. An electroscope can thus be a simple and effective way to test if other objects are charged since it visually shows whether or not there is a charge present.
Examples & Analogies
Imagine you and your best friend both get the same pair of trendy socks. When you stand next to each other at school, you both feel the urge to move away because you're both wearing the same thing, which makes you feel a bit like twins! This behavior mimics how similarly charged particles repel each other.
Discharge and Earthing
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

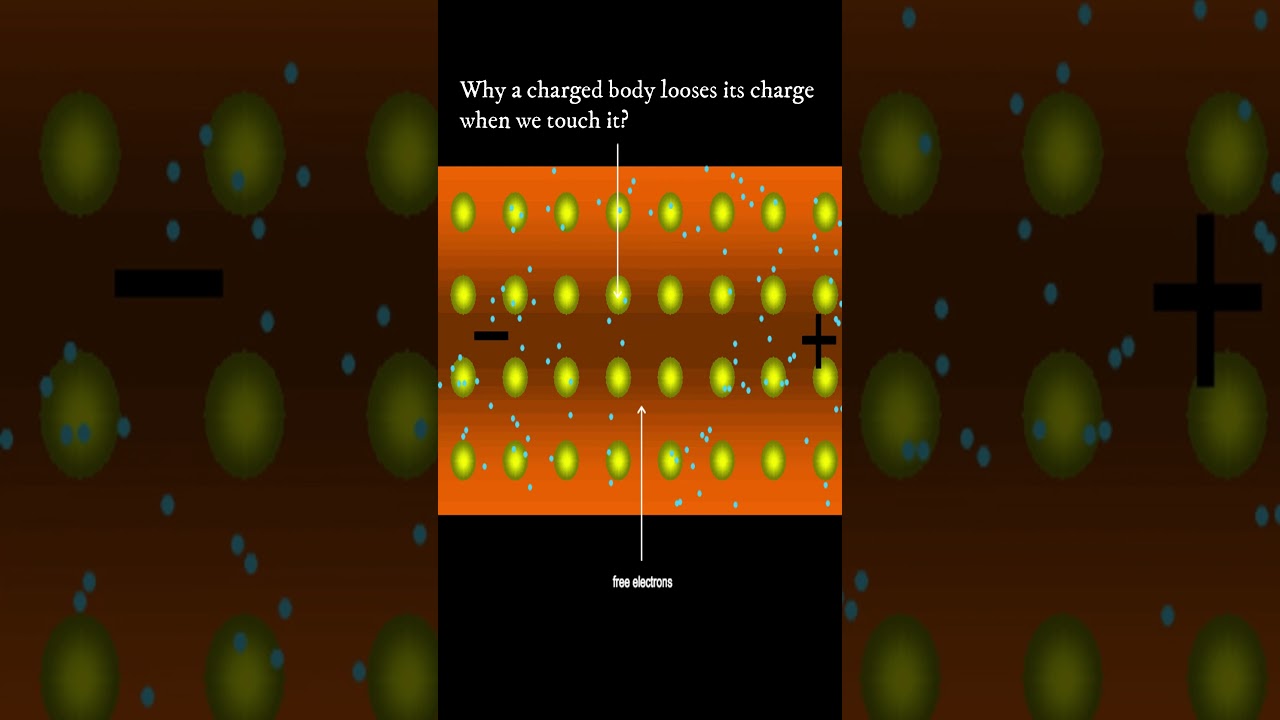

Touch the end of the paper clip gently with hand and you will find a change in the foil strips. They come back to their original state. Repeat charging of foil strips and touching the paper clip. Every time you will find that the foil strips collapse as soon as you touch the paperclip with hand. Why does it happen? The reason is that the foil strips lose charge to the earth through your body. We say that the foil strips are discharged. The process of transferring of charge from a charged object to the earth is called earthing.
Detailed Explanation
When you touch the paper clip, you are providing a path for the charge to leave the foil strips and enter the ground. This process is called earthing. Electrical charges seek to balance themselves, so when the charged foil strips come into contact with you, they can transfer their excess charge to the earth, which can absorb it safely. This means the strips lose charge and return to their uncharged state, thereby collapsing back together. This illustrates the principle of grounding in electrical systems, which helps protect against excess charge buildup.
Examples & Analogies
Think of earthing like putting your phone down on the charger. When your phone is connected, it gets a needed charge. If you take your phone off the charger, it loses that extra energy. Similarly, when you touch the electroscope, it gives up its charge to the earth, returning to a neutral state.
Key Concepts
-
Electroscope: A device used to detect electric charge based on the principle that charged objects can transfer their charge to conductive materials.
-
Charging and Discharging: When the electroscope's foil strips are touched by a charged object, both strips receive the same charge and repel each other. Touching the metal clip with a hand allows the strips to lose charge to the earth, collapsing back to a neutral position. This grounding process, known as earthing, is critical for safety.
-
Significance:
-
Understanding charge transfer is vital for grasping broader concepts in electricity and electronics, establishing a foundation for electrical safety, including how earthing protects us from electrical faults.
Examples & Applications
An electroscope can show whether a plastic rod is charged by observing how far apart the foil strips separate.
Earthing prevents dangerous shocks by allowing excess electric charge to dissipate safely into the ground.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Electroscope's role, to check the charge, / Foils apart they will enlarge.
Stories
Once a charged rod touched an electroscope, the foils spread wide, like excited birds taking flight, showing the magic of electric charge!
Memory Tools
E-C-E: Electroscope, Charge, Earthing.
Acronyms
SEC
Safety through Earthing and Charge.
Flash Cards
Glossary
- Electroscope
A device used to detect electric charge based on the principles of charge interaction.
- Charge Transfer
The process of transferring electric charge from one object to another.
- Earthing
The process of transferring charge from a charged object to the earth to prevent electric shocks.
