12.1.B.1. Example 3

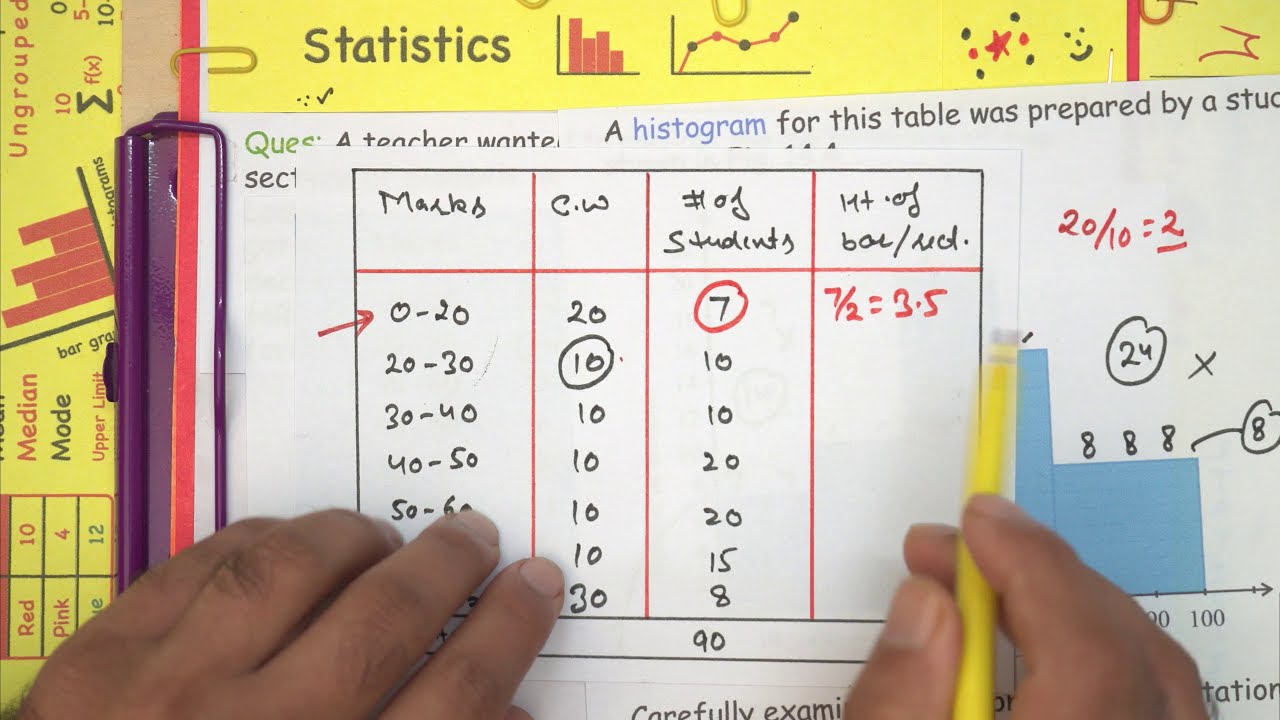

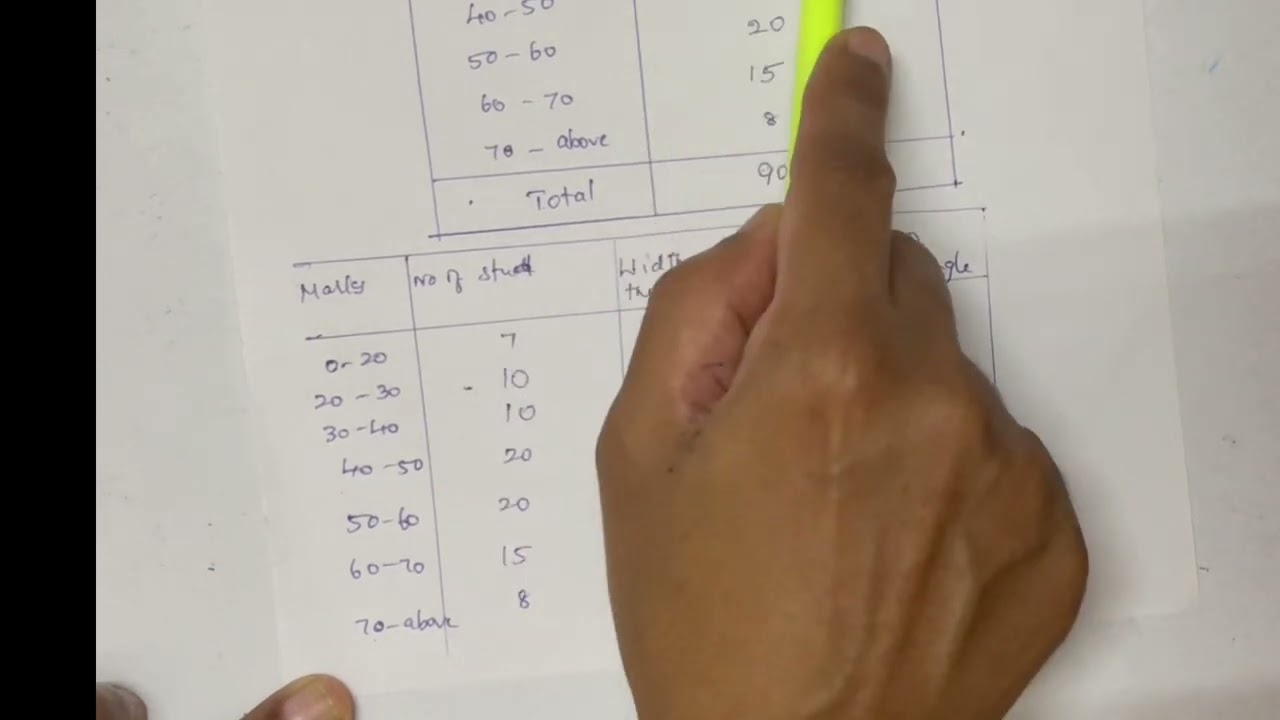

A teacher wanted to analyse the performance of two sections of students in a mathematics test of 100 marks. Looking at their performances, she found that a few students got under 20 marks and a few got 70 marks or above. So she decided to group them into intervals of varying sizes as follows: 0 - 20, 20 - 30, . . ., 60 - 70, 70 - 100. Then she formed the following table:

In this example, a teacher is assessing student performance on a math test. She noticed patterns in scores, where some students scored very low (under 20) and others scored very high (over 70). To better analyze the scores, she created ranges (or intervals). Instead of considering each possible score individually, she grouped the scores into intervals like 0-20 and 20-30. This grouping helps simplify the analysis by showing how many students fall within each score range, allowing patterns to emerge more clearly. The table summarizes these classes and the corresponding number of students.

Think of a class where you want to find out how many students got a specific score in a test on a scale of 0-100. If you had to write down each individual score, it might be messy and hard to see the bigger picture. But instead, if you put scores into groups (like 0-20, 21-40, etc.), it becomes much clearer how many students are scoring within each range, like seeing the overall performance of the class.

A histogram for this table was prepared by a student as shown in Fig. 12.4.

Carefully examine this graphical representation. Do you think that it correctly represents the data? No, the graph is giving us a misleading picture. As we have mentioned earlier, the areas of the rectangles are proportional to the frequencies in a histogram.

This section discusses the creation of a histogram based on the previously created table of marks. A histogram visually represents the frequency of scores within the defined intervals. However, it is crucial to ensure that the widths of the bars in the histogram correlate correctly with the number of students in each interval. If the widths are not appropriately scaled, the histogram can misrepresent the data, leading to faulty interpretations about student performance. The importance of proportional representation in histograms is emphasized here to avoid drawing misleading conclusions.

Imagine you attended a concert with several bands and each band had a different set length on stage. If the first band played for 10 minutes while the second band played for 30 minutes, you wouldn't want a bar chart that shows them both as the same width! The width of the bars should reflect the time they played so that you can truly compare their performance. Similarly, in a histogram, the width of each bar must represent the correct frequency to avoid misinterpretation.

So, we need to make certain modifications in the lengths of the rectangles so that the areas are again proportional to the frequencies. The steps to be followed are as given below:

1. Select a class interval with the minimum class size. In the example above, the minimum class-size is 10.
2. The lengths of the rectangles are then modified to be proportionate to the class-size 10.

To correct the histogram for an accurate representation of student performance, adjustments need to be made. The first step is identifying the smallest class size among the intervals which aids in standardizing the representation across the various intervals. Once the smallest interval is selected, adjustments can be made to the lengths of the rectangles in the histogram so that the area of each rectangle correlates directly to the frequency count in each class. This ensures that the visual representation maintains accuracy in showing how many students are in each score range.

Imagine arranging boxes of books, but the boxes come in all sorts of sizes. A box that holds 5 books might look smaller next to a box that holds 10 books if you aren't careful with sizing. If you're trying to see how they compare, you want to adjust the boxes' sizes so that when stacked, you can truly tell which one holds more books. By taking the smallest box as a reference, you can scale the others proportionately, making your comparison clearer—much like adjusting the histogram to represent the frequencies accurately.

--
