7.4. Graphical Representation of Motion

Graphs provide a convenient method to present basic information about a variety of events. For example, in the telecast of a one-day cricket match, vertical bar graphs show the run rate of a team in each over. As you have studied in mathematics, a straight line graph helps in solving a linear equation having two variables.

Graphs are an effective way to visualize and present data. They can represent changes in one quantity versus another, providing insights that might not be immediately obvious from raw numbers. In sports broadcasts, graphs can depict performance metrics, such as run rates in cricket, making it easier for viewers to understand the team's performance over time. Line graphs in mathematics enable the representation of relationships between variables, assisting in problem-solving.

Think of a graph as a map. Just like a map helps you understand how different places are connected and how to reach one from another, graphs help us visualize how different quantities relate to one another, making complex data easier to comprehend.

To describe the motion of an object, we can use line graphs. In this case, line graphs show dependence of one physical quantity, such as distance or velocity, on another quantity, such as time.

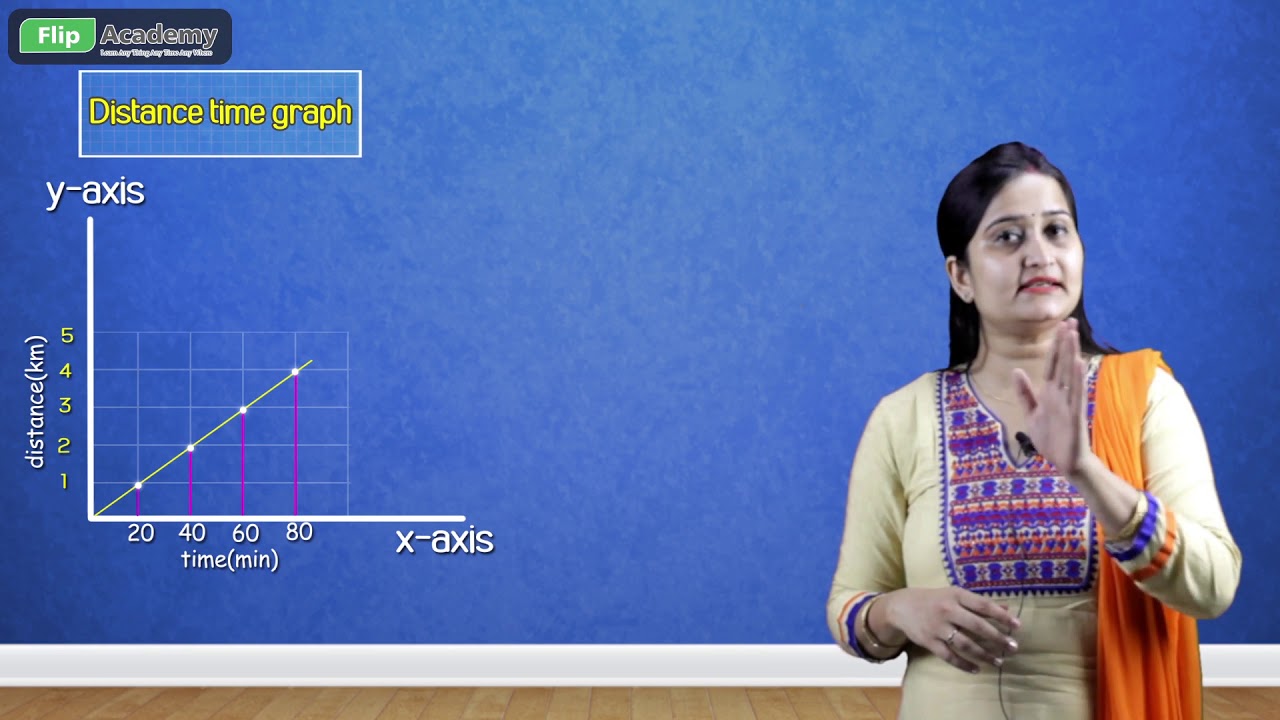

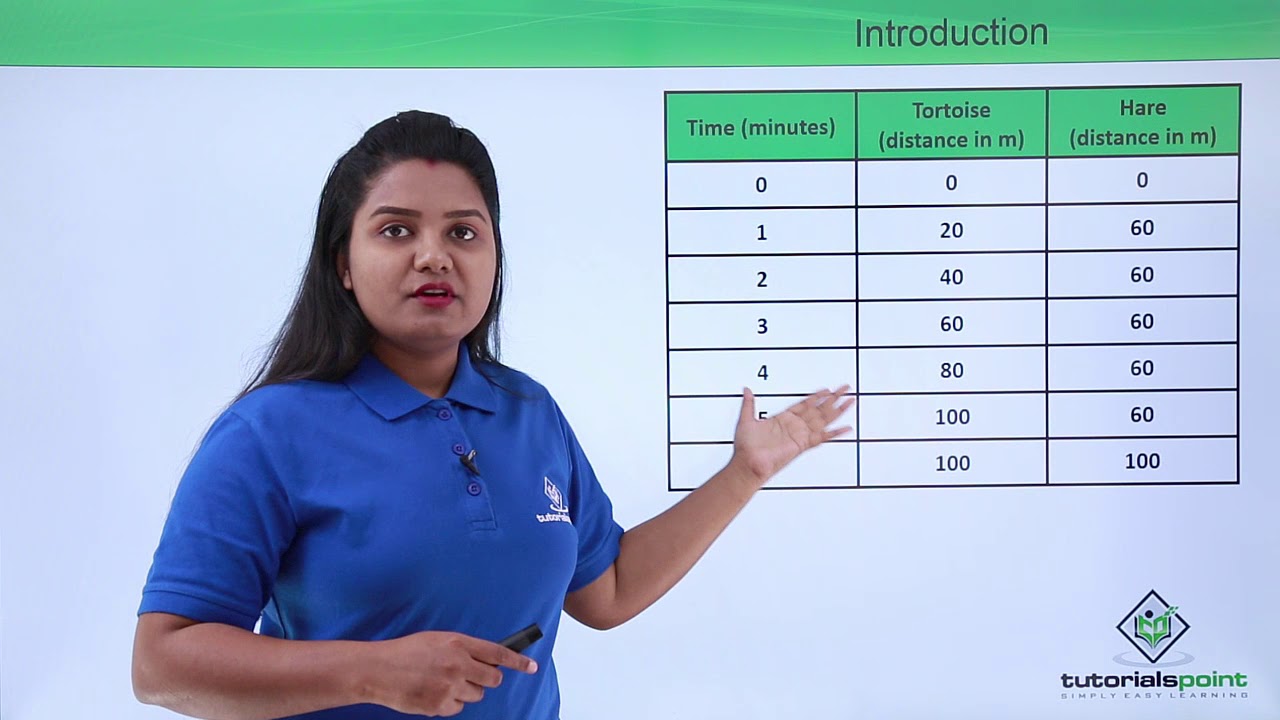

Distance-time graphs specifically plot distance on the y-axis and time on the x-axis. They allow us to see how far an object has traveled over a given time period. If the distance increases evenly with time, it indicates uniform motion. If the distance changes non-linearly, it suggests varying speeds. Such visual representations make it easier to grasp concepts like speed and acceleration quickly.

Consider a road trip. If you travel at a constant speed, plotting your total distance on a graph would yield a straight line. If you stop for breaks or drive faster at times, the line would curve or bend, representing changes in your speed.

To determine the speed of an object from a distance-time graph, consider a small part AB of the graph. The speed v of the object can be represented as v = (s2 - s1)/(t2 - t1), where s2 and s1 are the distances at points B and A respectively, and t2 and t1 are the corresponding time values.

When analyzing specific segments of a distance-time graph, you can easily calculate the speed of an object. By subtracting the initial distance from the final distance and dividing by the time taken, you find the average speed over that time interval. This process illustrates how quickly the object is moving at different points in time.

Imagine timing a car on a track with a stopwatch. If the car travels 100 meters in 5 seconds, you calculate speed using the formula: (100 m - 0 m) / (5 s - 0 s) = 20 m/s. This represents how speed calculations work using graphs.

The variation in velocity with time for an object moving in a straight line can be represented by a velocity-time graph. In this graph, time is represented along the x-axis and velocity is represented along the y-axis.

Velocity-time graphs illustrate how an object's velocity changes over time. For constant velocity, this graph would show a horizontal line. For acceleration, it slopes upwards; for deceleration, it slopes downwards. This representation allows for easy assessment of an object's motion and helps visualize acceleration, deceleration, and overall dynamics.

Think of a ride at an amusement park. If the ride speeds up gradually, the graph shows an upward slope. If it slows down, the graph slopes downward. This visual representation provides insight into the ride's changing speeds over time, much like a velocity-time graph does.

The area under the velocity-time graph represents the distance traveled by the object in a given time interval. For example, if the graph shows uniform velocity, the area under the curve is a rectangle, while for variable speed, it may be a combination of shapes.

The area under the curve on a velocity-time graph directly correlates to the distance moved by the object. This is because distance is calculated as velocity multiplied by time. In practical terms, understanding the area helps us quantify total displacement over time, regardless of how the speed varied during the trip.

Imagine filling a swimming pool. If you use a steady flow of water, the area of the rectangle formed by the flow rate over time gives you the total amount of water added. Similarly, the area under the velocity-time graph tells you how far an object travels during that time.

--
