7.4.2. Velocity-Time Graphs
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Today, we’re going to explore velocity-time graphs. Can anyone explain what we might see on such a graph?
I think we will see how fast an object is going over time.
Exactly! The velocity is plotted on the y-axis, while time is on the x-axis. So, if the line is straight, what does that mean?
It means the velocity is constant, right?
Exactly! A straight line indicates uniform motion. Let's remember this by thinking of 'slope means speed change!'
What if it’s sloping downwards?
Great question! If it slopes downward, it indicates deceleration. To sum up: upward slope means acceleration, downward slope means deceleration!
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Now that we understand how to read these graphs, how do we calculate the displacement? Who can tell me about it?
Isn’t it the area under the graph?
Correct! The area beneath the curve gives us the displacement. For a triangular area, we can use the formula: Area = 1/2 * base * height. Can someone come up with an example?
If we have a triangle with a height of 10 m/s and a base of 4 s, the area would be 20 m.
Excellent job! So, what is the displacement here?
The displacement would be 20 meters!
Right again! Let’s keep practicing this concept!
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountLet's now discuss how different shapes of the velocity-time graph represent varied types of motion. If I drew a zigzag line, what would that indicate?
That would show that the velocity is changing in a non-uniform manner.
Exactly! Non-uniform acceleration. If we see this zigzag shape, we know the object’s velocity isn’t constant. Now, what about a completely flat line?
That means the object is at rest?
Even better! A flat line on a velocity-time graph shows an object at rest. Remember: rising means speeding up, falling means slowing down, and flat means there’s no motion!
Overview
Short Summary
Velocity-time graphs visually represent how the velocity of an object changes over time, illustrating concepts of acceleration and uniform motion.
Medium Summary
The section discusses velocity-time graphs as essential tools for understanding motion. It details how these graphs can depict uniform acceleration, deceleration, and non-uniform changes in velocity. Additionally, it explains how to interpret the area under the curve in such graphs to calculate displacement.
Detailed Summary
Velocity-Time Graphs
Velocity-time graphs offer a profound way to visualize and interpret the motion of an object. In these graphs, the x-axis represents time while the y-axis denotes the velocity. By examining these graphs, we can understand the behavior of moving objects under different conditions, such as constant velocity, acceleration, and deceleration.
Key Concepts Covered:
- A velocity-time graph provides insight into how an object’s velocity changes over time. For an object moving with uniform acceleration, the graph forms a straight line, indicating consistent changes in velocity.
- The area under the velocity-time graph can be calculated, which corresponds to the displacement of the object over that period. For linear segments, the area can be found using basic geometric shapes.
- Different shapes of the velocity-time graph indicate varying types of motion; for example, a horizontal line indicates uniform motion while sloped lines show acceleration or deceleration.
Understanding these graphs is significant in physics, as they help us predict future motion, analyze moving objects’ behavior, and apply corresponding equations of motion.

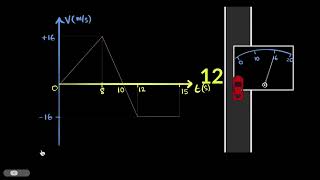

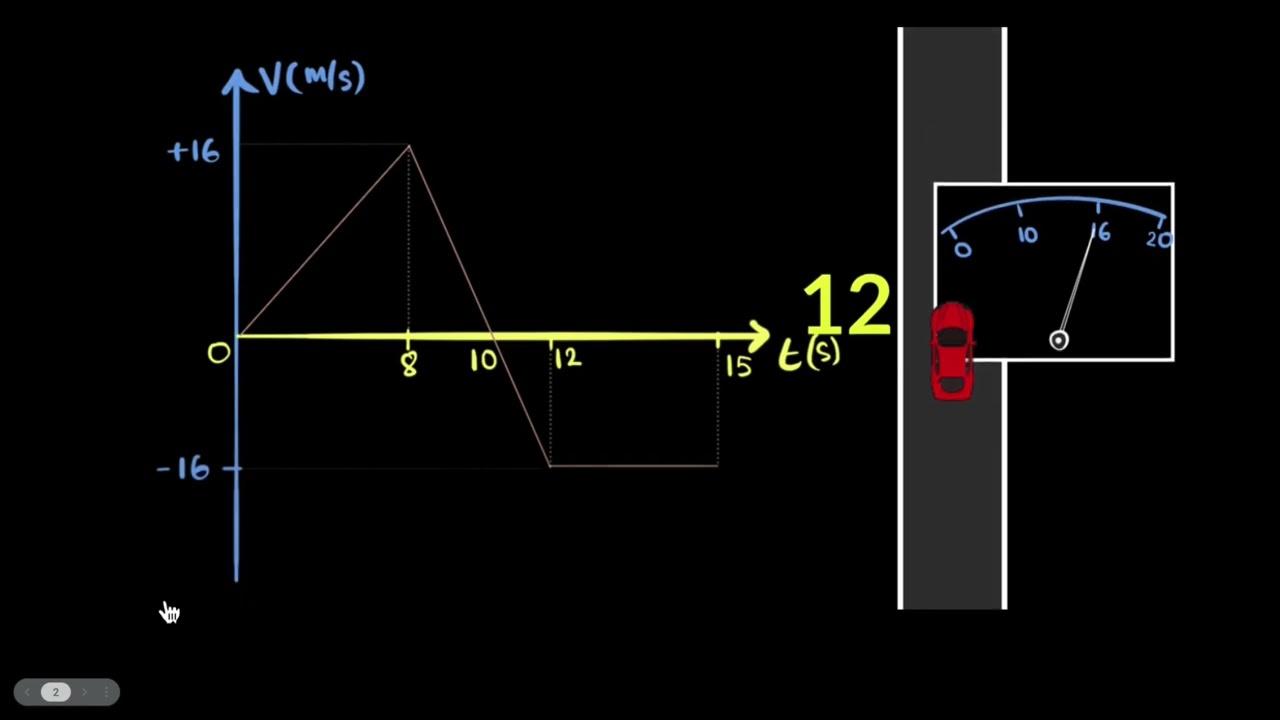

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThe variation in velocity with time for an object moving in a straight line can be represented by a velocity-time graph. In this graph, time is represented along the x-axis and the velocity is represented along the y-axis.
Detailed Explanation
A velocity-time graph is a way to visualize how the velocity of an object changes over time. The horizontal axis (x-axis) shows time, while the vertical axis (y-axis) shows velocity. This helps us see at a glance whether the object's speed is changing, staying the same, or has stopped.
Examples & Analogies
Think of a speedometer in a car while you're driving. If you keep your foot on the gas pedal, the meter shows how fast you're going over time, which is essentially what a velocity-time graph does.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThe time and velocity of the car is shown in table 7.3.
Detailed Explanation
Table 7.3 lists the velocity of a car at different time intervals. Each row in the table shows how the speed of the car increases as time passes. This increase is consistent - meaning the car is accelerating uniformly - which is reflected in the straight line of the graph. Each increase in speed is by the same amount in equal time intervals.
Examples & Analogies
Picture a car on a racetrack gradually speeding up. Every few seconds, it might gain 5 km/h more speed from the previous measurement. This steady increase, reflected as a straight line in a velocity-time graph, shows uniform acceleration.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountIn this case, the velocity-time graph for the motion of the car is shown in Fig. 7.6. The nature of the graph shows that velocity changes by equal amounts in equal intervals of time.
Detailed Explanation
The shape of the velocity-time graph indicates how the velocity of the object is changing. If the line is straight, it means the object is accelerating uniformly – that is, it gains the same amount of velocity in equal time intervals. If the line is curved, it indicates changing acceleration.
Examples & Analogies
Imagine roller coaster cars at a theme park. When they drop suddenly, the acceleration is high, but if they are leveling off, their acceleration decreases. The graph would show steepness when they drop and flattens when they level out.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountYou can also determine the distance moved by the car from its velocity-time graph. The area under the velocity-time graph gives the distance (magnitude of displacement) moved by the car in a given interval of time.
Detailed Explanation
The area under a velocity-time graph represents the total distance traveled by the object during that time. For example, in the graph, if you calculate the area of the shapes formed under the line (like rectangles and triangles), you can find out how far the car has traveled.
Examples & Analogies
Consider a swimming pool where you swim laps. If you keep track of how far you swim over time, plotting each lap on a graph would illustrate how much distance you cover. The space under your swimming-time graph shows your total distance swum.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountIn the case of non-uniformly accelerated motion, velocity-time graphs can have any shape.
Detailed Explanation
If the object is experiencing changes in acceleration that are not consistent, the velocity-time graph may appear curved or jagged. This indicates that the velocity is changing at varying rates over time, and the area under this graph still represents the total distance traveled.
Examples & Analogies
Think about riding a bicycle on a hilly road. Sometimes you speed up quickly going downhill and slow down when going uphill. A graph of your velocity over time would have ups and downs, representing the varying changes in your speed as you ascend and descend.
--
Key Concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
A velocity-time graph provides insight into how an object’s velocity changes over time. For an object moving with uniform acceleration, the graph forms a straight line, indicating consistent changes in velocity.
The area under the velocity-time graph can be calculated, which corresponds to the displacement of the object over that period. For linear segments, the area can be found using basic geometric shapes.
Different shapes of the velocity-time graph indicate varying types of motion; for example, a horizontal line indicates uniform motion while sloped lines show acceleration or deceleration.
Understanding these graphs is significant in physics, as they help us predict future motion, analyze moving objects’ behavior, and apply corresponding equations of motion.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
Example 1: A car moving at a constant speed will be shown as a horizontal line on the graph, indicating zero acceleration.
Example 2: An object accelerating uniformly will show a straight, sloped line on the graph, indicating consistent increase in speed.
Memory Aids
Interactive tools to help you remember key concepts
Stories
Memory Tools
Flash Cards
Glossary
Velocity
The speed of something in a given direction.
Displacement
The shortest distance from the initial to the final position of an object.
Acceleration
The rate at which an object changes its velocity.
VelocityTime Graph
A graph that depicts the relationship between the velocity of an object and time.
Area Under the Curve
The space between the line on a graph and the x-axis; in velocity-time graphs, it represents displacement.
