13.2 - Laws of Reflection

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Reflection

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're going to explore how light behaves when it hits reflective surfaces. Who can tell me what happens when light strikes a mirror?

Student 1
Student 1

Does the light bounce back?

Teacher
Teacher

Exactly! This is known as reflection. When light hits a smooth surface like a mirror, it is reflected back. Let's remember this with the phrase 'Light bounces bright!' Can anyone tell me the significance of the angle when light reflects?

Student 2
Student 2

Isn't there an angle of incidence?

Teacher
Teacher

Great point! The angle at which the incoming light ray strikes the surface is called the angle of incidence, while the angle at which it reflects is the angle of reflection. Remember, these two angles are always equal!

Student 3
Student 3

Why is that? How do we know the angles are equal?

Teacher
Teacher

Excellent question! We can demonstrate this with an experiment. When light hits a mirror, it reflects according to these laws because of the way light travels. Let’s remember this: 'Equal angles, happy rays!'

Activity on Light Reflection

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let’s perform Activity 13.1. Who has the materials we need? A comb, a white sheet of paper, and a mirror?

Student 4
Student 4

I have the comb and the torch!

Teacher
Teacher

Perfect! When you shine the torch through the comb, what do you see on the paper?

Student 2
Student 2

I see a ray of light!

Teacher
Teacher

Now place the mirror in the path of the light ray. What happens next?

Student 1
Student 1

The light ray changes direction!

Teacher
Teacher

Exactly! This changes due to reflection. Let’s draw our rays and normal line to analyze it further.

Angles of Incidence and Reflection

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we’ve observed reflection, let’s focus on the angles. Who remembers how we define these angles?

Teacher
Teacher

Correct! And what about the angle of reflection?

Student 3
Student 3

It's from the normal to the reflected ray.

Teacher
Teacher

Well done! So if we were to measure these angles, what observation could we make?

Student 4
Student 4

They will be equal!

Teacher
Teacher

Exactly! The equality of the angle of incidence and angle of reflection is our first law of reflection. Remember: 'Angles match when light can't catch.'

Regular vs. Diffused Reflection

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let’s consider types of reflection. What do you think happens when light hits a rough surface?

Student 2
Student 2

Does it scatter?

Teacher
Teacher

Great observation! This is called diffused reflection, which occurs on rough surfaces like cardboard. Regular reflection, on the other hand, happens on smooth surfaces like mirrors. Remember: 'Rough surfaces scatter, smooth ones flatter!'

Student 3
Student 3

So light behaves differently depending on the surface texture?

Teacher
Teacher

Exactly! This explains why images are clearer in mirrors than on walls. Let’s revisit the activities we conducted to see these differences in action.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses the laws of reflection, emphasizing the behavior of light when it encounters reflective surfaces.

Standard

In this section, the fundamental laws of reflection are introduced, highlighting how incident rays and reflected rays interact with surfaces, through detailed activities and experiments. Key concepts include the angle of incidence, angle of reflection, and the nature of regular and diffused reflection.

Detailed

Youtube Videos

Reflection of Light
Reflection of Light
What are the Laws of Reflection of Light? | Physics | Don't Memorise
What are the Laws of Reflection of Light? | Physics | Don't Memorise
Laws of Reflection | #aumsum #kids #science #education #children
Laws of Reflection | #aumsum #kids #science #education #children
laws of reflection live experiment🔥must watch|reflection of light|#learningtheory #extendedlearning
laws of reflection live experiment🔥must watch|reflection of light|#learningtheory #extendedlearning

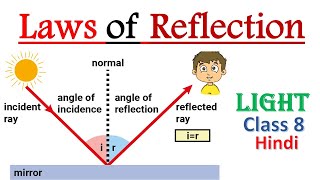

Laws of Reflection | Light Class 8 | CBSE Class 8 Science Chapter 16 | NCERT Science Class 8
Laws of Reflection | Light Class 8 | CBSE Class 8 Science Chapter 16 | NCERT Science Class 8
Laws of Reflection of Light (Experiment) | Physics | Don't Memorise
Laws of Reflection of Light (Experiment) | Physics | Don't Memorise
Reflection of Light ? Laws of reflection of light | Laws of reflection class 8 in hindi
Reflection of Light ? Laws of reflection of light | Laws of reflection class 8 in hindi
Laws of Reflection of Light, Physics
Laws of Reflection of Light, Physics
Laws of Reflection of Light? | #Shorts #YouTubeShorts #LawsOfReflection| Don't Memorise
Laws of Reflection of Light? | #Shorts #YouTubeShorts #LawsOfReflection| Don't Memorise
Grade 8 | Science | Light | Free Tutorial | CBSE | ICSE | State Board
Grade 8 | Science | Light | Free Tutorial | CBSE | ICSE | State Board

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Setup for Reflection Experiment

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Activity 13.1
Fix a white sheet of paper on a drawing board or a table. Take a comb and close all its openings except one in the middle. You can use a strip of black paper for this purpose. Hold the comb perpendicular to the sheet of paper. Throw light from a torch through the opening of the comb from one side. With slight adjustment of the torch and the comb you will see a ray of light along the paper on the other side of the comb.

Detailed Explanation

In Activity 13.1, you start by preparing a simple setup to observe the behavior of light. A white sheet of paper is placed flat, and a comb is arranged in a way that only one gap is open to allow light to pass through. By shining a torch through this opening, you create a ray of light that travels along the paper. This setup helps visualize how a ray of light interacts with surfaces.

Examples & Analogies

Think of this activity like shining a flashlight through a small opening into a dark room. The light only illuminates a narrow path, just like the ray of light on the paper. This is similar to how light travels from a source to reach our eyes.

Observing Reflection

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Place a strip of plane mirror in the path of the light ray. What do you observe? After striking the mirror, the ray of light is reflected in another direction. The light ray, which strikes any surface, is called the incident ray. The ray that comes back from the surface after reflection is known as the reflected ray.

Detailed Explanation

When you introduce a plane mirror into the setup, you can observe that the light ray that was traveling in a straight line will change direction upon hitting the mirror; this is the reflection process. The incoming light is referred to as the 'incident ray', and once it strikes the mirror and bounces back, it's termed the 'reflected ray'. This demonstrates how surfaces can redirect light.

Examples & Analogies

Consider a game of basketball where you shoot the ball (the incident ray) toward the backboard (the mirror). When the ball hits the backboard, it bounces back in a new direction (the reflected ray). This illustrates how light behaves when it encounters a reflective surface.

Understanding Angles of Incidence and Reflection

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Draw lines showing the position of the plane mirror, the incident ray, and the reflected ray on the paper with the help of your friends. Remove the mirror and the comb. Draw a line making an angle of 90º to the line representing the mirror at the point where the incident ray strikes the mirror. This line is known as the normal to the reflecting surface at that point.

Detailed Explanation

In this part, you will visualize the angles involved in reflection. After reflecting the light, you'll remove the mirror and use a protractor to draw a normal line, which is a hypothetical line perpendicular to the mirror at the point of incident. This creates a clear framework for comparing the angles of the incident and reflected rays as they relate to the normal line.

Examples & Analogies

Imagine trying to shoot an arrow towards a target. The angle at which you aim (incident angle) and the angle at which the arrow bounces off the target (reflected angle) can help you understand the reflection process of light. The normal line is like an imaginary guide that tells you how to position your shot.

Law of Reflection

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

If the experiment is carried out carefully, it is seen that the angle of incidence is always equal to the angle of reflection. This is one of the laws of reflection.

Detailed Explanation

The angle of incidence is defined as the angle between the normal line and the incoming light ray. The angle of reflection is measured similarly for the outgoing light. Through careful measurement during the activity, you will find that these two angles are always equal, demonstrating the first fundamental law of reflection.

Examples & Analogies

Consider throwing a ball against a wall. If you throw the ball at a specific angle (the angle of incidence), it will bounce back off the wall at the same angle (the angle of reflection). This consistency is what the law of reflection describes.

Reflection in the Same Plane

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

It indicates that the incident ray, the normal at the point of incidence, and the reflected ray all lie in the same plane.

Detailed Explanation

To further understand reflection, it's highlighted that not only do the angles of incidence and reflection relate to one another, but they are also confined to the same geometric plane. This means that if you were to look at these rays from the side, they would all align horizontally or vertically in a straight line, reinforcing the spatial relationship between them.

Examples & Analogies

Imagine a dance floor where dancers must stay in a specific formation. Each dancer's position must stay in line with others, just like how the incident ray, normal line, and reflected ray must align in space.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Incident Ray: The ray of light that hits a reflecting surface.

  • Reflected Ray: The ray of light that is sent back from the surface after reflection.

  • Angle of Incidence and Reflection: Both angles are equal when measured with respect to the normal.

  • Normal: A line drawn perpendicular to the point of incidence on a reflecting surface.

  • Regular Reflection: Occurs on smooth surfaces where clear images are formed.

  • Diffused Reflection: Occurs on rough surfaces causing light to scatter.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • An example of regular reflection is seeing your own reflection in a bathroom mirror. The smooth surface provides clear images.

  • An example of diffused reflection can be seen when light hits a wall; the light scatters in various directions, producing no distinct image.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Angles match when light has a catch!

📖 Fascinating Stories

  • When a ray of light meets a mirror, it's like meeting a friend; they both face each other and go their separate ways—equal and opposite!

🧠 Other Memory Gems

  • Recall 'IRR' - Incident, Reflected, Regular for understanding how light behaves when interacting with surfaces.

🎯 Super Acronyms

MIRROR - Multiple Images Reflected, Regular Reflection Occurs.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Angle of Incidence

    Definition:

    The angle between the incident ray and the normal at the point of incidence.

  • Term: Angle of Reflection

    Definition:

    The angle between the reflected ray and the normal at the point of reflection.

  • Term: Incident Ray

    Definition:

    The ray of light that strikes the surface.

  • Term: Reflected Ray

    Definition:

    The ray of light that bounces off the surface.

  • Term: Normal

    Definition:

    A line perpendicular to the surface at the point of incidence.

  • Term: Regular Reflection

    Definition:

    Reflection from a smooth surface, producing a clear image.

  • Term: Diffused Reflection

    Definition:

    Reflection from a rough surface, scattering light in many directions.

  • Term: Lateral Inversion

    Definition:

    The reversal of an image in a mirror, where left and right are swapped.
