7.4.1 - Distance Time Graphs

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Distance-Time Graphs

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we will explore distance-time graphs. These graphs help us visualize how far an object has moved over a period of time. Can anyone explain what variables we would use on each axis?

Student 1
Student 1

Time should be on the x-axis, right?

Teacher
Teacher

Exactly! And what about the y-axis?

Student 2
Student 2

It should represent distance!

Teacher
Teacher

Correct! So we plot time on the x-axis and distance on the y-axis. This helps us see the relationship between time and distance visually.

Student 3
Student 3

Why is this relationship important?

Teacher
Teacher

Great question! It allows us to determine speed by calculating the slope of the graph. The steeper the slope, the faster the object is moving. Remember this: 'Slope = speed!'

Student 4
Student 4

So, a straight line means uniform speed?

Teacher
Teacher

Yes! If the line goes up steadily, it indicates uniform speed. Let’s summarize what we’ve learned: Distance-time graphs plot distance against time, allowing us to analyze speed.

Interpreting Graphs of Uniform Motion

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's look at a graph showing uniform motion. What do you notice about the line?

Student 1
Student 1

It’s a straight diagonal line!

Teacher
Teacher

Exactly! This indicates that the object is moving at a constant speed. Can someone tell me how we determine speed from this graph?

Student 2
Student 2

We calculate the slope!

Teacher
Teacher

Yes! We can find the speed by using the formula: speed = distance covered / time taken. If I say the distance is 20 meters over 4 seconds, what's the speed?

Student 3
Student 3

It’s 5 meters per second!

Teacher
Teacher

Perfect! Now, who can share what a flat line indicates on our graph?

Student 4
Student 4

That the object isn’t moving, it’s at rest.

Teacher
Teacher

Right you are! A flat line signifies no distance covered over time. We’ve now established how to interpret uniform motion on distance-time graphs.

Understanding Non-Uniform Motion

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s discuss non-uniform motion now. How do you think it would appear on a graph?

Student 3
Student 3

Maybe a curve or zigzag line?

Teacher
Teacher

Correct! When the speed changes unevenly, the line curves. If an object moves faster for a bit and then slows down, that changes the shape of the line. Can we think of a real-life example where this happens?

Student 1
Student 1

Like when I'm biking downhill and then hit a steep hill?

Teacher
Teacher

Exactly! This variation can be seen on the graph with slopes changing as speed increases or decreases. If I ask you to pinpoint how you’d find the average speed from quite a jagged graph, how might you approach it?

Student 2
Student 2

We could look at the total distance and total time, right?

Teacher
Teacher

Spot on! It’s crucial to accumulate distances and corresponding times. Remember, whether the line is straight or curved, we can always analyze the data this way.

Application of Distance-Time Graphs

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s apply our knowledge! Imagine we have a graph defined by points representing a car’s journey. Can you deduce the distance the car traveled after two minutes?

Student 4
Student 4

I think we can find that by checking the graph’s endpoint!

Student 3
Student 3

Yeah, and we need to find the distance on the y-axis!

Teacher
Teacher

Great observations! The area under the curve can also indicate total distance! If we calculate the area of the triangles or rectangles formed.

Student 1
Student 1

Can we do an example together?

Teacher
Teacher

Absolutely! Let’s graph together and calculate distances step by step!

Student 2
Student 2

This is fun! It’s like solving a puzzle.

Teacher
Teacher

And that’s the thinking you need! Graphs can be challenging, but they offer a way to visualize motion effortlessly.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Distance-time graphs are essential tools for visualizing and understanding the motion of objects over time, illustrating the relationship between distance traveled and time taken.

Standard

In this section, we explore how to represent the motion of objects through distance-time graphs, illustrating concepts such as uniform speed, non-uniform speed, and rest. These graphs enable us to interpret motion quantitatively and visually, providing insights into speed and displacement.

Detailed

Distance-time graphs are crucial for comprehensively understanding motion. These graphs visually demonstrate the relationship between the distance travelled by an object and the time taken. Time is represented along the x-axis, while distance is plotted on the y-axis.

  1. Uniform Motion: When an object moves at a constant speed, the graph forms a straight line. This indicates that equal distances are covered in equal time intervals.
  2. Non-Uniform Motion: If the motion is at a variable speed, the distance-time graph will exhibit a curve, showing that distances do not increase uniformly over time.
  3. Rest: A horizontal line on the graph indicates that the object is at rest, as there is no change in distance over time.

These representations allow us to calculate speed via the slope of the line, where speed is defined as distance divided by time. Moreover, the total distance covered during intervals can be derived by calculating areas under relevant segments of the graph. Understanding these graphs enhances our ability to analyze motion in real-world contexts.

Youtube Videos

Distance Time Graphs | Geometry | Maths | FuseSchool
Distance Time Graphs | Geometry | Maths | FuseSchool
Physics - Distance-Time Graph - Motion Part 8 - English
Physics - Distance-Time Graph - Motion Part 8 - English
Class 9th – Question -1 on Distance Time Graph | Motion | Tutorials Point
Class 9th – Question -1 on Distance Time Graph | Motion | Tutorials Point
GCSE Physics - Distance-Time Graphs
GCSE Physics - Distance-Time Graphs
CBSE Class 9 Physics | Graphs of Motion One Shot in 90 Seconds | NCERT Class 9th Motion Chapter-8
CBSE Class 9 Physics | Graphs of Motion One Shot in 90 Seconds | NCERT Class 9th Motion Chapter-8
Distance-Time Graphs and Velocity-Time Graphs in 99 seconds #GCSE #Physics #Revision
Distance-Time Graphs and Velocity-Time Graphs in 99 seconds #GCSE #Physics #Revision
Motion Graphs | Velocity-Time Graph and Displacement-Time Graph
Motion Graphs | Velocity-Time Graph and Displacement-Time Graph
GCSE Physics Revision
GCSE Physics Revision
GCSE Physics - Velocity Time Graphs
GCSE Physics - Velocity Time Graphs

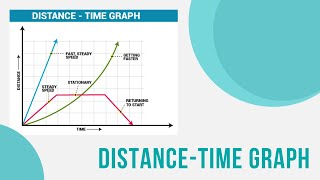

Distance Time Graph [Explained with 3D Animated Video] | Alyss
Distance Time Graph [Explained with 3D Animated Video] | Alyss

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Distance-Time Graphs

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The change in the position of an object with time can be represented on the distance-time graph adopting a convenient scale of choice. In this graph, time is taken along the x–axis and distance is taken along the y-axis.

Detailed Explanation

A distance-time graph visually represents how the distance traveled by an object changes over time. On this graph, the horizontal axis (x-axis) represents time, while the vertical axis (y-axis) shows the distance. By plotting points that indicate distance at specific time intervals, we can understand the motion of the object.

Examples & Analogies

Imagine you are tracking your running distance on a piece of paper. Each minute, you note how far you have run. When you plot these distances against time, it forms a distance-time graph. If you run continuously, the graph rises steadily. If you stop, the line will remain flat, indicating no distance is covered during that time.

Types of Motion Represented

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Distance-time graphs can be employed under various conditions where objects move with uniform speed, non-uniform speed, remain at rest etc. We can also plot the distance-time graph for accelerated motion.

Detailed Explanation

Distance-time graphs can illustrate different types of motion. For instance, if an object moves uniformly (covering equal distance in equal time), the graph will be a straight line with a slope showing its speed. If the object is stationary, the line will be horizontal, indicating no change in distance. For non-uniform speeds, the graph will show curves or changing slopes, reflecting changes in speed.

Examples & Analogies

Think about a car trip. If you're driving at a constant speed, the distance-time graph will have a straight upward line. If you stop at a traffic light (remain at rest), the graph will flatten out, showing that time is passing but distance isn't changing. If you speed up or slow down, the line will curve, showing that the speed is changing.

Determining Speed from Graphs

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

To describe the motion of an object, we can use line graphs. In this case, line graphs show dependence of one physical quantity, such as distance or velocity, on another quantity, such as time.

Detailed Explanation

The slope of a distance-time graph indicates the speed of the object. A steeper slope means higher speed, while a gentle slope indicates slower speeds. By analyzing segments of the graph, one can determine how speed varies during different times of the object's motion.

Examples & Analogies

Consider a cyclist going up a hill. As they climb, they may go slower (gentle slope on the graph) and when descending, they speed up (steeper slope). Observing the graph, you can tell when the cyclist is accelerating, maintaining steady speed, or slowing down.

Applications of Distance-Time Graphs

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

We can also study uniformly accelerated motion by plotting its velocity-time graph.

Detailed Explanation

Distance-time graphs are useful in analyzing various real-world situations, such as vehicles in motion or athletes' performances. By comparing graphs for different scenarios, students can visualize and understand differences in speed and acceleration, thus gaining insights into how speed affects distance over time.

Examples & Analogies

Imagine a sprint race where three runners start at different points. Using distance-time graphs for each runner, you can visually compare who sped up, slowed down, or maintained constant speeds. This can be seen in sports analytics, helping coaches assess performance.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Distance: Total path length traveled.

  • Displacement: Shortest straight line from start to finish.

  • Uniform Motion: Constant speed in a straight line.

  • Non-Uniform Motion: Speed changes over time.

  • Slope: Represents speed on distance-time graphs.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • If a runner completes 400 meters in 1 minute, the distance-time graph will show a straight line indicating uniform motion.

  • If a car accelerates, the distance-time graph may curve upward, representing increasing speed.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In a graph that rises straight, uniform speed is what you rate.

📖 Fascinating Stories

  • Imagine a train moving steadily; the distance chart stays steady like the train.

🧠 Other Memory Gems

  • SLOW = Steeper slopes mean Later On We speed up.

🎯 Super Acronyms

DART = Distance, Axes, Rest, Time - four key concepts of a distance-time graph.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Distance

    Definition:

    The total length of the path traveled by an object, regardless of direction.

  • Term: Displacement

    Definition:

    The shortest distance from the initial to the final position of an object, usually represented as a straight line.

  • Term: Uniform Motion

    Definition:

    Motion at a constant speed in a straight line.

  • Term: NonUniform Motion

    Definition:

    Motion where an object's speed changes over time.

  • Term: Slope

    Definition:

    The steepness of the graph; in distance-time graphs, the slope indicates speed.
