5. Aggregates – Properties, Grading, Testing

Aggregates can be classified based on the following criteria: A. Based on Size

1. Fine Aggregates: Particles passing through a 4.75 mm IS sieve and retained on a 75-micron sieve. (e.g., natural sand, crushed stone sand).
2. Coarse Aggregates: Particles retained on a 4.75 mm IS sieve. (e.g., gravel, crushed stone). B. Based on Origin
3. Natural Aggregates: Obtained from natural sources like river beds, quarries, and pits (sand, gravel).
4. Artificial Aggregates: By-products or specifically manufactured materials (e.g., blast furnace slag, lightweight expanded clay aggregate).
5. Recycled Aggregates: Derived from demolished concrete and construction waste. C. Based on Shape
6. Rounded Aggregates: Naturally weathered and smooth (e.g., river gravel).
7. Irregular Aggregates: Partially shaped, offering better bond than rounded.
8. Angular Aggregates: Rough and sharp-edged, ideal for high-strength concrete.
9. Flaky and Elongated Aggregates: Flat or needle-like, undesirable due to poor interlocking and high surface area. D. Based on Density
10. Normal Weight Aggregates: 1520–1680 kg/m³ (e.g., granite, basalt).
11. Lightweight Aggregates: <1120 kg/m³ (e.g., pumice, vermiculite).
12. Heavyweight Aggregates: >2000 kg/m³ (e.g., barite, magnetite) used for radiation shielding.

This chunk explains how aggregates are categorized based on size, origin, shape, and density.

1. Size: Fine aggregates are small particles, while coarse aggregates are larger.
2. Origin: Aggregates can be natural (from the earth) or artificial (man-made). Recycled aggregates come from old construction debris.
3. Shape: Shapes vary from rounded to angular, influencing how they bond in concrete.
4. Density: Normal weight aggregates are standard, while lightweight and heavyweight aggregates are used for specialized purposes.

Think of aggregates like different ingredients in a recipe. Just like flour and sugar can be fine or coarse, aggregates come in various sizes. Using the right kind of aggregate, like choosing between fine sugar or coarse brown sugar, is essential to achieving the desired texture and strength in a concrete mix.

5.2 Properties of Aggregates 5.2.1 Physical Properties

1. Size and Shape
   • Influences workability, packing, and strength of concrete.
   • Angular aggregates offer better interlock and strength, but lower workability.
2. Surface Texture
   • Affects the bond between cement paste and aggregate.
   • Rough-textured aggregates provide stronger bonds.
3. Specific Gravity
   • Ratio of the weight of a given volume of aggregate to the weight of an equal volume of water.
   • Apparent Specific Gravity: Excludes water in pores.
   • Bulk Specific Gravity: Includes water in permeable pores.
   • Normal range: 2.4 – 2.9.
4. Water Absorption
   • Ability to absorb water into pores, expressed as a percentage of dry weight.
   • Indicates porosity and affects mix water content.
5. Moisture Content
   • Total water present in aggregates; may be in absorbed, surface, or free form.
6. Bulk Density
   • Weight of aggregate in a unit volume (kg/m³), used for batching.
   • Loose and compacted densities are considered.
7. Voids Content
   • Percentage of space between aggregate particles.
   • Helps in mix design by estimating paste volume required.

This chunk discusses the physical properties of aggregates that impact concrete performance.

1. Size and Shape: Different shapes can affect how easily the aggregates mix and how strong the concrete is when dried.
2. Surface Texture: Rough surfaces help aggregates stick better to cement.
3. Specific Gravity: This is a measure of density that helps identify how aggregates will perform. It compares the weight of aggregates to an equal volume of water to determine their completeness.
4. Water Absorption: Aggregates can soak up water, which must be accounted for when mixing concrete.
5. Moisture Content: Understanding how wet the aggregates are before mixing is crucial for getting the right water-cement ratio.
6. Bulk Density: This helps determine how much aggregate is needed for a batch without overloading the mix.
7. Voids Content: Knowing the spaces between aggregates allows for better planning of how much paste (cement + water) is required to fill those gaps.

Imagine trying to build a sandcastle. If you use dry sand, it might not hold together well because it doesn't pack tightly. But if you add just the right amount of water, it becomes strong and stable. This is similar to how aggregates work in concrete: their size, shape, and moisture affect how well concrete sets and stays solid.

5.3 Grading of Aggregates Grading refers to the distribution of particles of different sizes in an aggregate sample. 5.3.1 Objectives of Good Grading

• Reduce void content in concrete.
• Ensure workability and durability.
• Reduce cement consumption.
• Achieve maximum density. 5.3.2 Types of Grading

1. Uniform Grading: Aggregates of similar size – higher voids, less stability.
2. Gap Grading: Missing intermediate sizes – prone to segregation.
3. Well Graded: Properly distributed sizes – dense and strong concrete. 5.3.3 Grading Limits and Zones As per IS:383-2016, fine aggregates are classified into four grading zones (Zone I to IV). Coarse aggregate grading depends on nominal size (10 mm, 20 mm, etc.) with specified limits on sieve analysis.

Grading is vital for determining the mix of aggregates in concrete.

1. Objectives: Good grading helps minimize empty spaces in the mixture, improving overall strength and reducing excess material costs.
2. Types of Grading: Uniform grading can lead to too many gaps, while gap grading can create instability. Well-graded aggregates have a variety of sizes leading to a compact concrete mix.
3. Grading Limits: Standards exist to define acceptable sizes and distributions of aggregates to ensure quality concrete.

Think of mixing colors of paint. If you only use one color (uniform grading), the wall looks bland; but if you use a range of colors (well graded), the wall is vibrant and even. Grading aggregates is similar: it ensures that the concrete has the right mix for strength and appearance.

5.4 Testing of Aggregates 5.4.1 Sieve Analysis

• Determines particle size distribution.
• Aggregates are passed through standard IS sieves, and weight retained on each sieve is recorded. 5.4.2 Specific Gravity and Water Absorption (IS 2386 Part III)
• Pycnometer method or wire basket method used.
• Determines porosity and absorption characteristics. 5.4.3 Aggregate Crushing Value Test (IS 2386 Part IV)
• Cylinder filled with aggregate and subjected to compressive load.
• Percentage of crushed material gives ACV. 5.4.4 Aggregate Impact Value Test
• Sample placed in a cylindrical cup and subjected to 15 blows from a hammer.
• Measures resistance to impact. 5.4.5 Los Angeles Abrasion Test (IS 2386 Part IV)
• Aggregate subjected to abrasion and impact in a rotating drum with steel balls.

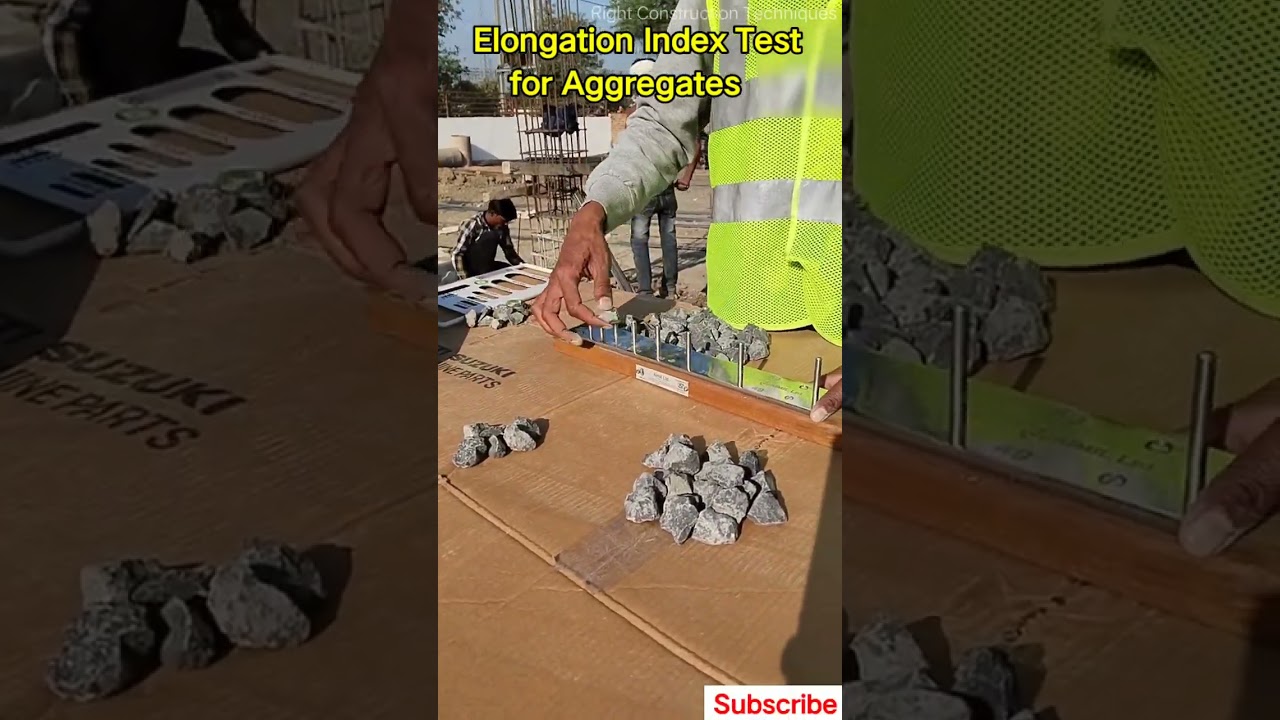

• Percentage wear indicates resistance to abrasion. 5.4.6 Flakiness and Elongation Index Test
• Determines shape characteristics.
• Flaky: thickness < 0.6 × mean size.
• Elongated: length > 1.8 × mean size. 5.4.7 Soundness Test
• Repeated cycles of soaking in sodium/magnesium sulfate solution and drying.
• Assesses resistance to weathering. 5.4.8 Alkali-Aggregate Reactivity Test
• Mortar bars made with aggregate are stored in hot water to monitor expansion.
• High expansion indicates reactive aggregates.

Testing aggregates ensures they meet required standards for effective concrete performance.

1. Sieve Analysis: This test checks the size range of the aggregate particles by filtering them through different-sized sieves.
2. Specific Gravity and Water Absorption: These tests determine how much water aggregates can absorb and how dense they are.
3. Crushing and Impact Tests: These measure how well aggregates can withstand pressure and sudden forces, respectively.
4. Abrasion Test: This test assesses durability by simulating wear in a controlled environment.
5. Flakiness and Elongation: These tests check for aggregate shapes that could affect the mix.
6. Soundness Test: This tests an aggregate's ability to stand up to weather changes.
7. Alkali-Aggregate Reactivity: It checks if aggregates could react adversely with cement, which could weaken the concrete over time.

Testing aggregates is similar to checking the quality of food ingredients before cooking. Just as a cook wants the right quality of flour or spices to ensure the dish is tasty and safe, engineers must test aggregates to ensure that concrete will be strong and durable. A bad ingredient can ruin the entire dish, just like poor aggregates can lead to weak concrete.

--
