Functional Units of a Computer - 1.2

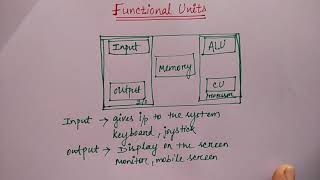

This section details the specialized functional units that comprise a computer system. It describes the roles of Input/Output Units for external interaction, the Memory Unit for data and instruction storage, the Arithmetic Logic Unit (ALU) for computations, the Control Unit (CU) for orchestration, and the CPU (integrating ALU/CU with registers) as the central execution unit. It also covers the Interconnection Structure (buses) that enables communication between these units. ### Medium Summary This section provides a detailed breakdown of a computer's functional units, explaining their individual roles and how they collaboratively process information. It elaborates on Input Units (converting external data to machine-readable format) and Output Units (converting processed data for external use). The Memory Unit is explored, differentiating between volatile Primary Memory (RAM) for active data and non-volatile Secondary Memory for long-term storage. Central to computation are the Arithmetic Logic Unit (ALU), performing arithmetic and logical operations, and the Control Unit (CU), which interprets instructions and orchestrates all operations. These two, along with registers, form the Processor (CPU). Finally, the Interconnection Structure (buses: Address, Data, Control) is explained as the communication backbone facilitating data exchange between all these units. ### Detailed Summary ### 1.2 Functional Units of a Computer Beyond the high-level components, a computer system is a collection of several specialized functional units, each playing a distinct and crucial role in processing information. These units communicate via the interconnection structure. ● **Input Unit:** ○ **Role:** The input unit acts as a transducer and translator, converting information from the outside world into a machine-readable binary format that the computer's central processing unit can process. It handles user input, sensor data, or data from other systems. ○ **Process:** It often involves physical interaction (e.g., key press), conversion of analog signals to digital (e.g., microphone), or direct digital reception. This digital data is then transferred to the CPU or memory. ○ **Examples:** A keyboard translates key presses into character codes; a mouse translates physical movement into cursor coordinates; sensors convert physical quantities (temperature, pressure) into electrical signals, which are then digitized; a network card receives digital data packets. ● **Output Unit:** ○ **Role:** The output unit performs the inverse function of the input unit. It takes processed binary data from the computer's internal registers or memory and converts it into a form that is understandable to humans or usable by external devices. ○ **Process:** This involves converting digital signals into visual displays, printed text, audio waves, or control signals for machinery. ○ **Examples:** A display monitor converts pixel data into light; a printer converts text/image data into ink on paper; speakers convert digital audio signals into sound waves; actuators (e.g., motors, valves) in industrial control systems convert digital commands into physical motion or state changes. ● **Memory Unit:** ○ **Role:** The memory unit is the computer's storage facility, serving as a repository for both the instructions that constitute programs and the data that those programs manipulate. Its primary function is to store and retrieve information rapidly as directed by the CPU. ○ **Primary Memory (Main Memory / RAM - Random Access Memory):** This is the computer's fast, working memory directly accessible by the CPU. It holds programs currently being executed and the active data they require. RAM is "random access" because any memory location can be accessed directly and quickly, regardless of its physical position. However, it is volatile, meaning all its contents are lost the moment power is removed. Its speed is crucial for CPU performance, as the CPU constantly fetches instructions and data from here. ○ **Secondary Memory (Auxiliary Storage):** This type of memory is used for long-term, non-volatile storage of programs and data. It is significantly slower to access than primary memory but offers much larger storage capacities at a lower cost per bit. Data must be moved from secondary memory to primary memory before the CPU can process it. ■ **Examples:** Hard Disk Drives (HDDs - magnetic storage), Solid State Drives (SSDs - flash-based electronic storage), USB flash drives, and optical discs (CDs, DVDs, Blu-rays). ○ **Data and Instruction Storage:** A key aspect of the stored-program concept is that both the binary instructions of a program and the binary representation of the data it operates on reside together in the main memory, allowing the CPU to access them interchangeably via addresses. ● **Arithmetic Logic Unit (ALU):** ○ **Role:** The ALU is a fundamental digital circuit within the CPU that performs all the actual computational work. It is where arithmetic operations and logical operations are executed at the bit level. ○ **Arithmetic Operations:** It can perform basic mathematical operations such as addition, subtraction, and often more complex ones like multiplication and division (though these might be broken down into simpler ALU operations over multiple clock cycles). ○ **Logical Operations:** It performs bitwise logical operations like AND, OR, NOT, XOR, and bit shifting (moving bits left or right within a word) or rotation. These are essential for manipulating individual bits or flags and for comparisons. ○ **Output:** Besides the computed result, the ALU also produces "status flags" (often stored in a Condition Code Register). These flags (e.g., Zero flag, Carry flag, Sign flag, Overflow flag) indicate specific characteristics of the operation's result, which are crucial for conditional branching in programs. ● **Control Unit (CU):** ○ **Role:** The Control Unit is the nerve center of the CPU. It is responsible for interpreting instructions and generating the necessary control signals to orchestrate all other functional units of the computer, ensuring that operations occur in the correct sequence and at the right time. It doesn't perform computations itself; rather, it directs who computes what and when. ○ **Functionality:** It fetches instructions from memory, decodes them (interprets their meaning), and then generates precise timing signals and control signals. These signals activate specific data paths, tell the ALU which operation to perform, enable or disable registers, and control data transfers between various components (CPU, memory, I/O). It essentially manages the entire Fetch-Decode-Execute cycle. Its design can be complex, often implemented either as hardwired logic or through microprogramming (concepts explored in Module 5). ● **Processor (Central Processing Unit - CPU):** ○ **Role:** The CPU is the primary execution unit of the computer. It integrates the ALU and the Control Unit, along with a collection of high-speed internal storage locations called registers. Its fundamental purpose is to fetch, decode, and execute instructions from a stored program. ○ **Registers:** These are small, extremely fast storage locations directly within the CPU. They are used to hold data, instructions, and addresses that are actively being processed, providing immediate access during execution without the need to go to slower main memory. Examples include the Program Counter (PC), Instruction Register (IR), Memory Address Register (MAR), Memory Data Register (MDR), and various General-Purpose Registers. ● **Interconnection Structure (Buses):** ○ **Role:** This refers to the system of pathways that connect all the major functional units of a computer (CPU, memory, I/O devices), enabling them to communicate and exchange information. These pathways are called buses, and they are essentially collections of electrical lines or wires. The number of lines in a bus (its "width") directly impacts how much information can be transferred simultaneously. ○ **Address Bus:** This is a unidirectional bus that carries memory addresses or I/O port addresses from the CPU to memory or I/O devices. When the CPU wants to read from or write to a specific location, it places the address of that location onto the address bus. The width of the address bus determines the maximum amount of memory (addressable space) that the CPU can access. ○ **Data Bus:** This is a bidirectional bus that carries the actual data being transferred between the CPU, memory, and I/O devices. When the CPU performs a read operation, data from memory or an I/O device is placed on the data bus to be sent to the CPU. When the CPU performs a write operation, data from the CPU is placed on the data bus to be sent to memory or an I/O device. The width of the data bus determines the amount of data transferred in a single operation (e.g., 8-bit, 16-bit, 32-bit, 64-bit). ○ **Control Bus:** This is a bidirectional bus that carries control signals used to manage and coordinate operations among the various components. These signals dictate the timing and nature of transactions. ■ **Examples of Control Signals:** Read/Write signals (indicating whether the CPU wants to read or write data), Clock signals (synchronizing operations), Interrupt request signals, Bus grant/request signals (for bus arbitration). The Control Unit generates many of these signals. ○ **Interaction:** For example, to read data from memory, the CPU would place the memory address on the address bus, assert a "read" signal on the control bus, and then wait for the requested data to appear on the data bus.
