42. Base Isolation Techniques

Base isolation is one of the most advanced and widely adopted seismic protection techniques used in modern structural engineering. It is a passive control system aimed at reducing the impact of ground motion on buildings during an earthquake. Instead of resisting seismic forces through increased strength and ductility, base isolation works by decoupling the building from the ground, thus allowing it to move relatively independently during an earthquake. Base isolation techniques have proven effective in protecting both new and retrofitted structures, especially critical facilities such as hospitals, emergency control centers, bridges, and heritage buildings. The core principle lies in placing flexible bearings or isolators between the building and its foundation to absorb or deflect seismic energy.

Base isolation is a technique used in construction to help buildings better withstand earthquakes. Rather than making buildings stronger or more rigid, base isolation allows them to move freely relative to the ground, which can significantly reduce the building's damage during an earthquake. This method involves installing special devices called isolators between the building and its foundation, which can absorb or redirect seismic forces. Base isolation is especially crucial for structures that need to remain operational during or after an earthquake, such as hospitals or bridges.

Imagine a car driving on a rough road. If the car is very rigid with no suspension, the passengers will feel every bump and jolt. However, if the car has a good suspension system, it can absorb those bumps and provide a smoother ride. Similarly, base isolators act like a suspension system for buildings, allowing them to 'ride out' the shaking of an earthquake.

• Concept of Isolation: The fundamental idea is to insert a flexible interface between the superstructure and its foundation so that the seismic energy is not directly transmitted to the structure. • Natural Period Shift: Base isolation shifts the natural period of the structure to a longer period, moving it away from the dominant frequencies of ground motion, thereby reducing acceleration response. • Energy Dissipation: Isolators provide damping, helping to dissipate energy and reduce structural displacement.

The principles behind base isolation focus on three main ideas:

1. Concept of Isolation: This refers to the idea of adding a flexible layer between the building and the ground. This layer absorbs vibrations, preventing them from reaching the building.
2. Natural Period Shift: Every building has a natural frequency at which it vibrates. Base isolation can change this frequency to a longer period, meaning it oscillates less violently during an earthquake because it is out of sync with the earth's movement.
3. Energy Dissipation: The systems used for base isolation provide damping, which means they can absorb the energy from seismic waves. This helps reduce the sway and movement of the building, minimizing potential damage.

Think of a pendulum swinging. If you push a pendulum at its natural frequency, it swings wildly. But if you push it slowly and at a different frequency, it swings much less. Base isolation works similarly by changing the 'frequency' of the building, thus reducing its swinging during an earthquake.

• Isolation Bearings: These are the most critical elements. They come in various types: – Elastomeric Bearings (natural or synthetic rubber) – Lead Rubber Bearings (LRB) – High Damping Rubber Bearings (HDRB) – Friction Pendulum Systems (FPS) – Sliding Bearings • Damping Mechanisms: Incorporated to reduce residual motion, often integrated within the isolators. • Moisture and Environmental Protection Layers: To protect isolators from degradation due to environmental exposure. • Foundation and Superstructure Interface Elements: Connections that transmit vertical loads while accommodating horizontal movements.

A base isolation system consists of several components that work together to ensure its effectiveness:

1. Isolation Bearings: These are the key elements that provide flexibility and allow movement. Different types include elastomeric bearings made from rubber, lead rubber bearings that use lead for additional energy absorption, high damping rubber bearings for enhanced energy dissipation, friction pendulum systems that use curved sliding surfaces, and sliding bearings that allow for smooth lateral movement.
2. Damping Mechanisms: These are designed to help control the motion of the building after an earthquake, minimizing movement and returning to a stable position.
3. Protection Layers: These layers are essential for shielding the isolators from moisture and other environmental factors that could weaken them over time.
4. Foundation and Superstructure Interface: This includes the parts that connect the building and its foundation, ensuring that vertical loads are supported while allowing for necessary horizontal shifts.

You can think of isolation bearings like the cushioning in a good pair of sneakers. Just as the cushioning absorbs shock and provides comfort while walking, isolation bearings absorb seismic energy, allowing the building to 'float' and reduce the impacts of shaking during an earthquake.

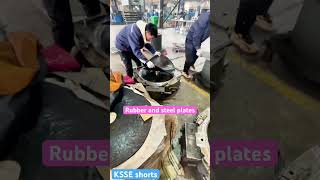

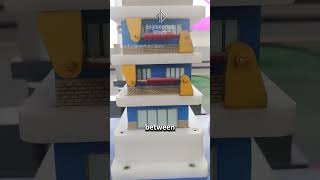

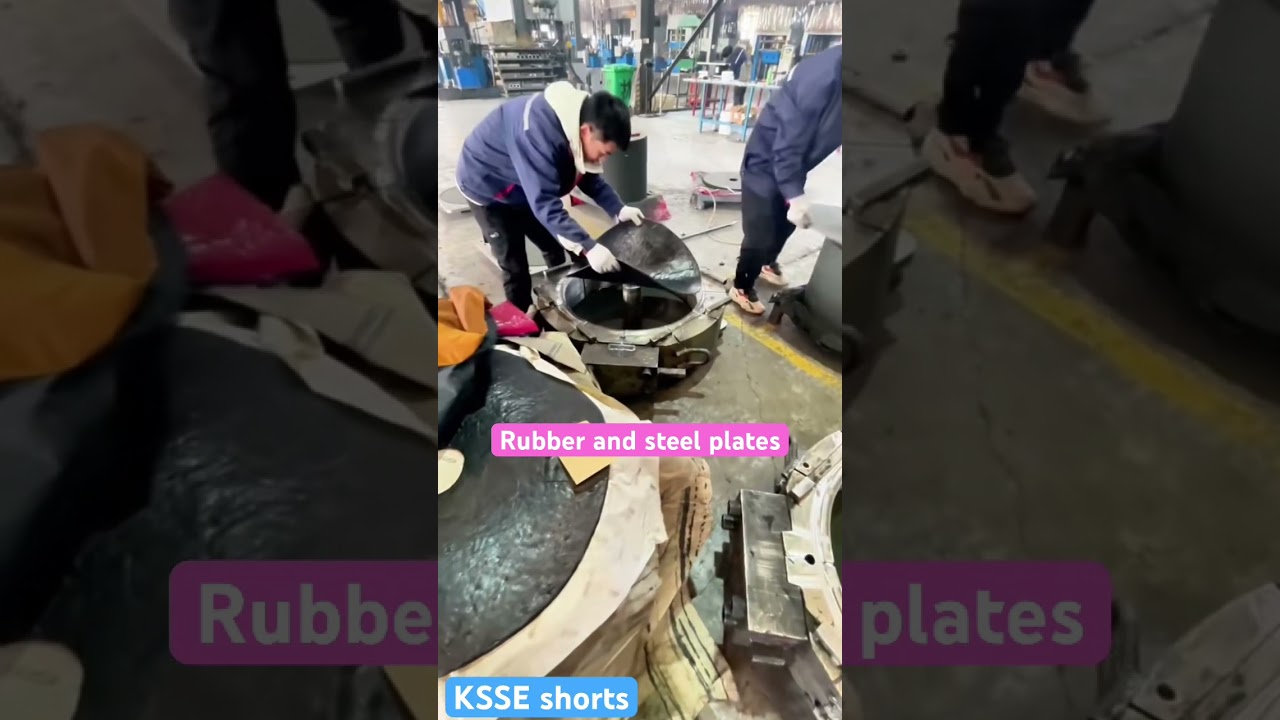

• Elastomeric Isolation System: Uses alternating layers of rubber and steel shims. It provides flexibility in the horizontal direction while supporting vertical loads. • Lead Rubber Bearings (LRB): A central lead core is inserted in elastomeric bearings to provide additional energy dissipation through yielding of lead. • Sliding Isolation System: Uses materials with low friction coefficients. Variants include: – Pure Friction Sliding – Friction Pendulum Bearings (FPB): Combine friction and restoring force due to curvature. • Hybrid Systems: Combine two or more types of isolators to achieve optimized performance.

There are several different types of base isolation systems, each with unique properties:

1. Elastomeric Isolation Systems: These feature layers of rubber and steel, providing a combination of flexibility and strength. They are effective in allowing movement while supporting the building's weight.
2. Lead Rubber Bearings (LRB): These bearings have a central core of lead that helps to absorb energy during an earthquake, enhancing their performance.
3. Sliding Isolation Systems: These systems utilize materials with low friction, enabling the building to slide and thus reduce the transmitted forces from ground motion. There are variants such as pure friction sliding and friction pendulum bearings, which offer different methods of managing movement and restoring forces.
4. Hybrid Systems: These systems combine various isolation types to capitalize on the strengths of each and provide the best protection for specific buildings.

Imagine different kinds of sports equipment designed for specific functions. Just like a tennis racket, basketball, or soccer ball has its specific way of functioning best, different isolation systems are designed for particular conditions and requirements in buildings to withstand seismic forces better.

• Deformation Patterns: Majority of displacement occurs at the isolation level, with minimal inter-storey drift. • Acceleration Reduction: Lower seismic accelerations are transmitted to the structure, protecting both structural and non-structural components. • Frequency Decoupling: Effective isolation occurs when the building’s isolated frequency is well separated from dominant ground frequencies.

Base-isolated structures behave differently during an earthquake compared to fixed-base structures because of how the isolation system operates:

1. Deformation Patterns: When shaking occurs, most of the movement happens at the isolation layer instead of the building itself. This means that floors in the building experience much less shifting (called inter-storey drift), which helps reduce the risk of damage.
2. Acceleration Reduction: Because the building is isolated, the amount of acceleration (the speed of movement) it experiences is greatly reduced. This protects both the heavy structural elements and lighter non-structural elements, like windows and furnishings.
3. Frequency Decoupling: For base isolation to be effective, the isolated frequency of the building needs to be different from the frequency of the ground movements. This separation allows the building to move without resonating with the ground's motion, thereby enhancing stability.

Think of a swing at a playground. If you push it at the right moment, it swings higher. But if you push it at the wrong moment, it might not swing at all. In a similar sense, if a building is in tune with the shaking frequencies of the ground, it can experience a lot of movement; but with base isolation, the building is designed to wiggle differently so it doesn’t resonate with the ground.

• Two-Degree-of-Freedom (2DOF) System: Representing the building mass and isolation mass, with separate stiffness and damping properties. • Equation of Motion: Derived for linear and non-linear base isolators: Mu¨+Cu˙ +Ku=−Mu¨g • where M, C, K represent mass, damping, and stiffness matrices respectively, and u¨ is ground acceleration. • Time History and Response Spectrum Analysis: Used to evaluate performance under various ground motion inputs.

To analyze how base-isolated buildings react during earthquakes, engineers use mathematical models:

1. Two-Degree-of-Freedom (2DOF) System: This is a simplified representation that models both the building and isolation mass separately, each with different properties (stiffness and damping). This approach helps in understanding how the system behaves during shaking.
2. Equation of Motion: A mathematical relationship helps predict how the building will respond to ground motion. It incorporates various properties of the building system, including mass and stiffness, to model the dynamics accurately.
3. Time History and Response Spectrum Analysis: These are advanced techniques used to simulate how a building will perform in an earthquake based on different ground motions. This helps engineers design better isolation systems by evaluating the building's response under various conditions.

Think of a musician tuning their instruments before a concert. Just as the musician uses scales and notes to ensure their instrument sounds perfect, engineers use mathematical models and equations to ensure a building will respond properly to earthquakes and vibrations.

• Site Suitability: Not all sites are suitable — soil conditions, seismicity, and space for isolator movement must be considered. • Building Configuration: Regularity in plan and elevation is preferred. Vertical irregularities can complicate isolation. • Seismic Gap: Adequate clearance must be provided around the structure to accommodate isolator movement. • Service Load Support: Isolators must carry vertical loads without excessive deformation under normal conditions. • Fire and Maintenance Considerations: Isolators must be protected against fire, corrosion, and mechanical degradation.

When designing a base-isolated building, several critical factors need to be taken into account:

1. Site Suitability: It’s crucial to assess the location chosen for a building. Factors like soil type, seismic activity in the area, and the space required for isolators to work are essential in determining whether base isolation will be effective.
2. Building Configuration: The design of the building should be regular, meaning it should have a balanced shape to ensure the isolation system functions correctly. If a building is irregularly shaped, it may create problems during seismic events.
3. Seismic Gap: There must be space (a gap) around the building to allow the isolators to shift without encountering obstructions from adjacent structures.
4. Service Load Support: Base isolators need to be able to support the building's weight without bending or breaking under normal loads.
5. Fire and Maintenance Considerations: It is vital to protect isolators from potential environmental threats, including fire and wear due to the weather, to ensure their longevity and performance.

Imagine building a playground on a soft sandy beach versus a firm concrete surface. At the beach, the swings may sink and become unusable due to the sand, while on concrete, they'll stand firm and function well. In the same way, evaluating soil and environmental conditions is vital for ensuring that a building with base isolation will perform effectively.

• Prototype Testing: Large-scale tests (e.g., shake table tests) simulate actual seismic behavior. • Material Testing: Elastomer, lead, and other materials are tested for fatigue, hysteresis, and aging behavior. • Codal Testing Requirements: Standards like ISO, ASTM, and BIS provide testing protocols for isolators.

Before base isolation systems are deployed in buildings, they go through rigorous testing to ensure effectiveness:

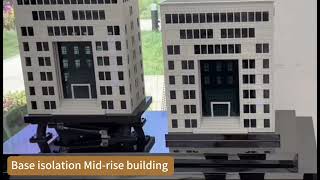

1. Prototype Testing: Engineers conduct large-scale tests, such as shake table tests, which simulate real earthquake conditions to observe how the isolation systems react under stress.
2. Material Testing: The materials used in isolators, such as rubber and lead, undergo various tests to measure their strength and durability over time. This ensures that they can withstand repeated seismic forces without failing.
3. Codal Testing Requirements: There are standards set by organizations like ISO and ASTM that outline specific procedures for testing isolators. Following these protocols ensures consistency and reliability in performance.

Think of how products like car tires go through rigorous safety tests before they hit the market. Just like those tires need to prove they can handle rough conditions, base isolation devices must also undergo extensive testing to ensure they will work when needed most during an earthquake.

• Indian Standards: – IS 1893 (Part 1): General Provisions. – IS 1893 (Part 4): Guidelines for base-isolated structures (under development in some cases). – IS 13920: For ductile detailing. • International Codes: – UBC (Uniform Building Code) – ASCE 7 – Eurocode 8

To ensure the safety and effectiveness of base-isolation systems, various codal provisions and guidelines exist:

1. Indian Standards (like IS 1893): These include general provisions and specific guidelines aimed at ensuring base-isolated structures meet safety requirements. Ongoing development strives to keep these guidelines updated with modern practices.
2. International Codes: There are also globally recognized codes, such as the Uniform Building Code, ASCE 7, and Eurocode 8, which outline requirements and best practices for designing earthquake-resistant structures.

Consider how just like regulations in a country ensure that drivers follow road rules for safety, building codes are essential to ensure that structures are built in a way that mitigates risks during earthquakes, keeping everyone safe.

• Hospitals and Critical Infrastructure: Base isolation ensures functionality post-earthquake (e.g., Bhuj Civil Hospital in Gujarat). • Cultural Heritage Structures: Isolated retrofitting used for historic buildings without altering appearance. • High-rise and Office Buildings: Widely used in Japan, USA, New Zealand (e.g., San Francisco City Hall). • Bridges and Viaducts: Base isolation provides longitudinal flexibility and protection.

Base isolation techniques have proven versatile and effective across various applications:

1. Hospitals and Critical Infrastructure: Hospitals like the Bhuj Civil Hospital in Gujarat use base isolation to maintain functionality after seismic events, ensuring they can serve the community even during emergencies.
2. Cultural Heritage Structures: Isolated retrofitting allows for the strengthening of historical buildings, helping to preserve their appearance while enhancing their safety.
3. High-rise and Office Buildings: In regions like Japan and the USA, base isolation has been successfully implemented in tall buildings, providing added protection from earthquakes.
4. Bridges and Viaducts: Base isolation enhances the flexibility of bridges, allowing them to withstand seismic forces without sustaining damage.

Imagine having a protective case for a delicate smartphone. Just like that case helps protect the phone from drops and impacts, base isolation helps protect various types of buildings and structures, especially those critical for emergency response, from the destructive forces of earthquakes.

Advantages: • Significant reduction in acceleration and drift. • Protection of non-structural components. • Reduced damage to building contents. • Suitable for both new and retrofit applications. Limitations: • High initial cost. • Space requirement for seismic gaps. • Not effective in soft soil sites or for very tall buildings. • Complex design and analysis.

Base isolation offers several advantages as well as some limitations: Advantages:

• One of the biggest benefits is a dramatic reduction in building movement and structural strain during earthquakes, which protects lives and property.
• It not only protects the building itself but also the contents inside (like furniture and equipment), minimizing losses during quakes.
• Base isolation systems can be integrated into both new constructions and older buildings being retrofitted for earthquakes. Limitations:
• The technology can come with a high upfront cost, making it a less attractive option for some clients or projects.
• Buildings need additional space around them to allow for the movement of isolation systems.
• Base isolation might not perform well on soft soil or for particularly tall structures due to instability issues.
• The design and analysis involved can be complex, requiring specialized knowledge.

Think of insurance. It provides significant advantages in protecting you against loss or damage, but it can also be costly and is not suitable for everyone. Similarly, base isolation offers fantastic protective benefits for buildings, but the realities of budget and site conditions must be considered.

• Smart Base Isolation Systems: Use of shape memory alloys, magnetorheological dampers, and real-time adaptive control. • Modular Prefabricated Isolation Pads: Easier installation and replacement. • Performance-Based Design Integration: Tailoring isolation systems to meet desired performance levels under different seismic intensities. • Hybrid Control Systems: Combining base isolation with active or semi-active dampers for enhanced control.

The field of base isolation is continuously evolving with new technologies and methodologies:

1. Smart Base Isolation Systems: Innovations like shape memory alloys and magnetorheological dampers allow systems to adapt in real-time based on seismic activity, providing even better protection.
2. Modular Prefabricated Isolation Pads: These are designed for easier installation and maintenance, allowing for quicker and simpler upgrades to existing buildings.
3. Performance-Based Design Integration: Rather than prescribing a one-size-fits-all solution, these approaches allow systems to be tailored to meet specific performance criteria based on the expected severity of earthquakes in the area.
4. Hybrid Control Systems: These systems combine traditional base isolation with active or semi-active dampers, providing superior control and responsiveness during seismic events.

Just as smartphones evolve with new software and features to keep up with user needs and advances, base isolation systems are being developed and improved to enhance safety and adaptability against earthquakes, responding intelligently to the changing demands of modern architectural needs.

--
