Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Elastomeric Isolation System
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's begin by discussing the elastomeric isolation system. This type utilizes alternating layers of rubber and steel shims to provide flexibility in movement. Who can tell me what benefits this flexibility provides during an earthquake?
Is it to allow the building to move without getting damaged?
Exactly! This flexibility helps absorb ground motion and minimizes the forces transmitted to the building. Additionally, the layers support vertical loads. Can anyone summarize how this system works in one sentence?
It uses rubber and steel to let buildings flex in an earthquake while holding them up.
Lead Rubber Bearings
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's move on to lead rubber bearings, or LRBs. They contain a lead core which absorbs energy. Who can explain how this core helps during seismic events?
The lead gets deformed, right? So it stops the force from reaching the building?
Correct! The yielding of the lead core effectively dissipates seismic energy. This makes LRBs a powerful tool in seismic design. Why do you think energy dissipation is necessary?
To prevent structural damage and keep buildings safe?
Sliding Isolation Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Moving on to sliding isolation systems, these use low friction materials. Can someone differentiate between the two variants: pure friction sliding and friction pendulum bearings?
Pure friction sliding just slides while friction pendulum bearings curve to bring it back to the center.
Great explanation! The curvature in friction pendulum bearings helps restore the structure's position after displacement. Can anyone relate this to an everyday situation?
Like how a pendulum swings back to the center after moving?
Hybrid Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Finally, let's talk about hybrid systems. These combine features from different isolators for better performance. Why do you think combining systems might be beneficial?
Because it can take advantages from each type and make it stronger?
Exactly! By integrating different mechanisms, hybrid systems can be tailored for specific building needs. Can anyone name a benefit other than strength?
Flexibility across different kinds of earthquakes?
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section details several base isolation systems utilized in earthquake engineering. Each type, such as elastomeric systems, lead rubber bearings, sliding systems, and hybrid systems, provides unique mechanisms to protect structures by absorbing and dissipating seismic energy, thus enhancing building resilience.
Detailed

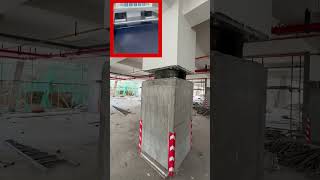

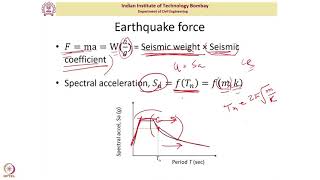

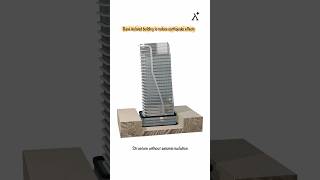

Types of Base Isolation Systems
Base isolation systems are crucial for mitigating seismic forces acting on structures. Each type of isolation system has unique properties suited to different applications. Here’s a detailed overview:
- Elastomeric Isolation System: This system employs layers of rubber and steel shims, allowing flexibility in horizontal movement while supporting vertical loads. The rubber layers respond effectively to ground motion.
- Lead Rubber Bearings (LRB): These bearings feature a central lead core encased in elastomeric materials, providing significant energy dissipation. The lead core yields under stress, absorbing seismic energy and reducing forces transmitted to the superstructure.
- Sliding Isolation System: This system minimizes friction between components. Variants include:
- Pure Friction Sliding: Utilizes low-friction materials, allowing for significant horizontal displacement during seismic events.
- Friction Pendulum Bearings (FPB): These combine a sliding mechanism with a restoring force facilitated by a curved surface, improving performance during earthquakes.
- Hybrid Systems: These systems integrate two or more types of isolators, aiming for optimized performance by combining different mechanisms of energy dissipation and movement accommodation.
Overall, understanding the diverse types of base isolation systems is crucial for implementing effective seismic protection strategies in various structures.

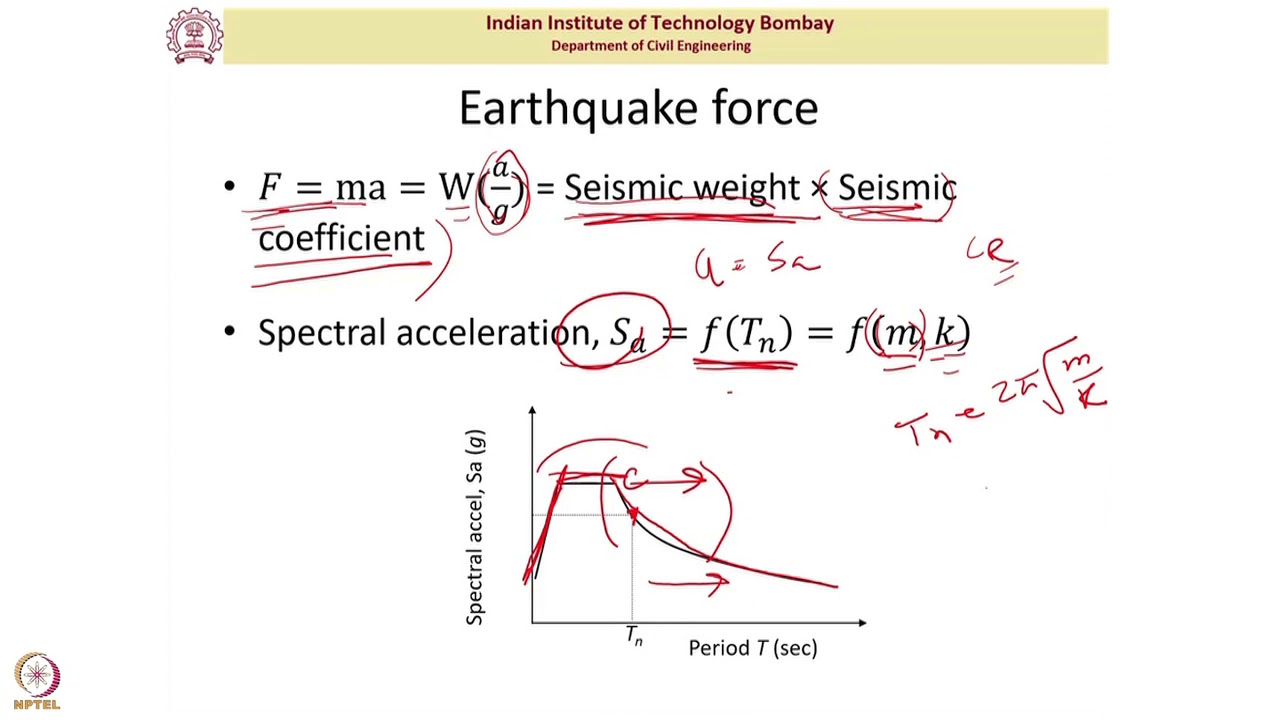

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.

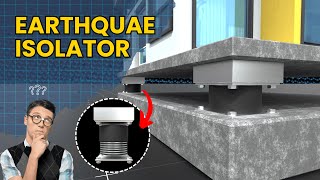

Elastomeric Isolation System
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Uses alternating layers of rubber and steel shims. It provides flexibility in the horizontal direction while supporting vertical loads.
Detailed Explanation
The elastomeric isolation system is a popular type of base isolation. It consists of layers of rubber and steel that are designed to offer flexibility when the ground moves during an earthquake. This flexibility allows the building to sway and move without transferring much of that movement into the structure itself. Importantly, while the system is flexible in the horizontal direction (like swaying side to side), it also provides the necessary support for the building's vertical weight.
Examples & Analogies
Think of a trampoline. The rubber mat gives way and bounces when you jump, but it still holds you up while you’re in the air. Similarly, elastomeric isolators allow for movement during seismic activity yet support the building’s weight.

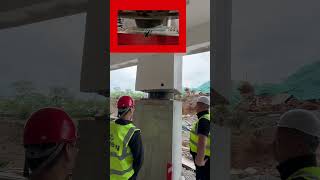

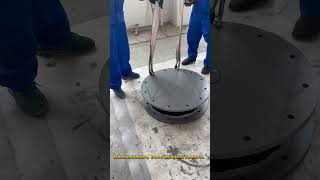

Lead Rubber Bearings (LRB)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A central lead core is inserted in elastomeric bearings to provide additional energy dissipation through yielding of lead.
Detailed Explanation
Lead rubber bearings are an enhanced version of elastomeric systems. They include a core made of lead which adds an additional layer of energy dissipation. When the building sways during an earthquake, the lead core effectively deforms. This deformation absorbs a significant amount of energy, reducing the overall movement passed to the building structure. This feature helps protect the integrity of the building during intense seismic events.
Examples & Analogies
Imagine squeezing a stress ball filled with liquid. The liquid moves around and absorbs the pressure you apply, helping the ball maintain its shape. In the same way, the lead core in the bearings absorbs and dissipates energy, helping keep buildings stable during shaking.
Sliding Isolation System
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Uses materials with low friction coefficients. Variants include:
- Pure Friction Sliding
- Friction Pendulum Bearings (FPB): Combine friction and restoring force due to curvature.
Detailed Explanation
Sliding isolation systems rely on materials that create very little friction to allow the building to slide back and forth during movement. This type of system can be further classified into two types: pure friction sliding, which allows unrestricted sliding, and friction pendulum bearings, which not only allow for sliding but also use a curved surface to create a restoring force that pushes the building back to its original position after the shaking stops. This combination of sliding and restoring forces helps to minimize the energy transferred to the building.
Examples & Analogies
Think of a sled on snow. When you push it, it slides easily because of the low friction. Similarly, a sliding isolation system allows the building to slide during shaking, minimizing damage. The friction pendulum is like a swing that naturally comes back to the center after being pushed.
Hybrid Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Combine two or more types of isolators to achieve optimized performance.
Detailed Explanation
Hybrid systems integrate components from different types of isolation methods to take advantage of their strengths. By using a combination of elastomeric and sliding systems, for example, these hybrid isolators can offer enhanced flexibility, energy dissipation, and overall performance under seismic loads. The goal is to optimize the isolation performance based on specific structural needs and site conditions.
Examples & Analogies
Consider a hybrid car that combines an electric motor with a gasoline engine. This allows the vehicle to achieve better efficiency and power while using the strengths of both technologies. Similarly, hybrid isolation systems blend different techniques for better earthquake protection.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Elastomeric Isolation System: A flexible isolation technique using rubber and steel for seismic protection.
-
Lead Rubber Bearings: Isolators that dissipate energy through a lead core.
-
Sliding Isolation Systems: Use low-friction materials to accommodate horizontal movements.
-
Hybrid Systems: Combine various isolators to enhance structural performance.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The use of elastomeric isolation systems in hospital buildings helps maintain structural integrity during earthquakes.
-
Lead rubber bearings are frequently adopted in bridges to enhance their seismic resilience.
-
Sliding systems are effectively utilized in high-rise buildings to allow lateral movement during seismic events.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
If the earth starts to shake and rolls, use rubber and steel to ease your building's tolls.
📖 Fascinating Stories
-
Imagine a sturdy building standing on a rubber mat; when the ground shakes, it sways but stays intact!
🧠 Other Memory Gems
-
Remember the acronym 'E-L-S-H' for types of base isolation: Elastomeric, Lead, Sliding, Hybrid.
🎯 Super Acronyms
ELSH
- E: for Elastomeric
- L: for Lead
- S: for Sliding
- H: for Hybrid.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Elastomeric Isolation System
Definition:
A seismic isolation system using layers of rubber and steel shims for flexibility and support.
-
Term: Lead Rubber Bearings (LRB)
Definition:
Isolators with a lead core that absorbs energy during an earthquake by yielding.
-
Term: Sliding Isolation System
Definition:
An isolation technique utilizing low-friction materials to allow horizontal movement during seismic events.
-
Term: Friction Pendulum Bearings (FPB)
Definition:
Isolators that combine sliding with a restoring force due to a curved surface.
-
Term: Hybrid Systems
Definition:
Base isolation systems that integrate two or more isolators to optimize performance.
