38.6 - Methods to Improve Ductility in Structures
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Proper Design Codes and Seismic Detailing
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start by discussing the role of design codes in enhancing ductility in structures. Why do you think following a specific code like IS 13920 is crucial?
I think it's important because the codes outline specific details that help structures resist seismic forces.
Exactly! These codes focus on aspects such as shear strength and confinement. Can anyone elaborate on what confinement refers to?
Confinement is about reinforcing areas, especially in beam-column joints, to prevent sudden collapse.
Great! So, confinement helps manage the forces and increases ductility. Remember: strong joints lead to a strong structure!
Could you give us an example of how these codes affect real structures?
Sure! Structures that comply with these codes can absorb energy during earthquakes, allowing them to deform without collapsing suddenly.
What’s the risk of ignoring these codes?
Ignoring them can lead to devastating failures during seismic events. Always prioritize safety and structural integrity!
Use of Ductile Materials
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's talk about materials. Why do you think the choice of material affects ductility?
Ductile materials can bend and yield without breaking, right?
Exactly! Materials like high-yield steel are essential for providing the necessary flexibility. What about concrete?
Concrete is less ductile, but we can use admixtures to improve its strain capacity.
Exactly! By reinforcing concrete and ensuring it’s well-mixed, we can enhance ductility. Remember: the mix matters!
What about the costs of using ductile materials?
While they may be pricier, the safety benefits outweigh the costs in the long run!
Confinement of Critical Zones
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s explore the concept of confining critical zones. Why is it vital to focus on areas like plastic hinges?
Because those areas experience a lot of stress and can fail if not properly reinforced!
Exactly! Closed ties help maintain the integrity of those zones. Can anyone share how we might apply this in real life?
In a construction project, we should ensure ample reinforcement, particularly in joints.
Right on! Focusing on these regions can greatly enhance a building's durability during seismic events.
Capacity Design Principles
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s get into capacity design principles. What does the strong column-weak beam concept mean?
It means ensuring that beams yield before columns to prevent catastrophic failure.
Exactly right! By controlling where the failure occurs, we can better manage ductility.
How do we avoid brittle failure modes, then?
We design connections such that they can handle large deformations without failing unexpectedly!
Energy Dissipation Devices
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s talk about energy dissipation devices. Can anyone give examples?
Base isolators and dampers!
Correct! These devices help manage the energy during an earthquake. How do they do this?
By absorbing or redirecting energy away from the structure!
Exactly! Their purpose is to reduce the forces experienced by the building, enhancing ductility.
Are these devices used in all buildings?
Not always, but they are crucial in high-risk areas where the potential for seismic activity is significant!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Improving ductility in structures is essential for their ability to withstand seismic forces. The section discusses several methods, including adhering to proper design codes, using ductile materials, confining critical zones, applying capacity design principles, and implementing energy dissipation devices.
Detailed
Methods to Improve Ductility in Structures
This section focuses on enhancing ductility, a vital property for seismic safety in structures. The following methods are discussed:
- Proper Design Codes and Seismic Detailing: Adopting guidelines such as IS 13920, which focuses on ductile detailing in reinforced concrete structures, emphasizing shear strength, confinement, and curvature ductility.
- Use of Ductile Materials: Incorporating materials like steel with high yield strain and adding specific admixtures to improve the strain capacity of concrete.
- Confinement of Critical Zones: Using closed ties in beam-column joints and strengthening plastic hinge regions to enhance overall structural durability.
- Capacity Design Principles: Implementing a strong column-weak beam strategy to ensure ductile flexural yielding and limit the risk of brittle failure modes, such as shear failure.
- Energy Dissipation Devices: Installing devices such as base isolators and dampers to reduce the energy transferred to the structure during seismic activity.
By focusing on these methods, structures can attain improved resilience against earthquakes, ultimately leading to greater safety for occupants.

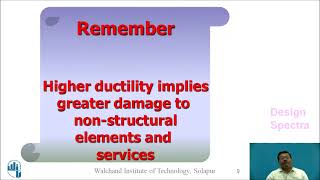

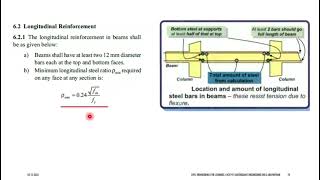

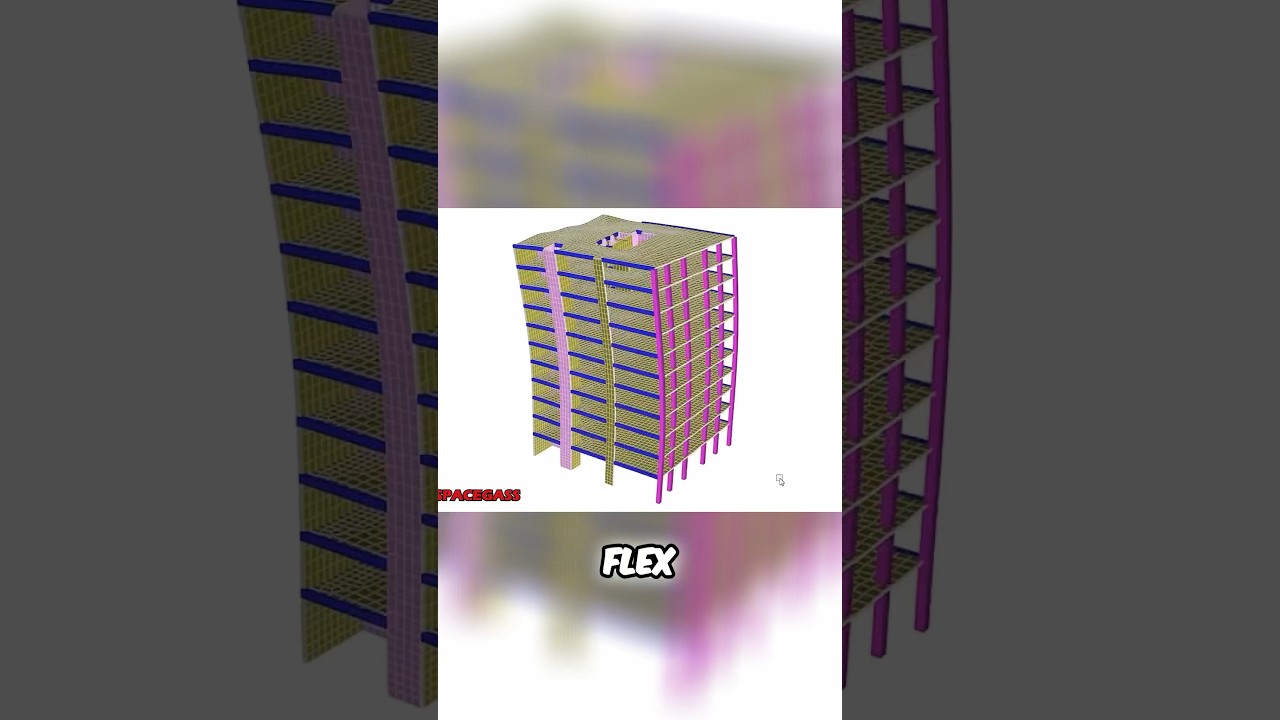

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Proper Design Codes and Seismic Detailing
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Proper Design Codes and Seismic Detailing
- IS 13920 (Ductile Detailing of RCC Structures Subjected to Seismic Forces).
- Emphasis on shear strength, confinement, and curvature ductility.
Detailed Explanation
This chunk discusses the importance of adhering to established design codes and guidelines specifically aimed at enhancing the ductility of structures. The Indian Standard IS 13920 sets out the requirements for detailing reinforced concrete (RCC) structures in seismic regions. The standards highlight crucial traits, such as shear strength, which refers to a structure's ability to withstand forces that may cause it to slide apart. Moreover, confinement reinforces critical areas to prevent premature failure during seismic events. In addition, curvature ductility indicates how much a structure can bend before failing, ensuring that buildings can sway and dissipate energy efficiently during an earthquake.
Examples & Analogies
Think of a well-designed bridge during a storm. Just as the bridge must be crafted with strong materials and safe designs to bend and sway without collapsing, buildings in earthquake-prone areas must follow specific codes that allow them to flex and absorb shocks. This ensures structural integrity and that they can withstand unpredictable seismic forces.
Use of Ductile Materials
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Use of Ductile Materials
- Steel with high yield strain.
- Admixtures to improve concrete strain capacity.
Detailed Explanation
This chunk focuses on the materials utilized in construction to enhance ductility. High yield strain steel is specifically designed to withstand deformation without breaking, thus providing the necessary flexibility in a structure during seismic activity. Additionally, incorporating special admixtures in concrete can enhance its strain capacity, allowing it to bend and stretch under load rather than crumbling. This combination maximizes the overall resilience of a structure when subjected to seismic forces.
Examples & Analogies
Imagine a rubber band: it stretches and flexes without breaking when you pull on it. Similarly, using materials like high yield strain steel and specially formulated concrete allows buildings to 'stretch' in response to an earthquake, reducing the chance of failure during such events.
Confinement of Critical Zones
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Confinement of Critical Zones
- Use of closed ties in beam-column joints.
- Enhanced reinforcement in plastic hinge regions.
Detailed Explanation
Here, the focus is on enhancing specific structural connections, known as critical zones, which are most vulnerable during a seismic event. These zones include beam-column joints and areas known as plastic hinge regions, where bending occurs. By employing closed ties (which are rings of reinforcement) to secure and strengthen these connections, the ability of the structure to absorb energy is increased significantly. This confinement helps to prevent unexpected failures, helping the structure to remain intact while deforming in a controlled manner during seismic activity.
Examples & Analogies
Consider how a strong framework supports a flexible tent. Just as a tent needs secure connections at its joints to withstand wind and rain, buildings need reinforced joints to endure the forces of an earthquake and maintain their structural integrity.
Capacity Design Principles
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Capacity Design Principles
- Strong column–weak beam concept to ensure ductile flexural yielding.
- Avoid brittle failure modes (e.g., shear failure, bond failure).
Detailed Explanation
This chunk introduces capacity design principles that guide engineers in creating structures that can absorb and dissipate energy efficiently. The 'strong column–weak beam' concept suggests that columns should be designed to be stronger than beams. This ensures that in the event of excessive loading, the beam will yield (bend) before the column fails, allowing for gradual deformation rather than sudden collapse. Additionally, engineers are advised to avoid designs that might lead to brittle failures, where materials break suddenly without warning.
Examples & Analogies
Think of a tree during a storm. A strong tree trunk can bend (like a beam) without breaking, while weaker branches (like a column) might snap suddenly. A well-designed structure mimics this by ensuring the 'columns' can endure the stress without breaking, allowing the 'beams' to yield safely.
Energy Dissipation Devices
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Energy Dissipation Devices
- Base isolators.
- Dampers to reduce energy entering the structure.
Detailed Explanation
In this final chunk, the use of advanced technology such as energy dissipation devices is outlined. Base isolators are systems that decouple the structure from ground movements during an earthquake, effectively allowing it to float on top of the shaking foundation. This prevents energy from transferring directly into the building. Dampers, on the other hand, absorb and dissipate seismic energy as heat, reducing the forces acting on the structure. These devices significantly enhance the capacity of a structure to withstand seismic events, greatly improving overall safety.
Examples & Analogies
Imagine a bowl of jelly sitting on a plate. If you shake the plate, the jelly moves independently of the plate due to its soft consistency. Similarly, base isolators allow buildings to move separately from seismic vibrations, while dampers act like sponges, soaking up movement energy, ensuring that the building remains stable and secure.
Key Concepts
-
Design Codes: Guidelines ensuring ductility through specific detailing.
-
Ductile Materials: Materials that can withstand large, plastic deformations.
-
Confinement: Reinforcement in specific areas to enhance structure integrity.
-
Energy Dissipation: Mechanisms that absorb seismic energy, preventing structural failure.
Examples & Applications
Using high-yield steel instead of mild steel in construction to improve ductility.
Implementing base isolators in seismically vulnerable buildings.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In a quake, don't hesitate, ductility helps us gravitate, through bends it will oscillate, to save lives we celebrate.
Stories
Imagine a tree in a storm, bending but never breaking. This tree represents how ductile structures can sway, absorbing the storm's energy, yet standing tall when the winds calm down.
Memory Tools
Think of DREAM: Design correctly, Reinforce well, Energy devices, Absorb forces, Manage failure for ductility.
Acronyms
Use **CODES** to remember
Confinement
Optimal materials
Design codes
Energy devices
Strong columns.
Flash Cards
Glossary
- Ductility
The capacity of a material or structure to undergo large plastic deformations without fracturing.
- Seismic Detailing
Design practices that enhance a structure's ability to withstand seismic forces.
- Confinement
Reinforcing specific areas of a structure to improve its ability to endure impacts and stresses.
- Energy Dissipation Devices
Devices such as dampers that reduce the energy transferred to a structure during seismic events.
- Capacity Design
Design principles that ensure ductile yielding by preventing abrupt failures.
