Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding the Basic Configuration
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're diving into the Common Source Amplifier, a widely-used MOSFET amplifier configuration. Can anyone tell me where the input terminal is located?
The input is at the gate, right?
Exactly! The gate is where we apply the input signal. Now, what about the output?
The output is taken from the drain.
Correct! And the source is grounded via a resistor. So, what kind of amplification do we expect from this configuration?
A high gain, I think?
That's right! We obtain a high voltage gain represented by \( A_v = -g_m R_D \). Does anyone know what the negative sign indicates?
It indicates a phase shift!
Yes! There is a 180Β° phase shift between the input and output signals. Great job, everyone! Let's move to the next important point.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In the Common Source Amplifier configuration, the gate serves as the input terminal, the source is grounded, and the output is taken from the drain. This configuration offers a high voltage gain, moderate input and output impedance, and introduces a 180Β° phase shift between input and output signals.
Detailed
Common Source Amplifier
The Common Source Amplifier (CS) is a fundamental MOSFET amplifier circuit characterized by its gate terminal as the input, the source terminal connected to ground via a resistor, and the output taken from the drain terminal through a load resistor (R_D). This configuration is known for its high voltage gain, given by the equation:
\[ A_v = -g_m R_D \]
The negative sign indicates that there is a 180Β° phase shift between the input and output signals, which is a critical feature of this amplifier type. The input impedance (Z_in) is very high, denoting low loading on preceding stages, while the output impedance (Z_out) is moderate, approximately equal to R_D. Understanding and designing Common Source Amplifiers are vital in analog circuit design as they are widely utilized for signal modulation and amplification in various electronics applications.

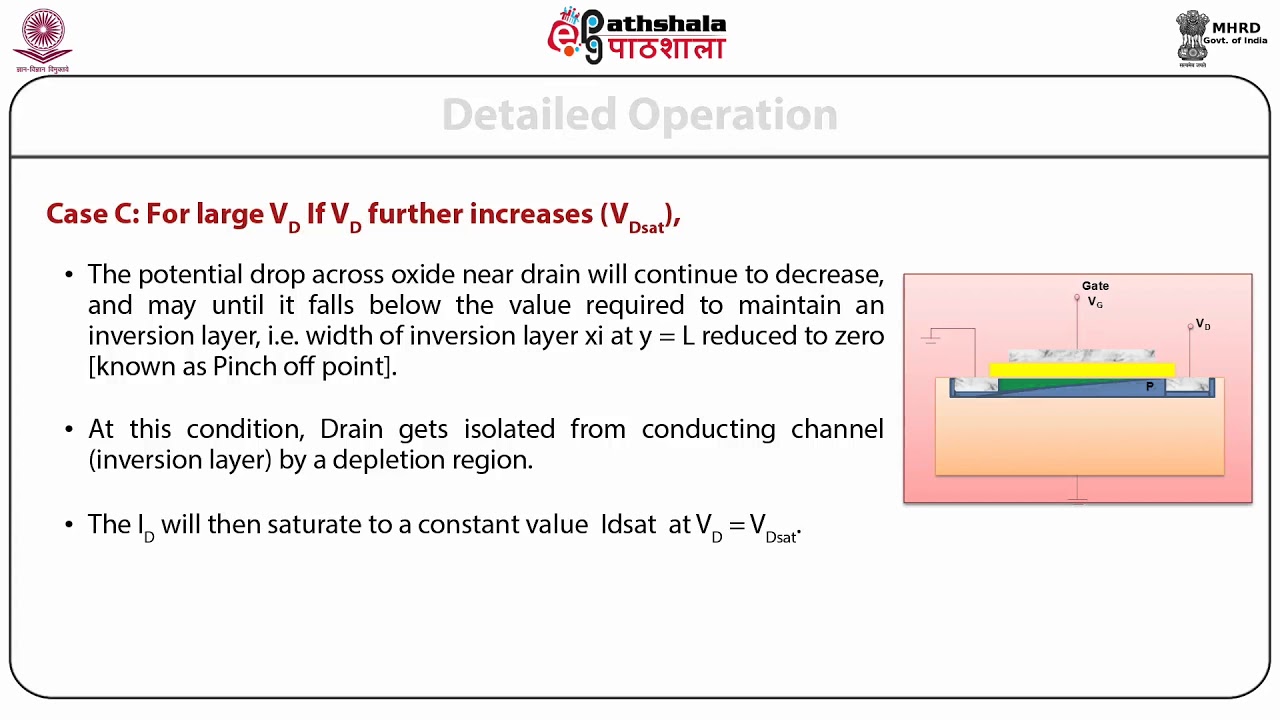

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Circuit Description
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Gate: Input
- Source: Grounded (via resistance)
- Drain: Output through load resistor R_D
Detailed Explanation
The common source amplifier configuration uses a MOSFET transistor to amplify an input signal. In this configuration, the gate terminal of the MOSFET is where the input signal is applied. The source terminal is connected to ground, which means it serves as the reference point for the circuit. The drain terminal is where the amplified output signal can be taken, and it is connected through a load resistor (R_D). This setup allows the MOSFET to effectively amplify the input signal based on the principles of transistor operation.
Examples & Analogies
Think of the common source amplifier like a microphone (the input) connected to a speaker (the output). The microphone picks up a weak sound signal and sends it to the speaker, which amplifies it so it can be heard loudly. The source, acting as the ground, is like the floor where the sound resonates, allowing for better transmission of the amplified sound.
Voltage Gain
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Voltage Gain: A_v = βg_m R_D
- Negative sign indicates 180Β° phase shift between input and output.
Detailed Explanation
The voltage gain (A_v) of a common source amplifier is defined as the ratio of the output voltage to the input voltage. This is represented by the formula A_v = -g_m R_D, where g_m is the transconductance of the MOSFET, and R_D is the load resistor. The negative sign signifies that the output signal is inverted, meaning if the input signal increases, the output will decrease, and vice versa. This is an important characteristic of common source amplifiers, making them useful for specific applications where signal inversion is acceptable or desired.
Examples & Analogies
Imagine a seesaw in a playground. If one side (input) goes down, the other side (output) goes up. If you push down on the left side, the right side rises β this is like the negative voltage gain where an increase in the input results in a decrease in the output signal.
Input/Output Impedance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Input Impedance: Z_in β β (High)
- Output Impedance: Z_out β R_D (Moderate)
Detailed Explanation
Input and output impedances are critical in understanding how the amplifier interacts with other components in a circuit. The common source amplifier has a very high input impedance (approximately infinite), which means it does not draw significant current from the signal source. This is beneficial as it prevents loading effects that can distort the input signal. Conversely, the output impedance is moderate and is approximately equal to the value of the load resistor (R_D). This allows for effective signal transfer to the next stage in the circuit without excessive loss.
Examples & Analogies
You can think of the input impedance like a sponge that soaks up very little water (current) from the source, allowing as much water as possible to flow through while remaining full (not using up resources). The output impedance is like a hose connected to the sponge that can deliver a manageable flow of water to other parts of your garden without creating any excessive pressure.
