The Crucial Process of Logic Synthesis in Digital Design
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Defining Logic Synthesis
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're delving into logic synthesis, which is a crucial process in digital design. Can anyone tell me what logic synthesis involves?
Isnβt it about converting HDL designs into a form that can be physically implemented?
Exactly! Logic synthesis translates high-level HDL descriptions like those written in RTL into optimized gate-level netlists. This means it turns abstract code into technology-specific logic gates.
Why is it important to have an optimized netlist?
Great question! Optimization is key because it improves various design goals, such as speed and resource utilization, making the realized hardware more efficient and effective.
Can you give us a summary of what that process looks like?
Certainly! The synthesis process includes defining the design intent, optimizing the logic, and mapping it to the specific resources of the target technology.
In summary, synthesis is the bridge between your HDL code and the physical implementation.
Multi-Stage Logic Synthesis Process
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's break down the multi-stage logic synthesis process further. Starting with elaboration, what does that entail?
Is that where the HDL code is checked for errors?
Correct! Elaboration involves parsing the code, checking for syntax errors and building an internal representation, like an Abstract Syntax Tree or control-dataflow graph.
What happens after that?
Next is generic logic optimization. This step simplifies logic and prepares the design to be efficiently mapped to target technology resources, using techniques like Boolean simplification.
Can we also consider the technology mapping at this stage?
Absolutely! Technology mapping is where the optimized logic is translated into actual gates that match the specific capabilities of the FPGA or ASIC you are targeting.
In summary, the synthesis process integrates several detailed stages, each crucial to producing an efficient and accurate hardware representation.
Importance of Synthesis
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's discuss the importance of synthesis in the FPGA design workflow. Why do you think itβs significant?
I think it helps manage complex designs by automating some of the most tedious tasks.
Exactly! Synthesis allows designers to handle circuits with millions of gates efficiently, avoiding manual and error-prone mapping.
Does it also help optimize the hardware for certain metrics, like speed?
Yes! Synthesis optimizes key metrics like speed, area, and power based on constraints provided by the designer, which ensures that the final hardware meets all requirements.
In summary, synthesis is an invaluable step that automates complexity and optimization in hardware design, enabling efficient FPGA implementation.
Practical Considerations for Effective Synthesis
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
To achieve optimal synthesis results, what practices do you think we should adopt when writing our HDL code?
We should focus on writing synthesizable code, right?
Yes! Writing synthesizable HDL code is crucial, as some constructs do not translate well into hardwareβand can hinder synthesis.
What about the use of constraints? How do they help?
Constraints guide the synthesis process to optimize according to specified goals, leading to better designs. Without accurate constraints, synthesis may yield suboptimal results.
In summary, writing good synthesizable code and providing clear design constraints are essential for effective synthesis.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section delves into the essential process of logic synthesis, detailing its definition, purpose, and the multi-stage transformation it undergoes, ultimately bridging abstract HDL designs and physical hardware implementation.
Detailed
Detailed Summary of Section 3.3
Logic synthesis is a fundamental and automated process in digital design, allowing design engineers to convert high-level, technology-independent descriptions, typically written in Hardware Description Languages (HDLs) at the Register Transfer Level (RTL), into a precise, optimized, and technology-specific gate-level netlist. This translation plays a crucial role in digital design, as it automates the complex task of mapping HDL code to individual logic gates, facilitating faster and more efficient hardware realization.
Key Purposes of Logic Synthesis
The overarching purpose of logic synthesis lies in four main areas:
1. Abstraction to Realization: Moves from the conceptual design to a tangible hardware description.
2. Automation: Handles the intricate details of converting HDL into logic gates without the need for manual intervention.
3. Optimization: Improves the design based on specific goals like speed, resource utilization, and power consumption.
4. Technology Mapping: Adapts design to specific physical characteristics of the target technology, ensuring compatibility.
The Multi-Stage Logic Synthesis Process
The synthesis process encompasses several stages:
1. Elaboration and Analysis: Parsing the HDL code to resolve hierarchical references and creating an internal representation.
2. Generic Logic Optimization: Applying technology-independent techniques to simplify and optimize the design logic before technology mapping.
3. Technology Mapping: Translating the generic logic into the specific configurations of the target technology, accommodating various design constraints.
4. Netlist Generation: Producing a detailed description of the circuit using technology-specific components, forming the basis for implementation.
5. Constraint-Driven Optimization: Ensuring that the synthesized design meets all specified performance, area, and power constraints.
Each stage of this synthesis process is crucial, ensuring that designers can convert their conceptual designs into manufacturable and optimized hardware suitable for FPGAs or ASICs, streamlining the pathway from design to physical implementation.

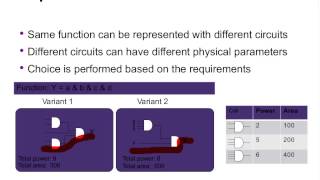

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Defining Logic Synthesis and Its Overarching Purpose
Chapter 1 of 4
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Definition:
Logic synthesis is an automated computational process performed by specialized Electronic Design Automation (EDA) software tools. Its core function is to systematically translate a high-level, technology-independent description of a digital circuit (typically written in an HDL at the Register Transfer Level, RTL) into an optimized, technology-specific gate-level netlist. This netlist explicitly defines which basic logic gates (e.g., AND, OR, XOR, Inverters, D-type flip-flops) or primitive building blocks (e.g., LUTs, BRAMs, DSP slices for FPGAs) are required, and precisely how these elements are interconnected to realize the desired circuit functionality.
Overarching Purpose:
The fundamental purpose of logic synthesis is multi-fold:
- Abstraction to Realization: It translates the abstract, human-readable behavioral intent of an HDL design into a concrete, manufacturable hardware description.
- Automation: It automates the incredibly complex and otherwise unmanageable task of mapping millions of lines of HDL code into millions of individual logic gates and their interconnections, a task impossible to do manually for modern circuits.
- Optimization: It intelligently optimizes the generated netlist for various design goals and constraints specified by the designer, such as target operating frequency (speed), minimal silicon area (resource utilization), or low power consumption.
- Technology Mapping: It adapts the generic circuit description to the specific physical characteristics and capabilities of the chosen target technology (e.g., a particular FPGA device family's CLBs, LUTs, and hard IP blocks, or an ASIC foundry's standard cell library).
Detailed Explanation
In this section, we learn that logic synthesis is the process that takes high-level descriptions of digital circuits written in hardware description languages (HDLs) and turns them into an actual physical design. Think of it like someone who takes the blueprint of a house (the HDL code) and builds the actual house (the gate-level netlist). Synthesis is critical because it automates this building process, ensuring that everything will fit together correctly without needing a person to place each brick (or digital gate) manually. Moreover, synthesis optimizes the design based on various constraints, such as how fast the circuit should operate or how much space it should use. Essentially, synthesis translates abstract ideas into terms that can be turned into real-world technology, making it essential for anyone looking to create digital hardware.
Examples & Analogies
Imagine you are planning a big birthday party (the HDL code). You have a vision of how the party should look and what activities you want (the abstract design). Logic synthesis is like hiring a party planner who takes your ideas and turns them into real plans: they decide where the tables go, what decorations to use, and how the activities will flow (the gate-level netlist). Without the planner, you might be overwhelmed trying to figure out the best way to handle everything by yourself, just as engineers would be overwhelmed by the complexity of mapping lines of HDL code to actual hardware.
The Multi-Stage Logic Synthesis Process (An In-Depth Walkthrough)
Chapter 2 of 4
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The synthesis process is not a single step but a series of intricate transformations and optimizations performed by sophisticated EDA tools.
Step 1: Elaboration / Parsing, Analysis, and Hierarchy Resolution:
- This initial phase focuses on understanding the designer's intent from the HDL source code.
- Parsing and Lexical/Syntax Analysis: The synthesis tool first reads the HDL files, tokenizes the code, and performs a thorough check for syntax errors and correct language constructs.
- Semantic Analysis: The tool then interprets the meaning of the HDL code. It understands the types of signals and variables, how different modules are instantiated and connected, and resolves any hierarchical references.
- Internal Representation (Abstract Syntax Tree - AST): The tool builds an internal, technology-independent data structure representing the design's functionality. This is often an Abstract Syntax Tree (AST) or a control-dataflow graph.
Step 2: Generic Logic Optimization (Technology-Independent Optimization):
- Once the internal representation is built, the synthesis tool applies various optimization techniques. The goal here is to simplify the logic, reduce redundancy, and prepare the design for efficient mapping.
- Boolean Equation Simplification: Applying Boolean algebra theorems to simplify logic expressions.
- Common Subexpression Elimination (CSE): Identifying pieces of logic that repeat and computing them only once.
- Dead Code Removal / Constant Propagation: Elimination of logic that doesn't affect the primary output.
- Resource Sharing: Identifying opportunities to share resources across multiple operations.
- FSM (Finite State Machine) Optimization: Choosing optimal state encoding for state machines.
Step 3: Technology Mapping (Technology-Dependent Optimization):
- This is the step where the optimized logical netlist is translated into physical implementation.
- The synthesis tool integrates information about available building blocks, ensuring a specific fit for the target device, whether an FPGA or an ASIC.
Step 4: Netlist Generation:
- As the final output, the tool generates a formal gate-level netlist, a detailed structural description of the circuit using actual components.
Step 5: Constraint-Driven Optimization (Throughout the Process):
- The synthesis process is iterative and optimized for design constraints specified by the designer (timing, area, and power). The synthesis tool continuously evaluates the design and makes trade-offs to meet these requirements.
Detailed Explanation
Here, we delve into the steps of the logic synthesis process. Step 1 begins with elaboration, where the synthesis tool reads the HDL code and ensures it's correctly formatted (like proofreading a book). It understands what the designer wants to achieve without getting into the specifics just yet. Step 2 is all about simplifying the designβremoving unnecessary parts and making the structure more efficient. This is akin to tightening a story by cutting out filler sentences and focusing on the key plot lines. Step 3 takes these optimized designs and maps them to actual hardware elements available in the target FPGA or ASIC. Step 4 gets to the final output, creating a netlist that serves as a blueprint for manufacturing. Step 5 ensures that the design adheres to various constraints like how fast it should operate or how compact it should be. This step is crucial for the performance and efficiency of the final product.
Examples & Analogies
Think of this process like preparing an intricate recipe for a grand feast. You start by gathering and reading the recipes (Step 1: Elaboration), checking to make sure you have all your ingredients (syntax check) and understanding what the finished dish should look like. Next, you decide if some techniques can be simplified (Step 2: Optimization), like using pre-chopped veggies instead of cutting them yourself. Technology mapping (Step 3) is akin to picking the pots and pans you'll use to cook those ingredients. When getting the dish ready for presentation (Step 4: Netlist Generation), you plan how to plate the dish. Finally, you make sure everything adheres to dietary restrictions and other expectations (Step 5: Constraint optimization). This ensures the meal is not only delicious but also meets everyone's needs.
The Indispensable Importance of Synthesis in the FPGA Design Flow
Chapter 3 of 4
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Synthesis is not merely a translation step; it's the core engine that enables modern digital design.
Automated Implementation of Complexity:
It allows designers to manage and implement circuits with millions of gates without manually specifying each interconnection.
Optimization for Key Metrics:
It's the primary stage where the design is optimized for its critical performance metrics β speed, area, and power β based on the designer's directives.
Technology Abstraction and Mapping:
It abstracts the design from the underlying silicon technology until the very end of the process. This means a design can be written once in HDL and then synthesized for different FPGA families or even different ASIC foundries.
Foundation for Physical Implementation:
The output of synthesis β the gate-level netlist β is the crucial input for the subsequent physical implementation stages: Placement and Routing.
Detailed Explanation
This section highlights the essential role synthesis plays in the FPGA design process. It's not just about converting one form of information to another; it's the powerhouse enabling the creation of complex digital circuits. Designers don't have to worry about each individual component; synthesis handles the heavy lifting, organizing millions of gates into efficient configurations. The optimized design is essential for ensuring the final implementation meets performance targets, such as speed and power consumption. Synthesis also allows flexibility in technology, making it easier to adapt the design for different hardware without starting from scratch. Ultimately, synthesis creates the blueprint that guides the next steps of placing and routing those components onto the physical hardware.
Examples & Analogies
Consider an architect drafting plans for a skyscraper. The architect (synthesis) doesn't just draw each beam, wall, or window; instead, they design an overall structure that engineers can build upon. As the plans are converted into a reality, the architect optimizes for current building codes, environmental concerns, and aesthetics. This ensures a final building that's not only visually stunning but also strong and efficient. Similarly, logic synthesis transforms abstract digital designs into practical implementations that are ready for production.
Practical Considerations and Best Practices for Effective Synthesis
Chapter 4 of 4
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Achieving optimal synthesis results requires not just understanding the process, but also adopting specific coding styles and design methodologies.
Write Synthesizable HDL Code:
A critical rule. Not all HDL constructs are synthesizable into actual hardware.
- Non-Synthesizable Constructs: Features like arbitrary delays and specific simulation-only constructs are generally not synthesizable.
Clear Clocking and Reset Strategies:
- Single Clock Domain: Design using a single defined clock signal for each synchronous domain.
- Reset Logic: Implement reset signals consistently.
Effective Use of Design Constraints:
- Providing accurate timing, area, and power constraints is paramount.
Leverage Vendor-Specific IP and Primitives:
- Utilize unique hard IP blocks or primitives when high performance is necessary.
Pipelining for Performance:
- Adding registers to create pipeline stages to optimize long combinational paths.
Parallelism in HDL:
- Write HDL code to express parallelism to leverage processing capabilities.
State Machine Encoding:
- For FSMs, allow the synthesis tool to choose an optimal state encoding.
Analyze Synthesis Reports:
- Always review synthesis reports for information about utilization and timing.
Detailed Explanation
This chunk emphasizes the importance of following best practices for optimal synthesis outcomes. Writing synthesizable HDL code is crucial, as not every piece of code can be correctly translated into hardware. Adopting clear clocking and reset strategies (ensuring synchronization and reliable performance) is also critical for robust designs. Understanding and setting effective design constraints helps guide the synthesis tool to produce designs that meet your criteria. Additionally, leveraging vendor-specific components and optimizing your design for parallel processing and pipelining can significantly enhance performance. Finally, reviewing synthesis reports allows designers to identify potential issues and areas for improvement in their designs.
Examples & Analogies
Imagine a chef following a unique recipe for a special dish. If they ignore certain steps (like using only specific kinds of pots), the meal might not turn out correctly. Similarly, following precise coding and design practices ensures that the digital circuit works as intended. Just like adjusting a recipe based on past experiences can lead to tastier dishes, analyzing synthesis reports can unveil opportunities for improving future designs. Each practice contributes to an end product that functions seamlessly, just as well-prepared food leaves diners happy.
Key Concepts
-
Logic Synthesis: A process that converts HDL designs into netlists.
-
Netlist: A representation detailing how logic gates are interconnected.
-
Optimization: Enhancing circuit designs for desired performance metrics.
Examples & Applications
Using HDL, a designer describes a complex circuit, which logic synthesis transforms into a simple netlist of gates.
After synthesizing an HDL for a new FPGA, the generated netlist includes information on LUTs and flip-flops specific to that FPGA model.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When coding HDL, don't take a guess; synthesis helps you avoid the mess!
Stories
Imagine a sculptor taking a block of marble (HDL) and using precise tools (synthesis) to chisel out a beautiful statue (netlist).
Memory Tools
Remember the step: Elaboration, Optimization, Mapping, NetlistβE.O.M.N.
Acronyms
SYNTH
Synthesis Yields New Technology Hardware.
Flash Cards
Glossary
- Logic Synthesis
The process of converting high-level HDL descriptions into technology-specific gate-level netlists.
- GateLevel Netlist
A formal representation of a digital circuit using technology-specific components like logic gates.
- HDL
Hardware Description Language; a programming language used to describe the behavior and structure of electronic circuits.
- RT
Register Transfer Level; a model of a digital circuit that describes the flow of data between registers.
- Optimization
The process of improving a circuit's performance metrics such as speed, area, and power consumption.
- Technology Mapping
The step in synthesis that adapts a generic circuit description for a specific technology.
