Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Classification of Flow Types
Unlock Audio Lesson
Today, we’ll explore how we can classify fluid flow. Can anyone tell me what 'steady flow' means?
Doesn't it mean the flow conditions don't change over time?
Exactly! So, in steady flow, the fluid properties remain constant at any point in time. Now, how about 'unsteady flow'?
That would be when the flow conditions change over time, right?
Correct! And 'periodic flow' is when those changes are consistent and repeat over time. Picture the motion of a swinging pendulum. Can you give me an example of periodic flow?
Maybe like the tides in the ocean?
Great example! Now, let’s summarize what we’ve learned: steady flow means constant properties, unsteady flow means changing properties, and periodic flow means those changes occur in a repeating manner.
Viscous vs. Inviscid Flow
Unlock Audio Lesson
Next, let’s talk about viscous flow. What do we mean when we say a flow is viscous?
Isn’t it about the resistance forces in the fluid due to its viscosity?
Exactly! When viscous forces are significant, we call it viscous flow. What about when these forces are comparatively small?
That would be inviscid flow.
Correct! We often see inviscid flow when other forces dominate. For instance, in high-speed flows. Now, let’s summarize: viscous flow involves significant resistance while inviscid flow occurs where resistance is negligible.
Internal vs. External Flow
Unlock Audio Lesson
Can anyone define internal and external flow based on boundaries?
Internal flow is when the fluid is contained in an area like a pipe, and external flow is when it’s flowing outside, like air around a car?
Exactly! In internal flow, we know the boundaries defined by the solid surface. So can you think of an example of external flow?
What about the wind flowing past a building or a plane?
Perfect! So remember, internal flows have defined boundaries while external flows do not.
Laminar, Turbulent, and Transitional Flow
Unlock Audio Lesson
Now let's shift gears and discuss laminar and turbulent flow. What’s the difference?
Laminar flow is smooth and orderly, while turbulent flow is chaotic and mixed up!
Exactly! Now, what do we mean by transitional flow?
That happens when the flow shifts from laminar to turbulent?
Right! Transitional flow includes characteristics of both laminar and turbulent flows. Now, can anyone give me a real-world example of turbulent flow?
Flow in a river with lots of irregularities!
Excellent! In summary, we discussed laminar flow as orderly, turbulent as chaotic, and transitional as the in-between state.
Application in Fluid Mechanics
Unlock Audio Lesson
What have we learned so far about fluid flow classifications, and why is it important in engineering?
Knowing whether the flow is steady or unsteady helps us design systems better!
Exactly! And classifying the flow can simplify problem-solving. What else can affect our understanding of flow?
The type of flow, like whether it’s internal or external, or laminar versus turbulent!
Correct again! Understanding these classifications is essential for effective fluid mechanics applications, whether for designing pipes or analyzing airflows.
In summary, identifying the type of flow we're considering aids in proper analysis and solutions in engineering problems.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section illustrates different types of fluid flow—steady, periodic, and unsteady—along with internal versus external flow scenarios. It defines critical concepts such as viscous and inviscid flows and highlights the significance of boundary conditions in analyzing fluid problems, providing a deeper understanding of how fluids behave in various flow environments.
Detailed
Detailed Summary
In this section, fluid flow is classified based on time-dependence and boundary conditions. The three main types of flow discussed are:
- Steady Flow: This occurs when the properties of the fluid do not change over time at any given point in the flow. For example, fluid flowing continuously through a straight pipe at the same rate constitutes a steady flow.
- Periodic Flow: In this type of flow, the fluid properties at a specific point vary with time in a periodic manner, akin to how a sine or cosine wave behaves. An example can be seen in oscillating fluid flows, such as those that might occur with certain valve openings.
- Unsteady Flow: This type of flow is when the velocity and other properties of fluid change over time, indicating that the flow conditions are not stable. This can be visualized as the fluid’s velocity fluctuating at different points in time.
Additionally, the section distinguishes between internal and external flows. Internal flow refers to the flow confined within a boundary, such as fluid in a pipe, while external flow refers to fluid flowing outside of boundaries, such as air moving around an object.
The concepts of viscous and inviscid flow are also introduced, where viscous flow considers the effects of viscosity that dominate the flow while inviscid flow disregards these effects when other forces are significant. Furthermore, flow can be classified based on its characteristics, such as laminar, turbulent, and transitional flows, wherein laminar flow refers to smooth and orderly flow patterns while turbulent flow indicates chaotic and chaotic movements of fluid particles. The section discusses how approximating flow conditions can simplify complex problems, allowing for easier analysis and understanding.

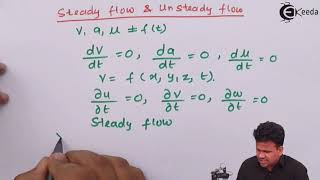

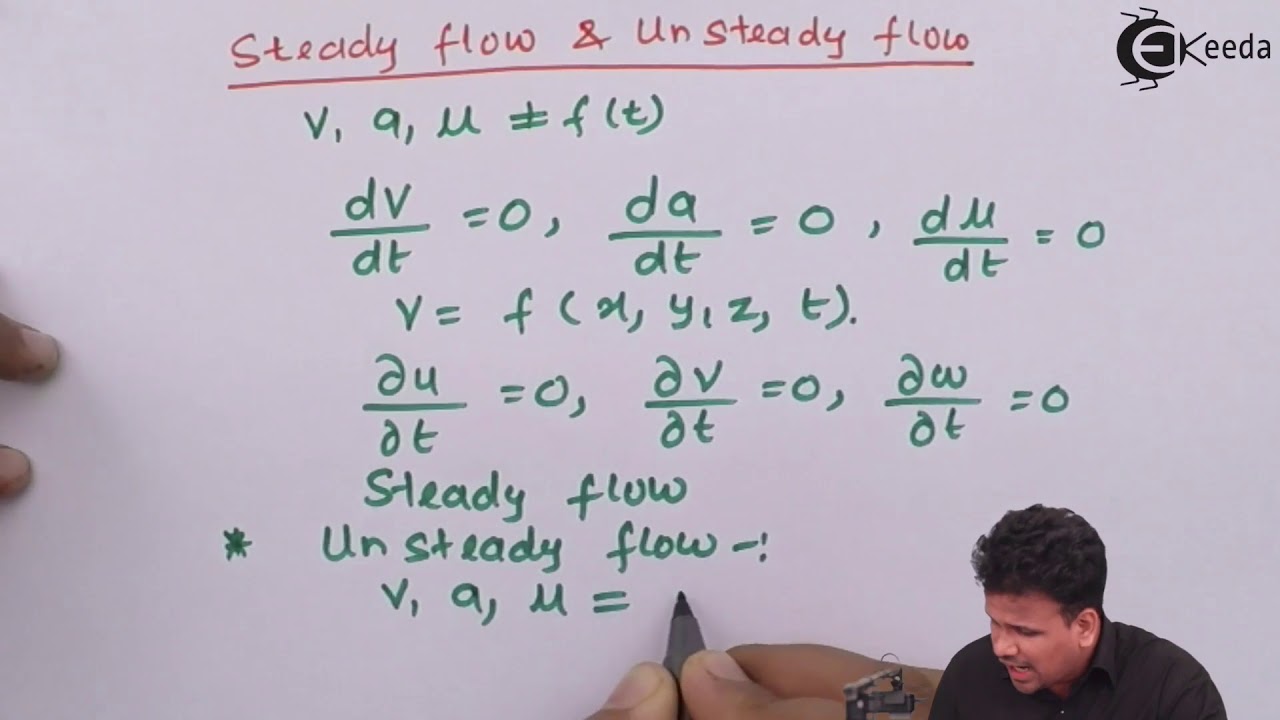

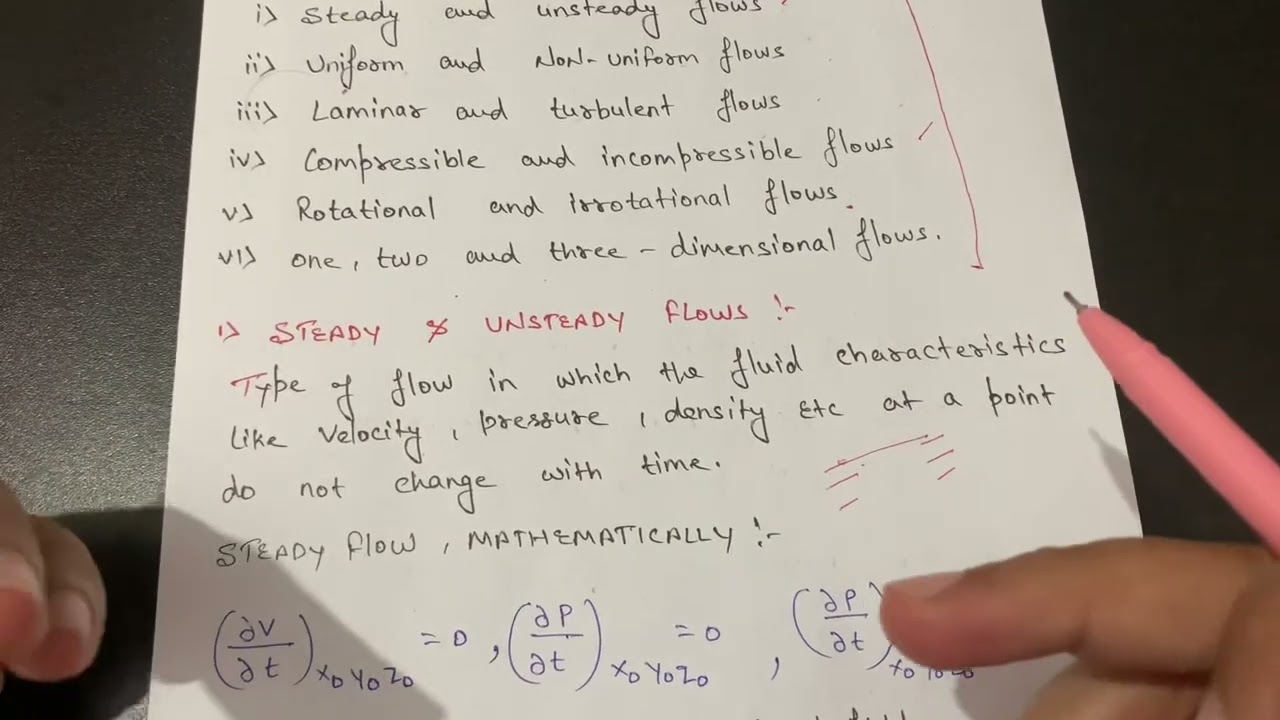

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Classification of Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you talk about when do I get a problems of the fluid flow problems, first it comes it that we should classify it. The classification means you will try to understand that we are simplifying or categorizing the fluid flow in that category.
Detailed Explanation
The text begins by explaining the importance of classifying fluid flow problems. Basically, classifying fluid flow helps in understanding what type of problem one is dealing with, which simplifies analysis and problem-solving. Different types of fluid flows behave differently under various conditions, so identifying the category allows engineers to apply relevant solutions or equations appropriately.
Examples & Analogies
Think of it like categorizing books in a library. Each section of the library has books that are similar to each other. By categorizing the books, you can easily locate what you want. Similarly, by classifying fluid flows, engineers can quickly determine the best approach for analyzing a specific flow problem.
Viscous and Inviscid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Like first let me talk about that. When the as you know in a solid mechanics when two objects are moving it there will be the resistance force okay. And exact same way the resistance in a fluid flow we call the viscous. So that viscosity, viscous flow when we have the flow resistance are dominated, are significant then we call the viscous flow.
Detailed Explanation
This chunk explains the terms 'viscous flow' and 'inviscid flow'. In viscous flow, the resistance due to viscosity is significant; this means that the fluid's internal friction is important in determining how it moves. Conversely, in inviscid flow, the viscosity is negligible compared to other forces, allowing for more straightforward calculations and analysis. In some regions of the flow, viscosity may not play a substantial role, allowing those areas to be treated as inviscid.
Examples & Analogies
Imagine trying to swim in water versus in honey. In water, you can move quickly and freely since viscous resistance is low, while in honey, you'll encounter much more resistance and move slowly. This illustrates the difference between viscous and inviscid flow.
Internal and External Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now you take it this example... if that is the conditions we can say is the internal flow...
Detailed Explanation
This section explains the distinction between internal and external flow. Internal flow occurs within boundaries, such as the flow of water in pipes, where the boundaries greatly influence the flow behavior. External flow, on the other hand, happens outside of boundaries, such as wind blowing over a tennis ball, where the fluid interacts freely with the surrounding environment. Recognizing whether a flow is internal or external is crucial for analyzing fluid dynamics, as it determines the modeling of boundary conditions.
Examples & Analogies
Consider a car driving on a highway (external flow) versus water flowing through a hose (internal flow). In the first case, the air freely interacts with the car, whereas in the second, the water's movement is restricted by the walls of the hose.
Steady, Periodic, and Unsteady Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If you look at that problems... we can classify them steady flow, periodic flow and unsteady flow.
Detailed Explanation
In this chunk, the author discusses how fluid flow can vary over time, categorizing flows into three types: steady, periodic, and unsteady. Steady flow means the flow characteristics do not change over time, such as water flowing continuously and uniformly through a hose. Periodic flow involves changes that occur in a regular pattern over time, like the rise and fall of tides. Unsteady flow refers to changes that are random and unpredictable, where the flow characteristics can vary significantly at different points in time.
Examples & Analogies
Think of steady flow as a consistent stream of traffic on a highway, periodic flow as the rhythmic waves at a beach, and unsteady flow as the chaotic movement of people in a crowded market where nobody moves in a synchronized manner.
Forced Flow vs. Natural Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The second part what we will talk it now is the internal flow external flow. Here I am talking about the boundary...
Detailed Explanation
This portion explains the distinction between forced flow and natural flow. Forced flow is driven by external forces (such as pumps or turbines), while natural flow relies on gravity or buoyancy. This distinction is crucial in understanding how fluids behave under different driving conditions. For instance, a water fountain that actively pumps water represents forced flow, while a waterfall showcases natural flow.
Examples & Analogies
Think of a bicycle pump pushing air into a tire as forced flow. In contrast, the air naturally filling a balloon when you let it go represents natural flow. The mechanisms determining how fluid moves in each case significantly affect the fluid dynamics involved.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Steady Flow: Flow where properties do not change over time at a point.
-
Periodic Flow: Flow properties that change consistently over time in a cycle.
-
Unsteady Flow: Flow in which properties fluctuate unpredictably over time.
-
Internal Flow: Flow contained within a solid surface boundary.
-
External Flow: Flow occurring outside of defined boundaries.
-
Viscous Flow: Flow with significant resistance due to viscosity.
-
Inviscid Flow: Flow with negligible viscous effects.
-
Laminar Flow: Smooth, orderly flow pattern.
-
Turbulent Flow: Chaotic, mixed flow pattern.
-
Transitional Flow: Flow that mixes characteristics of both laminar and turbulent flows.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An example of steady flow is water flowing consistently through a straight pipe at a fixed rate.
-
Tidal movements represent periodic flow as they recur over regular intervals.
-
A river flood illustrates unsteady flow, where water levels change rapidly over time.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Steady flow, no change in sight, always calm, and always right.
📖 Fascinating Stories
-
Imagine a river that flows steadily, reflecting the trees beside it, while next to it, another river gurgles chaotically, scattering leaves. This represents steady versus turbulent flow.
🧠 Other Memory Gems
-
To remember the types of flow: S, P, U – Steady (S), Periodic (P), Unsteady (U).
🎯 Super Acronyms
SULT
- Steady
- Unsteady
- Laminar
- Turbulent – categorize your flows quickly!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Steady Flow
Definition:
Flow where the fluid properties do not change over time at any given point.
-
Term: Periodic Flow
Definition:
Flow properties that vary with time in a periodic manner.
-
Term: Unsteady Flow
Definition:
Flow where the velocity and other properties of the fluid change over time.
-
Term: Internal Flow
Definition:
Flow that is contained within boundaries, such as in a pipe.
-
Term: External Flow
Definition:
Flow occurring outside defined boundaries, such as air moving around an object.
-
Term: Viscous Flow
Definition:
Flow where viscous forces dominate due to the fluid's resistance.
-
Term: Inviscid Flow
Definition:
Flow where viscous effects are negligible compared to other forces.
-
Term: Laminar Flow
Definition:
Flow characterized by smooth and orderly fluid motion.
-
Term: Turbulent Flow
Definition:
Flow marked by chaotic and disordered fluid motion.
-
Term: Transitional Flow
Definition:
Flow that exhibits characteristics of both laminar and turbulent flows.
