2..1 - Viscous Flow and Inviscid Flow
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Viscous and Inviscid Flow
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will discuss viscous and inviscid flow. Viscous flow occurs when fluid resistance forces are significant. Can anyone define the term 'viscous'?
Isn't 'viscous' related to how thick or sticky a fluid is?
Exactly! Viscosity measures a fluid's resistance to flow. Now, who can distinguish inviscid flow?
Inviscid flow happens when viscous forces are negligible.
Great! Remember: 'viscous' means resistance, while 'inviscid' signifies lack of it. Let's look at some examples of fluid flow.
Examples of Flow in Pipes
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Consider two pipes—one wide and one narrow. The fluid flowing through behaves differently in these pipes due to viscosity. What can we infer about the flow in different regions of a pipe?
In the wide pipe, the flow might be more inviscid because the viscosity won't dominate.
So, the narrow pipe would likely have more viscous effects, right?
Exactly! Viscous forces dominate in narrow passages where the fluid touches the walls. Let's summarize: viscous flow is site-dependent. Remember this visual differentiation!
Internal vs. External Flow
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's differentiate between internal and external flows. Can you give examples of internal flow?
Flow within a pipe is an example of internal flow.
Correct! What about external flow?
Flow around objects, like air movement over a tennis ball!
Right! Remember, internal flow has boundary conditions defined by solid surfaces while external flow does not. Good job!
Flow Types
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Fluid flows can be classified into several types—steady, unsteady, periodic, laminar, and turbulent. What do we mean by steady flow?
Steady flow means the flow properties don't change with time.
Exactly! And what about turbulent flow?
Turbulent flow is chaotic and has a lot of fluctuations!
Fantastic! Consider using the virtual fluid ball concept to distinguish between these flow types. Remember: visualize these flows!
Compressible vs. Incompressible Flow
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s talk about compressible versus incompressible flow. How do we define compressible flow?
Compressible flow involves significant density changes.
Right! And what makes a flow incompressible?
Incompressible flow has negligible density changes, usually less than 1%.
Great job! Most engineering scenarios, such as those in civil and mechanical engineering, deal with incompressible flow. Always identify these characteristics for effective problem-solving!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section provides an overview of fluid flow classification, focusing on the distinguishing characteristics of viscous and inviscid flows, as well as internal and external flows. Various examples illustrate the concepts of steady, unsteady, laminar, and turbulent flow.
Detailed
In fluid dynamics, understanding flow characteristics is essential. This section begins by defining viscous and inviscid flows, emphasizing that viscous flow occurs when resistance forces play a significant role, while inviscid flow occurs when these forces are negligible compared to other forces. Using a pipe flow model, the concepts are illustrated, showing regions of viscous and inviscid flow. The section also delineates between internal flow (e.g., within pipes with defined boundaries) and external flow (e.g., flow around objects like a tennis ball). Furthermore, it categorizes flows into steady, unsteady, periodic, forced, and natural flows, alongside laminar, turbulent, and transitional flows, demonstrating how visual aids and virtual fluid balls can help understand these flow types. Lastly, it explains the significance of fluid density changes in determining whether a flow is compressible or incompressible and introduces classifications based on velocity, boundary conditions, and time dependency.
Youtube Videos

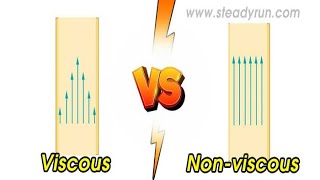

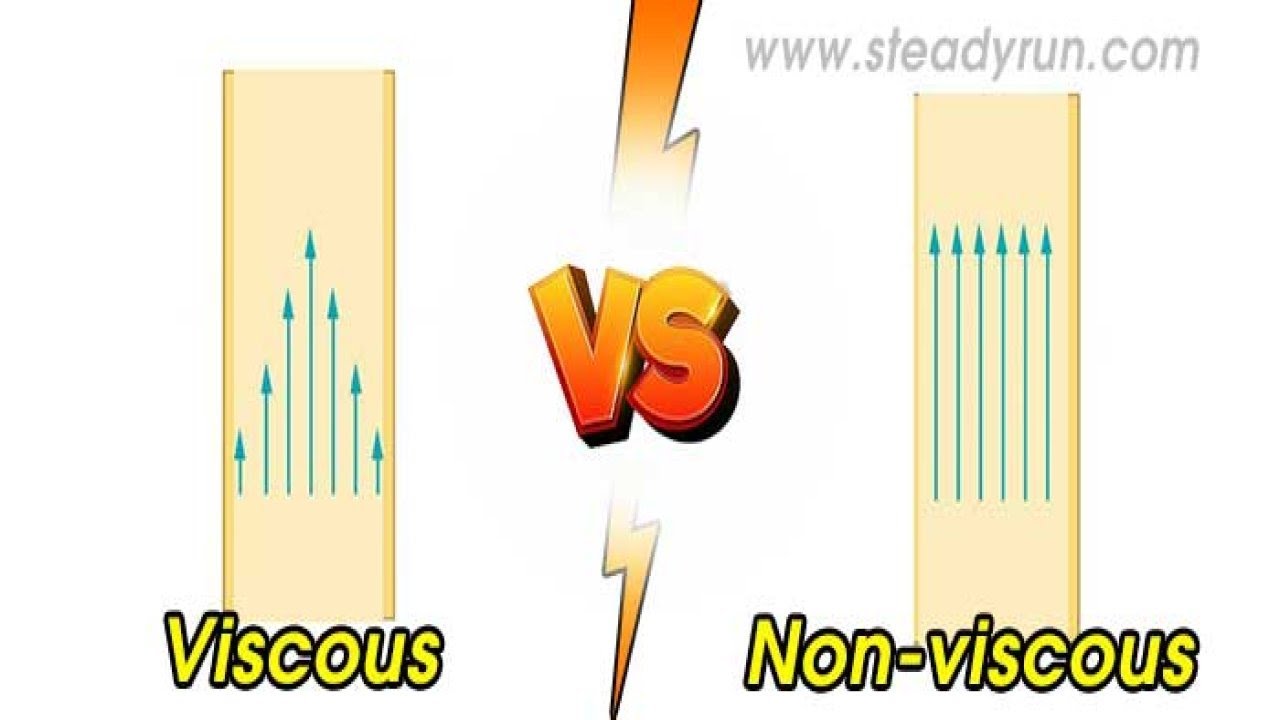

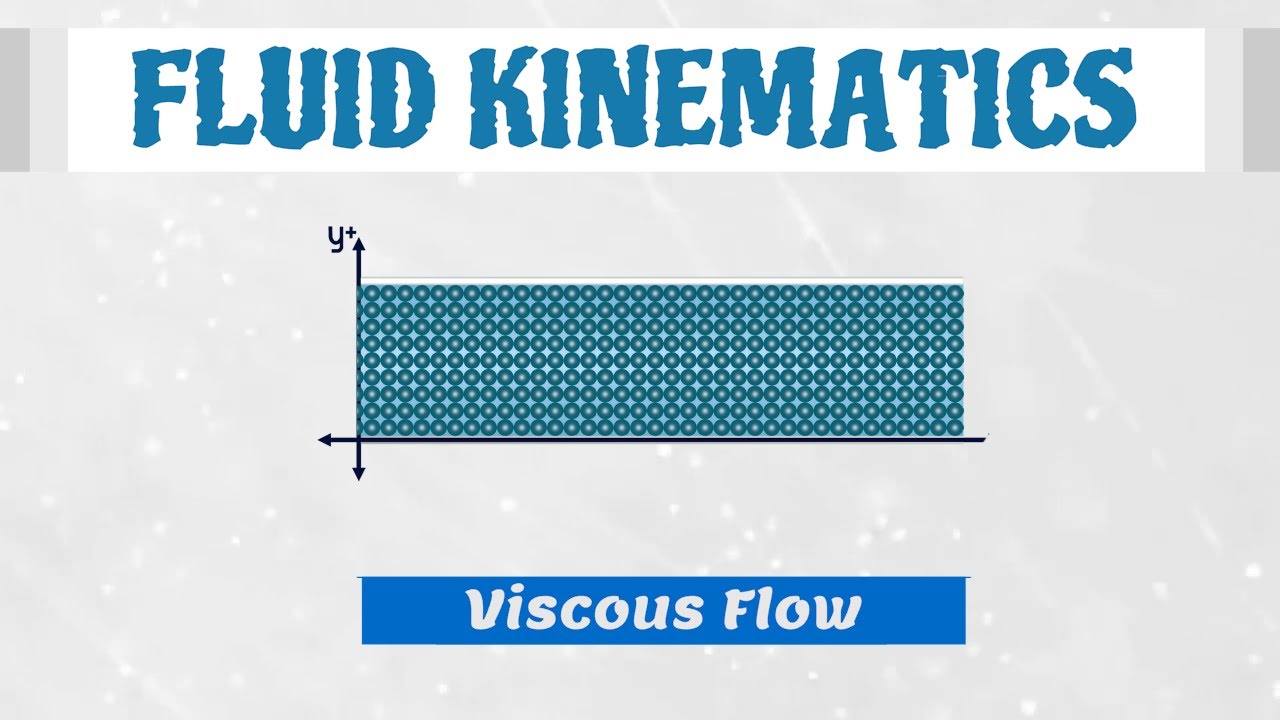

![Viscous and Non-viscous Flow Animation [Fluid Mechanics]](https://img.youtube.com/vi/Be0HF13MN8c/mqdefault.jpg)

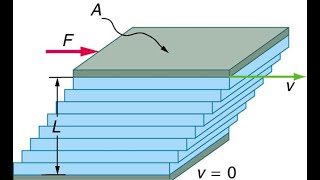

![[Aero Fundamentals #3] Inviscid and Viscous flows explained](https://img.youtube.com/vi/iS8Tgj--CvQ/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Flow Classification
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Now if you talk about when do I get a problems of the fluid flow problems, first it comes it that we should classify it. The classification means you will try to understand that we are simplifying or categorizing the fluid flow in that category. So we can solve that particular category class of the fluid flow problems.
Detailed Explanation
When faced with fluid flow problems, the first step is to classify or categorize the flow. This helps in simplifying the complexities of the problems, allowing us to apply specific methods and solutions that are relevant to the category of flow we are dealing with. In essence, classification helps to break down the problem into more manageable pieces, making it easier to analyze and solve.
Examples & Analogies
Think of fluid flow classification like organizing a library. Just as books are categorized into fiction, non-fiction, science, and history to help find information easily, fluid flows can be categorized to help engineers apply the right theories and solutions. For instance, knowing that a problem involves viscous flow allows the engineer to use models that address viscosity effects, similar to how a librarian would go to the non-fiction section for science books.
Viscous Flow Explained
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
And exact same way the resistance in a fluid flow we call the viscous. So that viscosity, viscous flow when we have the flow resistance are dominated, are significant then we call the viscous flow.
Detailed Explanation
Viscous flow refers to the scenario in fluid dynamics where the resistance due to viscosity is significant. Viscosity is a measure of a fluid’s resistance to deform or flow. In a viscous flow, the fluid experiences significant internal friction as molecules slide past each other, slowing down the flow. This is particularly noticeable when the moving fluid interacts with solid boundaries, creating drag.
Examples & Analogies
Imagine trying to push a thick syrup through a narrow straw. The syrup moves slowly, and you feel the resistance of the syrup as you push the straw. In this case, the thick syrup represents a viscous fluid, and the resistance you feel is due to its high viscosity, illustrating viscous flow.
Inviscid Flow Defined
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
But there are the reasons where you may not have the viscous is going to dominated or comparatively it is a less as compared to other force component, those reasons we can talk about the inviscid flow.
Detailed Explanation
In contrast, inviscid flow refers to fluid flow where the effects of viscosity are negligible. This occurs under conditions where other forces, such as pressure or inertial forces, dominate the flow dynamics. In these scenarios, the fluid can be treated as having no internal shear resistance, simplifying the analysis significantly.
Examples & Analogies
Consider a water jet from a garden hose. As the water shoots out at high speed, the flow can be approximated as inviscid because the impact of viscosity is minimal compared to the kinetic energy of the flowing water. In this analogy, you can think of it as a race car zooming down a track—at such high speeds, the air’s resistance is minimal compared to the car's momentum.
Example of Viscous and Inviscid Flow in Pipes
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Now you take it this example. This is very interesting examples here, okay. If you look at a two pipes are there. One is a bigger pipe, another is a smaller pipe, okay.
Detailed Explanation
In the example of two pipes—one larger and one smaller—we can observe both viscous and inviscid flow. Inside the larger pipe, the flow is predominantly viscous near the walls where the fluid interacts with the pipe material, but as we move towards the center, the effects of viscosity become less significant, leading to conditions that can be considered inviscid. Conversely, in the smaller pipe, the influence of viscosity may dominate throughout, altering the flow dynamics.
Examples & Analogies
Think about how your sink has both wide and narrow pipes. When water flows into the wider pipe, it moves more freely and quickly in the center (inviscid), but near the sides, it slows down due to friction with the walls (viscous). In contrast, a narrower pipe restricts flow throughout, showing higher viscous effects.
Internal Flow vs. External Flow
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The second component what we will talk it now is the internal flow external flow. Here I am talking about the boundary.
Detailed Explanation
Internal flow occurs when the fluid flow is confined within boundaries, such as a pipe, where the later stages are defined by solid walls. External flow refers to fluid flow occurring freely without these specific boundaries, such as air flowing around an object, like a tennis ball. Understanding the distinction is crucial for predicting flow behavior and the forces acting on the fluid.
Examples & Analogies
Consider a river (external flow), where the water flows freely and is affected by natural boundaries like riverbanks. In contrast, when water travels through a pipe (internal flow), it is contained and thus experiences different dynamics influenced heavily by the pipe’s walls.
Conclusion and Classifications
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
So we can simple way categorize viscous flow, inviscid flow, external flow and the internal flow.
Detailed Explanation
In conclusion, understanding fluid flow involves categorizing whether the flow is viscous or inviscid and recognizing the external or internal boundaries of the flow. This classification aids in identifying the appropriate analysis methods and simplifications needed to solve fluid mechanics problems.
Examples & Analogies
Imagine you are planning a road trip. Knowing the type of roads (smooth highways vs. rough terrain) helps you choose the right vehicle and plan your route. Similarly, knowing whether fluid flows are viscous or inviscid and if they are internal or external helps engineers select the right approach for analyzing fluid dynamics.
Key Concepts
-
Viscous Flow: Flow characterized by significant viscous resistance.
-
Inviscid Flow: Flow where viscous effects are negligible compared to other forces.
-
Internal Flow: Flow constrained by solid boundaries, like within a pipe.
-
External Flow: Flow occurring without any physical confinement.
-
Steady Flow: Flow conditions that do not change over time.
-
Laminar Flow: Flow that is smooth and orderly.
-
Turbulent Flow: Flow that is chaotic and highly irregular.
-
Compressible Flow: Flow that undergoes significant density changes.
-
Incompressible Flow: Flow where density changes are negligible.
Examples & Applications
Water flowing in a wide pipe can demonstrate inviscid flow at the center, while near the walls, it experiences viscous flow.
Airflow around a tennis ball represents external flow, where the fluid encounters no defined boundary.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In viscous flow, the sticky's real, / Resistance matters in every wheel./ But inviscid flow? It’s light and fast, / Where forces dominate—no friction’s cast.
Stories
Imagine a car on a wide road (inviscid) zooming easily, while on a narrow path (viscous), it struggles to move due to rough terrain.
Memory Tools
For flow categories, remember 'SILVER': Steady, Internal, Laminar, Viscous, External (for external flow), Reduce (incompressible).
Acronyms
To recall flow types, think of 'LET IT BE'
Laminar
External
Turbulent
Internal
Transitory (for transitional flow)
Buoyant (natural).
Flash Cards
Glossary
- Viscous Flow
Flow where the resistance due to viscosity is significant.
- Inviscid Flow
Flow where the effects of viscosity are negligible.
- Internal Flow
Flow that occurs within a defined boundary, such as a pipe.
- External Flow
Flow occurring without an established boundary, like around an object.
- Steady Flow
Flow where fluid properties do not change over time.
- Unsteady Flow
Flow where properties change with time.
- Laminar Flow
Smooth and orderly fluid motion typically following parallel layers.
- Turbulent Flow
Chaotic and irregular fluid motion with numerous velocity fluctuations.
- Compressible Flow
Flow where density changes significantly.
- Incompressible Flow
Flow where density remains nearly constant.
