Effect of Water Content
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're starting with the effect of water content on soil compaction. Can anyone tell me what happens to compacted density as the water content increases?
It increases until a certain point, right?
Exactly! And this point is known as the optimum moisture content or OMC. If we go beyond that, what happens?
The density starts to decrease because the voids increase?
Correct! Water replaces air in the voids, but too much water expands the double layer and reduces inter-particle attraction. Remember, MDD is achieved at OMC.
How does OMC actually affect the dry density?
Great question! At lower water content than OMC, there’s high inter-particle attraction, but as you increase water, it helps particles slide for denser packing until OMC is reached.
So, what’s the main takeaway on water content and compaction?
That we need the right amount of water to maximize density without going over, where it becomes counterproductive!
Well said! Always aim for that balance. Let's summarize: More water up to OMC increases density; beyond that, we risk losing compact density.
Effect of Amount of Compaction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let's discuss the amount of compaction. Who can explain how increasing compactive effort affects MDD?
It increases the maximum dry density but also changes the optimum moisture content, right?
Exactly! But it’s important to note that this relationship isn’t linear. More compaction doesn’t always equate to proportional increases in density.
Why is that?
Good question! Because there are diminishing returns at higher levels of compaction. The initial efforts yield significant improvements, but beyond a point, the benefits drop off. Can anyone name a test that shows this?
The Proctor test?
Yes! The Standard and Modified Proctor tests illustrate these changes effectively.
So, to wrap up this section: increasing compaction does help improve MDD while lowering OMC, but watch out for that diminishing return.
Effect of Method of Compaction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s explore how the method of compaction matters. Can anyone list what influences the dry density achieved by the method?
The weight of the equipment and the type of compaction?
Exactly! Other factors include the area of contact and time of exposure. Each method varies in effectiveness based on the soil type. What’s your understanding of this?
So, lighter equipment might not compact as effectively as heavy equipment?
Correct! Heavier equipment exerts more force, allowing for better compaction. Remember, different soils also respond differently to these methods.
Does that mean we have to adjust our approach for sandy versus clayey soil?
Absolutely! Coarse-grained soils might require different compaction techniques than fine-grained ones. Let’s summarize: method of compaction affects density through equipment weight, type, area of contact, and exposure time, and must adapt to soil types.
Effect of Type of Soil
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, the type of soil plays a big role in the density achieved after compaction. Can someone explain how coarse and fine-grained soils differ in this regard?
Coarse-grained soils get denser at lower water contents while fine-grained soils need more water to reach good compaction, right?
Exactly! Coarse soils pack efficiently at less water due to less attraction among particles, while fine soils rely on water to overcome their cohesion.
So if we’re dealing with a clay soil, we should consider using more water for effective compaction?
Yes, but also remember that too much can decrease density. The key is finding that balance. As a recap: the type of soil affects how we choose the right moisture content and compaction method to achieve maximum density.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section reviews the effects of different factors on soil compaction, detailing how water content can influence maximum dry density (MDD) and optimum moisture content (OMC). It discusses the relationship between the amount and method of compaction, and how these variables vary with soil type, setting the groundwork for understanding compaction in geotechnical engineering.
Detailed
Detailed Summary
This section explores the factors that influence the compaction of soil, primarily focusing on water content, amount of compaction, method of compaction, and soil type.
Key Elements Discussed:
- Water Content:
- Increasing water content initially raises the compacted density until a peak is reached at optimum moisture content (OMC), after which the density decreases.
- The maximum density reached is termed Maximum Dry Density (MDD).
- Lower water content leads to inadequate lubrication among soil particles which limits density, whereas excessive water can lead to expansion of the double layer around particles, creating voids and reducing density.
- Amount of Compaction:
- Increased compactive effort generally yields higher MDD while lowering OMC, as detailed in Proctor Tests. However, this relationship is not linear.
- Method of Compaction:
- The achieved dry density depends on the compacting method's characteristics, including the weight of the equipment, type of compaction, contact area, and duration of exposure.
- Different soil types may require specific methods to achieve optimal compaction.
- Type of Soil:
- Different soil types respond variably to compaction; coarse-grained soils can achieve higher density at lower water content, while fine-grained soils require higher water content for effective compaction.
This section establishes foundational knowledge essential for understanding soil mechanics and effective compaction strategies in construction and engineering practices.
Youtube Videos

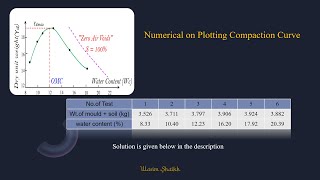

![Optimum Moisture (Water) Content [OMC] | Geotechnical Engineering | Civil Engineering Shorts](https://img.youtube.com/vi/ntvKuLvIG6g/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Compacted Density and Water Content
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- With increase in water content, compacted density increases up to a stage, beyond which compacted density decreases.
Detailed Explanation
As the water content in soil increases, the compacted density (the weight of soil per unit volume) initially increases. This is because adding water helps particles to move more freely, allowing tighter packing. However, after reaching a specific water content, additional water begins to create more space (voids) in the soil, leading to a decrease in density. This means there's an optimal range of water content for achieving maximum compactness.
Examples & Analogies
Imagine trying to pack a suitcase. At first, adding a small amount of clothes (water) helps to fill in the gaps between other clothes (soil particles) tightly. However, if you keep adding clothes, the suitcase starts to bulge, and you can't close it properly anymore (decreases in density due to increased voids).
Maximum Density and Optimum Moisture Content (OMC)
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- The maximum density achieved is called MDD and the corresponding water content is called OMC.
Detailed Explanation
The term MDD stands for Maximum Dry Density, which is the highest density that can be achieved for a specific soil type under given conditions of compaction. The Optimal Moisture Content (OMC) is the water content at which this maximum density occurs. Recognizing these parameters is crucial for engineers when designing foundations or roads, as the right moisture levels can significantly impact the stability and strength of structures.
Examples & Analogies
Think of baking a cake. The MDD is like the perfect height and density of the cake when you have the right amount of flour and water. If you add too much water (moisture), the cake will become soggy and lose its rise (density).
Effects of Water at Low Content
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- At lower water contents than OMC, soil particles are held by the force that prevents the development of diffused double layer leading to low inter-particle repulsion.
Detailed Explanation
When water content is below the OMC, soil particles are close together, and the forces between them, such as friction, dominate. This prevents the creation of a double layer of water around each particle, which normally acts to separate them and reduce repulsion. As a result, the compactness is not maximized, and dry density remains lower than it could be.
Examples & Analogies
Imagine two friends trying to dance closely without bumping into each other. If they're holding onto each other tightly (low water), they can't freely move around and perform the dance steps smoothly. But when they let go a little (reach OMC), they can move more fluidly and enjoyably (higher density).
Effects of Water at High Content
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Increase in water results in expansion of double layer and reduction in net attractive force between particles. Water replaces air in void space.
Detailed Explanation
When more water is added past OMC, water molecules increase the thickness of the diffused double layer around each soil particle. This expansion means particles push further apart, reducing the attractive forces that hold them together. Additionally, as water fills the void spaces, it creates saturation, leading to less compactness. Essentially, the soil becomes too wet to hold its form effectively.
Examples & Analogies
Think of trying to stack blocks to build a tower. Initially, adding a little glue (water) helps keep the blocks tightly together. However, if you pour too much glue, it spills between the blocks and makes them slippery, causing the tower to topple (loss of compactness).
Lubrication Effect of Water
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Particles slide over each other easily increasing lubrication, helping in dense packing.
Detailed Explanation
Water acts as a lubricant among soil particles, allowing them to slide over one another. When particles can move freely, they can pack more tightly, leading to increased density. This is particularly important during the compaction process, where the goal is to minimize the voids and maximize the solid particle contact.
Examples & Analogies
Imagine sliding marbles on a table with a little water or oil between them. They can move around and fit together better than when they're dry and stick to each other. This is similar to how soil particles are compacted with optimal water content.
Post-OMC Changes
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- After OMC is reached, air voids remain constant. Further increase in water, increases the void space, thereby decreasing dry density.
Detailed Explanation
Once OMC is achieved, the amount of air voids within the soil remains stable. However, adding more water beyond this point causes the excess water to fill up spaces that would otherwise be occupied by soil particles, leading to an increase in voids. This creates a situation where the overall mass of the soil doesn't increase relative to its volume, thus reducing the dry density of the soil.
Examples & Analogies
Consider a sponge that has absorbed a certain amount of water (OMC). Once fully soaked, any additional water spills out, creating gaps in the sponge as it starts to lose its ability to hold onto the material (decreased dry density).
Key Concepts
-
Water Content: The relationship between water content and compacted density is crucial; water content increases density to a point (OMC), beyond which the density decreases.
-
Maximum Dry Density (MDD): Highest density achieved with specific moisture content.
-
Optimum Moisture Content (OMC): The moisture level at which soil has maximum compaction.
-
Compactive Effort: The energy applied to compact soil; relates to density and moisture content.
-
Soil Type: Different soil types respond variably to water content and methods of compaction.
Examples & Applications
Example 1: During field tests, a sand sample achieves MDD with 10% moisture, while a clay sample requires 20% moisture for optimal results.
Example 2: In a construction project, engineers used a heavier roller for coarse-grained soil to achieve better compaction than when they used lighter equipment for fine-grained soil.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Too little or too much water won't do, find OMC for density that's true.
Stories
Imagine two builders: one uses a hammer to compact dry sand, the other a roller on wet clay. The first finds success quickly but the second must wait until the moisture balances for firm results.
Memory Tools
For compaction, think W.A.C.S.: Water, Amount, Compaction Method, Soil Type.
Acronyms
MDD stands for Maximum Dry Density; keep in mind OMC for the peak!
Flash Cards
Glossary
- Compaction
The process of increasing soil density by reducing air gaps through mechanical pressure.
- Moisture Content
The amount of water contained in soil expressed as a percentage of the weight of dry soil.
- Maximum Dry Density (MDD)
The highest density of compacted soil achieved at a specific moisture content.
- Optimum Moisture Content (OMC)
The moisture level at which soil achieves its maximum dry density.
- Proctor Test
A standard method for determining the maximum dry density and optimum moisture content of soils.
