1.3. Darcy's Law

Darcy's law states that there is a linear relationship between flow velocity (v) and hydraulic gradient (i) for any given saturated soil under steady laminar flow conditions.

Darcy's Law essentially explains how water moves through soil. When the soil is saturated, water can easily flow through its interconnected pores. The 'flow velocity' (v) is the speed at which this water moves, and it is directly related to the 'hydraulic gradient' (i), which is the difference in total head divided by the length of the soil mass. This law helps us understand that if you increase the slope of the land (the hydraulic gradient), the water will flow faster. Likewise, if the soil is less permeable, water will not flow as quickly, given the same gradient.

Think of a water slide. If the slide is steep, you go down quickly (high hydraulic gradient), just as water flows faster through a steep slope in soil. But if the slide is flat, it takes longer to reach the bottom (low hydraulic gradient), similar to how water moves slowly through flat, less permeable soil.

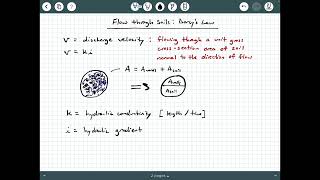

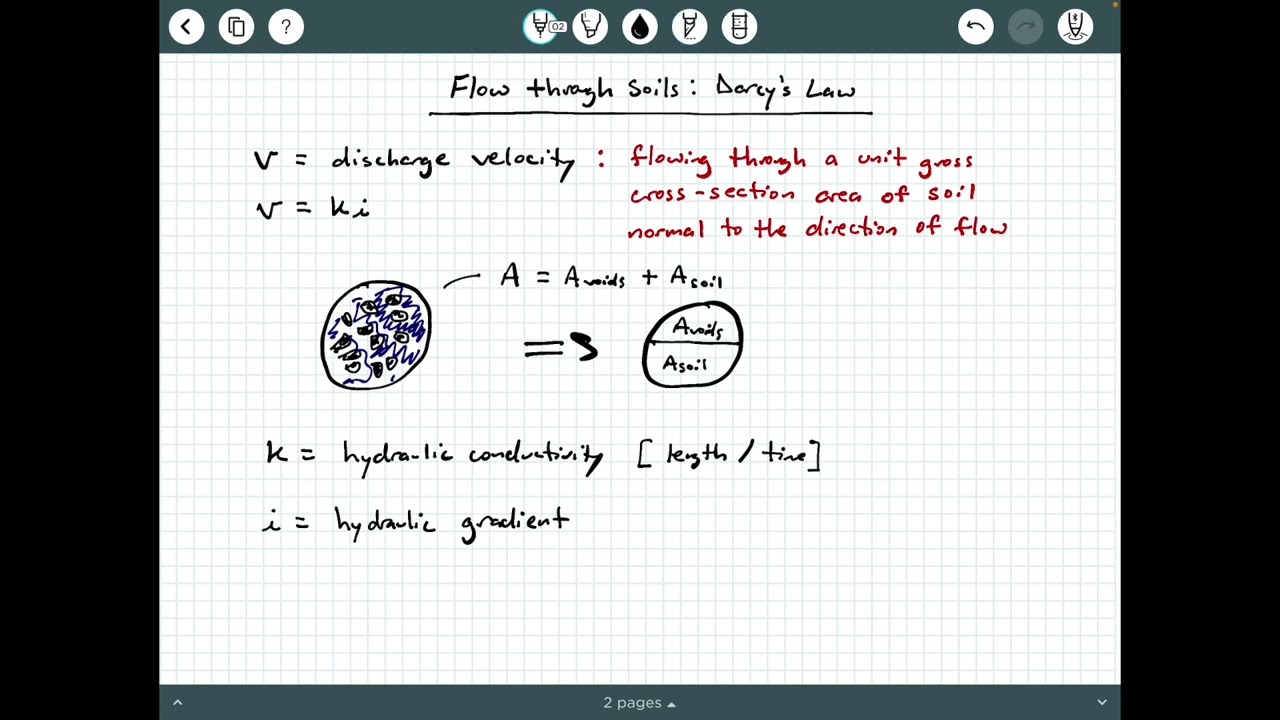

If the rate of flow is q (volume/time) through cross-sectional area (A) of the soil mass, Darcy's Law can be expressed as v = q/A = k.i, where k = permeability of the soil, i = ∆h/L, ∆h = difference in total heads, L = length of the soil mass.

Darcy's Law can be mathematically expressed in a formula. Here, 'q' represents the volume of water that flows through an area 'A' of the soil in a unit of time. When we rearrange the formula, we find that the flow velocity (v) can also be represented by the permeability (k) and the hydraulic gradient (i). The hydraulic gradient is calculated as the change in total head (∆h) over the length of the soil mass (L). This emphasizes that the ease of water flowing through soil depends not only on how saturated it is but also on the characteristics of the soil (permeability) and the gradient of the flow.

Imagine watering a garden. If you have a hose with excellent water flow (high permeability), you'll notice that more water can be supplied quickly when the nozzle is pointed downhill (high gradient). Whereas if the hose is too narrow (low permeability), even if you try to push water through it downhill, it won’t flow as fast as before!

The flow velocity (v) is also called the Darcian velocity or the superficial velocity. It is different from the actual velocity inside the soil pores, which is known as the seepage velocity, v_S.

It's important to differentiate between two types of velocities in the context of fluid flow in soil. The 'Darcian velocity' refers to the average speed of water moving through a cross-section of soil, while the 'seepage velocity' pertains to how fast water actually moves through the individual pores. The seepage velocity is typically higher because of the complex paths water takes as it navigates through pore spaces, which tend to be irregular and winding.

Imagine a busy street filled with moving cars. The speed of traffic on the street represents the Darcian velocity, which is influenced by how wide the road is and how fast cars are driving. However, if we look at the speed of each individual car weaving through the crowd of pedestrians and obstacles, that is more akin to the seepage velocity. Each car is moving faster in its own lane than the overall movement of traffic on the whole street.

Permeability (k) is an engineering property of soils and is a function of the soil type. Its value depends on the average size of the pores and is related to the distribution of particle sizes, particle shape and soil structure.

Permeability is a critical property to understand how water interacts with different types of soil. Depending on the soil type—like sand, clay, or silt—permeability varies greatly. Grains of sand, for example, are larger and less tightly packed than clay particles, which makes sandy soils more permeable. The arrangement of these particles also influences how easily water can flow through. Larger and more irregularly shaped particles create more space for water to move compared to smaller, closely packed particles.

Think of a sponge versus a piece of clay. The sponge can soak up water quickly due to its large pores, while the clay takes much longer to absorb moisture because its particles are closely packed together. In this way, sponges represent high permeability, while clay represents low permeability.

--
