1. Permeability Of Soil: Pressure, Elevation and Total Heads

In soils, the interconnected pores provide passage for water. A large number of such flow paths act together, and the average rate of flow is termed the coefficient of permeability, or just permeability. It is a measure of the ease that the soil provides to the flow of water through its pores.

Permeability refers to how easily water can flow through soil. Soils consist of tiny spaces, called pores, which are interconnected. When water moves through these pores, the average rate at which it flows defines the soil's permeability. Higher permeability means water can flow through easily, while lower permeability means the soil holds onto water more tightly.

Think of permeability like a highway. If the highway has many lanes and is well maintained, cars (or water) can travel quickly. But if it's a narrow dirt road with lots of bumps, cars will struggle to move smoothly. Similarly, soil can either facilitate or obstruct water movement depending on its structure.

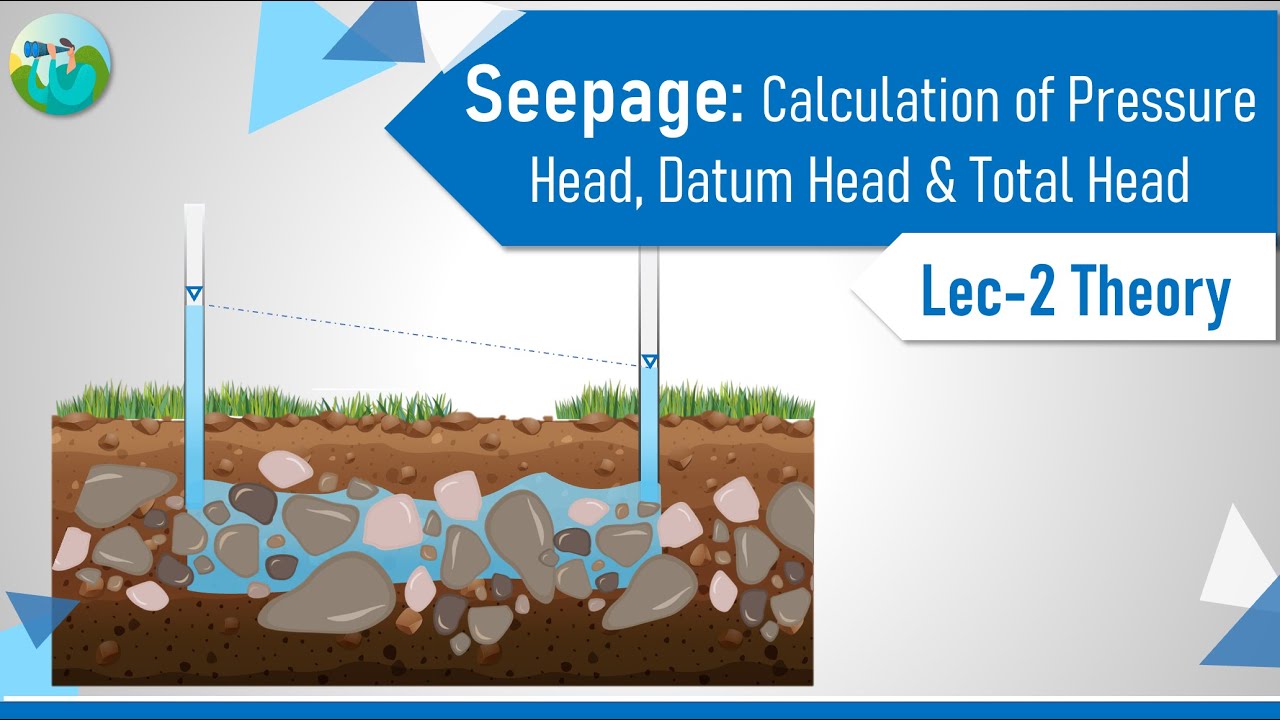

At point A, the pore water pressure (u) can be measured from the height of water in a standpipe located at that point. The height of the water column is the pressure head (h_w): h_w = u/γ_w.

Pore water pressure is crucial for understanding how water behaves within the soil. By measuring the height of water in a standpipe (a vertical tube), we can gauge the pressure exerted by the water at a specific point in the soil. This height measurement, called pressure head (h_w), gives us a clear view of how water pressure varies in the soil, which is important for calculations involving water flow.

Imagine a straw submerged in a glass of water. The height of the water in the straw can tell you how much pressure is being exerted by the water in the glass. Similarly, measuring the height of water in the standpipe helps us understand the water pressure at that location in the soil.

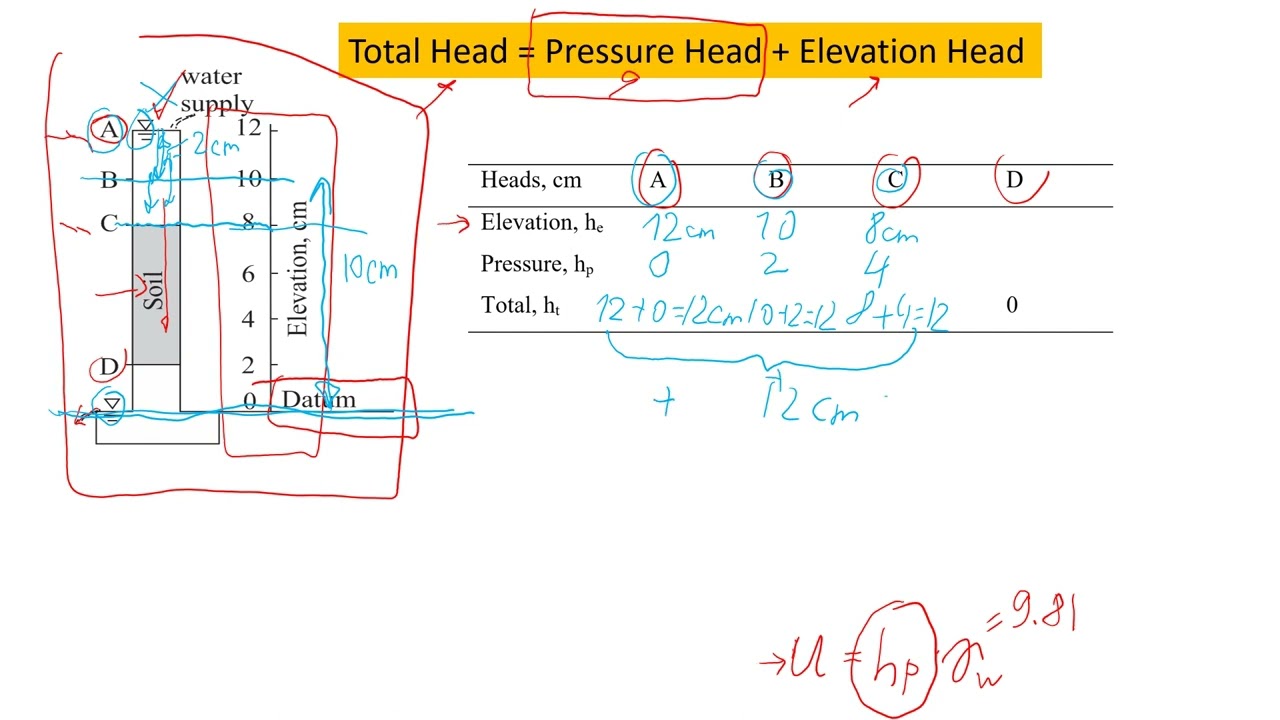

The elevation head (h_z) of any point is its height above the datum line. The height of water level in the standpipe above the datum is the piezometric head (h): h = h_z + h_w.

The elevation head measures the height of a point relative to a set reference level, or datum line. The piezometric head is the combined measurement of this elevation head and the pressure head, providing a complete picture of the total energy available at that point in the soil. This is vital for understanding how water flows through soil layers.

Think of this like measuring the height of a tree. If you measure from the ground (datum) to the top of the tree (elevation head), you combine that with how much water is 'pressing down' in your watering can (pressure head) to understand how high you can actually fill it (piezometric head).

Total head consists of three components: elevation head, pressure head, and velocity head. As seepage velocity in soils is normally low, velocity head is ignored, and total head becomes equal to the piezometric head.

Total head indicates the total energy available to cause water to flow and consists of elevation head, pressure head, and velocity head. In most soils, the velocity at which water flows is low, making the contribution of velocity head negligible. Therefore, the total head can be simplified to just the piezometric head, which helps in determining how water moves through different soil strata.

Consider a water fountain where water is pushed upwards (elevation head) and the pressure in the pipes (pressure head) that helps the water flow. The speed of water (velocity head) isn’t a major factor unless the fountain is very powerful. Therefore, the height of the water shooting out (total head) can primarily be seen as coming from how high the water can rise based on the pump pressure and elevation.

Darcy's law states that there is a linear relationship between flow velocity (v) and hydraulic gradient (i) for any given saturated soil under steady laminar flow conditions.

Darcy's Law explains how water flows through soil. It asserts that the flow velocity is directly proportional to the difference in total head (the hydraulic gradient) over a certain distance. Essentially, the steeper the gradient, the faster the water will flow through the soil, given that the conditions remain consistent and the flow remains smooth (laminar).

Imagine sliding down a hill. The steeper the hill, the faster you go. Similarly, in soil, the steeper the difference in water pressure between two points, the quicker the water will flow from one point to the other, following the principles of Darcy's Law.

The flow velocity (v) is called the Darcian velocity or the superficial velocity. It is different from the actual velocity inside the soil pores, which is known as the seepage velocity, v_S.

Darcian velocity (superficial velocity) refers to the velocity of water flow calculated based on the overall flow area of the soil. However, this is different from the actual speed of water particles moving through the small pores (seepage velocity). Due to the twists and turns of the pores, water particles actually travel faster than the calculated superficial velocity.

When you pour water through a coffee filter, the speed at which the water drips from the bottom is akin to Darcian velocity. But inside the tiny pores of the coffee grounds where the water is flowing through, the water moves in a more erratic manner, much faster in short bursts—like a hidden race track compared to the main road.

Permeability (k) is an engineering property of soils and is a function of the soil type. Its value depends on the average size of the pores and is related to the distribution of particle sizes, particle shape and soil structure.

The permeability of soil varies widely based on its type—whether it's sand, clay, or gravel. The size and distribution of soil particles, as well as the arrangement of these particles, significantly affect how quickly water can flow through. For instance, larger, rounder particles often lead to higher permeability, allowing water to move freely.

Think of permeability like a sieve. A coarse sieve with larger holes (like gravel) allows water to pass through quickly, while a fine sieve (like clay) traps water and lets it through very slowly. The type of soil acts as the sieve, determining water flow speed.

--
