1.3.3 - Capillary Rise and Partial Saturation
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Pore Water Pressure
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're going to begin with the concept of pore water pressure and how it affects the stress in soils. Can anyone tell me what pore water pressure is?
Is it the pressure exerted by the water within the soil pores?
Exactly! Pore water pressure, denoted as 'u', is the pressure exerted by water at a certain depth below the water table. It varies based on several factors, including the height of the water column above the point of measurement.
So that's why it's zero at the water table, right?
Correct! At the water table, the pore water pressure transitions from positive to negative as you move above it, which leads to what we call capillary action.
Effective Stress Principle
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's discuss Terzaghi's principle of effective stress. Can someone explain what effective stress means?
Is it the total stress minus the pore water pressure?
Exactly! Effective stress is represented as σ' = σ - u. This means that all the mechanical behavior of soil is due to changes in effective stress, not total stress.
So if we increase the load on the soil, how does that affect the pore water pressure?
Great question! Initially, increasing the load raises the pore water pressure until water drains out and the excess load is transferred to the solid grains, thus increasing effective stress. Remember, effective stress drives soil behavior!
Capillary Rise
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's explore capillary rise. Who can describe how it works in soils?
Isn’t it the phenomenon where water rises through soil due to both adhesion and cohesion?
Precisely! Capillary rise occurs in the porous medium of the soil. Its height can vary based on the soil grain size—smaller pores lead to higher capillary rise.
So would that mean coarse soils have lower capillary rise?
Yes! Coarse soils indeed have lower capillary rise because the larger pores do not create enough suction to draw water upwards effectively. This is crucial for understanding how plants access water.
Partially Saturated Soils
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's move on to partially saturated soils. Who can explain what we mean by this term?
I think it means the soil pores are only halfway filled with water?
Correct! This condition affects the unit weight and pore pressures; we now have to consider both pore water pressure and pore air pressure.
How would that impact things like construction?
Excellent question! It complicates our calculations for load-bearing and stability. Hence, understanding the degree of saturation is essential!
Review of Key Concepts
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
To wrap up, can anyone summarize what effective stress means and why it's important?
Effective stress is the total stress minus the pore water pressure, and it governs the soil's resistance to loading.
And capillary rise is all about how water can move up through small pores against gravity!
Exactly! Remember, understanding these principles will help you predict soil behavior under various conditions. Great job today, everyone!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section covers the relationship between capillary rise and soil saturation, explaining how pore water pressure varies with depth and material types, as well as introducing the significance of effective stress in saturated soil mechanics.
Detailed
Capillary Rise and Partial Saturation
In this section, we explore the phenomenon of capillary rise in soils, which occurs when water is drawn upwards against gravity due to surface tension in water-filled soil pores. This phenomenon is heavily influenced by the soil's grain size; smaller grains allow for a greater capillary rise. The relationship between total stress, pore water pressure, and effective stress is clarified through the principles set forth by Karl Terzaghi in 1936, emphasizing that effective stress governs soil behavior under loading conditions. The section also explains how, in partially saturated soils, the unit weight is affected, and how pore water pressure and pore air pressure contribute to the pressure dynamics within soil layers. Understanding these concepts is crucial for predicting soil behavior during construction and environmental processes.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Capillary Rise
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

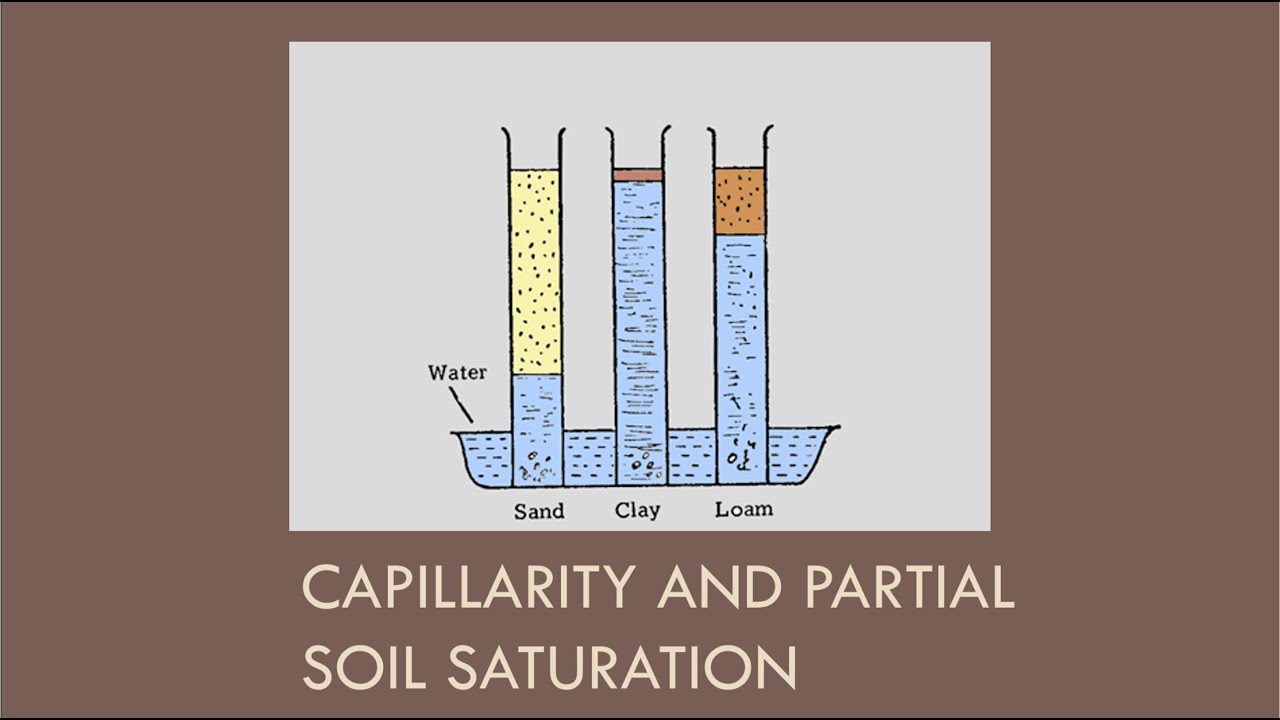

Above the water table, when the soil is saturated, pore pressure will be negative (less than atmospheric). The height above the water table to which the soil is saturated is called the capillary rise, and this depends on the grain size and the size of pores. In coarse soils, the capillary rise is very small.
Detailed Explanation
Capillary rise refers to the phenomenon where water can move upwards through small pores or spaces in soil due to surface tension. This rise occurs above the water table, where soil is still saturated. In saturated soil, the water pressure often becomes negative, which indicates that the water in the soil is under tension, rather than simply sitting at atmospheric pressure. The actual height that water can rise in the soil depends on the size of soil particles and the size of the pores; finer soils can retain water better and thus have a higher capillary rise compared to coarser soils that have larger pores.
Examples & Analogies
Imagine a sponge placed in water; when you pull the sponge out, water clings to the sponge and may rise up even higher than the water level it was in. This is similar to how water can rise in smaller soil pores through capillary action. Finer soils like clay have smaller pores and retain water more effectively, so they can exhibit a higher 'water rise' compared to sandy soils, which allow water to pass through quickly and don't hold much water above the water table.
Partial Saturation in Soil
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Between the top of the saturated zone and the ground surface, the soil is partially saturated, with a consequent reduction in unit weight. The pore pressure in a partially saturated soil consists of two components: Pore water pressure = u_w, Pore air pressure = u_a. Water is incompressible, whereas air is compressible. The combined effect is a complex relationship involving partial pressures and the degree of saturation of the soil.
Detailed Explanation
In the zone above the water table, the soil is not fully saturated but instead is partially saturated. This means that both water and air occupy the pore spaces. This mixture leads to a reduction in the soil's overall weight because not all the pores are filled with water, unlike in fully saturated soil. The forces in these partially saturated soils consist of pore water pressure (the pressure from the water in the pores) and pore air pressure (the pressure from the air occupying the remaining pore spaces). Understanding how water and air pressures interact is essential for grasping how soil behaves under various conditions, especially in terms of stability and strength.
Examples & Analogies
Think of a slice of bread that has only absorbed a bit of water as opposed to being fully soaked. The bread can get a bit heavier, but it won't weigh as much as a completely soggy piece of bread. In this analogy, the 'pore water pressure' is like the moisture in the bread, while the 'pore air pressure' represents the air that remains in the bread's texture. This balance between air and water affects how the bread (or soil) holds together, its ability to support weight, and how it reacts to additional stresses.
Key Concepts
-
Pore Water Pressure: The pressure exerted by groundwater in the soil pores, essential for understanding soil behavior.
-
Effective Stress: The total stress minus pore water pressure; it's the key factor in soil strength.
-
Capillary Rise: The resultant height of water rise in soil due to depth and pore size.
-
Partial Saturation: The condition where some soil pores contain water while others contain air, affecting soil mechanics.
Examples & Applications
In sandy soils, the capillary rise is minimal due to larger pore sizes.
Clayey soils can exhibit significant capillary rise because of their fine grain structure, allowing effective water retention.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In the soil where water flows, capillarity makes it rose!
Stories
Imagine a tiny sponge in a well. As you pull it out, water climbs up inside due to its tiny pores, climbing higher, showing capillary rise.
Memory Tools
C.E.P. - Capillary, Effective Stress, Pore Water Pressure - remember these three for soil behavior.
Acronyms
CAP - C for Capillary rise, A for Air and water pressures, P for Partial Saturation.
Flash Cards
Glossary
- Pore Water Pressure (u)
The pressure of water within the pores of a soil mass.
- Effective Stress (σ')
The stress that contributes to soil mass strength, calculated as total stress minus pore water pressure.
- Capillary Rise
The height to which water can rise in soil due to surface tension in the moisture-filled pore spaces.
- Partial Saturation
A condition in which only some of the soil pores are filled with water, leading to a mix of pore water and air pressure.
- Total Stress (σ)
The stress acting on a soil mass due to the weight of the soil, water, and surface load.
