Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Total Stress
Unlock Audio Lesson
Today, we're starting with total stress in the ground. Total stress is defined as the weight of everything above a given point, including soil and water. Can anyone tell me the formula for total stress?
Is it \( s = g.Z \) for total stress?
Exactly! Here, \( s \) represents total stress, \( g \) is the unit weight, and \( Z \) is the depth. Why do you think total stress is important?
Because it affects how structures built on the soil will behave, right?
Correct! And remember that total stress changes with changes in depth and loading conditions.
What happens when there's water on top of the soil?
Good question! When there is water, the formula changes to account for the additional weight. Can anyone remember how?
I think it adds the weight of the water too!
Correct! So it becomes \( s = g.Z + g_w.Z_w \). Water makes a big difference!
To sum up, total stress is crucial for determining how much weight the soil can support.
Pore Water Pressure
Unlock Audio Lesson
Let’s move on to pore water pressure, which is the pressure of water in the soil's pores. What are the factors that define pore water pressure?
Isn't it based on depth and seepage conditions?
Exactly! Particularly the depth below the water table. The formula is \( u = \gamma_w.h \). Why is understanding pore water pressure important?
I think it helps in knowing how saturated the soil is and how it behaves under loads.
Nice! Pore water pressure is vital for understanding effective stress and soil stability.
And what if there's no seepage?
In hydrostatic conditions, there's no movement in the water, promoting stability, and the pore pressure at the water table is considered zero.
To conclude, pore water pressure influences how stress is distributed and the soil's structural integrity.
Effective Stress
Unlock Audio Lesson
Now let’s talk about the principle of effective stress introduced by Karl Terzaghi. Who can explain what effective stress is?
I believe it's the total stress minus the pore water pressure, right?
Exactly! The effective stress formula is \( \sigma' = \sigma - u \). Why is this principle so important in geotechnical engineering?
Because it determines the strength and compression of soil!
Correct! Changes in effective stress directly translate to changes in soil behavior, especially in saturated soil systems.
Can you explain how effective stress and total stress relate when extra load is applied?
Sure! When additional load is applied, total stress increases, initially causing an increase in pore water pressure until drainage occurs, which then increases effective stress. This is crucial for understanding soil consolidation.
Remember, effective stress controls soil behavior; it’s essential for any soil engineering applications.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section outlines how total stress is determined by the weight of soil, water, and surface loads, while pore water pressure varies with depth and seepage conditions. It introduces the effective stress concept, highlighting its importance in understanding soil behavior.
Detailed
In geotechnical engineering, understanding stresses within soil is crucial for the stability and design of structures. This section defines total stress as the cumulative weight of soil and water above a given point, quantified using the formula \( s = g.Z \). When beneath a water body, total stress is further compounded by water weight. Pore water pressure, which is the pressure exerted by water in soil pores, depends on its depth relative to the water table and seepage conditions, given by \( u = \gamma_w.h \). The effective stress, a concept introduced by Karl Terzaghi, connects total stress and pore water pressure as follows: \( \sigma' = \sigma - u \). This effective stress is vital as it governs soil behavior under loading conditions, affecting compression and shear strength, and is essential for accurate assessments in saturated soils.

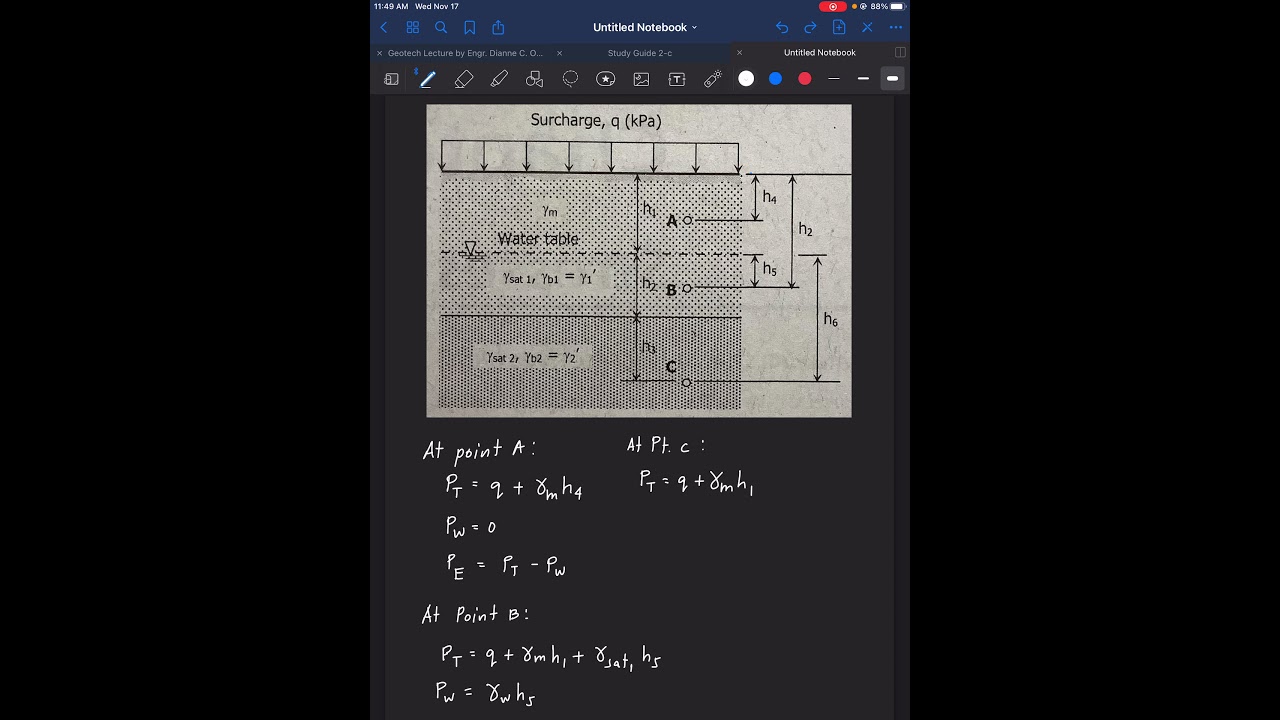

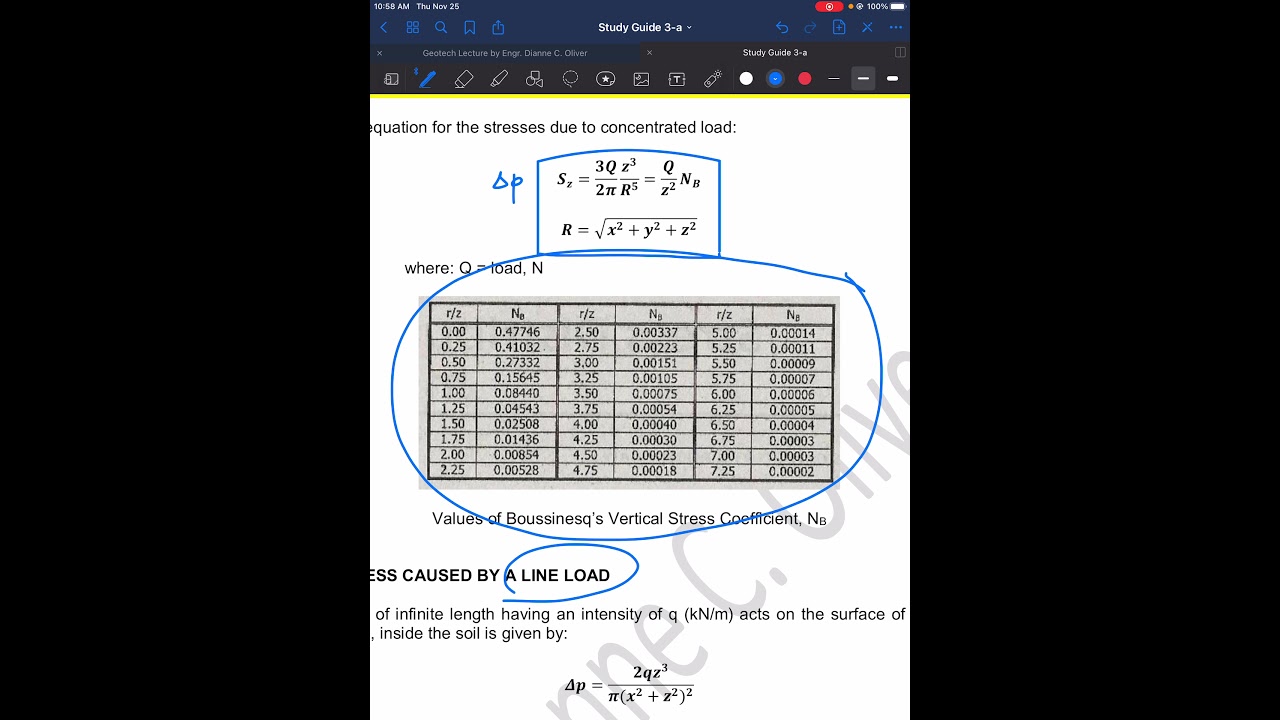

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Total Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When a load is applied to soil, it is carried by the solid grains and the water in the pores. The total vertical stress acting at a point below the ground surface is due to the weight of everything that lies above, including soil, water, and surface loading. Total stress thus increases with depth and with unit weight. Vertical total stress at depth z, s = g.Z
Below a water body, the total stress is the sum of the weight of the soil up to the surface and the weight of water above this. s = g.Z + g.Z
The total stress may also be denoted by s or just s. It varies with changes in water level and with excavation.
Detailed Explanation
Total stress in the ground refers to the overall pressure exerted at a particular point in the soil due to the weight of everything situated above it. This includes the weight of the soil itself, water, and any surface loads like buildings or vehicles. As you go deeper into the ground, the weight of materials above increases, leading to greater total stress. The formula for calculating this vertical total stress at depth 'z' is given as s = g.Z, where 'g' is the unit weight of the soil. When the point is below a water body, the total stress comprises the weight of the soil and the weight of the water above it. This relationship is crucial in geotechnical engineering to ensure structures can safely withstand the stresses beneath them.
Examples & Analogies
Imagine standing on a pile of books. The pressure you feel on your feet from the books is similar to total stress. The more books piled on top, the greater the pressure on your feet. In the ground, total stress works the same way—it gets heavier the more soil and water you have above a certain point.
Pore Water Pressure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The pressure of water in the pores of the soil is called pore water pressure (u). The magnitude of pore water pressure depends on:
- the depth below the water table.
- the conditions of seepage flow.
Under hydrostatic conditions, no water flow takes place, and the pore pressure at a given point is given by u = γ.h, where h = depth below water table or overlying water surface.
Detailed Explanation
Pore water pressure refers to the pressure exerted by water within the soil's pores. This pressure plays a critical role in determining soil behavior, especially underground. The amount of pore water pressure is influenced by how deep you go below the water table, which is the level below which the soil is saturated with water, and by the conditions of water flow through the soil. When water is not flowing (hydrostatic conditions), pore water pressure can be calculated using the formula u = γ.h, where 'γ' is the unit weight of water and 'h' is the depth of soil column water above the point in question.
Examples & Analogies
Think of pore water pressure like the pressure you feel when you dive into a swimming pool. The deeper you go, the more water is above you, and thus the greater the pressure you feel. Similarly, as you go deeper in the ground, the water pressure increases due to the weight of water above.
Effective Stress Principle
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The principle of effective stress was enunciated by Karl Terzaghi in the year 1936. This principle is valid only for saturated soils, and consists of two parts:
1. At any point in a soil mass, the effective stress (represented by σ') is related to total stress (σ) and pore water pressure (u) as σ' = σ - u.
2. All measurable effects of a change of stress, such as compression and a change of shearing resistance, are exclusively due to changes in effective stress.
Detailed Explanation
The effective stress principle is a fundamental concept in soil mechanics introduced by Karl Terzaghi. It states that the effective stress within a soil mass determines how the soil behaves under load. The effective stress (c3') is calculated by subtracting pore water pressure (u) from the total stress (c3) at that point: σ' = σ - u. This principle indicates that any changes in the mechanical properties of soil, such as compression and strength, result solely from changes in effective stress. It is critical for understanding soil stability and behavior, especially in saturated conditions.
Examples & Analogies
Imagine trying to compress a sponge soaked in water. The water inside the sponge pushes against the walls of the sponge while you are pressing down. The effective stress would be the pressure you exert minus the pressure of the water pushing back up. In soil terms, the effective stress translates into how well the soil can bear loads after accounting for any water pressure.
Capillary Rise
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Above the water table, when the soil is saturated, pore pressure will be negative (less than atmospheric). The height above the water table to which the soil is saturated is called the capillary rise, and this depends on the grain size and the size of pores. In coarse soils, the capillary rise is very small.
Detailed Explanation
Capillary rise refers to the phenomenon where water moves upwards against gravity in saturated soils above the water table. This occurs because of the adhesion of water molecules to soil particles and the surface tension of the water. The height to which water can rise is influenced by the size of the soil particles; finer soils can achieve greater capillary rise than coarser soils, which typically exhibit very limited capillarity. When soil particles are larger, the effect of gravity become dominant, and thus the capillary rise is minimal.
Examples & Analogies
Think of a paper towel dipped in water. The towel absorbs water and draws it up through its fibers even when the lower end is submerged in a bowl of water. The water climbs up into the towel due to capillarity. Similarly, in fine soils, water can rise up through the tiny spaces between particles, but this effect is weaker in sandy soils.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Total Stress: The cumulative weight of soil, water, and surface loads acting on soil.
-
Pore Water Pressure: Pressure from the water in soil pores, depending on depth and seepage conditions.
-
Effective Stress: Stress that affects soil strength, calculated as total stress minus pore water pressure.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example 1: Calculate the total stress at a depth of 5 meters in soil with a unit weight of 18 kN/m³. Answer: \( s = 18 imes 5 = 90 \, kN/m² \).
-
Example 2: If pore water pressure at a depth of 3 meters is 20 kPa, and total stress is 80 kPa, the effective stress would be \( 80 - 20 = 60 \, kPa \).
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a soil deep, the weight we compute, Water adds on, it’s quite astute.
📖 Fascinating Stories
-
Imagine a sponge under water, when weight is added, the sponge gets squished, but when drained, it holds strong. This represents how soil behaves with effective stress.
🧠 Other Memory Gems
-
TPE: Total, Pore, Effective - remember how stress interacts.
🎯 Super Acronyms
SPE
- Stress = Pore + Effective - a quick way to sum the stress types.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Total Stress
Definition:
The cumulative weight of soil, water, and surface loads acting at a point below ground level.
-
Term: Pore Water Pressure
Definition:
The pressure exerted by water in the pores of soil, influenced by depth and seepage conditions.
-
Term: Effective Stress
Definition:
The stress that contributes to soil strength, defined as the difference between total stress and pore water pressure.
-
Term: Water Table
Definition:
The upper surface of the saturated zone, where pore water pressure is zero.
-
Term: Hydrostatic Conditions
Definition:
Conditions under which water pressure remains static, with no movement and uniform pressure distribution.
