3.1 - Geogrid Reinforcement Benefits
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Geogrids
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we're discussing geogrids—how many of you have heard of them before? Geogrids are used to reinforce soil, providing strength and stability where it’s needed most.
I think I’ve seen them on construction sites. But how exactly do they work?
Great question! They function by confining the soil, distributing loads more evenly, and reducing lateral spreading. A simple way to remember this is by thinking of geogrids as 'tight netting' keeping soil in place. Can anyone tell me why this is important for roads?
It reduces road damage, right? Especially in areas with weak soil.
Exactly! Reducing strain on weak soil enhances performance and stability. Remember this: 'GIRD'—Geogrids Increase Road Durability.
The Distinction between Soil Modification and Stabilization
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s now explore an important distinction in soil treatment—modification versus stabilization. What do you think is the primary goal of soil modification?
To make it easier for construction equipment to work on, right?
Spot on! Modification provides a basic working platform. Stabilization, though, enhances the soil's strength and can directly influence pavement design. Can you see why that is critical?
Because stronger soil can support heavier loads over time, improving the pavement's lifespan?
Exactly! This brings us to our memory aid: 'Mighty Strong Pavements'—Modifying creates a working space while Stabilizing builds strength! How can we apply this in road construction?
Empirical Designs and Benefits
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s look at how empirical design supports using geogrids. What do you think an empirical design involves?
Using real-world data to show how things work?
Correct! These designs rely on observations from actual projects. Geogrids have shown improved pavement performance leading to longer life spans for roads. Can anyone guess why this might affect construction schedules?
If the roads are more durable, you spend less time on repairs?
Yes, and less disruption means happier drivers! Remember: 'Long Lifespan = Less Maintenance.' Now, thinking about what we’ve learned—why do you think geogrids are a reliable choice for engineers?
Implementation Guidelines
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Lastly, let’s focus on INDOT guidelines for implementation. Why do you think these guidelines are vital for designers?
They help ensure the project meets local conditions and requirements, right?
Exactly! Customizing for local conditions can greatly affect project outcomes. A key fact to remember: 'Specification Adherence = Successful Projects.' Who can share how adapting advice from standards impacts construction?
Adjusting to local soil types can prevent future failures.
Great point! It's important to recognize that following guidelines effectively addresses environmental concerns. Let’s summarize what we’ve learned today!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section comprehensively discusses the benefits of using geogrids in soil stabilization and modification during road construction. It emphasizes how geogrids improve the structural performance of roadbeds, reduce construction time and costs, and enhance the overall durability of pavements.
Detailed
Geogrid Reinforcement Benefits
This section delves into the advantages of utilizing geogrid reinforcement in soil stabilization and modification processes within road construction. Geogrids are synthetic materials designed to enhance soil structure, offering various benefits that ultimately contribute to better pavement performance and reduced construction delays. INDOT (Indiana Department of Transportation) emphasizes minimizing traffic disruption during construction, necessitating the use of effective soil stabilization techniques.
Key Points Covered:
- Geogrid Usage: Geogrids improve pavement support and performance by providing tensile reinforcement, lateral confinement, and strain reduction, making them critical in areas with weak or saturated soils.
- Soil Modification vs. Stabilization: Modification creates a working platform, while stabilization strengthens the soil contributing to pavement design. The distinction is crucial for the appropriate application of geogrid systems.
- Empirical Design: The effectiveness of geogrids is often validated through empirical observations that demonstrate enhanced performance leading to longer pavement lifespan.
- Construction Recommendations: Specific construction practices, such as combining geogrids with granular materials, ensure optimal performance in various environmental and structural contexts.
- Standard Specifications: INSIGHT into INDOT guidelines for implementation ensures that designers consider local conditions and project requirements.
The use of geogrids responds to challenges posed by weak subgrade materials, minimizes construction time, and leads to improved load distribution, showcasing their essentialness in modern road-building practices.

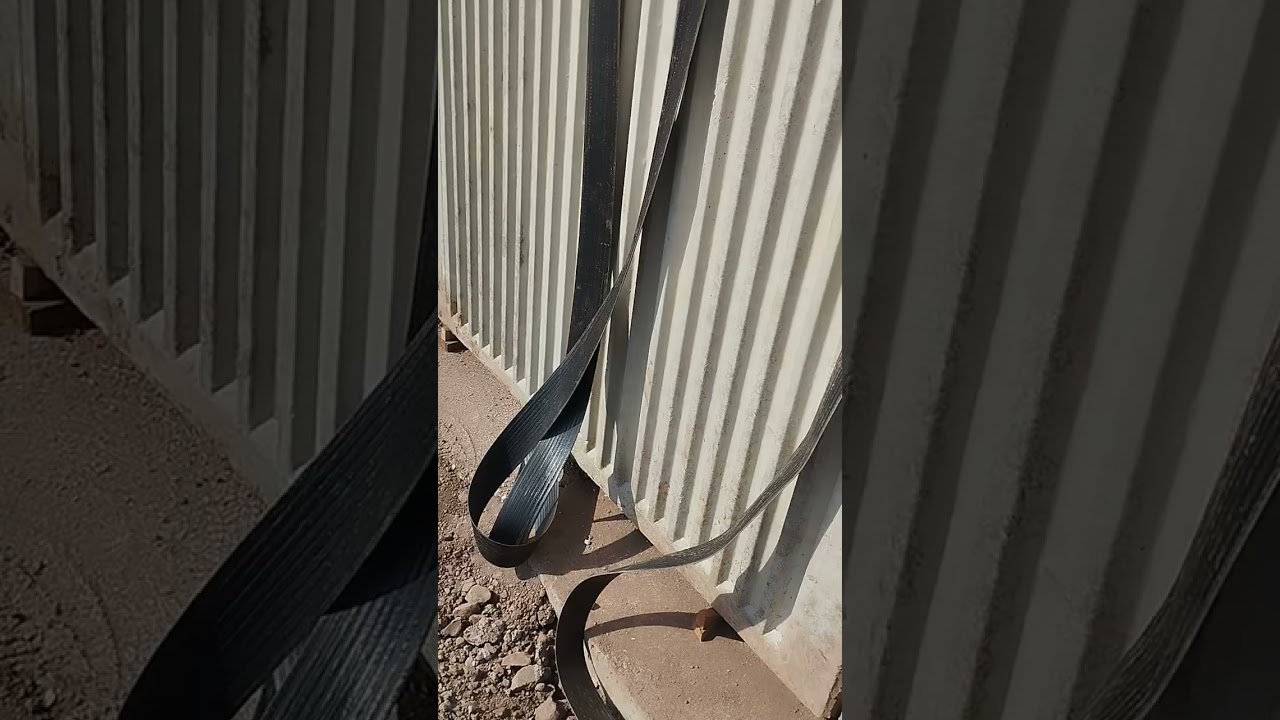

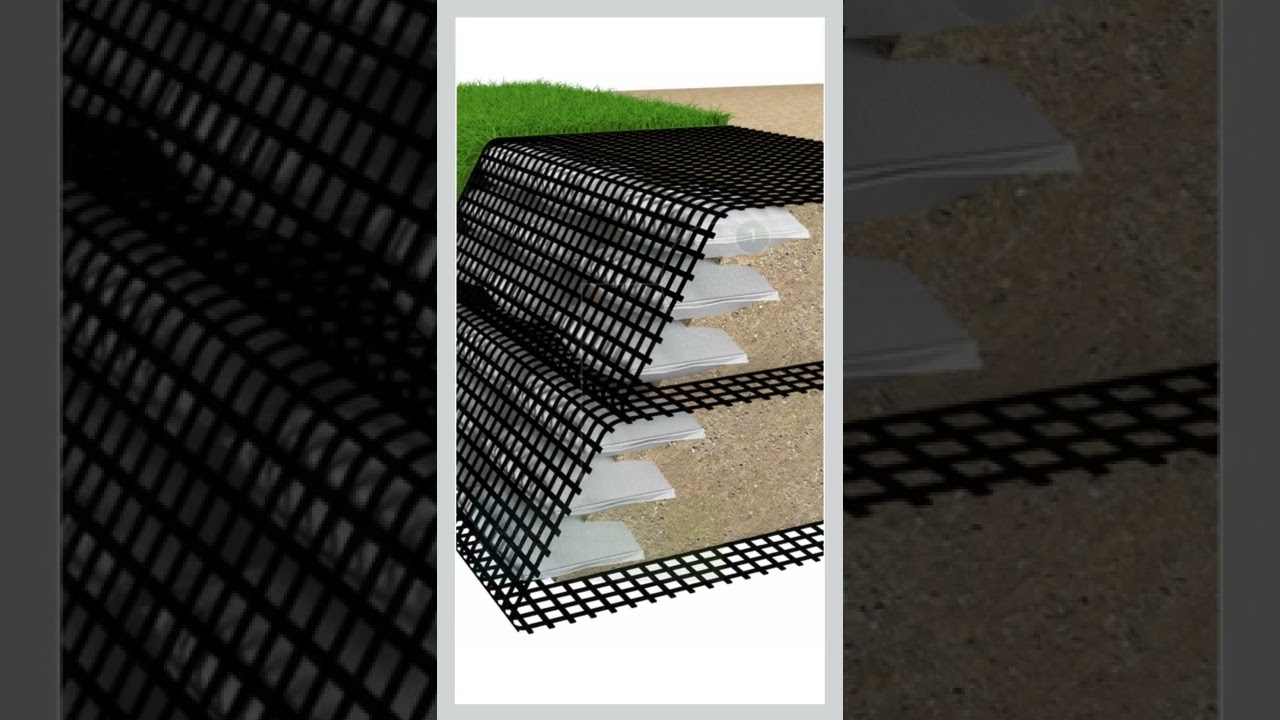

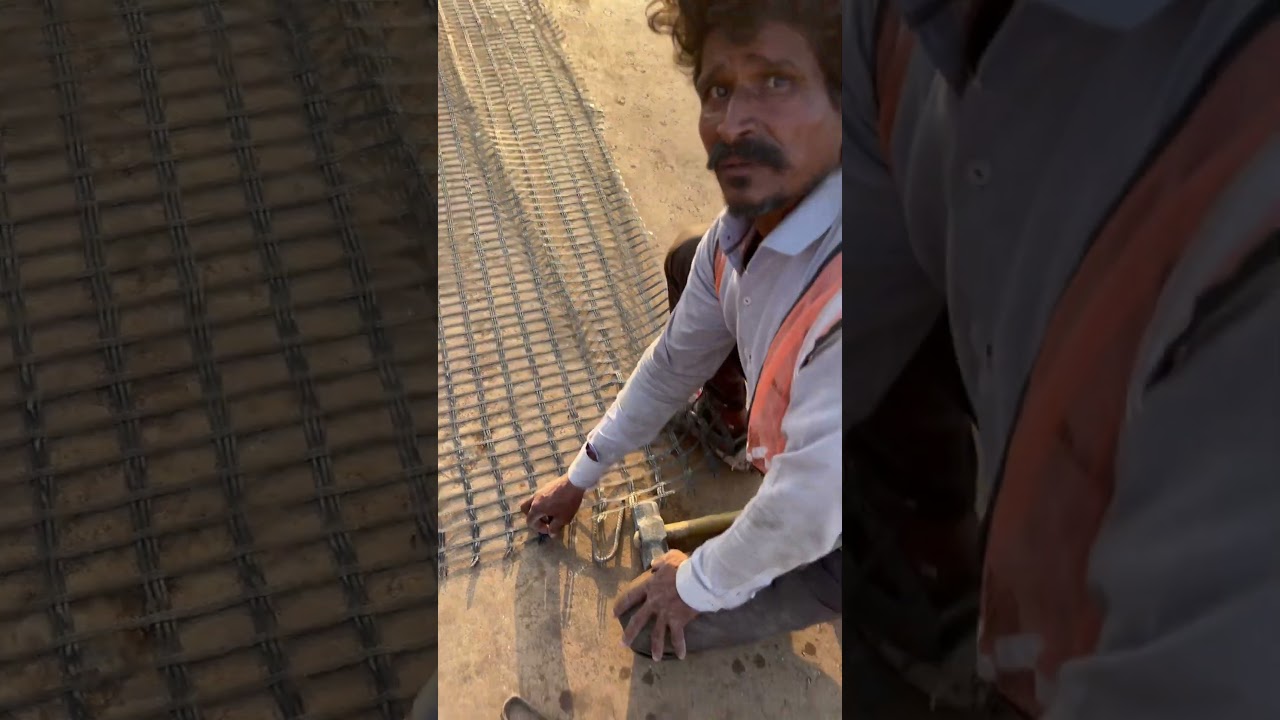

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Geogrid Reinforcement
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Geogrid has been used to reinforce road sections. The inclusion of geogrid in subgrades changes the performance of the roadway in many ways (6).
Detailed Explanation
Geogrids are materials made of high tensile strength polymers that are used to reinforce the soil beneath roadways. Their inclusion helps improve the overall performance of the roadway by providing support to the soil, allowing for better distribution of loads and increased stability.
Examples & Analogies
Imagine trying to hold up a large piece of cardboard with your hands. If you just apply pressure to the center, it might bend or collapse. However, if you spread out some string or mesh underneath it, you can support the entire structure more evenly. The geogrid acts like that mesh, helping the roadway endure better under pressure.
Primary Benefits of Geogrids
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Tensile reinforcement, confinement, lateral spreading reduction, separation, construction uniformity and reduction in strain have been identified as primary reinforcement mechanisms.
Detailed Explanation
The primary benefits of using geogrids include several mechanisms:
- Tensile Reinforcement: Geogrids help resist the tension that occurs when loads are applied, keeping the soil stable.
- Confinement: They confine the soil particles, preventing them from shifting and losing their structural integrity.
- Lateral Spreading Reduction: Geogrids reduce the lateral movement of soil, which can occur under load. This helps maintain the correct shape and position of the roadway.
- Separation: Geogrids can separate different soil layers, preventing them from mixing.
- Construction Uniformity: They help distribute the load evenly during construction, enhancing the quality of the roadbed.
- Reduction in Strain: This helps to minimize deformation that might occur over time with traffic loads.
Examples & Analogies
Think of a geogrid as the fabric in a strong backpack. Without the fabric, the backpack's contents would spill out when heavy loads are added. The fabric keeps everything organized, evenly supports the weight, and prevents the backpack from stretching or tearing.
Impact on Pavement Performance
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Empirical design and post-construction evaluation have lumped the above described benefits into better pavement performance during the design life.
Detailed Explanation
Studies and evaluations after construction have shown that using geogrids leads to improved pavement performance throughout its lifecycle. This means that roads reinforced with geogrids tend to last longer and require less maintenance than those without. The benefits noted earlier collectively contribute to this enhanced performance.
Examples & Analogies
Consider a well-supported garden trellis that helps plants grow strong and healthy. The trellis provides support and keeps the plants from bending over under the weight of fruit or flowers. Similarly, geogrids support the road structure from below, helping it to withstand traffic loads and weather effects, leading to a healthier, more durable road.
Design Recommendations for Geogrids
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Geogrid with reduced aggregate thickness option is designed for urban area and recommendations are follows; Excavate subgrade 9 in. (230 mm) and construct the subgrade with compacted aggregate No. 53 over a layer of geogrid, Type I. This geogrid reinforced coarse aggregate should provide stable working platform corresponding to 97 percent of CBR.
Detailed Explanation
When using geogrids in urban areas, specific design recommendations suggest that the subgrade (the layer of soil or rock that supports the road) should be excavated to a depth of 9 inches. Then, a stable layer of compacted aggregate is placed on top of a geogrid. This setup not only supports the load but also meets a specific standard of robustness known as the California Bearing Ratio (CBR), indicating the strength of the subgrade materials.
Examples & Analogies
Think of it like preparing a cake. You must layer your ingredients carefully to ensure it turns out just right. In creating a road, excavating and layering geogrid and aggregate is like getting the cake layers perfect—each layer needs to support the next for a firm, long-lasting cake that doesn’t collapse.
Key Concepts
-
Geogrid: A plastic mesh material that reinforces subgrade stability.
-
Soil Modification: Focuses primarily on improving workability for construction.
-
Soil Stabilization: Enhances soil strength for better performance under loads.
-
Empirical Evidence: Real-world application data showing the effectiveness of geogrid-reinforced structures.
-
Design Guidelines: Key considerations for local soil conditions and project specifications.
Examples & Applications
In urban areas where soil conditions differ, geogrids allow for thinner aggregate layers to still meet construction requirements.
An empirical study showed that roads with geogrid installations lasted 25% longer before requiring repair compared to those without.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Geogrids hold soil tight, make the ground just right.
Stories
Picture a construction site where the ground is weak. With a geogrid, the soil becomes strong, allowing the pavement to stand tall and secure, enduring storms, rain, and heavy loads.
Memory Tools
GEEKS—Geogrids Enhance Every Kind of Stability.
Acronyms
STABLE—Stabilization Techniques Alter Basic Load Endurance.
Flash Cards
Glossary
- Geogrid
A synthetic grid-like material used to reinforce soil by providing tensile strength and stability.
- Soil Modification
The process of altering soil properties to create a work platform without enhancing its strength.
- Soil Stabilization
The method of enhancing soil strength to improve load-bearing capacity and pavement design.
- Empirical Design
A design approach based on observation and data from previous projects rather than solely theoretical calculations.
- CBR
California Bearing Ratio, a measure of the strength of subgrade soil.
