3 - Geosynthetic Stabilization
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Geosynthetic Stabilization
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Welcome, everyone! Today, we will focus on geosynthetic stabilization in road construction. Does anyone know what geosynthetics are?
Are they materials used under roads?
Exactly, they include materials like geogrids and geotextiles used to enhance soil stability. What do you think the advantages of using these materials are?
I think they help prevent soil erosion.
That's one benefit! They also provide tensile reinforcement and help manage lateral spreading.
How do they change the performance of the roadway?
Great question! They enhance overall performance during the design life of the pavement, which we will dive into shortly.
In summary, geosynthetics such as geogrids improve soil stability, prevent erosion, and enhance road performance.
Mechanisms of Geogrid Reinforcement
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss the mechanisms of geogrid reinforcement. Who can name one mechanism?
Tensile reinforcement?
Exactly! Tensile reinforcement helps carry loads better. What else?
Confinement, maybe?
Yes! Confinement reduces lateral spreading of the aggregate. Both are crucial for maintaining stability. Can someone explain why reducing strain is important?
It helps the pavement hold up under traffic without deforming.
Exactly! These mechanisms work together to provide long-lasting road performance.
Implementation of Geogrid in Roadways
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s talk about how we implement geogrids in roadway construction. What do we do before placing the geogrid?
Excavate the subgrade?
Correct! We excavate to 9 inches and then add compacted aggregate. Why do we need to use aggregate No. 53?
It provides a strong base for support?
Yes! Additionally, we want to achieve a stable working platform. In summary, the process involves excavating, installing geogrids, and placing aggregates.
Challenges in Geosynthetic Stabilization
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now we should consider the challenges with geosynthetic stabilization. What do you think can go wrong?
If the soil is too wet, it could undermine the geogrid.
Exactly! Excess moisture can be a significant issue. What could be a solution?
We could use more aggregate to ensure proper drainage.
That's a practical approach! Ensuring proper installation and moisture management is key.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Geosynthetic stabilization involves using materials like geogrids to reinforce subgrade soil, improving tensile strength, confinement, and overall pavement performance. It is essential for ensuring that inadequate subgrade soils can support the loads imposed during construction and service life.
Detailed
Geosynthetic Stabilization
Geosynthetic stabilization employs materials such as geogrids to enhance the strength and performance of subgrade soil used in roadway construction. The primary mechanisms by which geogrid reinforcement affects pavement performance include:
- Tensile reinforcement: Increases the structural integrity of the soil.
- Confinement: Limits lateral spreading of the aggregate, ensuring stable support.
- Reduction of strain: Minimizes deformation under load.
These benefits contribute to improved pavement performance during its design life. For urban areas, a specific protocol recommends excavating 9 inches of subgrade and implementing compacted aggregate No. 53 over a layer of geogrid, ensuring a stable working platform and achieving desired California Bearing Ratio (CBR) levels. Each geogrid layer must be adequately placed over soil to effectively provide the necessary reinforcement and stability required for the roadway's design.

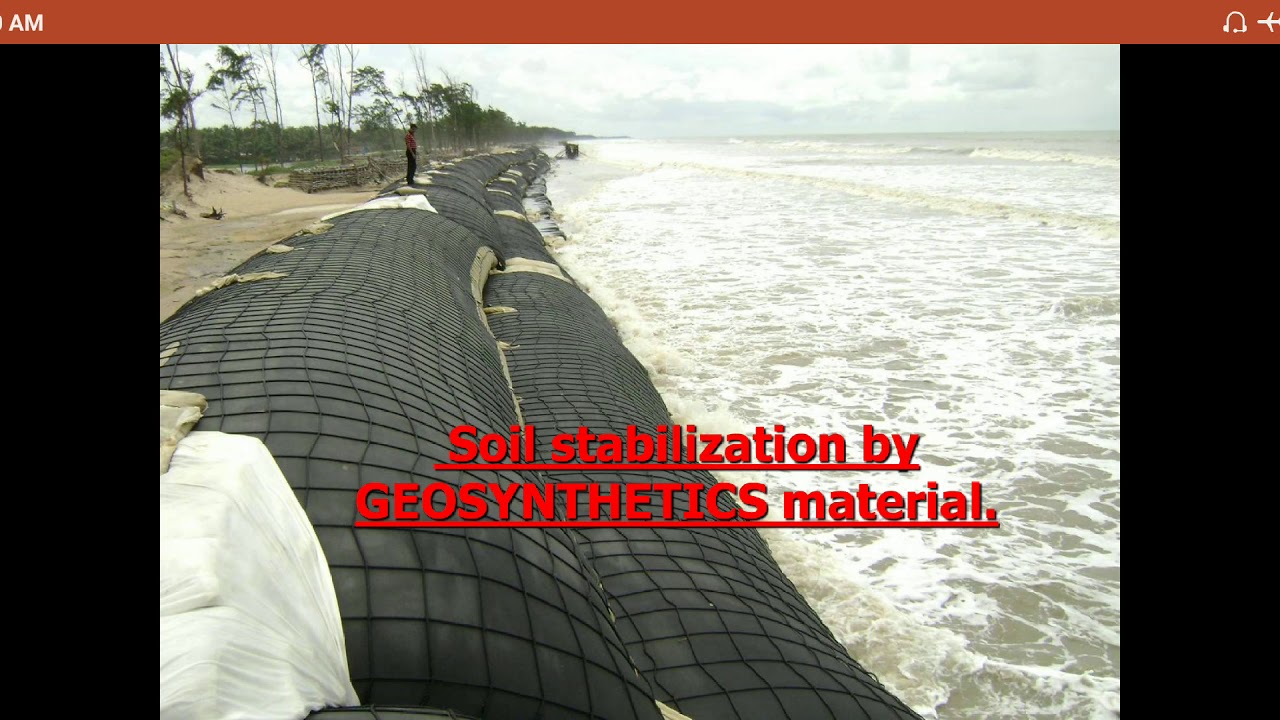

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Geogrids
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Geogrid has been used to reinforce road sections. The inclusion of geogrid in subgrades changes the performance of the roadway in many ways.
Detailed Explanation
Geogrids are materials used in civil engineering to enhance the stability and performance of road sections. When geogrids are included in the subgrade (the soil layer beneath a road), they improve the road's ability to withstand stress and load. This enhancement occurs because geogrids help distribute the loads across a broader area and prevent the soil from deforming or failing.
Examples & Analogies
Think of a geogrid like a network of support beams under a large floor. Just as beams help distribute weight and prevent the floor from sagging, geogrids stabilize the ground beneath the road, making it safer and more durable.
Mechanisms of Geogrid Reinforcement
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Tensile reinforcement, confinement, lateral spreading reduction, separation, construction uniformity and reduction in strain have been identified as primary reinforcement mechanisms.
Detailed Explanation
Geogrids function through several key mechanisms:
1. Tensile reinforcement: They add strength by resisting stretching forces.
2. Confinement: They keep soil particles in place, preventing them from spreading outward under load.
3. Lateral spreading reduction: They minimize the sideways movement of soil, crucial in maintaining stability.
4. Separation: They prevent the mixing of different soil types, keeping stronger materials apart from weaker ones.
5. Construction uniformity: They help to create a consistent surface during road construction.
6. Reduction in strain: They reduce how much the soil physically deforms under pressure, maintaining the integrity of the road.
Examples & Analogies
Imagine packing a suitcase. If you just toss items in, things shift and become disorganized (like soil without geogrids). But if you use packing cubes to separate and support the items, your suitcase stays neat and can hold more without bursting (like geogrids providing stability to the road).
Empirical Design Benefits
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Empirical design and post-construction evaluation have lumped the above described benefits into better pavement performance during the design life.
Detailed Explanation
Researchers and engineers evaluate performance data to understand how geogrids improve road durability. These evaluations show that roads reinforced with geogrids generally perform better over time due to increased stability and load distribution. This means less maintenance and longer lifespan for the roads, translating into cost savings.
Examples & Analogies
Think of it as using a quality umbrella in a storm. A well-constructed umbrella (like the reinforcement from geogrids) performs better and lasts longer than a cheap one, protecting you from getting wet (good pavement performance).
Geogrid Specifications and Recommendations
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Geogrid with reduced aggregate thickness option is designed for urban area and recommendations are as follows; Excavate subgrade 9 in. (230 mm) and construct the subgrade with compacted aggregate No. 53 over a layer of geogrid, Type I.
Detailed Explanation
In urban areas where there may be space constraints, geogrids can be used with a thinner layer of aggregate. To implement this, the subgrade must be excavated to a depth of 9 inches (230 mm), and then a specific type of compacted aggregate (No. 53) is placed over the geogrid. This configuration allows the road to achieve a high level of support and stability while using less material.
Examples & Analogies
It's similar to building a high-rise building in a crowded city. By using clever engineering techniques (like geogrids), you can create a strong foundation without needing a wide footprint, thus maximizing the use of limited space.
Addressing Special Subgrade Conditions
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Deeper subgrade problem due to high moisture or organic soils requires additional recommendations.
Detailed Explanation
In areas where the soil contains a lot of moisture or organic materials, additional measures may be necessary. This could involve using thicker layers of geogrids or more robust types to handle the extra stress placed on the road by these less stable soil conditions. Understanding these challenges is crucial for ensuring the road remains safe and functional over its lifespan.
Examples & Analogies
Imagine trying to build a sandcastle on wet sand compared to dry sand. If the sand is too wet (like high moisture in the soil), you need to work harder to ensure it doesn't collapse. Similarly, extra care and materials (like stronger geogrids) are needed for unstable soils.
Proper Installation of Geogrids
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Geogrid shall be in accordance with 918.05(a) and be placed directly over exposed soils to be modified or stabilized and overlapped according with the following table.
Detailed Explanation
Installing geogrids correctly is vital for their effectiveness. They should be placed directly over the soils that need strengthening, and they need to overlap properly to ensure full coverage. Specific guidelines help ensure that the geogrids achieve the desired structural benefits.
Examples & Analogies
Think about laying down a puzzle. If pieces aren’t connected properly or are placed carelessly, the final image is flawed. Similarly, if geogrids aren’t installed correctly, the road may not be stable long-term.
Key Concepts
-
Geogrids: Used to reinforce the subgrade, changing the performance of roadways.
-
Mechanisms: Include tensile reinforcement, confinement, and strain reduction.
-
Implementation: Involves proper excavation and placement for effective stabilization.
Examples & Applications
Using geogrids in soft soil areas to distribute load effectively and prevent ruts.
Excavating subgrade to 9 inches and layering geogrid to enhance the performance of pavements.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Geogrids in the soil go, keeping roads strong as they grow.
Stories
Imagine a construction site where a soft subgrade is struggling to hold up a heavy road. Enter the geogrids, who come to the rescue by reinforcing the soil, allowing the road to thrive!
Memory Tools
Remember 'T-C-R' for geogrid benefits: Tensile, Confinement, Reduction in strain.
Acronyms
G.R.I.D - Geogrids Reinforce Infrastructure Durably.
Flash Cards
Glossary
- Geogrid
A geosynthetic material used to reinforce soil by providing tensile strength and helping to distribute loads.
- Tensile Reinforcement
The mechanism by which geogrids enhance the load-bearing capacity of soil.
- California Bearing Ratio (CBR)
A measure of soil strength used to evaluate the load-bearing capacity of a subgrade.
- Confinement
The restriction of lateral movement in granular materials, which enhances stability.
