18.2. Methods of Estimating Reservoir Evaporation

• Most widely used in field conditions.
• Formula: E = K × E_p
  • Where: E = Estimated evaporation from reservoir K = Pan coefficient (typically 0.6–0.8) E_p = Measured pan evaporation
• Requires careful site selection for the pan to ensure representativeness.

The Pan Evaporation Method is commonly used to estimate the amount of water evaporating from a reservoir. The formula for this method includes a pan coefficient (K), which adjusts the measured evaporation from a pan to reflect conditions in the reservoir. The value of K typically ranges from 0.6 to 0.8, meaning that 60% to 80% of the recorded pan evaporation is assumed to occur in the reservoir. Additionally, it's crucial to select the site for the evaporation pan carefully to ensure that it reflects the local climatic conditions accurately. This method is straightforward and effective in many field situations.

Think of the Pan Evaporation Method as a weather app that adjusts the forecasts based on your specific location. Just like the app provides accurate weather information tailored to your region, this method ensures that the evaporation estimates are adapted to the local conditions of the reservoir.

• Based on mass balance: E = I + P − O − ∆S
  • Where: E = Evaporation loss I = Inflow P = Precipitation O = Outflow ∆S = Change in storage
• Works well over long durations.
• Requires accurate measurement of all components.

The Water Budget Method uses a mass balance approach to estimate evaporation. It accounts for various inputs and outputs in a reservoir system, including inflow (I), precipitation (P), outflow (O), and changes in storage (∆S). The formula provided indicates that evaporation loss (E) is determined by the total inflow and precipitation, minus the outflow and any changes in the water storage level. This method is particularly useful for long-term calculations as it enables continuous monitoring of water levels and evaporation rates. However, it relies heavily on the accuracy of measurements for all involved components.

Imagine managing a savings account. You need to track everything: how much money you deposit (inflow), any interest earned (precipitation), withdrawals (outflow), and any changes in account balance (change in storage). Just like balancing a budget, the Water Budget Method adds up all the inflows and outflows to figure out what’s left—this time, it’s about measuring evaporation.

• Based on heat fluxes across the reservoir: Q = Q_n + Q_e + Q_h + Q_s
  • Where: Q = Net radiation Q_n = Energy used in evaporation Q_e = Sensible heat loss Q_h = Heat stored in water
• Evaporation is obtained using: E = Q_e / (L × ρ)
  • Where: L = Latent heat of vaporization ρ = Water density
• Accurate but data-intensive.

The Energy Budget Method calculates evaporation based on the heat exchanges occurring at the water surface. It sums up all forms of energy involved—net radiation (Q), energy used in evaporation (Q_n), sensible heat loss (Q_h), and heat stored in the water (Q_s). The final calculation of evaporation (E) is derived using the energy used in evaporation divided by the product of the latent heat of vaporization (L) and the density of water (ρ). This method is very precise but requires a significant amount of data on different energy components, making it resource-intensive.

Think about how a solar panel works. It captures sunlight and transforms it into energy. Similarly, the Energy Budget Method takes different forms of heat energy and converts these into an estimate of how much water is evaporating. Both rely on measuring energy effectively to calculate efficiency.

• Integrates both energy and aerodynamic factors.
• Requires data on net radiation, temperature, humidity, and wind speed.
• Suitable for reservoirs with meteorological station access.

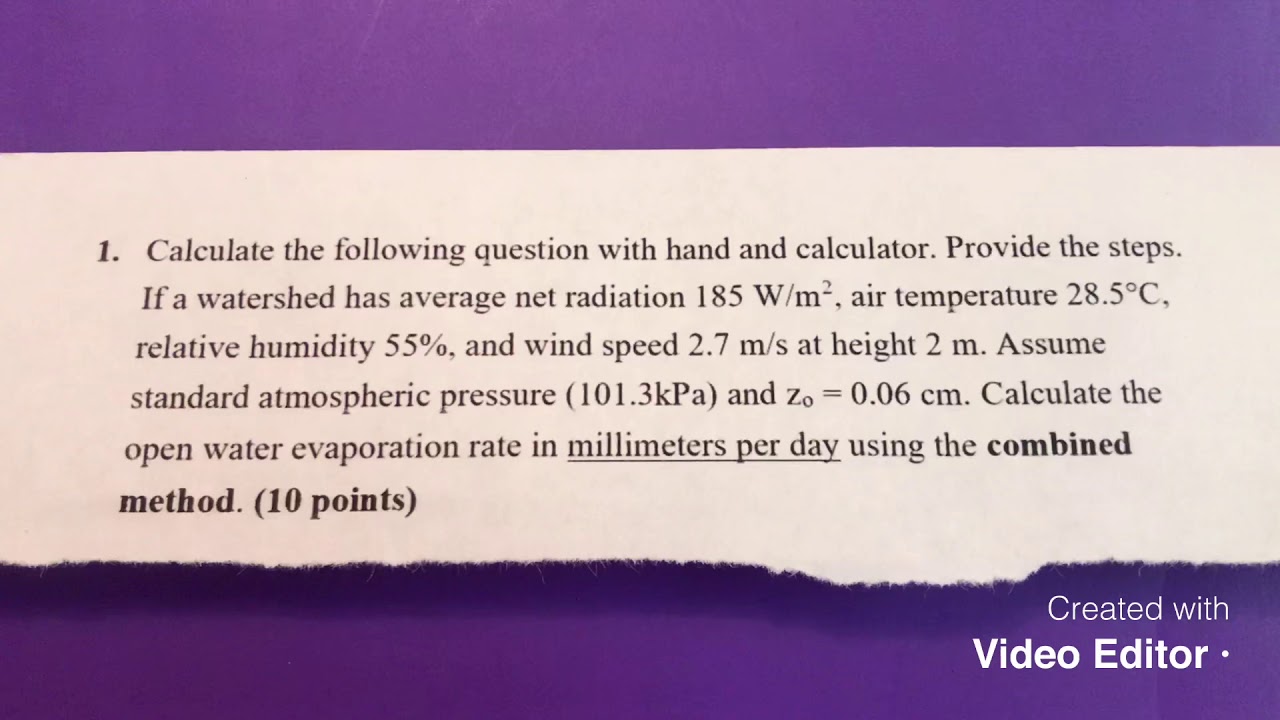

The Combination Method, often referred to as the Penman Method, combines aspects of both the energy and aerodynamic processes in estimating evaporation. It requires data on various parameters, including net radiation, temperature, humidity, and wind speed, to accurately assess evaporation rates. This method is especially useful for reservoirs where there is reliable access to meteorological station data, allowing for comprehensive analysis and more precise estimates. The integration of multiple factors makes it advantageous in varied conditions compared to simpler methods.

This method can be likened to a chef who uses various ingredients to create a delicious dish. Each ingredient (like temperature, humidity, and wind) plays an essential role and, when combined properly, can produce an accurate and delightful result—much as this method provides a reliable estimate of evaporation.

• Uses satellite-derived variables (e.g., land surface temperature, NDVI, albedo)
• Combined with models like SEBAL, METRIC, or Penman-Monteith
• Enables spatially distributed evaporation mapping
• Highly useful for large reservoirs or basin-scale studies.

The Remote Sensing and GIS-Based Estimation method utilizes satellite data to assess variables that influence evaporation rates, such as land surface temperature and vegetative indices like NDVI (Normalized Difference Vegetation Index). It combines this satellite-derived information with computational models like SEBAL (Surface Energy Balance Algorithms for Land), METRIC (Mapping Evapotranspiration at High Resolution with Internalized Calibration), or the Penman-Monteith equation. This approach allows for detailed mapping of evaporation across large areas and is particularly advantageous for studying extensive reservoirs or watershed regions.

Think of this method as a bird’s eye view of a bustling city. Just as a bird can see the layout of streets and buildings from above, satellite sensors capture detailed images of Earth, enabling scientists to understand how much water is evaporating over vast landscapes by analyzing various features and conditions from afar.

--
