20.5 - Measurement of Pan Evaporation
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Evaporation Pans
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing evaporation pans, specifically the Class A evaporation pan. Can anyone tell me what role these pans play in measuring evapotranspiration?
They measure how much water evaporates over time, right?
Exactly! By watching the water level in these pans, we can estimate the amount of water lost to evaporation. This leads us to calculate the reference evapotranspiration. What is the diameter of a Class A evaporation pan?
Isn't it about 120.7 cm?
Yes! And remember, the pan's depth is 25 cm. We can use different coefficients to adjust our readings. What do you think is the purpose of this coefficient?
Is it to account for differences between pan and field evaporation?
Correct! We use a pan coefficient, usually around 0.6 to 0.8. This helps us convert pan evaporation into a more accurate estimate of evapotranspiration. Great discussion, everyone!
Calculating Evapotranspiration
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's dive into how we actually calculate evapotranspiration using the readings from the evaporation pan. Can anyone remind us of the formula?
The formula is ET = Kp * Ep, right?
You got it! Where Kp is the pan coefficient and Ep is the measured pan evaporation. If we have a reading of 10 mm for Ep and use a Kp of 0.7, what would our ET be?
I think that would be 7 mm of evapotranspiration!
Correct! This straightforward calculation is essential for resource management. Can anyone explain why accurate ET measurements are important?
They help in planning irrigation systems and understanding water balances.
Absolutely! This information is critical for proper agricultural and urban water management.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section focuses on the measurement of pan evaporation, specifically using the Class A evaporation pan, detailing its design, operation, and the calculation of evapotranspiration using a pan coefficient. It emphasizes the importance of these measurements in hydrologic studies and water resource management.
Detailed
Measurement of Pan Evaporation
Pan evaporation is a widely used method for estimating reference evapotranspiration, essential for effective water resource management. The Class A evaporation pan, characterized by a 120.7 cm diameter and a 25 cm depth, is filled with water and monitored regularly. The amount of evaporation is determined through the observation of water level changes, application of a pan coefficient typically ranging from 0.6 to 0.8, and calculating total evapotranspiration (ET) via the formula ET = Kp * Ep, where Kp is the pan coefficient and Ep is the measured pan evaporation. This practice aids in hydrological modeling and irrigation scheduling, underscoring its significance in agricultural and water management fields.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Pan Evaporation
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Evaporation pans are widely used to estimate reference ET.
Detailed Explanation
Evaporation pans serve as tools to measure the amount of water lost to evaporation, which helps estimate the reference evapotranspiration (ET) values. These pans provide a controlled environment to accurately gauge evaporation rates under specific conditions and help in agricultural planning and water resource management.
Examples & Analogies
Think of an evaporation pan as a weather-related laboratory for water. Just like scientists use controlled environments to grow plants and observe their growth, we use these pans to monitor and measure how much water evaporates in a set area, giving us a clear picture of water loss that can occur in the environment.

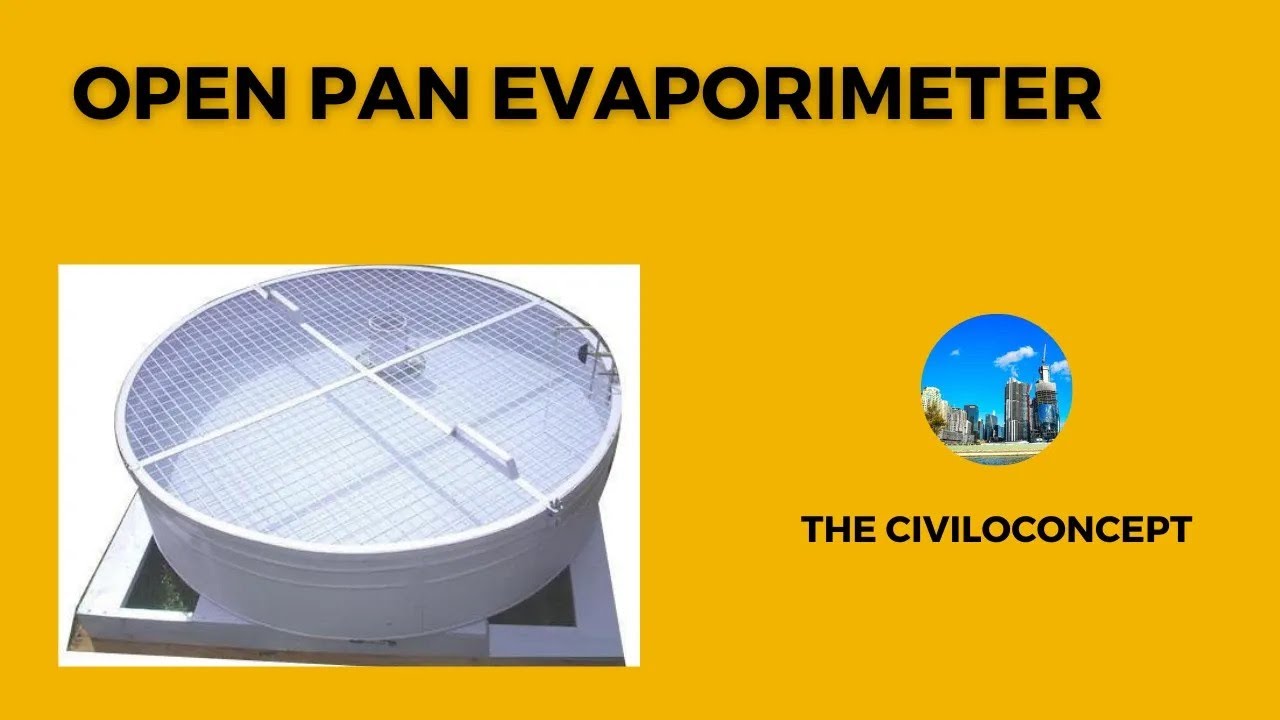

Class A Evaporation Pan Specifications
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Class A Evaporation Pan:
- Circular pan, 120.7 cm diameter, 25 cm depth.
Detailed Explanation
The Class A evaporation pan is specifically designed with standard measurements, which ensures consistency across different locations. The size of 120.7 cm in diameter and 25 cm in depth allows for sufficient surface area to hold water, thus making it an effective measure for determining evaporation rates. This standardization helps in comparing measurements from different regions.
Examples & Analogies
Imagine using a specific type of measuring cup for baking. Just like using the same cup helps ensure that every cake turns out the same, using a standard evaporation pan allows scientists and farmers to compare evaporation rates in different locations accurately.
Observing Water Levels
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Water is filled and level is observed daily.
Detailed Explanation
Daily observations of the water level in the evaporation pan are crucial because these readings provide the necessary data to calculate the rate of evaporation daily. Consistent monitoring allows for accurate tracking over time, leading to better data collection and analysis.
Examples & Analogies
Think of checking a rain gauge daily after a storm. By monitoring the rainfall levels, you can understand how much water fell over a specific period. Similarly, measuring the water level in the evaporation pan helps understand how much water is lost from evaporation each day.

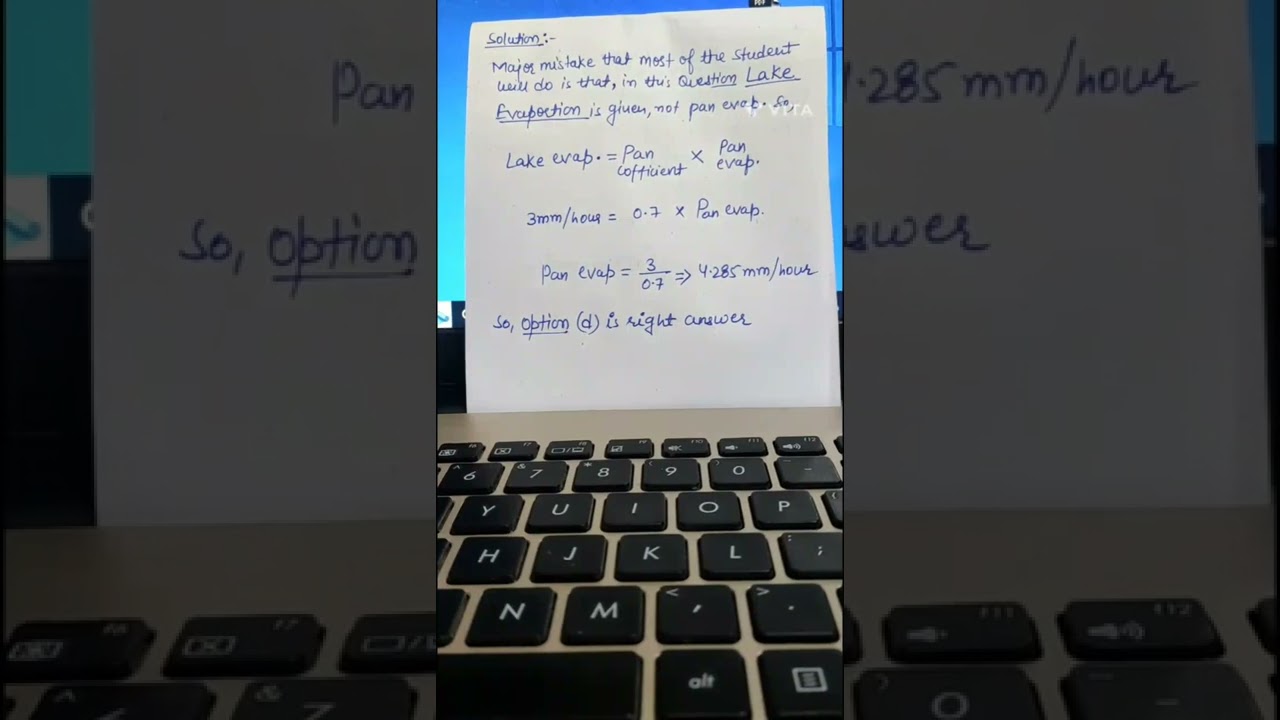

Calculating Evapotranspiration
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
ET is calculated using a pan coefficient:
ET = Kp × Ep
Where:
- Kp = pan coefficient (0.6–0.8)
- Ep = pan evaporation.
Detailed Explanation
To convert the evaporation measured in the pan to a more general reference ET, we multiply the pan evaporation (Ep) by a pan coefficient (Kp). The coefficient accounts for factors like the pan's size, shape, and exposure to weather elements. The range of 0.6 to 0.8 indicates that the evaporation measured in the pan is typically less than actual evapotranspiration due to various environmental influences.
Examples & Analogies
Consider the pan coefficient like a recipe's conversion factor. Just as you might need to adjust ingredient amounts based on the size of your baking dish, the pan coefficient adjusts the evaporation readings to fit broader environmental conditions, giving a more realistic estimation of water loss in real scenarios.
Key Concepts
-
Class A Evaporation Pan: A circular device used to measure evaporation rates.
-
Pan Coefficient: A factor necessary for converting pan evaporation readings into actual ET estimates.
-
Evapotranspiration: The total loss of water through evaporation and plant transpiration.
Examples & Applications
If an evaporation pan measures 20 mm of water evaporation over a week, and the pan coefficient is 0.65, the estimate for ET would be 20 mm * 0.65 = 13 mm.
In an agricultural field with a Class A pan measuring an evaporation of 15 mm, applying a pan coefficient of 0.75 would yield an ET estimate of 11.25 mm.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In a pan so wide and neat, we measure heat with water sweet.
Stories
Once upon a time, there was a farmer who used a special pan to see how much water his crops needed...
Memory Tools
Remember Pans Are Cool (PAC) to recall what you need: Pan, Adjustment, Calculation.
Acronyms
ET
Evapotranspiration Total!
Flash Cards
Glossary
- Evaporation Pan
A device used to measure the rate of evaporation from a water surface, typically used in hydrology.
- Class A Evaporation Pan
A standardized circular pan with a diameter of 120.7 cm and a depth of 25 cm, used for measuring evaporation.
- Evapotranspiration (ET)
The total amount of water that is vaporized from soil, plants, and water bodies.
- Pan Coefficient (Kp)
A factor used to adjust pan evaporation measurements to the actual evapotranspiration rates, typically ranging from 0.6 to 0.8.
