39. Duty and Delta

Delta (Δ) is the total depth of water (in centimetres or meters) required by a crop during the entire period of its base period, from sowing to harvesting.

• Mathematical Expression: Δ = Depth of water required during base period
  • Unit: Usually expressed in cm or meters.
  • Importance: Determines the total water requirement for a given crop.

Delta (Δ) represents how much water a crop needs from when it is planted to when it is harvested. We measure this in centimeters or meters. This measurement helps farmers understand the total amount of water they must provide to ensure crops grow effectively. Therefore, when planning irrigation, knowing the delta is crucial for predicting water usage.

Think of delta as the water target for a plant's growth, similar to how you might measure how much soda you want to drink at a party. Just as you estimate the drink based on how thirsty you expect to be, farmers estimate the delta to meet their crops' thirst for water.

• Type of crop (e.g., rice requires more water than wheat).
• Climate (evaporation and rainfall patterns).
• Soil type (infiltration and percolation capacity).
• Method of irrigation (flood, sprinkler, drip, etc.).

Several factors affect how much water (delta) crops require, including: 1. The type of crop matters because different plants need different amounts of water; for instance, rice needs more water than wheat. 2. Climate plays a role as well; hotter temperatures increase evaporation, meaning more water might be needed. 3. The type of soil can affect how quickly water drains away; sandy soils lose water fast, while clay soils retain it longer. 4. Lastly, the method of irrigation can also influence the amount of water available to crops.

Imagine trying to keep a garden alive. If you have a sandy soil patch, it might dry out quickly (like leaving a wet towel on the ground); hence, you need to water it more frequently, similar to how rice needs more water compared to wheat in the same climate.

Typical values of delta for various crops show the amount of water required per crop during its growing period. For instance, wheat needs 40-50 cm during its 120-day growth cycle, while rice requires much more at 120-140 cm during its longer growing time of 135 days. Sugarcane, being a long-duration crop, demands an even higher delta, demonstrating the variability in water requirements.

You can think of different crops needing different amounts of water like different athletes needing different amounts of energy for their sports. For instance, a marathon runner (like rice) needs more energy (water) than a sprinter (like wheat), especially when preparing for a long race.

Duty (D) is the area of land that can be irrigated with a unit discharge of water flowing continuously during the entire base period of a crop.

• Mathematical Expression: A D =
  Q Where:
  • D = Duty (hectares/cumec)
  • A = Area irrigated (hectares)
  • Q = Discharge (cumec or cubic metre per second)
• Units: Commonly expressed in hectares/cumec (i.e., hectare per cubic metre per second).

Duty is a measure of how much land can be watered using a specific flow rate of water. The mathematical expression shows that duty equals the area irrigated divided by the discharge rate. This means if we know how much water is flowing, we can determine how large an area can be serviced over the crop's growth time. Understanding duty is essential for efficient irrigation planning.

Imagine you're running a hose in your garden. The flow rate of the hose (how fast water comes out) determines how much of your garden you can keep watered at one time. If the hose has a strong flow (high discharge), you can cover a larger area (higher duty) compared to a weak flow, where you might only be able to manage a small patch.

1. Gross Duty: Refers to water measured at the head of the canal system.
2. Net Duty: Refers to water available at the field level after losses in conveyance.

Duty can be classified into two types: Gross Duty and Net Duty. Gross Duty refers to the total water supplied at the beginning of the irrigation system, before any losses occur during transport. In contrast, Net Duty is the actual usable water that reaches the fields, accounting for losses due to leaks, evaporation, or other factors during the irrigation process.

Think of Gross Duty as the total soda in a pitcher before you pour it into cups, while Net Duty is the amount left in the cup after spills and foaming. The soda you wanted to drink is like Net Duty, as it’s what you actually use, while Gross reflects what you started with.

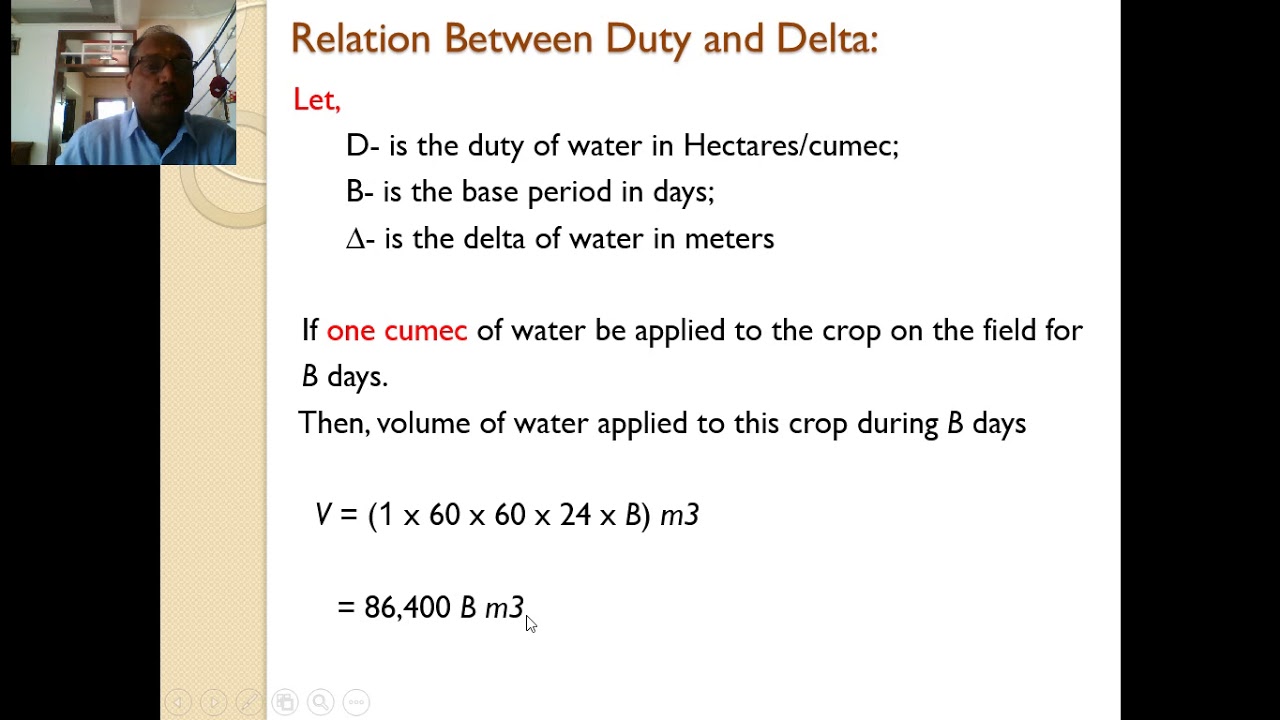

The relationship between Duty (D) and Delta (Δ) is essential in irrigation planning and is expressed as:

Δ = 8.64 × B / D

Where:

• Δ = Delta in metres
• B = Base period in days
• D = Duty in hectares/cumec
• 8.64 = Constant (derived from converting discharge to depth over area)

This formula describes how duty and delta are related in an irrigation context. It shows that the depth of water needed (delta) can be calculated if we know how much area can be irrigated (duty) and the base period (or time) for the crop. The constant 8.64 helps adjust the measurements to ensure they fit accurately into the equation.

Consider this relationship like a recipe for baking. Duty is like knowing how much flour (area) you need, whereas delta is the amount of water (depth) you need to mix in. The base period represents the time spent mixing to get the batter right. If you adjust the ingredients, you will adjust the end result, just like adjusting duty and delta alters water use.

• Helps in canal design and determining discharge capacity.
• Essential for crop water budgeting.
• Important in deciding the water allowance to farmers.
• Key to efficient water management and minimizing losses.
• Helps in evaluating the efficiency of an irrigation system.

Understanding duty and delta is crucial for several reasons: they guide the design of irrigation canals, help farmers and planners budget water for crops, and decide how much water should go to each farmer. These insights ensure water is managed efficiently, reducing waste and improving the overall productivity of an agricultural area.

Consider a school's budget. Knowing how much money (water) is available helps the school decide how to allocate resources (irrigation) for different projects (crops) effectively. If the school knows all budgets and expenses, they can reduce waste and maximize learning opportunities, much like farmers using duty and delta to ensure optimal water usage.

1. Type of Soil: Sandy soil increases percolation losses—lower duty.
2. Type of Crop: High water-demand crops (e.g., rice) reduce duty.
3. Climate Conditions: Hot and dry weather increases evapotranspiration.
4. Irrigation Practices: Better field management can improve duty.
5. Topography: Uneven terrain may result in poor water distribution.
6. Canal Losses: Seepage and evaporation lower effective duty.

Several elements determine the duty in irrigation systems. For example, sandy soil tends to lose water faster (creating lower duty) than clay soil; certain crops like rice use significantly more water or are thirstier, thus affecting duty value. Additionally, climatic conditions such as temperature and humidity can impact how much water is lost through evaporation. Even the method of irrigation used and the landscape's physical nature play key roles.

Imagine an outdoor water fight. If you're trying to soak your friends with a hose (water), but the ground is sand (soil), much of the water won't stay in the area. Similarly, if you're having fun in the sun with friends and the heat is intense (climate), the water will evaporate quickly. Thus, having sandy soil and hot conditions means you need to adjust how much water you bring (duty) to play properly.

• Lining of canals to reduce seepage losses.
• Rotational water supply or warabandi system to ensure equitable use.
• Use of modern irrigation methods like drip and sprinkler.
• Land leveling for uniform water distribution.
• Good drainage to avoid waterlogging and salinity.

Improving duty involves various techniques. Lining canals with concrete can help prevent water losses, ensuring more water reaches crops. A rotational water supply helps distribute water fairly among all farmers or fields. Modern irrigation methods, like drip systems, apply water directly to plants, which can conserve more. Land leveling ensures that water spreads evenly across fields, while good drainage prevents flooding and salinity, making crops healthier and more productive.

Think of this as improving your garden's watering system. If you use a hose that drips everywhere (like an unlined canal), less water is reaching your plants. If you fix the hose and set it so each plant gets only what it needs (like drip irrigation), your plants soak up more moisture, resulting in a healthier garden overall.

Example: An irrigation canal has a discharge of 10 cumecs and irrigates 20,000 hectares of land. Calculate the duty.

A 20000 D= = =2000hectares/cumec Q 10 Now, if the base period is 120 days, find the delta: Δ = 8.64×120 / 2000 = 0.5184m or 51.84cm. This tells us that each hectare receives 51.84 cm of water during the crop period.

In this example, we calculate duty by dividing the total area (20,000 hectares) by the discharge rate (10 cumecs), yielding a duty of 2000 hectares/cumec. We then use this duty value in conjunction with the base period to calculate delta, revealing that each hectare receives about 51.84 cm of water, demonstrating how duty and delta work together in irrigation planning.

This calculation is similar to figuring out how much juice each person gets if you have a jug of juice (discharge) and you're serving it to a large group (total area). By knowing how much juice you have, and how many people (hectares), you can serve everyone fairly (duty), ensuring everyone gets a good amount of juice (delta) for the event.

Different crops require varying amounts of water, which can be seen in the empirical values provided. For example, rice has a high delta requirement of 118.5 cm for a base period of 120 days, while wheat has a lower requirement (76.8 cm) for the same period. This emphasizes the diversity in crop needs and the importance of planning irrigation according to crop types.

It’s like planning a lunch buffet. If you know some people eat more than others, you'd prepare more food (water) for those famished guests (rice) and less for those with lighter appetites (wheat). Just like tailoring your food and drink amounts to your guests' needs, farmers must consider the specific water needs of their crops.

• When designing irrigation canals:
  • Use maximum delta and minimum duty to ensure adequacy.
  • Factor in peak water demand.
  • Use historical cropping patterns and soil-water data.

The canal capacity must be sufficient to supply the delta over the base period to the designed command area, ensuring irrigation efficiency.

In designing irrigation canals, engineers aim to balance between the maximum delta (the highest water requirement) and the minimum duty (the land that needs to be irrigated). It's crucial to account for peak water demand times when crops need the most water. By considering historical data on what crops have been grown and their corresponding water needs, engineers can design canals that efficiently deliver the necessary water to maximize irrigation effectiveness.

Imagine preparing for a big event where you need enough food and chairs (canal capacity) for the guests (crops). By knowing the biggest crowd you might expect (maximum delta) and ensuring you have enough seating for everyone (sufficient duty), you can plan effectively and avoid running out of resources.

--
