43.1. Infiltration

Infiltration is the movement of water from the ground surface into the soil profile. It is a critical component of the hydrologic cycle as it governs the division of rainfall into surface runoff and subsurface flow.

Infiltration refers to the process through which water permeates from the surface of the earth, that is, the ground or soil, into the layers of soil underneath it. This process is vital in the hydrologic cycle because it directly influences how rainwater is divided: some water will flow over the surface as runoff while other water will seep into the ground. Understanding infiltration helps us predict how much water is absorbed into the soil, which is essential for plant growth and groundwater replenishment.

Imagine a sponge on a dry surface. When you start pouring water on it, the sponge absorbs the water until it is saturated. The water that doesn’t get absorbed starts to run off the side. This is similar to what happens during rainfall; some water infiltrates the soil while excess water runs off into rivers or streams.

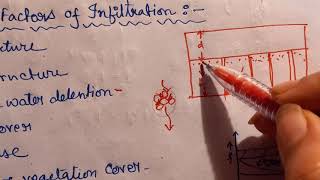

Several factors influence infiltration rates, including:

• Soil characteristics: Texture (sand, silt, clay), structure, porosity, and organic content
• Soil moisture content: Saturated soils have lower infiltration capacity
• Vegetation cover: Roots create voids and organic matter that promote infiltration
• Land use: Urbanization and compaction reduce infiltration
• Rainfall intensity and duration
• Temperature and seasonality
• Surface conditions: Crusting, presence of mulch, slope of land

Infiltration rates can vary significantly based on several elements. For instance, different soil types, like sandy soil versus clay, will absorb water differently due to texture and porosity. Saturated soils hold less infiltration capability because they are already filled with water, whereas dry soils can absorb more. Vegetation plays a big role too; plant roots create pathways for water to enter the soil. However, urbanization can hinder this process because concrete surfaces do not allow water to soak in. Other factors, such as rainfall intensity (how hard it rains) and temperature can also determine how fast and effectively water infiltrates the ground.

Think of how a sponge works again, but this time, consider different sponges made of different materials. A coarse sponge (like sandy soil) absorbs water quickly while a dense sponge (like clay soil) absorbs water much more slowly. Similarly, if you were to pour water over asphalt (urbanization), hardly any water would seep in, while on grass, most of the water would infiltrate into the ground.

Infiltration capacity is the maximum rate at which water can enter the soil under given conditions. When rainfall intensity exceeds infiltration capacity, surface runoff begins.

• Initially high when soil is dry
• Decreases with time as soil becomes saturated
• Reaches a steady state (asymptotic value)

Infiltration capacity describes how quickly water can enter the soil. Every type of soil has a limit to how much water it can absorb at once. Initially, when the soil is dry, it can absorb water very quickly. However, as rain continues, the soil reaches a point of saturation where it can't take in more water, leading to runoff. This capacity is important to consider for effective water management, especially during heavy rains.

Imagine a person trying to drink water from a glass. At first, they sip quickly when the glass is full and they are very thirsty (high infiltration). As they keep sipping, the glass empties until there is only a little left. When there’s too little water left, they can’t drink anymore, no matter how thirsty they are (saturation reached). This is similar to what happens with infiltration; the soil can take in rainwater quickly at first, but there comes a time when it's just too full.

• Infiltration Rate: The actual rate at which water enters the soil, usually expressed in mm/hr.
• Measurement Techniques:
  • Double Ring Infiltrometer
  • Tension Infiltrometer
  • Rainfall simulation method
  • Lysimeters
  • Empirical estimation from hydrographs

The infiltration rate is how we quantify the speed at which water penetrates the soil, often measured in millimeters per hour (mm/hr). There are various methods to assess this, including infiltrometers that can gauge the rate by observing how fast water seeps through soil in controlled trials. Each method has its strengths depending on the situation and the precision required.

Think of measuring how quickly a sponge can absorb water. If you place a sponge in a bowl of water, you could time how long it takes for the sponge to fully absorb the water—this is similar to how scientists measure infiltration rates. Each type of measurement has unique advantages, much like different timers or methods to measure speed.

These are simplifications used in hydrological modeling and flood estimation:

1. ϕ-index – The constant rate of infiltration such that the volume of excess rainfall equals the volume of direct runoff.
2. W-index – Takes into account the infiltration before runoff begins.
3. Horton's Equation (Empirical): f(t)=f +(f −f )e−kt Where:

• f(t) = infiltration rate at time t
• f = initial infiltration rate
• f = final (constant) infiltration rate
• k = decay constant

Infiltration indices help simplify the complex concept of infiltration for practical use in hydrology. They allow for easier calculations when modeling water flow and estimating potential flooding scenarios. The ϕ-index considers a constant infiltration rate for water flowing as runoff, while the W-index factors in earlier absorption of water. Horton’s Equation mathematically describes how the infiltration rate changes over time, from an initial high rate to a steady decrease until it levels off.

Imagine pouring different amounts of water while keeping track of how much spills over a small table. If the surface is not smooth (like the ground with vegetation and different textures), the amount of water that stays on the table (infiltrated) varies. In hydrology, these indices help us predict how much water can effectively enter the ground instead of running off.

• Estimating groundwater recharge
• Surface runoff estimation
• Flood forecasting
• Designing infiltration trenches and basins
• Soil erosion control

Understanding infiltration has several practical applications. For example, it allows for the assessment of how much groundwater can be replenished during rainfall. Similarly, by predicting surface runoff, we can anticipate potential flooding in certain areas. Infiltration data is also essential for designing structures that manage and direct water flow, such as trenches or basins, contributing to soil conservation and reducing erosion.

Think of wear and tear on a road. Just like how proper drainage prevents the road from flooding, understanding how rainwater infiltrates the soil can prevent homes and fields from being overwhelmed by too much water. By managing how water enters the ground, we can reduce damage from floods, much like how effective drainage helps maintain the road's integrity.

--
