46. Regime Channels

Regime channels refer to alluvial channels that have attained a state of dynamic equilibrium with the flowing water and sediment load. In such a condition, the channel geometry (width, depth, slope, shape) adjusts naturally to the prevailing discharge and sediment transport conditions over time, minimizing erosion or deposition. Unlike rigid boundary channels, regime channels evolve with time, responding to flow and sediment changes. This concept is central to understanding natural river behavior, irrigation canals, and designing stable artificial channels in alluvial soils. The theory of regime channels is critical for hydraulic engineers as it offers empirical and theoretical bases for predicting the dimensions of stable channels and understanding river morphology.

Regime channels are special types of river channels that are dynamic and flexible. They naturally adjust their shape and size in response to the volume of water (discharge) and the amount of sediment they carry. This adjustment helps them maintain a balance that prevents excessive erosion or buildup of sediment. Unlike fixed channels that don't change, regime channels can adapt over time, which is important for managing rivers and designing irrigation systems. Understanding these channels is essential for engineers who work on river and canal projects because it provides guidelines for creating stable and effective water management systems.

Think of a regime channel like a rubber band. When you stretch it (like the water flow increases), it adjusts its shape but doesn't break. Just like how the rubber band returns to its original shape when you release it, a regime channel will adapt and find a new equilibrium without collapsing or becoming blocked.

Regime channels exhibit the following key features: • Equilibrium Condition: The rate of sediment transport is balanced with the sediment supply. • Adjustable Boundaries: The bed and banks consist of erodible material (usually alluvium) and adjust over time. • Stable Cross-Section: Although meandering may still occur, the cross-section reaches a relatively stable form. • Self-Forming Nature: The channel forms and maintains itself through feedback mechanisms between flow, sediment transport, and boundary geometry.

Regime channels have four main features. Firstly, they maintain an equilibrium condition where the amount of sediment that flows through the channel matches the amount supplied by upstream sources. Secondly, the banks and bed of these channels are made of soft, erodible materials that can change shape over time. Thirdly, while they may wind back and forth, their overall shape stabilizes into a consistent form that doesn’t change drastically with everyday flow. Lastly, the channels are self-forming, meaning that their shape and stability are influenced by the interactions between the water flow, sediment movement, and the shape of the channel itself.

Imagine a river like a sculptor shaping clay. As water flows, it carves out the channel in the clay, creating natural curves and shapes. This sculpting continues as long as the water flows, adjusting to keep the riverbanks strong and prevent any part of it from washing away disproportionately.

46.2 Types of Regime 46.2.1 Initial Regime (or Semi-Regime) This occurs when only the bed is in equilibrium, but the banks are not fully adjusted. The channel may still widen or narrow as the flow continues to act on the banks. 46.2.2 Final Regime (or Full Regime) A channel reaches final regime when both bed and banks are stable, and all geometric properties (slope, width, depth) remain consistent over time for a given discharge and sediment load.

Regime channels can be classified into two types. The Initial Regime is where the channel's bed (the bottom part of the channel) has reached a stable condition with respect to sediment, but the banks (sides of the channel) are still adjusting. This means that the channel may still change shape as it progresses. The Final Regime, on the other hand, occurs when both the bed and banks are stable, meaning their shapes (like width and depth) remain constant over time, even with changes in water flow and sediment levels. This final regime represents an ideal state for long-term stability.

Think of a garden. When you first plant flowers (Initial Regime), they are still adjusting and the area around them may change as they grow (the banks are not fully stable). After some time, once the flowers have grown and established well (Final Regime), the plants and their surroundings settle into a stable arrangement where nothing much changes.

The regime theory was developed primarily by British engineer G.L. Kennedy (1895) and later advanced by R.L. Glover and G.O. Blench. It uses empirical relationships derived from observations of stable irrigation canals.

The Regime Theory was created to help understand how channels behave over time, particularly regarding stability. British engineer G.L. Kennedy first proposed this theory in 1895, focusing on how water and sediment interact in canal systems. Later engineers, including Glover and Blench, improved on Kennedy's ideas by using data obtained from observing actual irrigation canals. This empirical approach means that the theories are based on real-world measurements and observations, which help in predicting how channels will perform under different conditions.

Imagine a chef who creates a recipe by observing how ingredients mix and react together. Over time, the chef refines the recipe based on actual cooking experiences, similar to how engineers refine the regime theory by studying real irrigation canals.

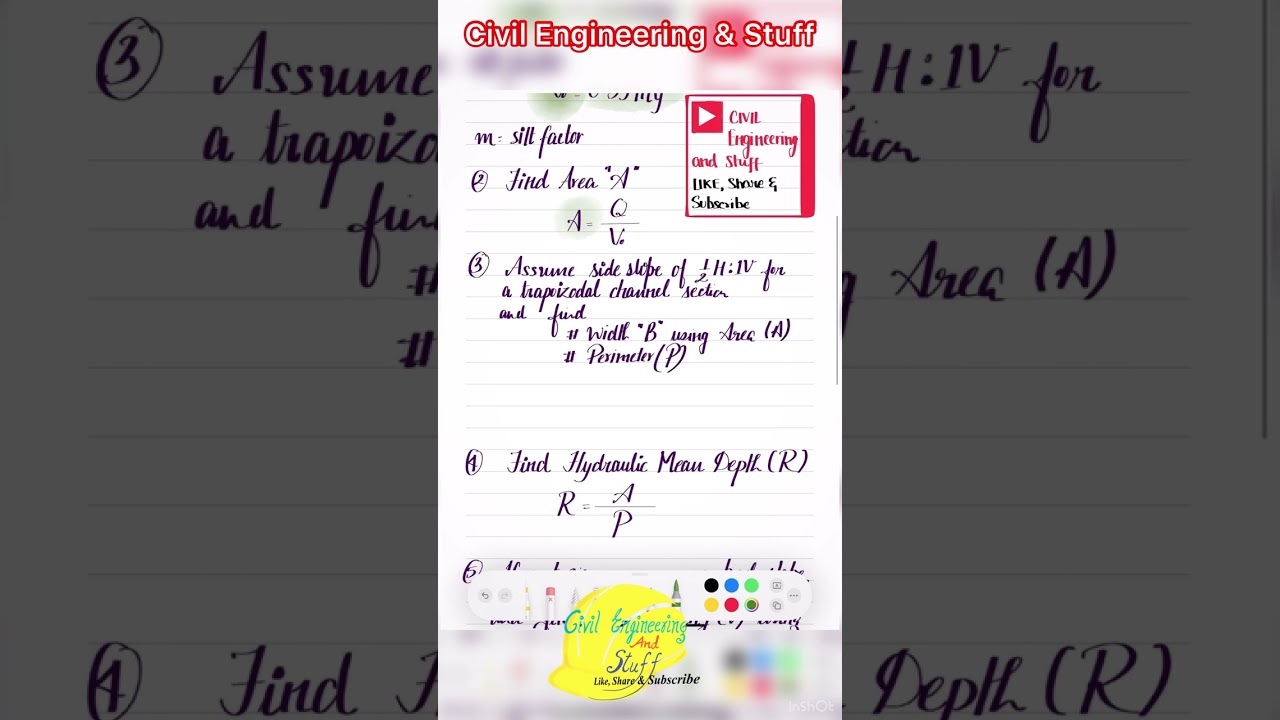

46.3.1 Kennedy’s Theory (1895) • Basis: Developed from observations of Upper Bari Doab Canal in India. • Assumption: Sediment is kept in suspension by eddies generated from channel bed. • Key Relationship: V =m(y)0.64 • Where: – V = Mean velocity (m/s) – y = Flow depth (m) – m = Critical velocity ratio (depends on sediment size) • Limitations: – Empirical, not generalizable beyond Punjab canal system. – Does not consider bed load movement or sediment concentration explicitly.

Kennedy’s Theory, based on his studies of a specific canal in India, suggests that water velocity in a canal can be predicted using a formula that relates it to the depth of the water. It assumes that small whirlpools (eddies) created at the bottom of the channel help keep sediment suspended in the water, preventing it from sinking. However, Kennedy's findings are mainly applicable to that specific region and do not account for how sediment moves along the bottom of the channel, which can lead to limitations when applying it to different areas or conditions.

Think of a blender mixing ingredients. The blades create whirlpools that keep everything blended together. Kennedy's theory uses a similar idea, suggesting that the flow of water creates currents that keep sediment in suspension, but just as a blender only works well with certain ingredients and textures, Kennedy’s theory may not work well in all water systems.

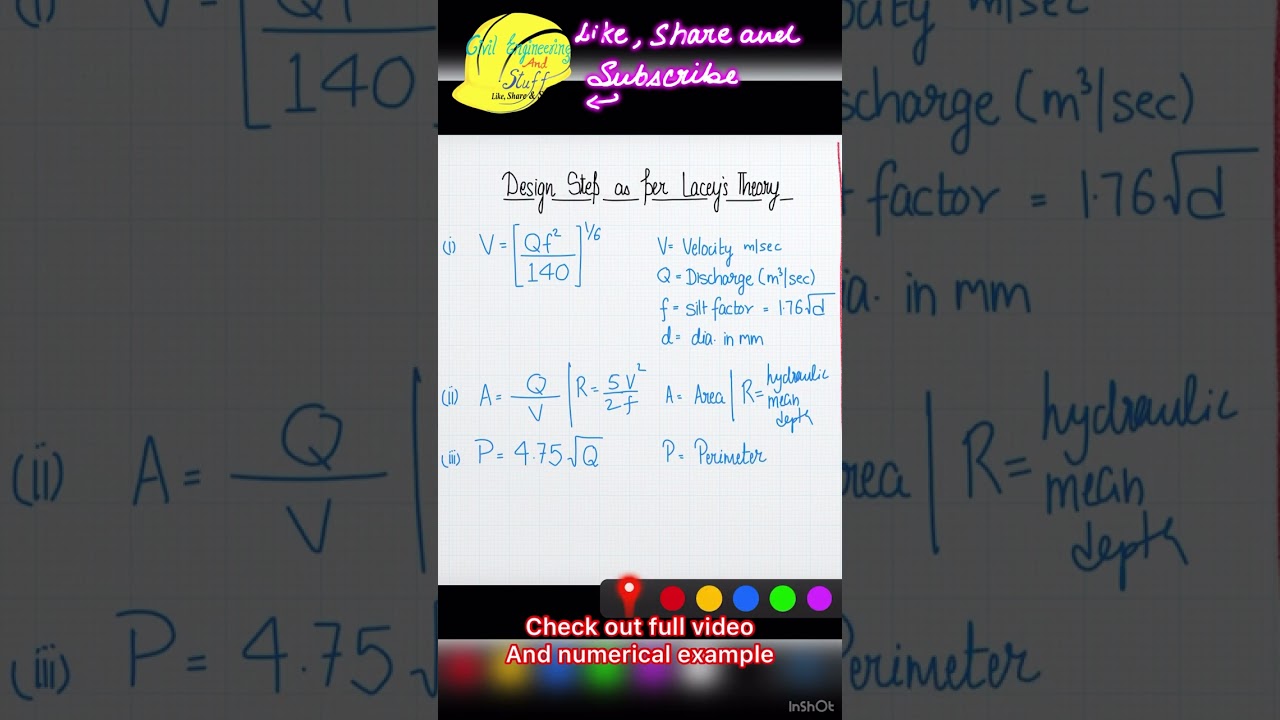

46.3.2 Lacey’s Theory (1930) • More comprehensive and widely used. • Developed from extensive observation of Indian canal systems. • Assumes a regime channel is in full equilibrium with sediment load and discharge. Key Equations:

1. Velocity Equation: V = (140Qf)^(1/2)
2. Area Equation: A = Q/V
3. Wetted Perimeter: P = 4.75Q^(1/2)
4. Hydraulic Radius: R = (2.5V^2)/f
5. Slope Equation: S = 3340Q^(1/6) Where: • Q = Discharge (cumecs) • f = Silt factor (depends on sediment size) • V = Mean velocity (m/s) • S = Slope of channel bed Silt Factor Calculation: f = 1.76√d, Where d is the mean particle diameter in mm.

Lacey's Theory is a more detailed approach that builds on Kennedy's work. It provides several mathematical equations that help engineers calculate different properties of regime channels, such as velocity, area, and slope. This theory assumes that a regime channel is in a stable state where the amount of sediment transported matches the water flow (discharge). It introduces additional factors like the silt factor, which considers the particle size of the sediment, making it more broadly applicable than Kennedy’s theory.

Imagine a puzzle. Each piece has its place and connects perfectly to others. Lacey's equations act like the pieces of this puzzle, helping engineers find the right measurements for stable channel design. Each equation addresses a specific question about the channel’s behavior, allowing for a complete picture of how the system works.

46.4 Comparison Between Kennedy and Lacey Theories Aspect Kennedy's Theory Lacey's Theory Type Semi-theoretical Empirical Sediment Consideration Only eddy-based suspension included Geometry Only depth-related Full geometry (depth, width, slope) Applicable Conditions Punjab canal system More general for Indian alluvial canals

Kennedy and Lacey's theories differ mainly in their approaches and applications. Kennedy's Theory is semi-theoretical and focuses primarily on depth, with sediment considered mainly in terms of eddy effects, making it less applicable to various conditions. In contrast, Lacey's Theory is empirical and applies to the full geometry of the channel, considering depth, width, and slope. It is better suited for a broader range of channels, particularly in alluvial regions in India.

Consider two teachers explaining math. One teacher focuses only on basic addition (like Kennedy's depth-only theory), while the other provides a full course covering addition, subtraction, and geometry (like Lacey's comprehensive approach). The second method is likely to prepare students for a wider range of problems, similar to Lacey’s more comprehensive theory.

46.5 Blench’s Regime Theory Blench developed a generalized version of regime theory by incorporating bed material size and sediment transport data. • Key Idea: Equilibrium is a function of both discharge and sediment size. • Includes the concept of "suspended load regime" and "bed-load regime" channels. Blench provided detailed regime charts to determine dimensions of stable channels, widely used in practical designs of irrigation canals.

Blench’s Regime Theory builds on earlier theories by adding more variables, specifically the size of the material that makes up the bed of the channel and how sediment is transported. This theory emphasizes that a channel's stability depends on both the water flow (discharge) and the size of sediment particles. Blench also categorized channels into types based on how sediment moves, helping engineers design more stable channels using detailed charts that indicate how different factors interact.

Think of building a sandcastle at the beach. If you use both large and small grains of sand, the structure's stability and appearance differ from using only one type. Blench's theory is like understanding how different types of sand contribute to building a stable sandcastle, creating a better design for water flow and sediment.

46.6 Stable Channel Design Using Regime Equations The design process includes:

1. Estimating discharge Q
2. Selecting silt factor f from sediment size
3. Using Lacey’s equations to calculate: • Velocity V • Area A • Perimeter P • Slope S Then, based on geometry, cross-section dimensions are calculated. Adjustments are made based on side slopes, freeboard, and canal type.

Designing a stable channel involves multiple steps. First, engineers must estimate how much water (discharge) will flow through the channel. Next, they determine the silt factor based on the sediment size, which will affect water flow. Using Lacey's equations, they can calculate important characteristics such as velocity, area, perimeter, and slope of the channel. Finally, they consider the geometry of the channel to calculate the cross-sectional dimensions and make necessary adjustments for side slopes and safety measures (freeboard). This process ensures that channels are effectively designed to handle the expected flow and sediment load.

Designing a channel is much like planning a road. You start by estimating how many cars (discharge) will use the road, then choose the right materials (silt factor) for pavement. Using engineering principles (Lacey's equations), you calculate the road’s width (area), how steep it can be (slope), and ensure there's enough space for safe driving (freeboard) on the sides.

46.7 Factors Influencing Regime Conditions • Discharge variability • Sediment load (quantity and gradation) • Vegetation on banks • Bed material composition • Channel alignment (meandering tendency) • Man-made interventions (weirs, barrages, etc.)

Various factors influence the stability and behavior of regime channels. Discharge variability refers to the changes in water flow through the channel over time, which can affect how the channel shapes itself. The amount and type of sediment (sediment load) can either stabilize the channel or lead to problems if it's too much or too little. Vegetation along the banks can help reduce erosion, while the composition of the bed affects how it interacts with the flow. Additionally, the channel's alignment, such as whether it flows straight or meanders, influences its dynamics. Finally, human-made structures like weirs and barrages also significantly impact how these channels behave.

Picture a riverbank populated with trees. The trees act like a net, catching seeds and preventing soil erosion. Similarly, in designing channels, engineers must consider each of these factors—like how farmers would take into account weather and soil conditions before planting.

46.8 Application in River and Canal Engineering • Designing irrigation canals in alluvial plains • Predicting river migration and meander formation • Stabilizing river training works • Determining appropriate bank protection methods • Planning desilting measures in unstable reaches

The principles of regime channels find significant applications in various areas of river and canal engineering. These include designing irrigation canals that are effective and sustainable in alluvial plains, where soil and sediment are abundant. Engineers use these principles to predict how rivers may change direction or create curves (meander formation), which is vital for managing river erosion. Additionally, techniques are employed to stabilize river training works to prevent damage and maintain integrity. Protecting the banks of rivers from erosion is another critical application. Finally, understanding regime conditions helps plan for desilting in areas where sediment buildup could disrupt the flow.

Think of a gardener who uses knowledge about plant growth to shape a landscape. Similarly, engineers utilize regime channel knowledge to create effective irrigation systems, monitor how rivers move, and ensure that the banks remain strong and healthy.

46.9 Limitations of Regime Theories • All regime equations are empirical—valid mostly under conditions from which they were derived. • They do not consider cohesive bank materials (e.g., clayey soils). • Cannot predict sudden changes due to floods, dams, or sand mining. • Require long-term field data for accurate calibration.

While regime theories provide foundational knowledge for channel design, they come with limitations. The equations are primarily derived from specific conditions and may not apply well in different environments. Furthermore, these theories typically overlook the effects of more cohesive materials on the banks, such as clay, which behave differently than the erodible materials often used in examples. They also struggle to account for sudden and extreme changes, like those caused by floods or human activities like the construction of dams or sand mining operations. Effective use of these theories demands long-term data to refine and adjust predictions.

Consider a car mechanic who has a preferred method for tuning engines based on specific car models. If a different model comes in, the mechanics must be cautious—it may not respond the same way. Similarly, while regime theories are valuable, engineers must be aware that they are not always universally applicable without adjustment.

46.10 Recent Developments Modern computational methods and sediment transport models (e.g., HEC-RAS, MIKE11) have enhanced the understanding and application of regime concepts by: • Allowing simulation of dynamic flow and sediment transport • Modelling bank erosion and meander migration • Integrating remote sensing and GIS data for large-scale channel monitoring Yet, traditional regime theories still form the conceptual backbone of channel design in many parts of the world.

Recent advancements in technology have improved the understanding of regime channels. Modern computational models like HEC-RAS and MIKE11 allow engineers to simulate how water flows and sediments move through channels dynamically. These tools can predict how banks erode or how meanders in rivers evolve over time, which is vital for planning and management. Additionally, they can use remote sensing and geographic information systems (GIS) to monitor large areas from above, leading to better data and design practices. Despite these advancements, traditional regime theories remain important as the foundational concepts for designing channels worldwide.

Think of how smartphones have transformed the way we navigate with apps like Google Maps. They provide real-time information and updates about traffic and routes, but the basic understanding of road systems still guides how maps are created. Similarly, while the latest technology enhances our understanding of river channels, the fundamental theories continue to support engineering practices.

--
