Rotational Kinematics

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Today, we’ll start with rotational kinematics. Just like we describe linear motion with displacement, speed, and acceleration, we can describe rotational motion with angular displacement, angular velocity, and angular acceleration.

Student 1
Student 1

How do we calculate angular displacement?

Teacher
Teacher

Great question! The angular displacement ΞΈ can be calculated using the equation ΞΈ = Ο‰t + 1/2 Ξ±tΒ². Here, Ο‰ is the initial angular velocity and Ξ± is the angular acceleration.

Student 2
Student 2

Does this mean if I know the initial angular velocity and the angular acceleration, I can find out how far it turns?

Teacher
Teacher

Exactly! You can find out not just how far it turns but also how fast it will be turning after a certain time. For example, if the acceleration is constant, you can apply those equations.

Student 3
Student 3

Is there a mnemonic to remember these equations?

Teacher
Teacher

Yes! You can use the acronym 'TWO'β€”T for ΞΈ (theta), W for Ο‰ (omega), and O for Ξ± (alpha) to remind you that all these terms are related through time and acceleration.

Teacher
Teacher

In summary, rotational kinematics relates angular displacement, speed, and acceleration using specific equations that parallel linear motion.

Torque

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Next, let’s discuss torque. Torque is essentially the rotational equivalent of force. It determines how effectively a force can cause an object to rotate.

Student 4
Student 4

How is torque calculated?

Teacher
Teacher

Torque Ο„ can be calculated with the equation Ο„ = rFsinΞΈ, where r is the distance from the axis of rotation, F is the applied force, and ΞΈ is the angle between the force vector and the arm of rotation.

Student 1
Student 1

So, a bigger distance from the axis means more torque, right?

Teacher
Teacher

Exactly! That’s why if you apply the same force further from the rotation point, it will create more torque. Remember, using a longer wrench allows you to apply more torque to loosen a bolt.

Student 2
Student 2

What happens if the angle is 0 degrees?

Teacher
Teacher

If ΞΈ is 0, then sin(ΞΈ) equals 0, so the torque will also be zero. Thus, you need to apply force at an angle to generate torque effectively.

Moment of Inertia

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Let’s talk about moment of inertia. The moment of inertia I gives a measure of how difficult it is to change the rotational motion of an object.

Student 3
Student 3

What is the formula for moment of inertia?

Teacher
Teacher

It's calculated using I = βˆ‘mα΅’rα΅’Β², where m is the mass of each particle and r is the distance from the axis of rotation. Each mass contributes differently based on its distance from the axis.

Student 4
Student 4

Does that mean that if a mass is further from the rotation axis, it contributes more to the moment of inertia?

Teacher
Teacher

Exactly! This is why spinning a figure skater can control their speed by drawing their arms in. With their arms out, they have a larger moment of inertia and spin slower compared to when they pull them in.

Student 1
Student 1

So, the greater the moment of inertia, the harder it is to change its motion?

Teacher
Teacher

Absolutely! The moment of inertia plays a huge role in how rotational dynamics works.

Angular Momentum and Conservation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Now let’s cover angular momentum, which is the rotational equivalent of linear momentum, defined by L = IΟ‰.

Student 2
Student 2

What does this mean for a rotating object?

Teacher
Teacher

It means that angular momentum depends on both the moment of inertia and angular velocity. Importantly, in a closed system without external torques, angular momentum is conserved.

Student 3
Student 3

What is meant by 'conserved' in this context?

Teacher
Teacher

It means that the total angular momentum remains constant unless acted upon by an external torque. So, if a spinning ice skater pulls in their arms, they spin faster, showing conservation of angular momentum in action.

Student 4
Student 4

Could you give an example of this conservation in real life?

Teacher
Teacher

Certainly! A planet orbiting around the sun conserves angular momentum. If the planet moves closer to the sun, it speeds up due to conservation principles.

Equilibrium

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Finally, let’s explore equilibrium. For rigid bodies, we need to consider both translational and rotational equilibrium.

Student 1
Student 1

What does translational equilibrium mean?

Teacher
Teacher

Translational equilibrium means that the net force acting on the body is zero, so there is no acceleration. For rotational equilibrium, the net torque must also be zero.

Student 2
Student 2

Can you give an example of translational equilibrium?

Teacher
Teacher

Sure! When a book rests on a table, all the forces acting on it are balanced - the weight of the book is balanced by the normal force of the table.

Student 3
Student 3

What would disrupt this equilibrium?

Teacher
Teacher

Any external force that unbalances these forces will disrupt equilibrium. For example, if someone pushes the book, it would no longer be in equilibrium.

Teacher
Teacher

To summarize today, we explored how objects in rigid body mechanics maintain or disrupt equilibrium, emphasizing the importance of understanding both translational and rotational aspects.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section introduces the principles of rigid body mechanics, focusing on rotational motion, torque, angular momentum, and equilibrium.

Standard

Rigid Body Mechanics explores the behavior of solid objects in rotational motion. Key topics include rotational kinematics, torque as the rotational equivalent of force, moment of inertia, angular momentum, rotational kinetic energy, and equilibrium conditions essential for analyzing rigid bodies in motion.

Detailed

Rigid Body Mechanics (HL Only)

This section delves into the mechanics of rigid bodies, emphasizing key principles such as rotational kinematics, torque, moment of inertia, angular momentum, and equilibrium conditions.

Key Topics:

  1. Rotational Kinematics: Describes the relationship between angular displacement, angular velocity, and angular acceleration through equations similar to those in linear motion. Key equations:
  2. ΞΈ = Ο‰t + 1/2 Ξ±tΒ², where ΞΈ is angular displacement, Ο‰ is angular velocity, and Ξ± is angular acceleration.
  3. Torque: Defined as the product of force and the distance from the axis of rotation, it determines how effectively a force can cause rotational motion. The equation is Ο„ = rFsinΞΈ, where Ο„ is torque, r is the distance from the axis of rotation, F is the applied force, and ΞΈ is the angle.
  4. Moment of Inertia: A measure of an object’s resistance to changes in its rotational motion, expressed as I = βˆ‘mα΅’rα΅’Β², where m is mass and r is the distance from the rotation axis.
  5. Angular Momentum: The rotational equivalent of linear momentum, given by L = Iω, with conservation principles indicating that angular momentum remains constant in the absence of external torques: L_initial = L_final.
  6. Rotational Kinetic Energy: The energy associated with the rotating body, defined as E_rot = 1/2 Iω².
  7. Equilibrium: Considers both translational and rotational equilibrium, where the net force is zero for translational equilibrium and the net torque is zero for rotational equilibrium.

Youtube Videos

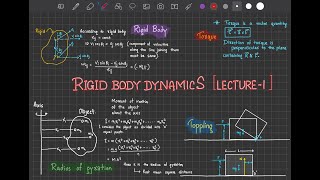

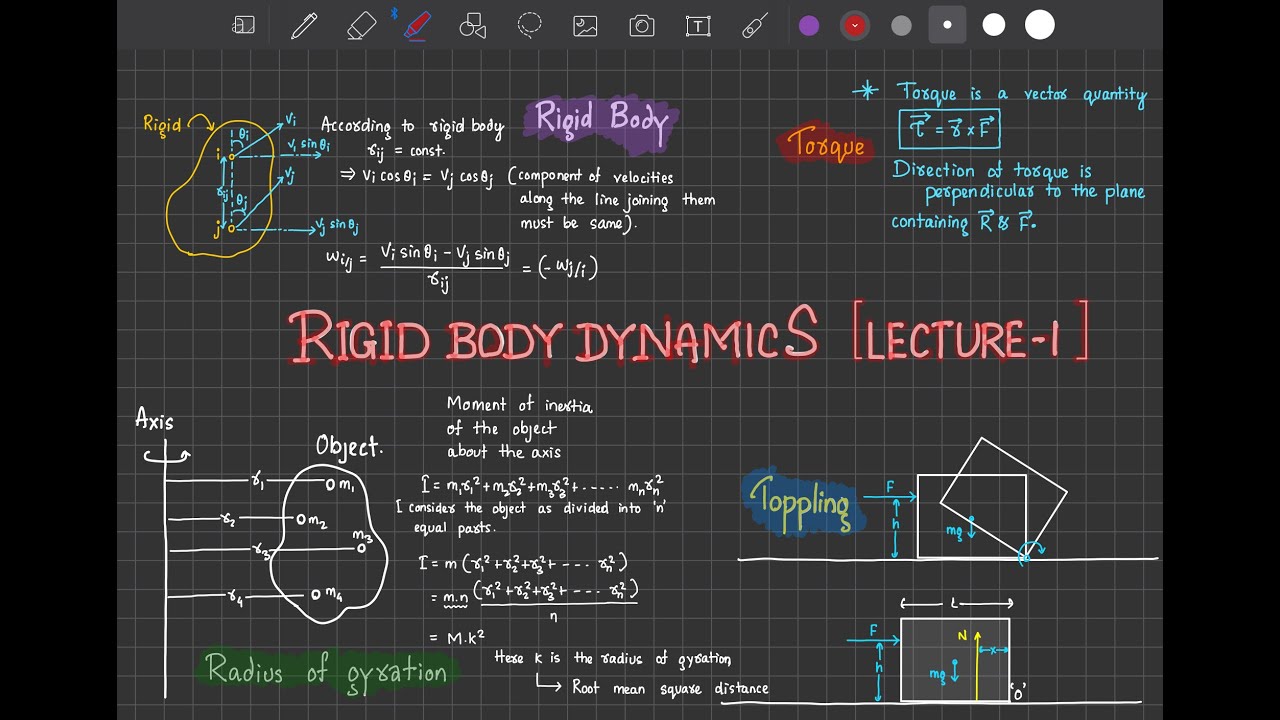

Rigid Body Dynamics : LECTURE  1(Concept of RIGID BODY)
Rigid Body Dynamics : LECTURE 1(Concept of RIGID BODY)

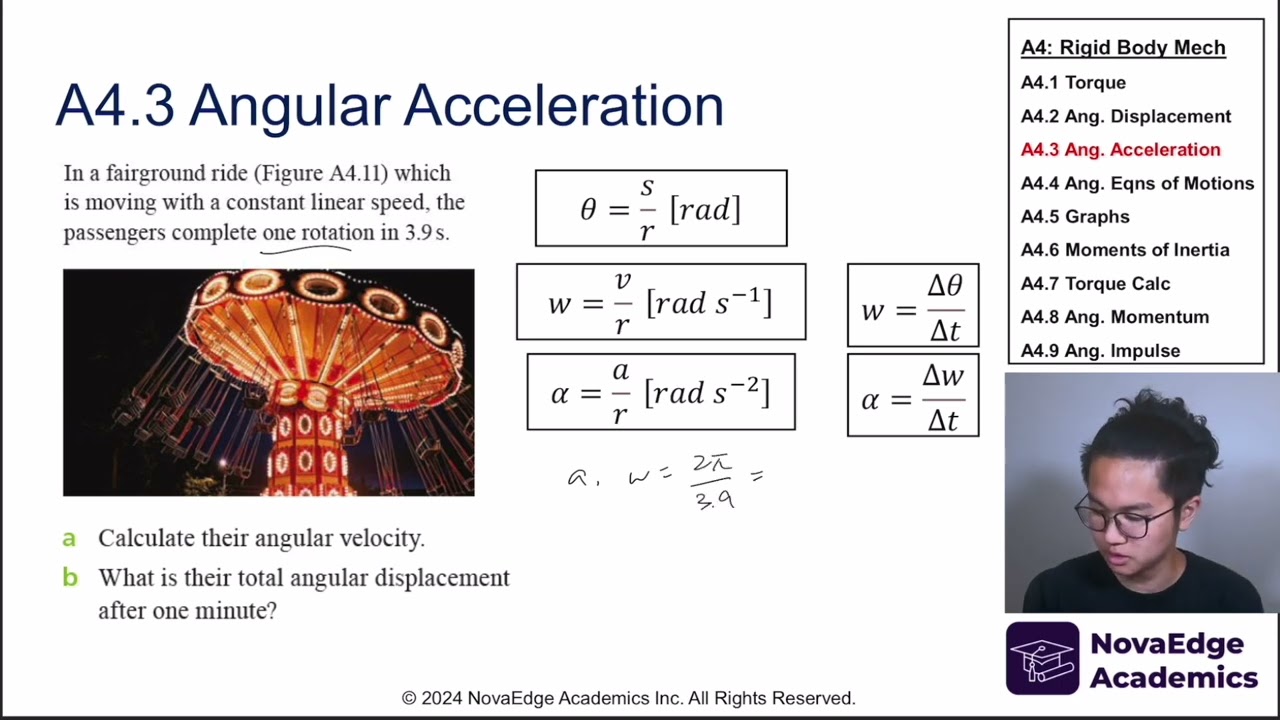

NEW 2025 EXAM IB Physics A4 Rigid Body Mechanics Part 1
