Understanding Histograms
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we will explore histograms, which are a visual tool for representing grouped continuous data. Can anyone share what they might see in a bar graph?
I think bar graphs show categories with different heights.
Exactly! Now, histograms are similar but have some key differences. For instance, what do you think happens to the bars in a histogram?
Are they touching each other since they show continuous data?
That's right! In a histogram, the bars touch, reflecting that the data is continuous. Remember: *H for Histogram, H for Hand-in-hand*! What do histograms represent on their axes?
The x-axis shows intervals, and the y-axis shows frequency.
Well done! Summarizing: Histograms visualize continuous data frequencies, with touching bars and labeled axes. Let's move on to how we actually construct one.
Constructing a Histogram
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's construct a histogram using tree height data! What do we need to do first?
We should gather the frequency data and choose our intervals!
Exactly! After selecting your intervals, how do we represent the frequency?
We draw bars based on how many data points fall into each interval on the y-axis.
Right again! The critical step is to scale the y-axis according to the highest frequency from your data. Now, why do we want to ensure that our bars touch?
It shows that the data is continuous without gaps, right?
Absolutely! Remember, the touching bars visually communicate continuity. Letโs summarize: histograms require interval data, frequencies, and touching bars for continuity.
Analyzing Histograms
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
After constructing a histogram, what do we do with it?
We can analyze the distribution and see where the most data points are concentrated!
Exactly! We can identify peaks and patterns in the data. If we see a tall bar, what might that indicate?
That part of the data has a high frequency of observations!
Spot on! And if a histogram is skewed to one side, what does that tell us?
It could mean that most data points are clustered towards one end!
Great observation! In summary, analyzing histograms helps identify the distribution, patterns, and potential outliers. Always look for where most of your data lies!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section introduces histograms, detailing their characteristics, differences from bar charts, and construction methods. It emphasizes the importance of histograms in visualizing continuous data by showcasing how frequently data points fall within specific intervals.
Detailed
Introduction to Histograms
Histograms are a specialized type of bar graph designed specifically for displaying the distribution of grouped continuous data. By providing a visual representation of data frequencies across defined intervals, histograms enhance our ability to interpret complex datasets effectively.
Key Characteristics
- Continuous Data Representation: Unlike bar charts, histograms depict continuous data where the bars touch each other. This signifies that data values can fall within specific ranges without any gaps.
- Axis Labels: In a histogram, the horizontal axis represents numerical intervals, while the vertical axis indicates the frequency of data points within these intervals.
- Bar Width: The width of each bar corresponds directly to the interval size it represents, reinforcing the relationship between the frequency of data and its numeric range.
Constructing a Histogram
To construct a histogram, you begin by drawing the axes, labeling them appropriately, and scaling them based on the frequency data collected. Each bar is drawn according to the frequency counts for the defined intervals, demonstrating the underlying distribution of data visually. For instance, using tree height data, you would specify interval markers on the x-axis and heights of bars based on corresponding frequencies on the y-axis. This structure allows observers to quickly gauge where data values are concentrated and to identify possible trends in the dataset.
By effectively using histograms, students and data analysts can simplify complex data interpretations and foster clearer communication of findings.

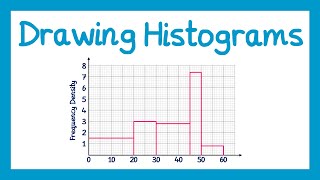

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
What is a Histogram?
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A histogram is a specialized type of bar graph used specifically for displaying the distribution of grouped continuous data. It provides a visual representation of how frequently data falls within specific intervals.
Detailed Explanation
A histogram is designed to show the frequency distribution of continuous data, meaning it indicates how often various ranges of data appear. Unlike regular bar graphs, which may represent distinct categories, histograms deal with ranges (or intervals) and show how many data points fall into each of these ranges.
Examples & Analogies
Imagine a teacher wants to analyze the scores of students on a math test. Instead of listing each score separately, the teacher groups scores into ranges, such as 0-10, 11-20, 21-30, etc. A histogram allows the teacher to quickly see how many students scored within each range, making it easier to understand overall performance.
Key Differences from Bar Charts
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Key Differences from Bar Charts:
- No Gaps Between Bars: The bars touch each other because the data is continuous; there are no breaks between the intervals.
- X-axis Represents Intervals: The horizontal axis represents the numerical ranges (intervals) of the continuous data.
- Y-axis Represents Frequency: The vertical axis represents the frequency (or count) of data points within each interval.
- Bar Width: The width of each bar corresponds to the width of the interval.
Detailed Explanation
Histograms are different from bar charts in several significant ways: 1) Unlike bar charts, which separate categories with gaps, histograms connect their bars since there are no gaps in continuous data. 2) The X-axis of a histogram displays numerical ranges instead of categories, clearly indicating the intervals of the continuous variable. 3) The Y-axis shows the frequency of data points for each interval, making it easier to see how many data points fall into each range. 4) The width of each bar is determined by the width of the interval it represents, emphasizing the continuity of the data.
Examples & Analogies
Consider a speedometer in a car, where speed is measured continuously. If you were to create a visual representation of how often certain speeds occur (like how many times the car was at or above certain speeds), you would use a histogram. The speed intervals on the X-axis (like 0-10 km/h, 11-20 km/h) would be connected without gaps, reflecting how you can smoothly transition from one speed to another without interruptions.
Constructing a Histogram
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Constructing a Histogram (Using the Tree Height data from section 1.3):
- Axes: Draw a horizontal axis (x-axis) and label it 'Tree Height (meters)'. Mark the interval boundaries (2.0, 3.0, 4.0, 5.0, 6.0).
- Vertical Axis: Draw a vertical axis (y-axis) and label it 'Frequency'. Scale it to accommodate the highest frequency (which is 12 in this example).
- Draw Bars: For each interval, draw a rectangular bar.
- Bar for 2.0โคh<3.0: Starts at 2.0, ends at 3.0 on x-axis, height is 10 units on y-axis.
- Bar for 3.0โคh<4.0: Starts at 3.0, ends at 4.0 on x-axis, height is 11 units on y-axis.
- Bar for 4.0โคh<5.0: Starts at 4.0, ends at 5.0 on x-axis, height is 12 units on y-axis.
- Bar for 5.0โคh<6.0: Starts at 5.0, ends at 6.0 on x-axis, height is 7 units on y-axis.
- Notice that the bars will touch at 3.0, 4.0, and 5.0, showing the continuity of the height data.
Detailed Explanation
To construct a histogram, start by establishing your axes. The horizontal axis (x-axis) will represent your intervals, while the vertical axis (y-axis) will reflect frequency. You then draw bars for each interval based on how many data points fall into each one. For instance, if you're plotting tree heights, you might mark the intervals for 2.0 to 3.0 meters, 3.0 to 4.0 meters, and so on. Each bar's height corresponds to how many trees fall within each height interval, and ensure that the bars touch to indicate the continuous nature of the data.
Examples & Analogies
Think of it like measuring rainfall over weeks. If you consistently record rainfall data and segment it into weekly intervals like '0-1 mm', '1-2 mm', etc., you can visualize the total rainfall for each week using a histogram. This will show you how much rain fell in each range, helping you quickly identify which weeks had heavy or light rainfall, just like seeing how many trees fall into various height categories.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Histogram: A specialized bar graph for continuous data visualization.
-
Continuous Data: Numerical data that can fall within intervals.
-
Frequency: The count of data points within each interval.
-
Interval: A range of values representing groups of data.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A histogram that shows the distribution of students' test scores across intervals such as 50-60, 60-70, 70-80, etc.
-
Using tree heights, a histogram illustrates the height intervals like 2.0-3.0 meters, where each bar indicates how many trees fall into each height group.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
๐ต Rhymes Time
-
For data that flows, and clearly shows, Histograms are where the frequency grows!
๐ Fascinating Stories
-
Imagine a garden where trees of various heights grow. As the gardener measures and groups them by height intervals, the taller trees stand proud, forming a histogram of their heights, making it easy to see which heights dominate the garden.
๐ง Other Memory Gems
-
Use 'FITS': Frequency, Intervals, Touching bars, and Scales to remember how histograms are defined.
๐ฏ Super Acronyms
Remember H.I.T. for Histograms
- H: - Height (frequency); I - Intervals (data ranges); T - Touching (bars).
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Histogram
Definition:
A bar graph that represents the frequency distribution of continuous data, with adjacent bars indicating continuous intervals.
-
Term: Continuous Data
Definition:
Data that can take any value within a defined range, measured and expressed in terms of intervals.
-
Term: Frequency
Definition:
The number of times a data point appears within a specific interval in a histogram.
-
Term: Bar Width
Definition:
The width of the bars in a histogram, which corresponds to the range of the data interval.
