4.5 - Refraction Through a Rectangular Glass Slab

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Refraction Through a Rectangular Glass Slab

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we will learn about how light refracts when passing through a rectangular glass slab. Can anyone tell me what refraction is?

Student 1
Student 1

Isn't refraction when light bends as it passes from one material to another?

Teacher
Teacher

Exactly! When light enters the glass, it bends towards the normal. Let's focus on what happens after it exits. What do you think occurs to the ray once it leaves the slab?

Student 2
Student 2

Does it go back to its original path?

Teacher
Teacher

Not quite. The emergent ray is parallel to the incident ray, but shifted to the side. This is called lateral displacement. Can you remember what factors influence this displacement?

Student 3
Student 3

You mean the angle of incidence, the thickness of the slab, and the refractive index?

Teacher
Teacher

Great job! Remember these points as they will be critical in understanding applications in optics. Let's move on to how we can visualize this with a diagram.

Understanding Lateral Displacement

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

What happens to lateral displacement if we increase the angle of incidence? Student_1, can you suggest?

Student 1
Student 1

I think it would increase the lateral displacement because the ray bends more?

Teacher
Teacher

That's correct! A larger angle generally leads to greater bending. Now, how about the thickness of the slab, Student_2?

Student 2
Student 2

A thicker slab means the light travels a longer distance inside, so more lateral displacement occurs?

Teacher
Teacher

Exactly, you're getting the hang of this! And what can you tell me about the refractive index, Student_3?

Student 3
Student 3

Higher refractive index means the light bends more, resulting in more lateral displacement.

Teacher
Teacher

Very well said! Always remember those key influences on lateral displacement. They have real-world implications in lenses.

Applications of Lateral Displacement

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's connect our learning to real life. Can anyone think of where we might see lateral displacement in action?

Student 4
Student 4

I know! When you're at the pool, the water seems to make things look closer than they are!

Teacher
Teacher

That's a fantastic example! The apparent bending of light creates illusions, especially underwater. Any other applications?

Student 2
Student 2

How about glasses and camera lenses?

Teacher
Teacher

Yes! Lenses manipulate lateral displacement to help create images. Remember, the refractive index of these lenses contributes to how they function. Great connections everyone!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section explores how light behaves when it passes through a rectangular glass slab, focusing on the phenomenon of lateral displacement.

Standard

Refraction through a rectangular glass slab shows that the emergent ray remains parallel to the incident ray, albeit shifted laterally. The extent of this lateral displacement depends on the angle of incidence, the thickness of the slab, and the refractive index of the slab material.

Detailed

Refraction Through a Rectangular Glass Slab

In this section, we examine the primary phenomenon observed when light passes through a rectangular glass slab. Unlike a prism, where light bends at two different angles, the rectangular glass slab allows for a distinct characteristic of refraction: the emergent ray remains parallel to the incident ray but is laterally displaced.

Key Concepts:

  • Lateral Displacement: When light enters the slab at an angle, it bends towards the normal upon entering and bends away from the normal upon exiting, leading to a shift in its position. This shift in the light ray's path is termed lateral displacement.
  • Dependence Factors: The amount of lateral displacement is influenced by:
  • The angle of incidence: A larger angle will result in greater bending and hence more lateral displacement.
  • The thickness of the slab: Thicker slabs induce more lateral displacement due to the longer path the light travels within the medium.
  • The refractive index of the material: A higher refractive index means greater bending of light, further affecting the lateral displacement.

This understanding of refraction is crucial for numerous applications where lenses and optical devices are used, offering insights into how they manipulate light for various purposes.

Youtube Videos

Refraction of Light at Plane Surfaces Class 10 ICSE | Light Physics ICSE Class 10 | @sirtarunrupani
Refraction of Light at Plane Surfaces Class 10 ICSE | Light Physics ICSE Class 10 | @sirtarunrupani
10 ICSE : Physics chapter 4 : Refraction at Plane Surfaces : Imporatnt Compilation
10 ICSE : Physics chapter 4 : Refraction at Plane Surfaces : Imporatnt Compilation
Refraction of Light at Plane Surfaces One Shot | ICSE Physics 2026 | @sirtarunrupani​
Refraction of Light at Plane Surfaces One Shot | ICSE Physics 2026 | @sirtarunrupani​
Glass Slab : LATERAL DISPLACEMENT of Light : Class X CBSE / ICSE : Refraction Of Light 04
Glass Slab : LATERAL DISPLACEMENT of Light : Class X CBSE / ICSE : Refraction Of Light 04
REFRACTION OF LIGHT AT PLANE SURFACE in 25 Mins | Complete Chapter Mind Map | Class 10 ICSE PHYSICS
REFRACTION OF LIGHT AT PLANE SURFACE in 25 Mins | Complete Chapter Mind Map | Class 10 ICSE PHYSICS

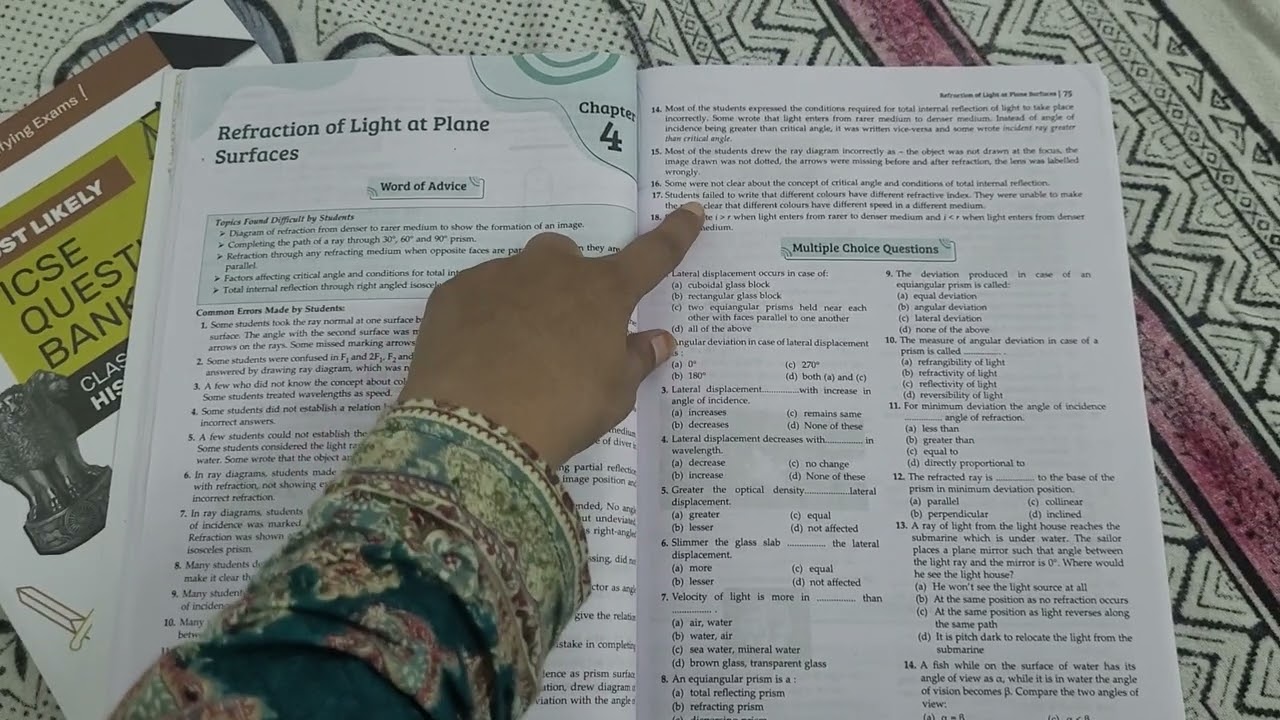

How to prepare for ICSE exam- Refraction of light at plane surfaces
How to prepare for ICSE exam- Refraction of light at plane surfaces

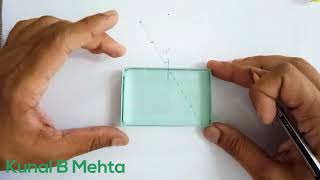

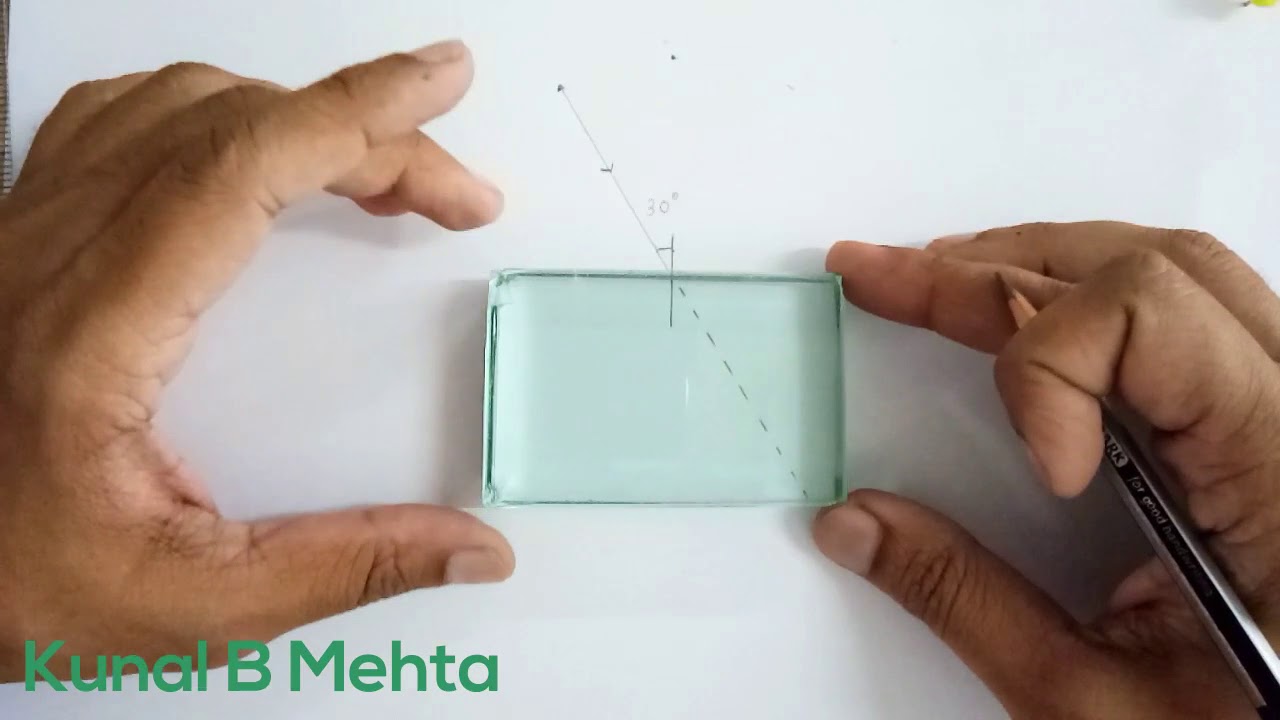

Refraction Through glass slab : Lateral Shift Experiment
Refraction Through glass slab : Lateral Shift Experiment
Refraction of Light through Plane Surfaces | Full Lesson 1 Shot | Class 10 Physics
Refraction of Light through Plane Surfaces | Full Lesson 1 Shot | Class 10 Physics
Refraction of Light at Plane Surfaces | ICSE CLASS 10 Physics | Part-1
Refraction of Light at Plane Surfaces | ICSE CLASS 10 Physics | Part-1
REFRACTION OF LIGHT AT PLANE SURFACE In One Shot ( Theory + PYQs ) | Class 10 ICSE Board
REFRACTION OF LIGHT AT PLANE SURFACE In One Shot ( Theory + PYQs ) | Class 10 ICSE Board

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Phenomenon of Refraction

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

● Emergent ray is parallel to incident ray but shifted laterally.

Detailed Explanation

When light travels from one medium to another, such as air to glass, it bends at the interface due to a change in speed. This bending results in an emergent ray that exits the glass slab parallel to the incident ray but is shifted to the side. This shift occurs because the different speeds of light in the two media affect the path of the light.

Examples & Analogies

Imagine you are running along a straight path that suddenly turns into a muddy ground. Your feet slow down in the mud, causing you to veer slightly off course while keeping parallel to your original path. Similarly, light bends when it enters and exits a different medium, resulting in a parallel but displaced emergent ray.

Lateral Displacement

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

● Depends on:
○ Angle of incidence
○ Thickness of the slab
○ Refractive index of the material

Detailed Explanation

Lateral displacement refers to the sideways shift of the emergent ray compared to the incident ray. This displacement is affected by three factors:
1. Angle of Incidence: The angle at which the light hits the surface of the glass slab. A larger angle typically leads to greater displacement.
2. Thickness of the Slab: The thicker the slab, the more light travels through it, increasing the total lateral shift.
3. Refractive Index of the Material: Different materials affect the light's speed differently. A higher refractive index usually results in more bending and overall displacement.

Examples & Analogies

Think of the lateral displacement like a skateboarder rolling off a ramp onto a flat surface. The steeper the ramp (angle of incidence), the more distance they cover sideways after leaving the ramp. Likewise, if the ramp is longer (thicker slab) or made of smoother material (higher refractive index), they will glide further away from their original path.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Lateral Displacement: When light enters the slab at an angle, it bends towards the normal upon entering and bends away from the normal upon exiting, leading to a shift in its position. This shift in the light ray's path is termed lateral displacement.

  • Dependence Factors: The amount of lateral displacement is influenced by:

  • The angle of incidence: A larger angle will result in greater bending and hence more lateral displacement.

  • The thickness of the slab: Thicker slabs induce more lateral displacement due to the longer path the light travels within the medium.

  • The refractive index of the material: A higher refractive index means greater bending of light, further affecting the lateral displacement.

  • This understanding of refraction is crucial for numerous applications where lenses and optical devices are used, offering insights into how they manipulate light for various purposes.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Looking at a pencil partially submerged in water appears bent due to refraction.

  • When observing a straight stick entering water, it appears broken or bent at the water's surface.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When light hits a slab quite grand, it bends and shifts; just as planned!

📖 Fascinating Stories

  • Imagine a diving board at a pool: a swimmer steps off and when they hit the water, they look closer to the surface than they really are. This is quite like how light behaves at different interfaces.

🧠 Other Memory Gems

  • Think of "LAR" for Lateral displacement: Light shifts At Refractory surfaces.

🎯 Super Acronyms

In REFLECT, R stands for Refractive index, E for Emergent Ray, F for factors that affect it, L for lateral displacement, and T for the Thickness of the slab.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Lateral Displacement

    Definition:

    The shift of a light ray from its original path after passing through a medium.

  • Term: Refractive Index

    Definition:

    A dimensionless number that describes how fast light travels in a medium compared to a vacuum.

  • Term: Incident Ray

    Definition:

    The incoming ray of light that strikes the surface.

  • Term: Emergent Ray

    Definition:

    The light ray that exits the medium after refraction.

  • Term: Normal

    Definition:

    An imaginary line perpendicular to the boundary of the two media at the point of incidence.
