2.2 - Layers of the Earth

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding the Crust

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's begin with the crust. It's the outer layer of the Earth, and guess what? It's also the thinnest layer, varying between 5 to 70 km thick!

Student 1
Student 1

Is the crust the same everywhere? What is it made of?

Teacher
Teacher

Good question! The crust isn't the same everywhere. It consists mostly of rocks—granite in continental regions and basalt in oceans. Remember this with the mnemonic: 'Granite for Land, Basalt for Sand'!

Student 2
Student 2

What do you mean by tectonic plates?

Teacher
Teacher

Tectonic plates are large pieces of the Earth's crust that float on the semi-fluid mantle below. They are vital for understanding earthquakes and mountain formation.

Student 4
Student 4

Can you give an example of a tectonic plate boundary?

Teacher
Teacher

Sure! The boundary between the Pacific Plate and the North American Plate is a famous example. They interact and can cause earthquakes! Summarizing, the crust is thin, made of different rocks, and divided into tectonic plates.

Diving into the Mantle

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, moving beneath the crust, let's talk about the mantle, which is about 2900 km thick.

Student 3
Student 3

What is it made of?

Teacher
Teacher

The mantle is composed of semi-solid silicate rocks rich in iron and magnesium. Remember: 'Silicate Materials, Stronger in Layers!'

Student 1
Student 1

Why is the mantle not solid everywhere?

Teacher
Teacher

Great question! The upper part, called the asthenosphere, is partially molten, which allows tectonic plates to move. The rest is solid due to high pressure.

Student 2
Student 2

So the movement of plates is happening because of the mantle?

Teacher
Teacher

Exactly! The asthenosphere helps the plates shift. To summarize, the mantle is a thick layer crucial for plate movement, composed of silicate rocks.

Exploring the Core

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let's delve into the core, the innermost layer of the Earth, around 3500 km in radius!

Student 4
Student 4

What is it made of?

Teacher
Teacher

The core is mostly iron and nickel, with high temperatures that can reach 5000°C!

Student 3
Student 3

Is it solid or liquid?

Teacher
Teacher

The outer core is liquid, while the inner core is solid! Here's a mnemonic: 'Liquid Out, Solid In!'

Student 1
Student 1

Why is the temperature so high?

Teacher
Teacher

The temperature is high due to immense pressure and the decay of radioactive materials. To summarize, the core has a liquid outer part and a solid inner part, rich in iron and nickel.

Significance of Earth's Layers

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Understanding the Earth's layers is crucial for various reasons. Can anyone remind me of why?

Student 2
Student 2

It helps explain earthquakes and volcanoes!

Teacher
Teacher

Exactly! It also helps us understand plate tectonics and locate resources like minerals and oil. Remember: 'Layers Lead to Life!'

Student 3
Student 3

How does this knowledge help predict natural disasters?

Teacher
Teacher

Great question! By studying the layers and their behavior, scientists can predict and potentially mitigate natural hazards. So, layers are not just scientific—they are vital for safety!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

The Earth consists of three main layers: the crust, mantle, and core, each with unique characteristics and compositions.

Standard

This section explores the three primary layers of the Earth: the crust, which is the thin outer layer; the mantle, a thick semi-solid layer; and the core, comprised of a hot inner solid and a liquid outer layer. Understanding these layers is crucial for grasping geological phenomena such as earthquakes and volcanoes.

Detailed

Layers of the Earth

The Earth is structured in three main layers:
1. Crust (Lithosphere): The outermost layer, ranging from 5 to 70 km thick, primarily composed of rocks. The continental crust consists of granite, while the oceanic crust is primarily basalt. It is divided into tectonic plates, which are crucial for understanding geological activity.

  1. Mantle: Located beneath the crust, the mantle is approximately 2900 km thick and consists of semi-solid silicate rocks rich in iron and magnesium, which allow for a certain degree of movement. It is further subdivided into the upper mantle (including the asthenosphere that facilitates plate movement) and the lower mantle, which remains solid due to high pressure.
  2. Core: The innermost layer with a radius of about 3500 km, mainly composed of iron and nickel. The core is divided into the outer core, which is in a liquid state, and the inner core, which is solid. This layer is extremely hot, with temperatures reaching up to 5000°C.

Understanding these layers is essential for explaining seismic activity, volcanic eruptions, and plate tectonics, which in turn helps in locating natural resources and mitigating natural hazards.

Youtube Videos

Structure Of The EARTH 🌍 Layers Of EARTH 🌎 Through Animation | OnlyIAS
Structure Of The EARTH 🌍 Layers Of EARTH 🌎 Through Animation | OnlyIAS
Earth 's Structure ICSE Class 9 | Earth Structure Geography | @sirtarunrupani
Earth 's Structure ICSE Class 9 | Earth Structure Geography | @sirtarunrupani
EARTH STRUCTURE in One Shot | Class 9 GEOGRAPHY | ICSE Board
EARTH STRUCTURE in One Shot | Class 9 GEOGRAPHY | ICSE Board
Structure Of The Earth | The Dr. Binocs Show | Educational Videos For Kids
Structure Of The Earth | The Dr. Binocs Show | Educational Videos For Kids
Different Layers of the Earth | It's Interior, Structure and Composition
Different Layers of the Earth | It's Interior, Structure and Composition

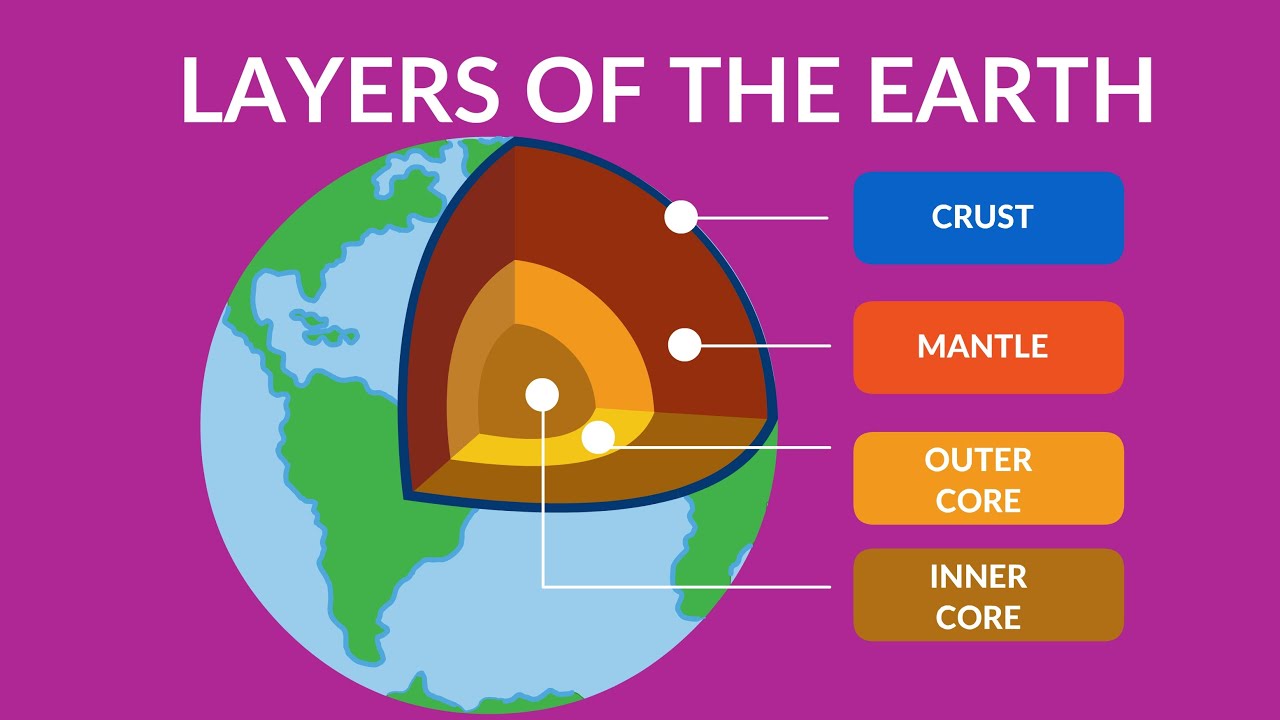

Layers of the Earth video for Kids | Inside Our Earth | Structure and Components
Layers of the Earth video for Kids | Inside Our Earth | Structure and Components
Earth's Structure || ICSE Class 9 Geography
Earth's Structure || ICSE Class 9 Geography
Earth as a Planet 🌍 | Class 9 ICSE Geography | Part 2 Explained
Earth as a Planet 🌍 | Class 9 ICSE Geography | Part 2 Explained
EARTH AS A PLANET in One Shot | Class 9 GEOGRAPHY | ICSE Board
EARTH AS A PLANET in One Shot | Class 9 GEOGRAPHY | ICSE Board

Audio Book

Dive deep into the subject with an immersive audiobook experience.

The Crust (Lithosphere)

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. Crust (Lithosphere)
    ○ Outermost solid layer.
    ○ Thinnest layer: 5–70 km thick.
    ○ Made up of rocks (continental crust is granite; oceanic crust is basalt).
    ○ Divided into tectonic plates.

Detailed Explanation

The crust is the outermost layer of the Earth, comprising a solid surface where we live. It is the thinnest layer compared to the other layers, with a thickness ranging from only about 5 kilometers beneath the oceans to 70 kilometers beneath the continents. The crust consists of two types of rock: granite, which makes up the continental crust, and basalt, found in the oceanic crust. These crustal rocks are broken into large pieces known as tectonic plates, which float on the underlying mantle and can move, leading to geological events such as earthquakes.

Examples & Analogies

Think of the Earth’s crust like the skin of an apple – it may seem thin compared to the entire fruit, but it holds everything together. Just like how the skin protects the apple, the crust protects the layers beneath and supports all life on Earth.

The Mantle

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. Mantle
    ○ Lies below the crust; about 2900 km thick.
    ○ Composed of semi-solid silicate rocks rich in iron and magnesium.
    ○ Divided into:
    ■ Upper Mantle (including the asthenosphere – partially molten and allows plate movement)
    ■ Lower Mantle (solid due to high pressure)

Detailed Explanation

The mantle is a much thicker layer, extending about 2900 kilometers below the Earth’s crust. It is primarily composed of semi-solid silicate rocks that are rich in iron and magnesium. The mantle is divided into two parts: the upper mantle, which includes the asthenosphere, a zone that is somewhat molten and allows for the movement of tectonic plates, and the lower mantle, which remains solid due to the extreme pressures found at such depths. This semi-solid state of the upper mantle is crucial for the movement of tectonic plates, enabling processes like continental drift and the formation of mountains.

Examples & Analogies

Imagine the mantle as a thick layer of warm, gooey chocolate fudge under a cake (the crust). Just as the fudge can flow and allow the cake to shift or settle, the semi-solid mantle is able to flow and allow the crust to move on top of it.

The Core

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. Core
    ○ Innermost layer, radius about 3500 km.
    ○ Composed mainly of iron and nickel.
    ○ Divided into:
    ■ Outer Core – liquid
    ■ Inner Core – solid
    ○ Extremely hot: temperature can reach up to 5000°C.

Detailed Explanation

The core of the Earth is its innermost layer, with a radius of approximately 3500 kilometers. It is primarily made up of iron and nickel and is divided into two parts: the outer core, which is liquid, and the inner core, which is solid. Despite being under immense pressure, the inner core remains solid due to the extreme conditions it endures. Temperatures in the core can reach as high as 5000 degrees Celsius, making it one of the hottest places on the planet. The movements in the liquid outer core are responsible for generating Earth’s magnetic field.

Examples & Analogies

Think of the core like a molten center of a lava cake. When you cut into the cake, the hot liquid chocolate center flows out. Similarly, the outer core is liquid and flows, while the inner core is solid—imagine the cake’s foundation, where the heat is intense and keeps the whole structure together.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Crust: The outermost layer, characterized by its rocky composition and divided into tectonic plates.

  • Mantle: A thick layer composed of semi-solid silicate rocks; movement occurs in the asthenosphere.

  • Core: The innermost layer, consisting of a liquid outer core and a solid inner core, with very high temperatures.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • The Himalayan mountain range was formed by the collision of tectonic plates at the boundaries of the crust.

  • Volcanic eruptions occur when magma from the mantle breaks through the crust.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Crust so thin, moves with pace. Mantle flows in its warm embrace.

📖 Fascinating Stories

  • Imagine the Earth as a layered cake: the thin crust is the frosting, the mantle is the soft sponge, and the core is a hot gooey center that keeps everything together.

🧠 Other Memory Gems

  • C, M, C: Crust, Mantle, Core - Remembering Earth’s Layers!

🎯 Super Acronyms

L-M-C

  • for Layers - Crust
  • Mantle
  • Core!

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Crust

    Definition:

    The outermost solid layer of the Earth, composed of rocks.

  • Term: Mantle

    Definition:

    The layer beneath the crust, composed of semi-solid silicate rocks.

  • Term: Core

    Definition:

    The innermost layer of the Earth, consisting of a liquid outer core and a solid inner core.

  • Term: Tectonic plates

    Definition:

    Large pieces of the Earth's crust that float on the semi-fluid mantle and are responsible for geological activity.

  • Term: Asthenosphere

    Definition:

    The upper layer of the mantle that is partially molten, allowing for tectonic plate movement.

  • Term: Seismic waves

    Definition:

    Waves of energy that travel through the Earth's layers, used to study its interior.
