4.5 - Properties of Parallel Lines

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Parallel Lines and Transversals

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Good morning everyone! Today, we are going to learn about the properties of parallel lines, particularly when a transversal intersects them. Does anyone know what parallel lines are?

Student 1
Student 1

Yes! They are lines that never meet and are always the same distance apart.

Teacher
Teacher

Exactly! Now, can anyone tell me what a transversal is?

Student 2
Student 2

A transversal is a line that crosses two or more lines at different points.

Teacher
Teacher

Right again! When a transversal intersects parallel lines, it creates several angles. Let’s explore what happens with these angles. One important property is that corresponding angles are equal. Remember the acronym ACE for 'Angles Corresponding Equal'. Can anyone give me an example?

Corresponding and Alternate Interior Angles

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let’s look closely at corresponding angles. If we label the angles formed by the transversal and the parallel lines, how would we identify corresponding angles, and why are they equal?

Student 3
Student 3

They are located in the same position at each intersection!

Teacher
Teacher

Correct! Next, consider alternate interior angles. What can you tell me about them?

Student 4
Student 4

They are located between the two lines but on opposite sides of the transversal, and they're equal too!

Teacher
Teacher

Exactly! Remember the phrase 'Opposite sides, same size' to recall this. Let’s summarize: corresponding angles are equal and alternate interior angles are equal.

Alternate Exterior Angles and Consecutive Interior Angles

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s discuss alternate exterior angles. Who can describe their location and relationship?

Student 1
Student 1

They are outside the parallel lines, also on opposite sides of the transversal, and they are equal!

Teacher
Teacher

Exactly! Lastly, what about consecutive interior angles?

Student 2
Student 2

They add up to 180 degrees because they are on the same side of the transversal!

Teacher
Teacher

Very well put! Remember this property helps in proving whether lines are parallel.

Application of Properties of Parallel Lines

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Great job, everyone! Now let's see how we can apply these properties. If I have a transversal crossing two parallel lines and I know one angle measures 60 degrees, how can we find the other angles?

Student 3
Student 3

We can find the corresponding angle; it will also be 60 degrees. Then, the alternate interior angle would be 60 degrees too!

Teacher
Teacher

Correct! And what about the consecutive interior angles?

Student 4
Student 4

They would add up to 180 degrees. So, the other angle would be 120 degrees!

Teacher
Teacher

Excellent! Always remember to utilize these properties in your problem-solving!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section covers the key properties of angles formed when a transversal intersects two parallel lines.

Standard

In this section, we explore the properties of angles formed where a transversal crosses two parallel lines, specifically focusing on corresponding angles, alternate interior and exterior angles, and consecutive interior angles. Understanding these properties is critical for solving geometrical problems involving parallel lines.

Detailed

Youtube Videos

GCSE Maths - Alternate, Corresponding and Allied Angles - Parallel Lines Angle Rules
GCSE Maths - Alternate, Corresponding and Allied Angles - Parallel Lines Angle Rules

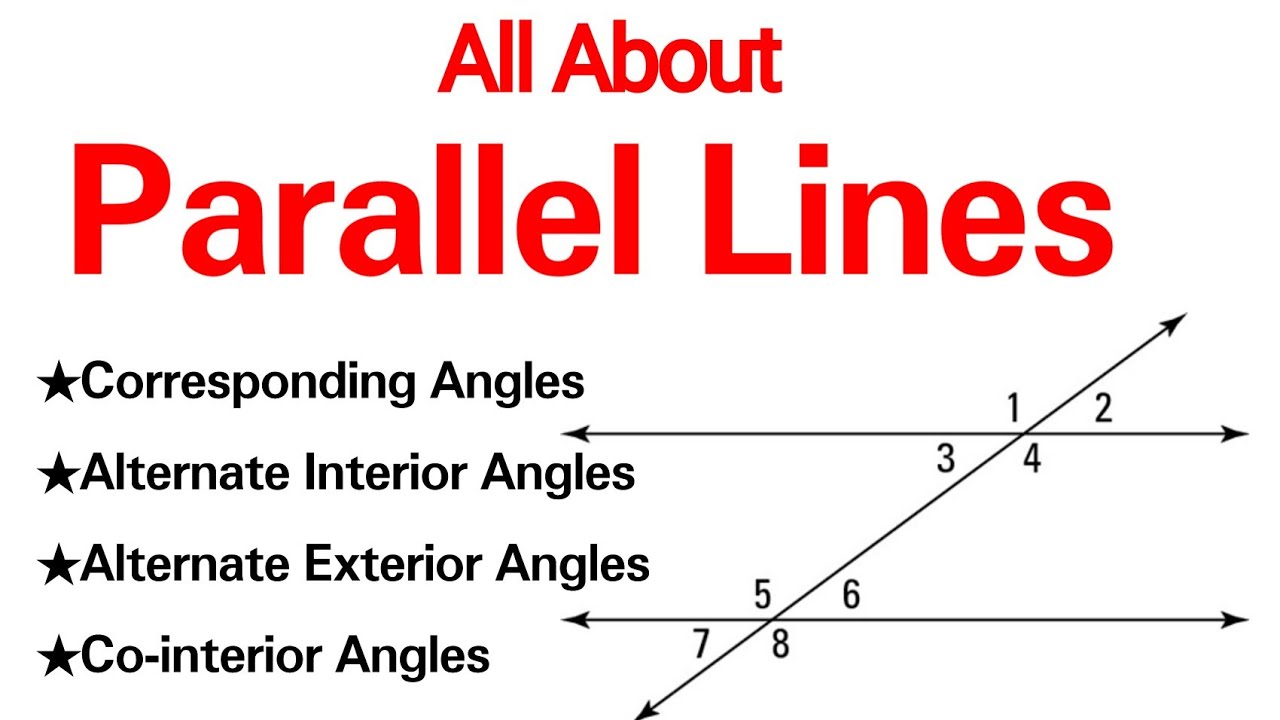

All about Parallel Lines : Corresponding Angles, Alternate interior angles, Co-interior angles
All about Parallel Lines : Corresponding Angles, Alternate interior angles, Co-interior angles
Properties of parallel lines||class 9 maths
Properties of parallel lines||class 9 maths
Lines and Angles Class 9 in One Shot 🔥 | Class 9 Maths Chapter 6 Complete Lecture | Shobhit Nirwan
Lines and Angles Class 9 in One Shot 🔥 | Class 9 Maths Chapter 6 Complete Lecture | Shobhit Nirwan
Angles Formed by a Transversal with Two Parallel Lines | Infinity Learn
Angles Formed by a Transversal with Two Parallel Lines | Infinity Learn

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Transversal and Parallel Lines

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

If a transversal intersects two parallel lines:

Detailed Explanation

When we talk about parallel lines, we mean lines that never meet each other, no matter how far they are extended. A transversal is a line that crosses these parallel lines. The intersection creates a variety of angles, and these angles have specific relationships based on their positions. This setup is fundamental to understanding the properties of angles formed by parallel lines and a transversal.

Examples & Analogies

Imagine two train tracks running parallel to each other. If a train crosses these tracks (like the transversal), it creates angles at the intersections. These angles have relationships similar to those we study in geometry.

Corresponding Angles

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

○ Corresponding Angles are equal

Detailed Explanation

Corresponding angles are pairs of angles that are in matching corners when a transversal crosses two parallel lines. When we say they are equal, it means that if you measure one of these angles, you will find it is the same size as its corresponding angle on the other parallel line. This property is critical because it helps us to prove other geometrical concepts.

Examples & Analogies

Think of a set of square windows on two identical buildings. If you look at the angle made at the top-right corner of one window and compare it to the same corner of the window in the same position on the other building, they will always look the same—this is like corresponding angles!

Alternate Interior Angles

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

○ Alternate Interior Angles are equal

Detailed Explanation

Alternate interior angles are pairs of angles that are on opposite sides of the transversal and inside the parallel lines. For example, if you have a transversal crossing the parallel lines, the angles that lie between those parallel lines but on different sides of the transversal will be equal. This property further supports how angles behave relative to parallel lines.

Examples & Analogies

Imagine you and a friend are standing on either side of a bridge that crosses two parallel roads. The angle of your arm as you wave to each other will be equal, showing that the alternate interior angles formed by your arms and the lines of the road are equal.

Alternate Exterior Angles

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

○ Alternate Exterior Angles are equal

Detailed Explanation

Similar to alternate interior angles, alternate exterior angles are also formed when a transversal cuts through parallel lines. However, these angles lie outside the parallel lines and are on opposite sides of the transversal. The property holds that these angles are equal, which helps reinforce our understanding of angle relationships in parallel line configurations.

Examples & Analogies

Picture two tall buildings that are parallel to each other with a road (the transversal) between them. The angles made by lines extending outward from the tops of the buildings and the road are equal. It’s like the canopies of trees extending outwards, mirroring each other.

Consecutive Interior Angles

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

○ Consecutive Interior Angles are supplementary

Detailed Explanation

Consecutive interior angles, also known as same-side interior angles, are angles located on the same side of the transversal and between the parallel lines. The property that describes these angles is that they are supplementary, meaning the sum of their angle measures equals 180 degrees. This concept is particularly useful in geometric proofs and solving problems involving angles.

Examples & Analogies

If you and a friend are standing on the same side of a fence (the transversal) between two parallel paths, the angles you make with the fence will add up to make a straight line if you stretch your arms out. This situation mirrors the consecutive interior angles property.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Corresponding Angles: Equal angles at matching corners when lines are intersected by a transversal.

  • Alternate Interior Angles: Equal angles located on opposite sides of the transversal and between the parallel lines.

  • Alternate Exterior Angles: Equal angles located outside the parallel lines on opposite sides of the transversal.

  • Consecutive Interior Angles: Supplementary angles on the same side of the transversal, summing to 180 degrees.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • If two parallel lines are intersected by a transversal and one angle measures 70 degrees, the corresponding angle and alternate interior angle will also measure 70 degrees.

  • For a transversal cutting through parallel lines creating one angle measuring 110 degrees, the consecutive interior angle on the same side of the transversal would be 70 degrees.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Parallel Lines

    Definition:

    Lines in a plane that do not intersect or touch each other at any point.

  • Term: Transversal

    Definition:

    A line that cuts across two or more lines.

  • Term: Corresponding Angles

    Definition:

    Angles that are on the same side of the transversal in matching corners of the intersected lines and are equal.

  • Term: Alternate Interior Angles

    Definition:

    Angles on opposite sides of the transversal and inside the parallel lines that are equal.

  • Term: Alternate Exterior Angles

    Definition:

    Angles on opposite sides of the transversal and outside the parallel lines that are equal.

  • Term: Consecutive Interior Angles

    Definition:

    Interior angles on the same side of the transversal that are supplementary (add up to 180 degrees).
