Photovoltaic Effect and Solar Cell Fundamentals
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're going to learn about the photovoltaic effect, which is the principle that allows solar cells to convert sunlight into electricity. Can anyone tell me what happens when photons hit a solar cell?
Do they create electricity?
Exactly! When photons strike the surface of a solar cell, they transfer energy to electrons in the semiconductor material, commonly silicon. This dislodging creates a flow of electrical current. We often use the acronym 'PES' β Photons Excite Semiconductors. Can anyone explain what a semiconductor is?
Isn't it a material that can conduct electricity but not as well as a conductor?
Correct! Semiconductors are crucial for creating solar cells. They allow for the control of electrical current in the cells. Before we dive deeper, can someone summarize how a solar cell is structured?
I think it has two layers, one n-type and one p-type?
That's right! The p-n junction creates an electric field that drives the current generated by the excited electrons. This is fundamental for how solar cells work.
And they usually use silicon, right?
Yes! Silicon is the most common material used, but there are also thin films and other emerging materials like perovskites. Let's summarize today's session: We discussed how solar cells work via the photovoltaic effect, the structure of a solar cell, and materials used.
Electrical Characteristics and Classification of Solar Cells
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
In our next session, we will explore the key electrical characteristics of solar cells. Who remembers what 'Isc' and 'Voc' stand for?
I think Isc is short-circuit current and Voc is open-circuit voltage.
Exactly! 'Isc' is the maximum current when the cell output is shorted, and 'Voc' is the maximum voltage with no load connected. What do you think 'Fill Factor' indicates?
It must be about the efficiency of the solar cell?
Yes, it's the ratio of actual to theoretical maximum power output. Efficiency is crucial too, representing the percentage of solar energy converted to electricity. Let's think about different types of solar cells. Can someone name a few?
There's monocrystalline and polycrystalline silicon, right?
Correct! We have first-generation cells focusing on silicon, second-generation with thin-film technologies, and third-generation with newer materials like perovskites. Do you see how this evolution of technology leads to increased efficiencies?
Yeah, they are improving a lot over time.
Well summarized! To wrap up, we covered the electrical characteristics and classifications of solar cells, noting their significance in performance.
Structure of Solar Energy Systems
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's move on to the system construction of solar photovoltaic systems. Who can explain the difference between a solar cell and a module?
A solar cell is just one part, and a module combines several cells together?
Exactly! A solar module is a sealed unit containing multiple solar cells. How about an array? What is its structure?
An array is a collection of modules connected together, right?
That's correct! Arrays can be configured in series to increase voltage or parallel for more current. What other components do we need for a complete PV system?
I think we need inverters and charge controllers?
Yes, inverters convert the direct current from solar panels into alternating current for use in homes and businesses. There may also be wiring and storage elements like batteries. Let's summarize this session: We discussed how solar modules and arrays are built, along with the essential components for a complete PV system.
Photovoltaic Thermal (PVT) Systems
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
In our final session, we will explore PVT systems. What do you think they involve?
They combine solar electricity generation with heat capture?
That's right! PVT systems integrate photovoltaic panels with thermal collectors to enhance overall energy yield. Why do you think cooling the cells is important?
It improves efficiency, doesn't it?
Exactly! By lowering the temperature, we not only increase electrical output but also make efficient use of captured waste heat. Can anyone think of situations where these systems might be advantageous?
On rooftops where space is limited, they can be really effective!
Correct! Combining both functions in one system saves space and maximizes energy production. Overall, we learned about how PVT systems work and their benefits and limitations.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section details the fundamentals of solar PV systems, including the photovoltaic effect, the structure and types of solar cells, and the components of a photovoltaic system. It emphasizes the increasing importance of solar energy in sustainable energy strategies.
Detailed
Solar Photovoltaic Systems
Solar Photovoltaic (PV) systems utilize sunlight to generate electricity through the photovoltaic effect, primarily driven by solar cells made from semiconductor materials, primarily silicon. The PV technology spans a range of applicationsβfrom small devices like calculators to large-scale power plantsβmaking it a vital aspect of renewable energy solutions.
Key Components and Characteristics
The core component is the solar cell, which operates by converting light energy into electrical energy when photons collide with the semiconductor material, causing a flow of electrons. PV cells can be classified based on their material composition and structural design. Key characteristics such as short-circuit current, open-circuit voltage, fill factor, and overall efficiency are critical for evaluating solar cell performance.
Classification
Solar cells are categorized into three generations based on technology evolution, with first-generation cells focusing on silicon, while second-generation encompasses thin-film technologies. The latest, third-generation cells utilize emerging materials like perovskites and multi-junction designs to improve efficiency.
System Structure
Components like modules, arrays, and the complete PV system highlight how solar panels are built and deployed in series or parallel configurations for optimal performance. Components such as inverters, charge controllers, and battery storage contribute to system functionality.
Photovoltaic Thermal Systems
Emerging hybrid systems integrating photovoltaic modules with thermal collectors enhance energy output, capturing both electrical and thermal energy, albeit with additional complexity.
With advancements in efficiency and technology, solar PV systems are fast becoming a cornerstone of clean energy solutions worldwide.

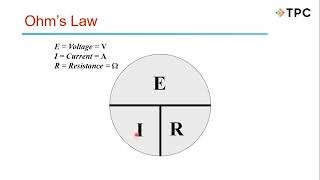

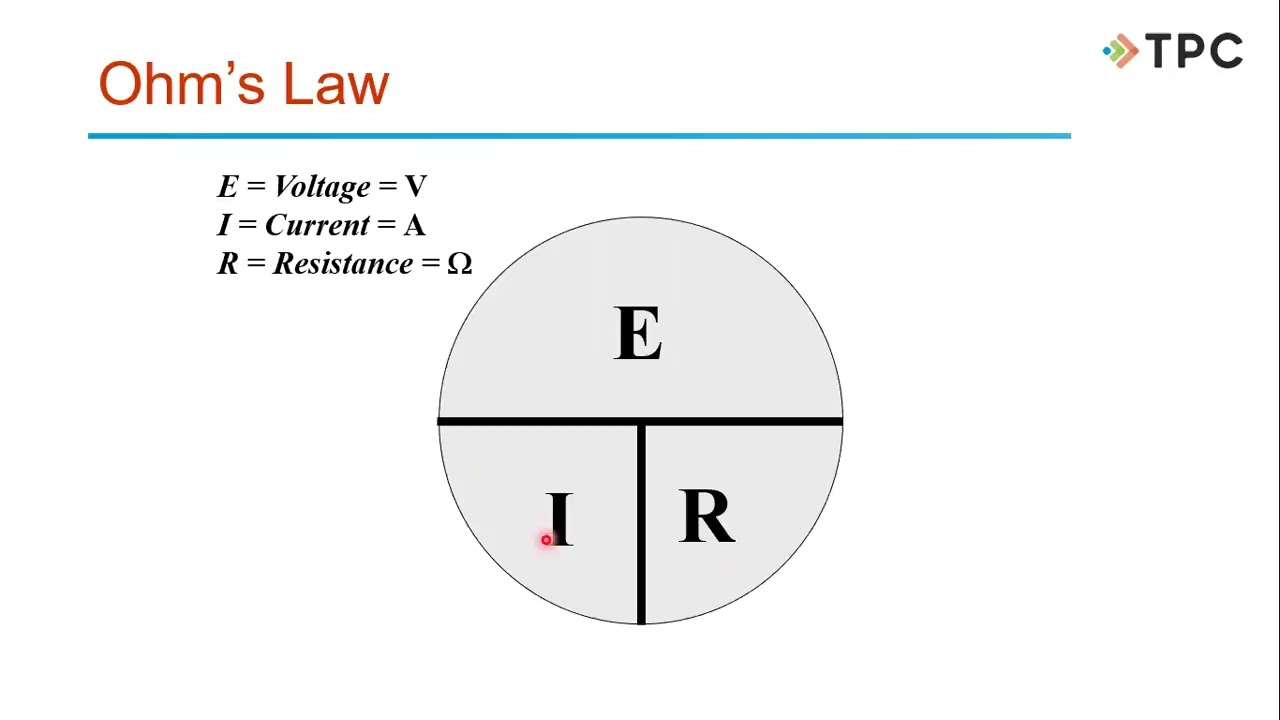

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Solar Photovoltaic Systems
Chapter 1 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Solar Photovoltaic (PV) systems harness solar energy and directly convert sunlight into electricity using the photovoltaic effect. The key component is the solar cell, or PV cell, which is a semiconductor device capable of generating electricity when exposed to light. PV technology underpins systems that range from small calculators to large-scale power plants, offering a renewable, modular, and scalable solution for electrical generation.
Detailed Explanation
Solar Photovoltaic (PV) systems work by capturing sunlight and converting it directly into electricity. This process relies on the photovoltaic effect, a phenomenon that occurs in solar cells, which are made of semiconductor materials. These cells generate electricity when they encounter sunlight. PV systems are versatile; they can be used in small devices, like calculators, or in large setups, such as power plants. This technology is not only renewableβmeaning it doesn't deplete resourcesβbut also modular and scalable, allowing for various sizes and applications in clean energy production.
Examples & Analogies
Think of a solar panel as a sponge that soaks up sunlight like a sponge soaks up water. Just as you can have a small sponge or a large sponge based on your needs, solar panels can be small enough for a calculator or large enough to produce electricity for an entire city.
Photovoltaic Effect
Chapter 2 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
When photons (light particles) strike a PV cell, they transfer energy to electrons in the semiconductor material (commonly silicon). This process dislodges electrons, creating a flow of electrical current as the electrons move through the material.
Detailed Explanation
The photovoltaic effect is the fundamental process behind how solar cells generate electricity. When light, made up of tiny particles called photons, hits the surface of a solar cell, it gives energy to the electrons within the semiconductor material, typically silicon. This extra energy allows some electrons to break free from their atoms, which creates a flow of electrical current as these free electrons move around in the material, eventually produced as usable power.
Examples & Analogies
Imagine a game of pool. Each photon is like a cue ball hitting other balls on the table. When the cue ball strikes another ball (the electrons), it transfers energy and sends that ball rolling across the table. Similarly, when photons hit a solar cell, they push electrons, creating a current just like balls rolling across the pool table.
Structure of Solar Cells
Chapter 3 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
A PV cell typically consists of two semiconductor layers (n-type and p-type) forming a p-n junction. When light excites electrons, an internal electric field drives the current toward contacts on the cell surface.
Detailed Explanation
The structure of a solar cell is crucial for its operation. It is made up of two different types of semiconductor layersβn-type and p-type. The n-type layer has extra electrons, while the p-type layer has 'holes' or fewer electrons, creating a p-n junction. When light strikes the cell, it energizes the electrons, and an electric field at the p-n junction directs these excited electrons towards the surface contacts of the solar cell. This movement generates a flow of electrical current.
Examples & Analogies
You can think of a p-n junction like a water slide. The n-type semiconductor is where water (electrons) starts, and the p-type is where the slide ends. When you give the water a push (the sunlight), it flows down the slide (through the electric field) towards the bottom where you can collect it (the electrical contacts) to use it.
Materials Used in Solar Cells
Chapter 4 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Main materials used are crystalline silicon (monocrystalline and polycrystalline), thin films (amorphous silicon, CdTe, CIGS), and emerging technologies (perovskite, organic, multi-junction).
Detailed Explanation
The materials used in solar cells significantly impact their efficiency and application. Crystalline silicon is the most common material, available in two forms: monocrystalline, which is more efficient, and polycrystalline. Thin-film solar cells, made from materials like amorphous silicon or CdTe, are lighter and can be flexibly applied. Emerging technologies like perovskite and organic solar cells present new opportunities due to their potential for higher efficiency and lower production costs. Multi-junction cells combine multiple layers of material to capture a broader spectrum of sunlight, increasing overall efficiency.
Examples & Analogies
Consider solar cells like different types of fruit. Just as you have apples (monocrystalline) that are dense and sweet and oranges (polycrystalline) that are flavorful but less dense, various solar cell materials offer different advantages. Thin films are like light berries you can easily mash and spread, while new fruits like perovskite are exciting and innovative, promising better designs for the future.
Electrical Characteristics of Solar Cells
Chapter 5 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Key Electrical Characteristics
Parameter Description
Short-Circuit Current Isc The maximum current when the cell's output is shorted
Open-Circuit Voltage Voc The maximum voltage when the cell's terminals are open
Fill Factor FF Ratio of actual to theoretical maximum power; indicator of quality
Efficiency (Ξ·) Percentage of solar energy converted to electricity
IV Curve Shows current vs. voltage under different irradiance and temperature.
Detailed Explanation
Solar cells have several important electrical characteristics that define their performance. The short-circuit current (Isc) indicates the maximum current the cell can produce under a shorted condition. The open-circuit voltage (Voc) refers to the maximum voltage when the cell isn't connected to a load. The fill factor (FF) represents the actual power output compared to the theoretical maximum and serves as an indicator of cell quality. Efficiency (Ξ·) measures how effectively sunlight is converted into electricity, expressed as a percentage. Finally, the IV curve is a graphical representation showing how current and voltage change under varying light conditions and temperatures.
Examples & Analogies
Think of a solar cell's electrical characteristics like the features of different cars. The short-circuit current is like a carβs top speedβyou want it to be high for the best performance. The open-circuit voltage is akin to what the car can handle without overheating (no load), while the fill factor is similar to the car's fuel efficiency; you want it optimized. The efficiency percentage tells you how well the car converts fuel into motion, much like how well a solar cell converts sunlight into electrical power.
Classification of Solar Cells
Chapter 6 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Classification of Solar Cells
Generation Main Types Features and Examples
Monocrystalline and Polycrystalline Silicon First Generation High efficiency, most common
Second Thin-Film (a-Si, CdTe, CIGS) Generation Less material use, flexible, lower cost
Perovskite, multi-junction, organic, Third Generation High potential efficiency, advanced quantum dot materials.
Detailed Explanation
Solar cells can be classified into three generations based on their materials and technologies. The first generation includes monocrystalline and polycrystalline silicon cells, which are the most widely used due to their high efficiency. The second generation comprises thin-film technologies, which are cost-effective and have less material waste while also being flexible. The third generation features advanced types such as perovskite and multi-junction cells, which hold great potential for higher efficiency and new applications.
Examples & Analogies
Imagine solar cells as books in a library. The first generation books are like classic bestsellers (monocrystalline and polycrystalline)βthey are reliable and widely read. The second generation books are like modern paperbacks (thin films)βeasier to carry and less expensive. The third generation books are like cutting-edge novels (perovskite and organic)βthey might be experimental but have the potential to change the genre and attract a lot of readers.
Construction of Solar Cells, Modules, and Arrays
Chapter 7 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Basic Building Blocks
Cell: The individual semiconductor unit converting light to electricity (typically 1-2W output each).
Module/Panel: Multiple cells connected and sealed within protective laminates (glass/plastic) to form a functional unit, typically 36-72 cells per module, producing standard voltages 12V or 24V. Panels are ruggedized for outdoor use and efficiency.
Array: Multiple modules/panels connected in series (to increase voltage) and/or parallel (to increase current) to form an array capable of meeting specific power requirements.
Detailed Explanation
The basic building blocks of solar photovoltaic systems are the cells, modules, and arrays. A cell is a single unit that converts sunlight into electricity, typically generating between 1-2 watts of power. When multiple cells are combined into a protective layer, they form a module or panel, which usually contains between 36 to 72 cells and can produce voltages of 12V or 24V. These panels are designed to withstand outdoor conditions. An array consists of multiple panels connected together, either in series to raise the voltage or in parallel to increase the current, creating a larger power output suited for specific needs.
Examples & Analogies
Consider building with LEGO. A single solar cell is like one LEGO brickβit has limited use on its own. However, when you connect several bricks (cells) together, you create a module (like a small structure). When you connect many of these small structures, you create a big, sturdy castle (array) that can support more significant functions, just like solar arrays provide enough power for homes or businesses.
Components of a Complete Solar PV System
Chapter 8 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Complete PV System: Array(s) plus structural mounting, inverters (convert DC to AC), charge controllers, wiring, and sometimes storage (batteries). Modern systems may reach megawatt capacities and supply utility grids.
Detailed Explanation
A complete solar photovoltaic (PV) system includes various components working together to produce usable electricity. This system comprises the solar arrays that gather sunlight, structural mounts to hold everything in place, inverters that convert the direct current (DC) generated by the solar cells into alternating current (AC) usable by homes and businesses, charge controllers to manage battery charging, and wiring to connect these components. Some systems also include batteries for storing excess energy. Modern PV systems can scale up to megawatt capacities, enabling them to feed into utility grids.
Examples & Analogies
Think of a solar PV system like a kitchen setup for cooking. The solar array is like your stove, where all the cooking happens. The inverter acts like a blender, mixing the ingredients in a way you can serve. The charge controller is like the timer that tells you when your dish is ready, and the batteries are like food storage that keeps your leftovers fresh for later. Altogether, they create a complete solution for satisfying your energy needs.
Photovoltaic Thermal (PVT) Systems
Chapter 9 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
PVT systems combine photovoltaic (PV) panels and solar thermal collectors into one hybrid unit, generating both electricity and useful heat. By actively cooling the PV cells (using air or water), their temperature is reduced, which increases electrical efficiency while simultaneously capturing waste heat for water or space heating.
Detailed Explanation
Photovoltaic Thermal (PVT) systems represent an innovative approach by combining solar photovoltaic panels with solar thermal collectors. This hybrid unit not only generates electricity from sunlight but also captures the heat produced in the process. Cooling the PV cells with air or water helps maintain optimal operating temperatures, which increases their efficiency in converting sunlight to electricity. Additionally, the wasted heat can be utilized for practical purposes, such as heating water or providing warmth for living spaces.
Examples & Analogies
Imagine a solar garden that grows both vegetables and fruits together. The photovoltaic panels are like the leafy vegetables soaking up energy from the sun, while the thermal collectors capture excess sunlight and warmth, just like how fruits ripen by absorbing heat. Just as using the same plot of land for two types of produce maximizes yield, PVT systems maximize energy production by harnessing both electricity and heat from the same source.
Advantages and Limitations of PVT Systems
Chapter 10 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Advantages: Higher total energy yield (electrical + thermal) per area compared to separate systems. Improved PV cell life and output due to lower operating temperatures. Space-efficient, particularly on rooftops or limited sites. Limitations: Thermal output often somewhat lower than dedicated collectors. More complex system integration.
Detailed Explanation
PVT systems offer several benefits. They provide a higher overall energy yield by combining electrical and thermal energy, allowing for more efficient use of space, particularly in urban settings where rooftop installations are common. PVT systems can enhance the lifespan of PV cells as they operate at lower temperatures, which is beneficial. However, there are some downsides; the thermal output might not be as high as traditional thermal collectors designed solely for heating, and integrating both systems adds complexity to the design and installation processes.
Examples & Analogies
Consider a multi-purpose tool, like a Swiss Army knife. It combines various tools into one convenient device, saving space and making it versatile. A PVT system functions similarlyβefficiently combining electrical production and heating capabilities in one installation while saving space. However, just like a multi-tool may not perform every function as well as standalone tools, PVT systems might not capture thermal energy as effectively as dedicated thermal systems.
Summary of Key Components and Features
Chapter 11 of 11
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Component Function Features
Solar Cell Converts sunlight to DC electricity Semiconductor, IV characteristics, efficiency protected, weather-resistant, standardized.
Module/Panel Integrated group of cells for power voltages. Assemblage of panels for power needs. Array Flexible configuration, scalable needs.
PV-Thermal Hybrid electricity + heat generation Higher total energy output, dual use.
Detailed Explanation
In summary, the various components of a solar photovoltaic system play specific roles to serve the overall purpose of generating electricity and heat. The solar cell is the primary unit that converts sunlight into direct current (DC) electricity, with designated characteristics like efficiency and durability. A module is an assembly of multiple cells, designed to provide specific power outputs, while an array refers to multiple interconnected panels designed for greater power needs. PVT systems are unique in being able to simultaneously generate electricity and heat, offering enhanced energy efficiency.
Examples & Analogies
Think of a solar power system like a restaurant. The solar cell acts as the chef, preparing the main dishes (electricity). The menu board serving the customers (module) shows the available options of the day. The dining area where patrons can gather and enjoy (array) is flexible to accommodate any number of guests based on how busy the day is. If you introduce PVT systems, itβs like offering a combo mealβnot only serving an entree (electricity) but also a side dish (heat), thus maximizing what comes out of the kitchen.
Key Concepts
-
Photovoltaic Effect: The process by which photons dislodge electrons in a solar cell, generating electricity.
-
Solar Cell Structure: Comprised of p-type and n-type semiconductor layers forming a p-n junction for current flow.
-
Efficiency: A measure of how effectively a solar cell converts solar energy into electrical energy.
-
PVT Systems: Hybrid systems that generate both electricity and thermal energy.
Examples & Applications
A solar panel with 60 monocrystalline cells that converts sunlight into enough electricity to power a small home.
A PVT system installed on a rooftop that heats water while generating electricity, increasing overall energy efficiency.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When photons play and hit the cell, electrons dance, oh what a swell! To generate current, thatβs their role, in solar cells, they take control.
Stories
Imagine a sunny day where light beams dance on shiny solar panels. Each photon is a tiny messenger, knocking at the door of silicon cells. They create a party of electrons, which jump around, producing electricity while the sun smiles down.
Memory Tools
To remember the characteristics of solar cells, think 'FIVE': Fill Factor, Isc, Voc, Voltage, Efficiency.
Acronyms
Remember 'PIC'
Photovoltaic Effect
Inverter
Charge controller for key components in solar PV systems.
Flash Cards
Glossary
- Solar Cell
A semiconductor device that converts sunlight into electricity through the photovoltaic effect.
- Photovoltaic Effect
The process by which sunlight is converted into electrical energy in a solar cell.
- Efficiency
The percentage of solar energy converted to electrical energy by a solar cell.
- PN Junction
The boundary between p-type and n-type semiconductors in a solar cell, creating an electric field.
- PVT Systems
Photovoltaic-thermal systems that generate both electricity and thermal energy.
- Inverter
A device that converts direct current (DC) electricity from solar panels into alternating current (AC) electricity.
