29. Automated Infrastructure Inspection After Disasters

Natural and man-made disasters such as earthquakes, floods, hurricanes, tsunamis, and industrial accidents pose severe threats to built infrastructure. After such catastrophic events, rapid and accurate inspection of infrastructure like bridges, roads, buildings, pipelines, and dams is critical to ensure public safety, assess damage, and prioritize repair. Traditionally, these inspections are manual, time-consuming, hazardous, and dependent on human availability and skill. To overcome these challenges, automated infrastructure inspection using robotics and automation technologies has emerged as a transformative solution in civil engineering. This chapter explores the application of autonomous systems such as UAVs (Unmanned Aerial Vehicles), ground robots, sensor networks, and AI-driven software tools for efficient post-disaster inspection and assessment.

This introduction outlines the critical role of infrastructure inspection following disasters. It highlights the types of disasters that can impact infrastructure and the need for quick and accurate assessments to ensure safety and initiate repairs. Traditional manual inspections pose various issues, such as being time-consuming and dependent on skilled inspectors. In contrast, automated inspection methods leverage robotics and AI to provide timely, efficient solutions to assess damage and monitor conditions.

Consider a scenario where an earthquake has damaged several buildings in a city. Manual inspection teams might take days to evaluate each building, risking the safety of inspectors who might enter unstable structures. In contrast, drones equipped with cameras and sensors can quickly survey large areas from a safe distance, identifying which buildings are safe and which need immediate attention. This illustrates how automation can save time and increase safety in disaster assessments.

• Safety Assessment: Determining the structural integrity of critical infrastructure. • Rescue and Relief Support: Identifying blocked routes, collapsed structures, or access points. • Damage Documentation: Creating digital records for insurance, government reporting, and repairs. • Time Sensitivity: Immediate inspection is required to avoid secondary collapses or hazards. • Risk Mitigation: Reduces the exposure of human inspectors to dangerous environments.

This section emphasizes the crucial aspects of post-disaster inspections. Safety assessment ensures that structures are stable and safe for public use. Rescue and relief efforts depend on timely information about access routes and structural stability. Documenting damage is essential for insurance claims and governmental assessments. The immediate need for inspections aims to prevent further hazards, taking into account that after a disaster, the risk of additional collapses can increase. Finally, by utilizing automated inspection methods, the risks faced by human inspectors in dangerous environments are greatly reduced.

Imagine after a hurricane, a city is flooded, and rescue teams are trying to reach stranded people. Automated drones can fly over the area to assess which roads are clear and which are blocked by debris. This not only speeds up the rescue efforts but also keeps the rescuers safe by providing crucial information without putting them in harm’s way. This example highlights the importance of having quick and reliable inspection methods in disaster scenarios.

• Accessibility Issues: Difficult or impossible to inspect certain areas manually due to debris, height, or instability. • Time and Labor Intensive: Delays in assessing large-scale damage. • Subjective Judgements: Relies on inspector's experience; may lead to inconsistencies. • Data Collection Limitations: Limited ability to capture comprehensive quantitative data.

This chunk details the drawbacks faced by traditional manual inspections. First, accessibility issues mention that certain areas may be dangerous or unreachable for humans. Second, the inspection process can be slow, particularly after large disasters where extensive damage needs assessment. Third, manual inspections often depend on the inspector's experience, leading to potential inconsistencies in evaluations. Finally, manual inspections may not collect enough quantitative data, limiting the analysis of the damage.

Consider a firefighter trying to assess a damaged building's safety after a flood. They might find it dangerous to enter because of unstable debris. This can lead to significant delays and reliance on their judgment, which can vary from person to person. In contrast, an automated drone can survey the building safely from above and provide a detailed analysis of structural damage, mitigating these limitations.

• Rapid Deployment: Drones and mobile robots can be quickly deployed to disaster zones. • Real-Time Data: Enables live streaming of video, thermal imaging, and sensor data. • Autonomous Navigation: Capable of path planning and obstacle avoidance without human control. • 3D Mapping and Modeling: Using LIDAR and photogrammetry for reconstructing damaged structures. • Integration with AI: For damage classification, anomaly detection, and predictive modeling.

This section highlights how robotics and automation improve inspection processes. First, rapid deployment means drones and robots can get to disaster areas without the delays faced by human teams. Second, real-time data allows for immediate information flow, which is crucial in emergencies. Third, autonomous navigation means that these machines can navigate around obstacles on their own, improving efficiency. Fourth, technologies like LIDAR allow for detailed 3D mapping of structures, essential for evaluating damage. Finally, integrating AI helps in understanding and predicting the damage effectively.

When a natural disaster like an earthquake strikes, time is critical. Imagine drones taking off just hours after a quake, using thermal sensors to identify heat signatures from survivors trapped under rubble. These drones can navigate through damaged areas with obstacles safely, creating detailed maps of the site. This process allows rescue teams to focus their efforts precisely where needed, demonstrating how robotics can transform disaster response.

29.4.1 Unmanned Aerial Vehicles (UAVs) • Equipped with HD cameras, thermal sensors, and LIDAR. • Used for aerial mapping, roof inspections, and monitoring inaccessible areas. • Capable of covering large regions quickly. • Example Applications: Inspecting collapsed buildings, monitoring flooded zones.

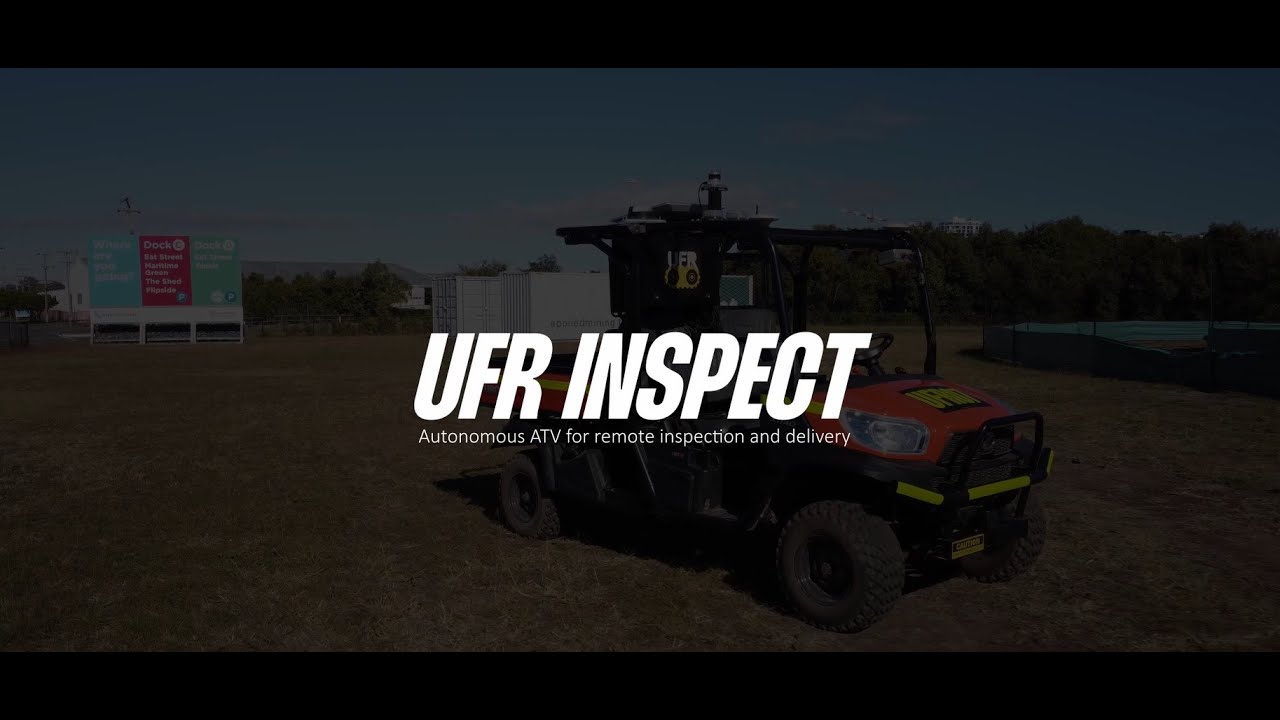

29.4.2 Ground Robots (UGVs) • Tracked or wheeled robots designed for rough terrain. • Useful in confined or collapsed spaces. • Can carry instruments like moisture sensors, structural probes, and ground-penetrating radar.

29.4.3 Climbing Robots • Used for inspecting vertical structures like bridge piers and tall buildings. • Employ magnetic wheels, vacuum adhesion, or bio-inspired mechanisms for wall climbing.

29.4.4 Amphibious and Marine Robots • Used to inspect submerged infrastructure such as piers, dams, and pipelines. • Equipped with sonar and underwater cameras.

This chunk describes various types of robotic systems utilized in disaster inspections. UAVs (drones) are versatile for aerial surveys, covering large areas quickly and providing crucial data on hard-to-reach locations. Ground robots, on the other hand, can access confined spaces and carry specialized tools for in-depth assessments. Climbing robots are designed to inspect vertical structures, applying innovative technologies to maneuver along surfaces. Lastly, amphibious robots can operate underwater to assess submerged structures, ensuring comprehensive inspections of all infrastructures.

During a major flood, drones can be used to survey the waterlogged areas for structural damage, while ground robots might navigate the debris on the roads to check for underlying issues. Climbing robots can inspect the structural integrity of bridges from the sides, and underwater drones can assess the condition of submerged bridge supports. This multidimensional approach ensures that all aspects of infrastructure are accounted for in the inspection process.

29.5.1 Sensors and Imaging Systems • LIDAR (Light Detection and Ranging): Captures 3D structure data. • Infrared Cameras: Detects heat signatures indicating hidden damage or water ingress. • Ultrasonic Sensors: Measures wall thickness and detects internal flaws. • Accelerometers: Monitor vibrations and structural responses.

29.5.2 Artificial Intelligence and Machine Learning • Image Recognition: Automatically detects cracks, corrosion, or deformations in images. • Change Detection: Compares pre- and post-disaster images for damage estimation. • Predictive Analytics: Estimates future degradation based on current data.

29.5.3 Data Communication and Cloud Platforms • Edge Computing: Processes data onboard the robot in real-time. • Cloud Uploading: Sends data to centralized systems for storage, analysis, and sharing. • Wireless Communication: Use of LTE, 5G, or mesh networks in field operations.

This section details the critical technologies that drive automated inspections. Sensors and imaging systems like LIDAR and infrared cameras are essential for capturing detailed data about structures. Artificial intelligence enhances the inspection process by enabling machines to recognize damage automatically and predict future issues. Finally, efficient data communication methods ensure that the collected data is processed rapidly and can be shared with relevant stakeholders, facilitating faster decision-making.

Think of a construction site equipped with a variety of sensors that can detect cracks in buildings as construction progresses. LIDAR can create detailed 3D models, while infrared cameras can check for thermal anomalies that suggest problems. This data, analyzed by AI, can provide real-time insights and alerts to engineers, allowing them to take preventive measures before minor issues become bigger problems, similar to how a smart home system manages energy use to optimize efficiency.

1. Pre-Deployment Planning • Define inspection objectives and target structures. • Select appropriate robotic platforms and sensors. • Upload base maps or BIM models for navigation.

2. Field Data Acquisition • Robots or drones deployed to disaster site. • Real-time data collection and monitoring.

3. Data Processing • Generation of 3D models or maps. • Detection of structural damage using AI tools.

4. Analysis and Decision Making • Structural health scoring. • Repair priority assessment and logistics planning.

5. Reporting and Archival • Automated report generation. • Integration with government or insurance systems.

This chunk outlines the systematic workflow for conducting an automated infrastructure inspection after a disaster. The first phase involves careful planning to identify the objectives and select the right tools for the task. Next, drones and robots are deployed to collect real-time data on-site. The data is processed to create accurate models that detail the damage. After analysis, decisions regarding structural health and repair priorities are made. Lastly, the findings are compiled into reports that can be shared with relevant parties, ensuring comprehensive follow-up.

Imagine planning a major sporting event where several teams are tasked with inspecting facilities. Before the event, teams meet to outline their strategies and tools needed (pre-deployment planning). Different teams go out to gather data (field data acquisition), which is then analyzed to assess the venues' safety (analysis and decision making). Reports are generated to inform stakeholders about the facilities' status. This orderly approach mirrors how automated inspections are conducted after a disaster.

29.7.1 Earthquake in Nepal (2015) • UAVs used to inspect temple ruins and collapsed buildings in Kathmandu. • Enabled creation of 3D reconstructions for cultural heritage restoration.

29.7.2 Hurricane Harvey (USA, 2017) • Drones assessed flooded roads and bridges in Texas. • Ground robots used in search and rescue operations.

29.7.3 Morandi Bridge Collapse, Italy (2018) • Robotics deployed to analyze remaining sections and aid in forensic investigations.

This section presents real-world examples illustrating the effectiveness of automated inspections in various disasters. The use of UAVs after the Nepal earthquake showcases how rapid aerial surveys helped assess damage and plan for restoration. Similarly, during Hurricane Harvey, drones and robots provided critical information for assessing flooded infrastructure and conducting search and rescue missions. The Morandi Bridge collapse in Italy saw robotics play a key role in forensic investigations, demonstrating their versatility and importance in disaster response.

After the Nepal earthquake, UAVs flying over Kathmandu quickly provided imagery of damaged structures, which was crucial for planning restoration efforts while preserving cultural heritage. This is akin to using drones for surveying potential areas for a new park to ensure historical landmarks are preserved, showcasing thoughtful integration of technology with community needs in disaster recovery.

• Navigation in Complex Environments: Unstable debris, GPS-denied zones. • Power and Endurance: Battery limitations in long missions. • Data Overload: Managing and processing large volumes of visual and sensor data. • Regulatory Issues: Flight permissions, safety standards, and data privacy. • Cost and Training: High initial cost and need for skilled operators.

This section discusses the various challenges faced when implementing automated inspections. Navigation can be tough in areas with debris or where GPS signals are weak, which could hinder robot operations. Battery life is another concern, as many drones may struggle on longer missions. Additionally, processing the vast amount of data collected can overwhelm systems unless managed properly. Regulatory hurdles such as obtaining flight permissions and adhering to safety standards can slow down deployment. Finally, while robotics offer significant advantages, their costs and the requirement for trained personnel can be barriers.

Consider a robot tasked with navigating a busy street after a flood; its ability might be hindered by fallen trees or debris on the road. If it loses GPS signal in the process, it may struggle to find its way. This is similar to how a person trying to drive through an unfamiliar city without maps may get lost. These challenges illustrate the complexities involved in using technology effectively in real-world scenarios.

• Swarm Robotics: Collaborative teams of drones/robots covering large disaster zones. • AI-Driven Autonomy: Fully autonomous inspection with minimal human intervention. • Integration with BIM and GIS: For real-time overlay of structural data. • Mixed-Reality Visualization: For engineers and decision-makers using AR/VR tools. • Self-Repair Bots: Future concept of robots that could perform emergency patching.

This chunk looks at promising trends that could define the future of automated inspections. Swarm robotics involves utilizing multiple drones or robots to cover extensive areas efficiently. AI technologies will increasingly enable machines to operate independently with little human intervention, enhancing rapid response capabilities. Integration with Building Information Modeling (BIM) and Geographic Information System (GIS) will provide valuable contextual data for inspections. Mixed-reality technologies will allow users to visualize and analyze data interactively. Lastly, the idea of robots that can perform repairs autonomously suggests an exciting future for disaster recovery.

Imagine a disaster response where a fleet of drones collaborates to map out extensive flood areas in real-time, while an AI oversees all operations. It can assess potential pitfalls and guide the drones accordingly, much like a conductor directs an orchestra. The idea of self-repair bots reflects the hope that in the future, machines not only assess problems but also fix them autonomously—similar to having a healthcare robot that not only diagnoses issues but also administers initial treatment.

--
