22. Autonomous Drilling and Excavation in Geotechnical Applications

Geotechnical applications like drilling, tunneling, and excavation are some of the most hazardous and labor-intensive operations in civil engineering. These processes involve working in uncertain subsurface conditions, often in confined spaces or hazardous environments. To improve safety, efficiency, and precision, autonomous robotic systems are increasingly being used. This chapter explores how robotics and automation are transforming geotechnical operations through autonomous drilling and excavation technologies, focusing on systems, sensors, algorithms, and real-world applications.

This introductory paragraph sets the stage for the chapter by explaining the significance of autonomous drilling and excavation in geotechnical engineering. It notes the risks and challenges associated with traditional methods, such as working in dangerous or unpredictable environments. The introduction emphasizes how robotic systems can help enhance safety, efficiency, and precision in construction activities. By focusing on core components like systems, sensors, and algorithms, the chapter will delve into modern technological transformations in these fields.

Think of this technology as similar to self-driving cars. Just as autonomous vehicles navigate roads to improve safety and efficiency in transportation, robotic systems are doing the same in civil engineering, helping to replace human workers in risky situations while ensuring tasks are completed accurately.

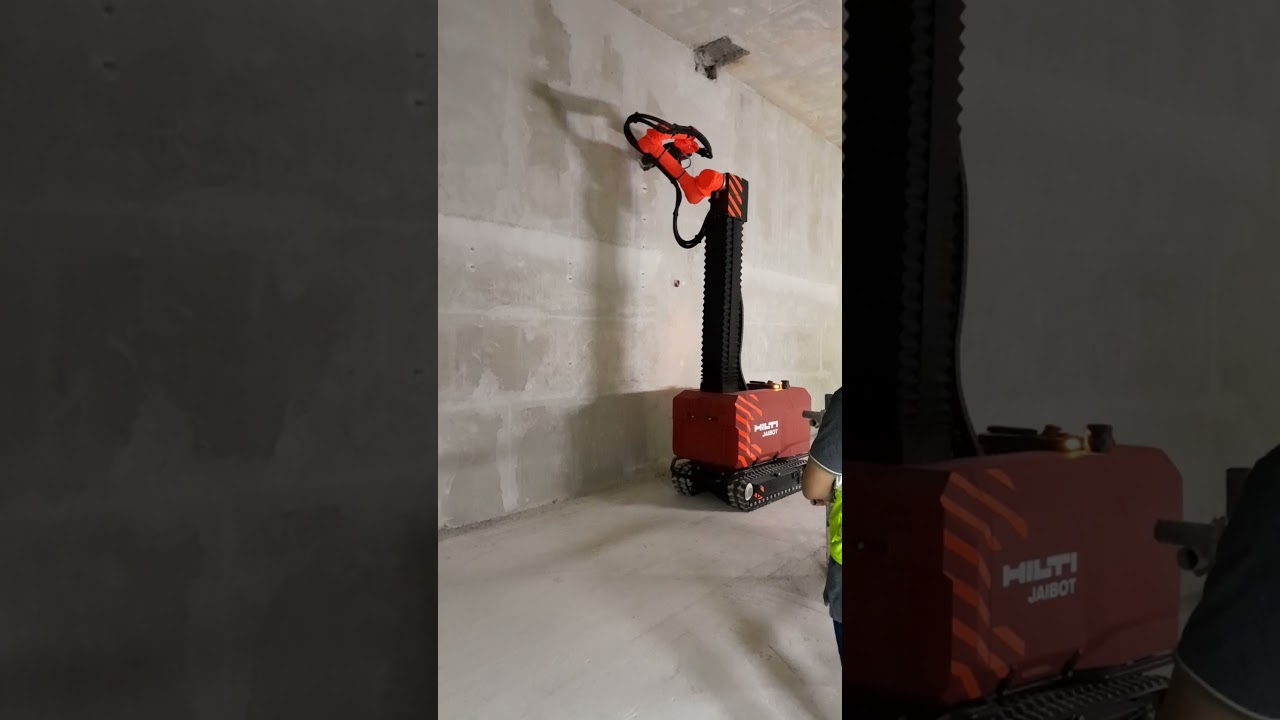

22.1 Autonomous Drilling Systems 22.1.1 Basics of Drilling Automation Autonomous drilling refers to the process in which a machine can conduct boring operations without real-time human input. These systems use feedback control and advanced sensors to adapt to varying ground conditions.

This section introduces autonomous drilling, outlining its definition and functionality. Autonomous drilling systems are capable of performing boring operations independently, which means they can handle tasks without a human operator continuously guiding the process. They achieve this by utilizing feedback control systems, which allow them to respond to different ground conditions by adjusting operations such as speed and force, ensuring both efficiency and safety during drilling.

Imagine a smart thermostat in your home. Just as the thermostat automatically adjusts the temperature based on your preferences and current conditions, autonomous drilling systems adjust their operations according to the feedback they receive from their sensors, optimizing the drilling process dynamically.

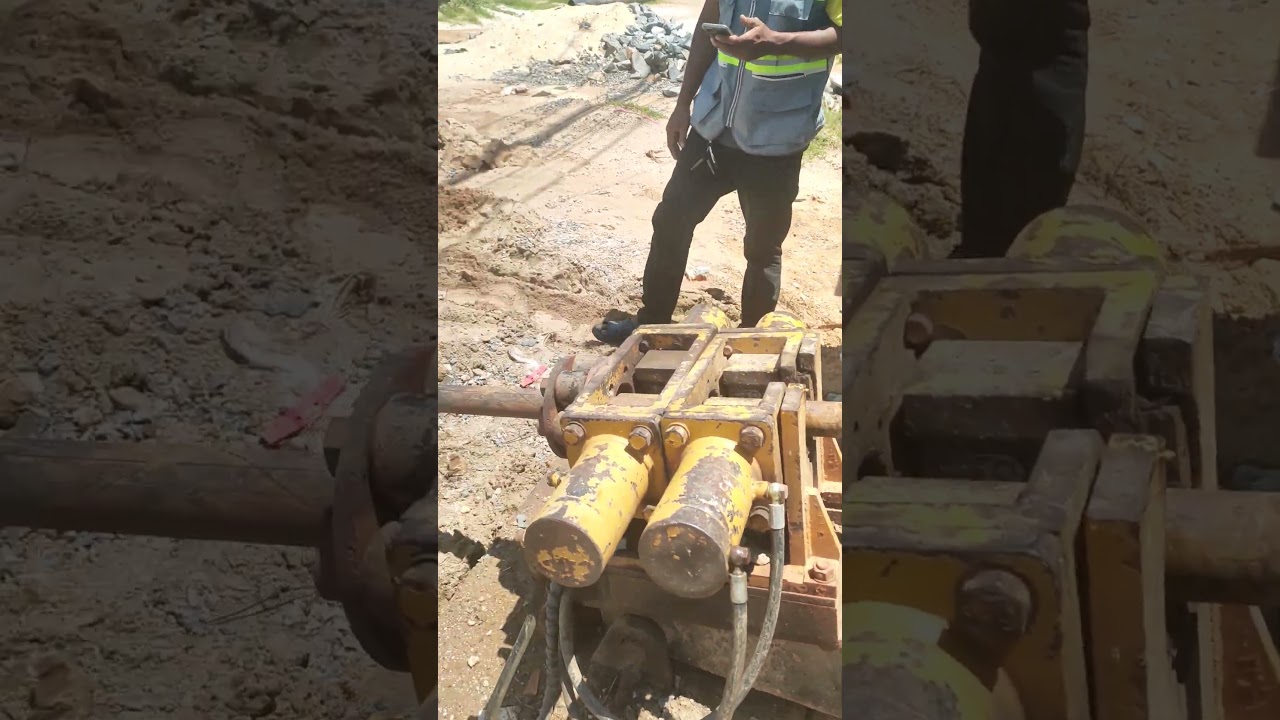

Components: • Drill rig actuators (for rotation and feed control) • Pressure and force sensors • Inclination and position sensors • Real-time controllers Objectives of automation in drilling: • Minimize human exposure • Improve drilling precision • Reduce fuel consumption • Maximize rate of penetration (ROP)

This chunk breaks down the essential components that make up autonomous drilling systems. Key components include drill rig actuators, which control the rotation and feeding of the drill, and various sensors that monitor pressure, force, inclination, and position. The objectives of automating drilling processes are also outlined, emphasizing goals such as reducing human exposure to hazards, enhancing precision in drilling operations, lowering fuel consumption, and maximizing the rate at which the drill penetrates the ground, known as the rate of penetration (ROP).

Consider a highly-skilled chef using advanced cooking gadgets. Just like the chef relies on tools such as precision scales, temperature probes, and timers to enhance the cooking process, autonomous drilling systems use these components to ensure drilling is done accurately, safely, and efficiently.

22.1.2 Types of Autonomous Drilling Techniques

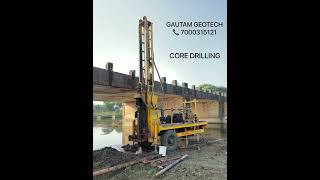

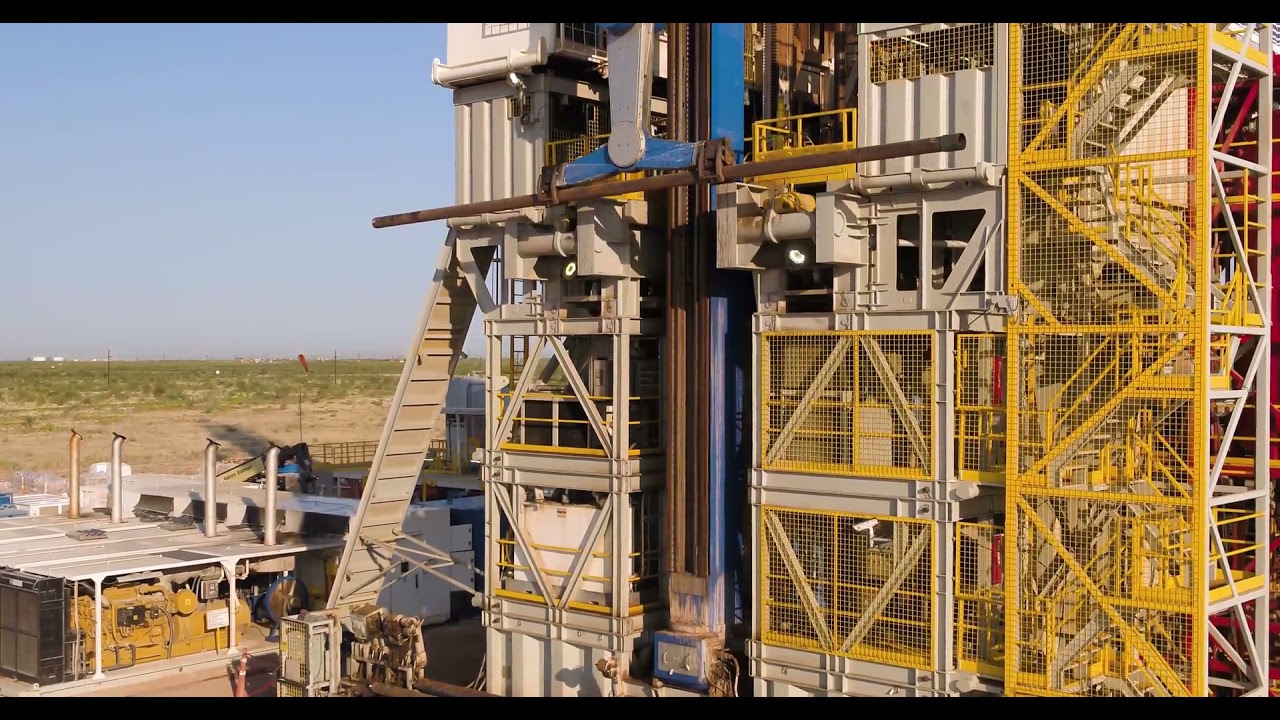

1. Rotary Drilling: • Uses rotary motion to cut through the ground • Common in deep boreholes • Automation focuses on feed rate and torque control
2. Percussive Drilling: • Involves repeated impact on rock surfaces • Sensors monitor vibration and rebound
3. Directional Drilling: • Used in tunneling and horizontal boring • Automation helps control azimuth and inclination angles in real-time

This section outlines three primary techniques of autonomous drilling. Rotary drilling is the most common technique, employing rotary motion for deep boreholes, with a focus on controlling the feed rate and torque. Percussive drilling uses repeated impacts on hard surfaces while relying on sensors to monitor response. Lastly, directional drilling is crucial for horizontal boring and tunneling, where automation aids in real-time adjustments to direction and angle, allowing for precise navigation through complex underground environments.

Think of how a Swiss Army knife has multiple tools for different functions. Similarly, each drilling technique serves a specific purpose in construction projects, with each tool – rotary, percussive, or directional – being suited for different geological conditions and project requirements.

22.1.3 Sensor Integration in Drilling Autonomous drilling relies heavily on sensor fusion: • Force and Torque Sensors – to determine resistance and adjust bit pressure • Inertial Measurement Units (IMUs) – for tilt and direction • Acoustic Sensors – to monitor vibrations and material breakage • GPS and LIDAR (for surface rigs) – for global positioning • Downhole sensors – for temperature and pressure at the bit

This segment emphasizes the importance of sensor integration in autonomous drilling systems. It details various types of sensors that work together to provide critical data. Force and torque sensors help assess resistance encountered by the drill bit, enabling adjustments to pressure. Inertial Measurement Units track the drill's tilt and orientation, while acoustic sensors aid in detecting vibrations and potential material issues. Global Positioning Systems (GPS) and LIDAR are especially useful for surface operations, and downhole sensors monitor conditions such as temperature and pressure directly at the drill bit.

Consider how a modern smartphone comes packed with various sensors, like GPS for navigation and accelerometers for motion detection, working together seamlessly. In the same way, autonomous drilling systems use a combination of sensors that support one another, ensuring accurate and efficient operations throughout the drilling process.

22.1.4 Control Algorithms and Feedback Loops • PID Controllers – Most basic, for regulating feed rate and rotation • Model Predictive Control (MPC)–Anticipates system behavior based on subsurface models • Adaptive Control – Adjusts in real time based on ground feedback • Machine Learning Models – Predicts optimal drilling parameters using historical data

This section introduces several types of control algorithms that improve autonomous drilling efficiency. Proportional-Integral-Derivative (PID) controllers are fundamental in regulating the drill's feed rate and rotation to maintain stability. Model Predictive Control (MPC) enhances performance by predicting how the system behaves based on subsurface models. Adaptive control systems make real-time adjustments based on incoming feedback from the sensors. Finally, machine learning models leverage historical data to optimize drilling parameters, making the process smarter over time.

Imagine how video game characters are controlled based on player inputs. Each decision has consequences that affect gameplay. Similarly, control algorithms function like strategic game plans. They monitor drilling conditions and adjust the machine's operation accordingly to ensure the best outcomes during drilling.

22.2 Autonomous Excavation Systems 22.2.1 Introduction to Automated Excavators Autonomous excavators are designed to perform tasks like trenching, loading, and earthmoving with minimal or no human input. These systems are particularly useful in repetitive, hazardous, or inaccessible environments.

This segment provides an overview of autonomous excavation systems, introducing how they operate with little to no human intervention. Autonomous excavators can perform various tasks critical to construction, such as trenching, loading, and earthmoving. They are especially advantageous in dangerous or hard-to-reach locations where traditional machinery might pose risks to operators. The emphasis is on their ability to enhance efficiency and safety in long-term projects.

Think of how automatic vacuum cleaners operate independently around your home, performing cleaning tasks. Just like these vacuums navigate around furniture and corners, autonomous excavators efficiently manage excavation tasks, even in complicated or hazardous sites.

22.2.2 Key Components and Subsystems

1. Actuators: • Hydraulic cylinders and electric drives control boom, arm, and bucket movement.
2. Perception Systems: • LIDAR, stereo cameras, and RADAR help build 3D maps of terrain and obstacles.
3. Navigation and Localization: • Use of SLAM (Simultaneous Localization and Mapping) for dynamic site understanding. • GNSS for coarse navigation. • Real-time kinematics (RTK) for cm-level accuracy.
4. Path Planning and Task Execution: • Algorithms define optimal dig paths, fill levels, and dumping positions. • Integration with BIM and CAD models for task mapping.

This section describes the critical components that allow autonomous excavators to operate effectively. Actuators, such as hydraulic cylinders and electric drives, enable movement of the excavator’s boom, arm, and bucket. Perception systems like LIDAR and cameras are essential for creating 3D maps of the surroundings, aiding in obstacle detection. SLAM technology provides real-time understanding of the working environment, while GNSS and RTK enhance navigation accuracy. Furthermore, sophisticated algorithms help plan excavation paths and integrate building information modeling (BIM) and computer-aided design (CAD) for effective task management.

Consider a video game that requires players to navigate through complex levels. The game uses maps and helps players plan their moves to avoid obstacles. Similarly, autonomous excavators utilize advanced components to navigate their work environments efficiently and carry out tasks accurately.

22.2.3 Autonomous Excavation Strategies

1. Terrain Mapping and Classification • Machine creates topographic map of working area • Uses point clouds and surface normals
2. Digging Planning • Determines depth, volume, and angle of excavation • Ensures proper slope stability and material removal
3. Cycle Optimization • Minimizing time from dig-to-dump per cycle • Optimal path trajectories for boom and arm
4. Obstacle Avoidance and Safety • Real-time detection and halting functions • Human proximity alerts using vision-based and ultrasonic sensors

This part discusses the various strategies employed by autonomous excavators during operation. Terrain mapping utilizes advanced algorithms to create detailed maps of the working area, identifying topographical features. Digging planning determines key parameters such as depth, volume, and angles to ensure stability and efficiency. Cycle optimization focuses on reducing the overall time taken for digging and dumping materials, while striving for optimal trajectories of the excavator’s components. Lastly, obstacle avoidance strategies ensure safety by employing real-time detection systems that alert machines when humans or obstacles are nearby.

Envision how modern GPS devices suggest the fastest routes to drivers. They analyze traffic conditions and suggest the best path in real time. Autonomous excavators employ a similar approach, continuously analyzing their environment and adapting strategies to ensure efficient and safe operation in the construction site.

22.2.4 Advanced Control in Excavation • Reinforcement Learning Algorithms – Allow machines to "learn" optimal digging strategies from environment interaction • Fuzzy Logic Controllers – Used when operating conditions are uncertain • Hybrid Control Architectures – Combine manual override, semi-autonomous, and fully autonomous modes

This section highlights advanced control methodologies that enhance excavation operations. Reinforcement learning algorithms enable machines to adapt and develop optimal digging strategies by interacting with their environments, effectively learning from previous experiences. Fuzzy logic controllers can handle uncertain conditions where precise values are difficult to ascertain, allowing systems to operate smoothly in variable environments. Hybrid control architectures integrate various modes of operation, encompassing manual overrides for human control alongside fully autonomous functions to cater to a wide range of operational needs.

Imagine a student learning to ride a bike. At first, the student may wobble and struggle, but with practice, they learn how to adjust to balance and steering. In a similar way, autonomous excavators learn and refine their digging techniques based on interactions with their surroundings.

--
