28 - Search and Rescue Robotics
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to SAR Robotics
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will be discussing SAR Robotics, a vital technology in emergency response systems. Can anyone share why SAR Robotics might be needed in disaster situations?
They help find victims where it's too dangerous for people to go.
Exactly! They navigate hazardous areas where human teams cannot safely go. Let's remember the acronym 'SAVE'—Situations like floods, Avalanches, structural collapses, and volcanic eruptions all benefit from these robots. Now, can anyone tell me about a case where SAR robots were particularly useful?
The 9/11 rescue operations used them to search through the rubble.
Great point! The 9/11 Twin Tower Rescue highlighted the challenges of human capabilities in an unstable environment. A successful SAR operation can greatly enhance recovery efforts.
Classification of SAR Robots
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s classify SAR robots based on mobility first. Can anyone list the types of robots we discussed?
Wheeled robots, tracked robots, legged robots, aerial drones, and underwater ROVs.
Perfect! Each type serves a specific operational need. For example, wheeled robots work well on flat, stable surfaces, while aerial drones can cover large areas quickly. Now, can anyone explain why a tracked robot would be better in certain terrains?
Tracked robots can traverse uneven and rough terrains without getting stuck.
Exactly! They have a higher traction and stability. Remember the mnemonic 'WATER'—Wheeled, Aerial, Tracked, Underwater, Evacuation robots. It’s a handy way to remember the categories!
Design Considerations for SAR Robots
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand the types, let’s move on to the design considerations. Why do you think size and form factor are important for SAR robots?
They need to fit through tight spaces to reach victims.
Exactly! A compact design allows robots to maneuver through rubble effectively. What about durability?
They have to work in harsh environments, so they need to be very robust.
Correct! Their robustness against extreme conditions is essential for operation. Remember, design must consider factors like payload capacity and power management too! A good hint is to think 'Rugged Power Capacity.'
Sensor Technologies
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s delve into sensor technologies that assist SAR robots. Can someone share the different types we discussed?
Vision sensors, proximity sensors, environmental sensors, and biosensors.
Excellent! Visual Sensors include RGB and thermal cameras, which help in identifying victims. Can anyone explain the role of environmental sensors?
They detect gases or temperatures that indicate if there are victims or hazards.
Exactly right! The acronym 'GVT'—Gas, Vibration, Temperature sensors—can help you remember their purpose. How do these sensor technologies contribute to the successful deployment of SAR robots?
They provide critical data that can guide rescue operations effectively.
Precisely!
Challenges in SAR Robotics
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s cover the challenges involved in SAR operations. Why is GPS reliability a concern during rescues?
Because buildings can block GPS signals or damage can disrupt communication.
Correct! Communication challenges can greatly impact rescue operations. What are some other limitations we must consider?
Harsh environmental conditions and the limited power supply of the robots.
Very insightful! The acronym 'CHARGED'—Communication, Harsh conditions, Autonomous issues, Reliability, GPS issues, Essential power, and Development costs—captures these challenges.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
SAR Robotics is critical in enhancing rescue efforts during disasters such as earthquakes, floods, and structural collapses. This section discusses various robot classifications, design considerations, sensor technologies, control systems, and the role of AI in SAR applications.
Detailed
Search and Rescue Robotics
SAR Robotics refers to the application of robotic technology for aiding in emergency situations to locate, rescue, and provide assistance to victims during disasters. The importance of SAR robots arises from the limitations of human rescue teams in typically dangerous terrains such as collapsed buildings, flooded areas, and hazardous environments. This section covers:
- Need for SAR Robotics: Highlights the importance of these technologies during significant disasters like earthquakes, floods, and building collapses. It also discusses the inherent limitations faced by human rescuers.
- Classification of SAR Robots: Outlines different types of SAR robots based on mobility (wheeled, tracked, legged, aerial, underwater, and hybrid) and functionality (reconnaissance, medical assistance, evacuation).
- Design Considerations: Discusses key design factors such as size, robustness, payload capacity, power management, and thermal resistance crucial for effective SAR operations.
- Sensor Technologies: Describes various sensor technologies employed in SAR robots, including vision sensors (RGB, infrared), proximity sensors (LiDAR, ultrasonic), environmental sensors (gas detection), and biosensors (heartbeat detection).
- Control Systems and Communication: Details the control technologies, navigation methods such as algorithms, and the importance of communication frameworks in maintaining robot efficiency.
- AI and Human-Robot Interaction: Examines the integration of AI for tasks such as object recognition and decision-making in uncertain conditions. It also includes considerations for the human-robot interaction interface.
- Deployment Strategies: Considers operational workflows and strategies for effective positioning and coordination of multiple robots during rescues.
- Ethical, Legal, and Safety Concerns: Addresses the ethical implications, risks of malfunction, and regulations governing SAR operations.
- Challenges: Discusses operational hurdles such as environmental conditions, power supply limitations, and the cost of development.
Overall, this section underscores the significance of SAR robotics in improving disaster response and human safety.

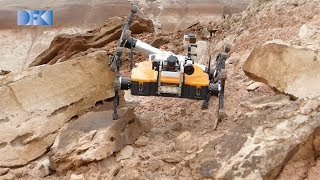

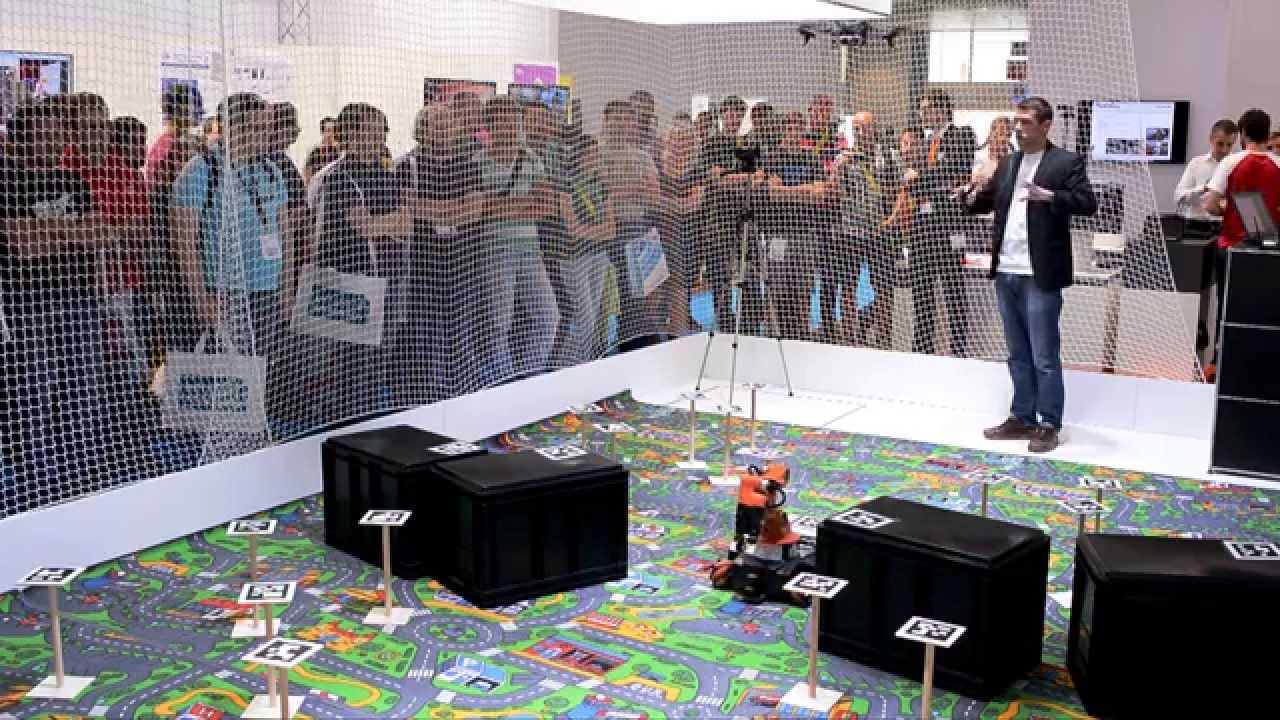

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to SAR Robotics
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Search and Rescue (SAR) Robotics is a specialized application of robotics technology aimed at assisting emergency response teams in locating, rescuing, and providing aid to victims in disaster-struck or hazardous environments. These robots are engineered to navigate through rubble, collapsed structures, flooded zones, or fire-affected areas where human access is restricted or dangerous. Civil engineers, especially in urban planning and disaster management domains, need to understand the integration of such robotic systems in real-world scenarios for improving safety infrastructure and optimizing emergency response operations. This chapter provides an in-depth understanding of the principles, technologies, design considerations, and operational strategies involved in the development and deployment of search and rescue robots. It includes classifications, sensors, control systems, communication frameworks, AI integration, and challenges faced during field operations.
Detailed Explanation
Search and Rescue Robotics (SAR) involves using robots to help during emergencies, especially in scenarios where human rescuers cannot safely operate. Robots are designed to maneuver through hazardous areas like collapsed buildings or flooded locations, which can be dangerous for people. The integration of these robots into civil engineering and disaster response helps create safer urban environments and improves how we respond to emergencies. The chapter will cover various aspects of SAR robotics, including how these robots are classified based on their movements and functions, the technologies they use, and the challenges they face when deployed in real-life situations.
Examples & Analogies
Imagine a firefighter trying to enter a burning building but being unable to do so safely. A SAR robot can act as an extension of the firefighter, entering the building to assess the situation or locate trapped individuals without putting human life at risk.
Need for Search and Rescue Robotics
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Importance in disaster response (earthquakes, building collapse, floods, landslides)
• Limitations of human rescue teams in dangerous terrains
• Case studies: 9/11 Twin Tower Rescue, Fukushima nuclear disaster, Turkey-Syria earthquake
Detailed Explanation
SAR robots are critical in various disaster scenarios, such as earthquakes, flooding, or landslides, where immediate rescue efforts are essential. However, the nature of these disasters often presents challenges that make it difficult or dangerous for human rescuers to operate. For example, after an earthquake, buildings may collapse, creating unstable environments that could lead to further danger if humans try to enter. By using SAR robots, rescuers can assess and respond to these situations more safely and effectively. Case studies demonstrate the effectiveness of SAR robotics in high-stakes rescue operations, showing how they have been deployed during major disasters like the 9/11 Twin Tower collapse and the Fukushima disaster, where conditions were too perilous for human intervention.
Examples & Analogies
Think of SAR robots as advanced drones equipped to explore difficult terrains. Much like how drones can take aerial photographs of a disaster site to give users real-time data, SAR robots can physically enter hazardous areas, gather information, or even assist in rescuing people. During the 9/11 attacks, robots played a vital role by exploring the site to help determine safe routes for rescuers.
Classification of SAR Robots
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
28.2 Classification of SAR Robots
28.2.1 Based on Mobility
• Wheeled Robots: Suitable for even, semi-damaged terrains
• Tracked Robots: Enhanced mobility on uneven, rough terrain
• Legged Robots: Inspired by animal locomotion; ideal for navigating debris
• Aerial Robots (Drones/UAVs): Used for locating victims from air, thermal imaging
• Underwater Robots (ROVs/AUVs): Deployed in flood or submerged environments
• Hybrid Robots: Combines features of multiple mobility systems
Detailed Explanation
SAR robots can be classified based on their mobility systems, which dictate how they move through different environments. Wheeled robots are suitable for smoother, semi-damaged surfaces, while tracked robots can traverse rough terrains, providing better stability and traction. Legged robots mimic animal movement and are particularly adept at climbing over debris. Aerial robots, like drones, are valuable for surveying areas from above, using tools like thermal imaging to spot heat signatures of victims. Underwater robots can reach submerged locations, and hybrid robots blend multiple movement types to adapt to various challenges during rescue missions.
Examples & Analogies
Consider a search party looking for lost hikers in different environments. If the hikers are lost on a flat road, wheeled robots are sufficient. If they are in a rocky mountain area, a tracked or legged robot would be necessary for better mobility. A drone may be used to scout the area from above, ensuring rescuers know where to focus their efforts.
Design Considerations for SAR Robots
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
28.3 Design Considerations for SAR Robots
• Size and Form Factor: Compact to maneuver through tight spaces
• Robustness: Durable to withstand dust, water, heat, or radiation
• Payload Capacity: Should carry sensors, communication devices, or small tools
• Power Management: Battery life optimization, solar or hybrid systems
• Thermal and Shock Resistance: To function in extreme temperatures and shock loads
Detailed Explanation
When creating SAR robots, designers must consider several key factors. The size and form factor are crucial, as robots often must fit into tight spaces in wreckage. Additionally, they must be robust and withstand tough conditions, like dust or water, and potentially extreme temperatures or radiation. The payload capacity dictates what tools and sensors the robot can carry, impacting its effectiveness in a rescue scenario. Another important aspect is power management, ensuring the robot can operate for extended periods, which may involve utilizing solar power or hybrid systems. Finally, thermal and shock resistance ensures robots can endure harsh environments without failure.
Examples & Analogies
Imagine trying to climb through a window in a collapsed building. A robot intended for that task needs to be compact enough to fit through, while also being tough enough to survive in environments filled with debris and hazardous conditions, like rubble and fires. Just like a good mountaineering backpack carries essential gear without being too bulky, SAR robots need the right design to be effective in emergency situations.
Sensor Technologies Used in SAR Robots
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
28.4 Sensor Technologies Used in SAR Robots
28.4.1 Vision Sensors
• RGB Cameras
• Infrared/Thermal Cameras
• 3D Vision Systems (Stereo Vision, Time-of-Flight)
28.4.2 Proximity and Mapping Sensors
• LiDAR (Light Detection and Ranging)
• Ultrasonic and Infrared Range Finders
• RADAR
28.4.3 Environmental Sensors
• Gas Sensors (CO2, methane, toxic gases)
• Temperature and Humidity Sensors
• Vibration and Acoustic Sensors (for detecting trapped victims)
28.4.4 Biosensors
• Heartbeat and respiration detection (through walls or rubble)
• Wearable health monitors for remote tracking of victims
Detailed Explanation
SAR robots utilize various sensor technologies for effective operation in rescue scenarios. Vision sensors, such as RGB cameras and thermal cameras, help identify victims and terrain conditions, while 3D vision systems enhance spatial awareness and navigation. Proximity and mapping sensors like LiDAR can scan the environment to build accurate maps of the area, identifying obstacles and navigable paths. Environmental sensors detect hazardous gases or changes in temperature, which is essential for ensuring rescuers' safety. Lastly, biosensors can even track heartbeat and respiration patterns, allowing for the detection of individuals trapped under debris, making them critical in an emergency response.
Examples & Analogies
Think of SAR robots as having a superhero’s senses. Just like a superhero might use x-ray vision to see through walls or hear distant cries for help, SAR robots use sophisticated sensors to gather critical information in rescue situations. When searching for victims in a disaster scene, they can 'see' through debris or detect life signs, guiding rescuers to those in need.
Key Concepts
-
Disaster Response: Importance of SAR robotics during critical events.
-
Mobility Classification: Different types based on movement capabilities.
-
Design Considerations: Key structural elements for developing SAR robots.
-
Sensor Technologies: Types of sensors used for effective victim detection.
-
Communication Systems: Strategies for data transfer and navigation challenges.
Examples & Applications
Drones equipped with thermal cameras that can scout disaster areas from the sky.
Tracked robots that can navigate through debris in building collapse scenarios.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In rubble and debris where humans can't roam, search robots go forth to bring victims home.
Stories
Imagine a robot named Robby. Robby can move over rubble, swim through water, and fly through smoke. Whenever there’s a disaster, Robby is the hero that helps save lives.
Memory Tools
Remember 'SORE': Size, Operations, Robustness, and Environment when thinking of SAR robot design considerations.
Acronyms
Use 'MR NICE'
Mobility
Recognition
Navigation
Intelligence
Communication
Environment to remember key classification aspects of SAR robots.
Flash Cards
Glossary
- SAR Robotics
Robotic systems used to assist in search and rescue operations during disasters.
- Wheeled Robots
SAR robots with wheels designed for smooth or semi-damaged terrains.
- Tracked Robots
Robots that use tracks for enhanced mobility on uneven and rough terrain.
- Legged Robots
Robots that mimic animal leg movement, ideal for navigating debris.
- Autonomous DecisionMaking
The ability of a robot to make decisions on its own without human intervention.
- LiDAR
A mapping technology that utilizes laser light to measure distances and create 3D representations of environments.
- Mesh Networking
A communication framework allowing devices to connect and communicate with one another directly.
