Live Load Reduction for Floors
Unlock Audio Lesson
Today, we will discuss the concept of live load reduction, particularly for floors. Knowing that buildings with large floor areas can benefit from a design reduction in uniform live loads, how do you think this affects the overall structural safety?
I think it helps reduce material costs since less load means we can use smaller beams!
But aren't there codes like ASCE7-02 that set limits on how much we can reduce the load?
Yes! Exactly! The ASCE7-02 allows for specific reductions based on the tributary area. For instance, if the area is over 400 ft², we have formulas to calculate the reduced live load. Can anyone share the formula for reducing the load?
I think it’s something like L = L0 multiplied by a factor based on the area?
That's correct! Remember the formulas that govern this: the reduction is essential because it maintains structural integrity while allowing for practical design improvements. Key point: always refer to the code.
Can heavy loads affect this reduction?
Great question! Yes, if the live loads exceed specified limits, then the reduction isn't applicable. In our next session, we will dive deeper into roofs and their load considerations.
Live Load Reduction for Roofs
Unlock Audio Lesson
Moving on to roofs, how do we approach the load reduction for ordinary flat, pitched, or curved roofs?
Do we still use the same principles from floors?
Yes! We similarly apply reduction factors based on the tributary area. The formulas for roofs are quite similar but differ slightly in the determination of factors. Can anyone remind me what those factors depend on?
I think it depends on the area supported and the type of roof? Like, they have different ranges for flat and pitched roofs!
Absolutely! Remember, for flat roofs we use equations that adjust the load based on the area and roof type. Always remember that these reductions must meet safety and structural integrity standards. Anyone recall the allowed range for reduced roof live load?
Ranges of 0.58 to 0.96 for SI units, right?
Exactly! And hence, understanding these load reductions can lead to responsible designs without compromising safety.
Tributary Areas
Unlock Audio Lesson
Now, let's discuss tributary areas. What do we mean by the tributary area related to beams and columns?
Isn’t it the area of the slab that a beam supports?
Correct! For beams, it's defined as the area of slab that is supported. Can anyone illustrate how this would differ for columns?
For columns, it’s more about the area around the column created by the panel centerlines?
Excellent observation! Knowing these areas is crucial for calculating vertical loads transferred accurately. Why do you think it’s critical to distinguish between different types of columns?
I guess it impacts how loads are shared, especially between interior and corner columns.
Exactly! Understanding how these elements share the load helps in maintaining balance in loads across the structure.
Structural Design Principles
Unlock Audio Lesson
In moving to structural design concepts, what are some key principles that we should follow?
Safety, serviceability, and economy!
Right! Can someone elaborate on what first should be our priority when designing a structure?
I think safety should always come first.
Exactly! Next comes serviceability, and finally, economy through material usage. What are the implications of the LRFD method we adopted?
Using load and resistance factors to calculate the structure's strength against various load combinations?
Well done! This ensures the structure is resilient and can handle more than just theoretical calculations but actual loads, analyzing cases for fracture, buckling, etc. What about load combinations, why are they needed?
I guess it helps account for real-life situations where not all loads are applied simultaneously!
Correct! Understanding load combinations facilitates more practical design scenarios that increase safety.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore the concept of live load reduction applicable to both floors and roofs in structures. We also delve into tributary areas' significance in load distribution to beams and columns and the essential criteria for safe structural design, emphasizing the integration of different load factors in the design process.
Detailed
Detailed Summary
This section provides a comprehensive overview of various aspects of loads on structures, focusing on live load reduction for both floors and roofs, tributary area definitions, and structural design concepts.
Live Load Reduction
- Floors: Buildings with large floor areas are allowed a reduction in uniform live load as per codes like ASCE7-02, primarily due to the improbability of maximum loads occurring simultaneously throughout the entire structure. For areas larger than 400 ft², the reduced live load (L) is determined through specific equations, taking into account the tributary area.
- Roofs: Similar to floors, ordinary flat, pitched, and curved roofs can also be designed for reduced roof live loads. The reduction factors vary based on the tributary area supported, as articulated through equations applicable to different roof types.
Tributary Areas
- The definition of tributary areas for beams and columns is crucial to properly determine vertical loads transmitted from slabs. The load distribution methods rely on understanding these areas, with guidelines emphasizing the differences in load sharing between interior and corner columns.
Structural Design Concepts
- The chapter emphasizes the fundamental requirements for structural design, including safety, serviceability, and economical choices, often leading to smaller cross-sections for materials. Concepts of Load and Resistance Factor Design (LRFD) are introduced, highlighting the balance between applied loads, strength factors, and various load combinations essential for practical applications and safety.

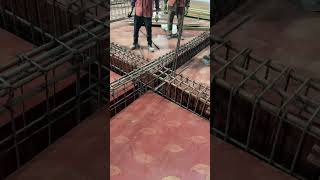

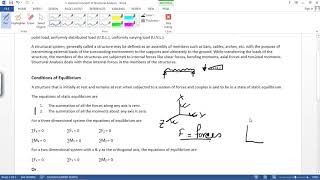

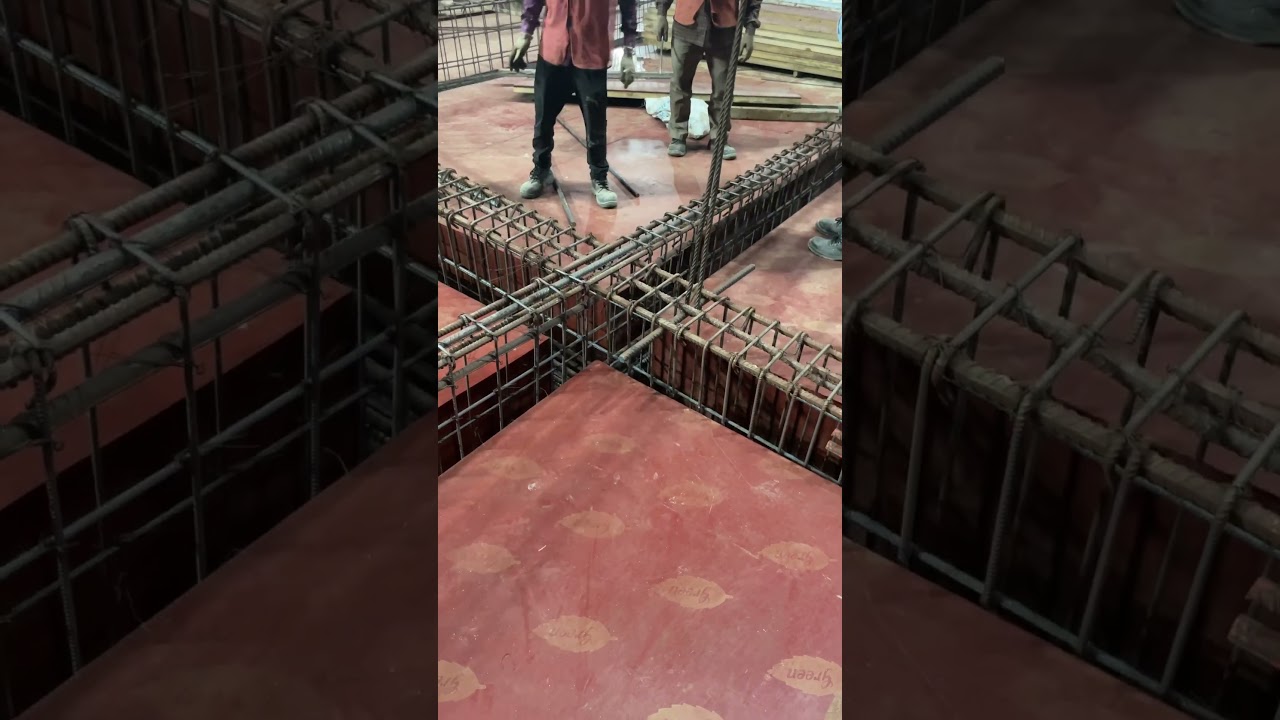

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Live Load Reduction for Floors
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For some types of buildings having very large floor areas, many codes will allow a reduction in the uniform live load for a floor. The reason is that it is unlikely that the prescribed live load will occur simultaneously throughout the entire structure at any one time. ASCE7-02 allows a reduction of live load on a member having an influence area (K LL A) of 400 ft² (37.2 m²) or more.
Detailed Explanation
In structural engineering, the term 'live load' refers to any load that is not permanently applied to the structure, like people, furniture, and vehicles. For large buildings, engineers recognize that not all areas will be fully loaded at the same time. This permits them to reduce the assumed live load when calculating the design requirements. The ASCE7-02 standard specifies that for any member (like a beam or column) supporting an area of 400 square feet or more, a reduction in the live load can be applied, acknowledging that not every part of the structure will experience the maximum load at once.
Examples & Analogies
Think of a large office building where some floors might be full of employees during working hours while others are empty. By assuming that the entire building will not be fully occupied simultaneously, engineers can design the structure with slightly smaller members, reducing costs while still ensuring safety.
Calculating Reduced Live Load
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
L = L₀ * (0.25 + (K / Aₜ)) (SI) and L = L₀ * (0.25 + (K / Aₜ)) (USCU). Where, L = reduced design live load per square foot or square meter of area supported by the member, L₀ = unreduced design live load per square foot or square meter of area supported by the member.
Detailed Explanation
This formula helps engineers calculate the new, reduced live load for a structural member, considering its tributary area (the area it supports) and an adjustment factor (K). The parameters within the formula indicate how much load can be reduced based on the area supported by the member. For example, the reduction factor provides a way to adjust design assumptions accordingly, ensuring that members are adequately sized without being oversized, leading to efficient material usage.
Examples & Analogies
Imagine a very large warehouse where the center might have heavy shelving units while the corners are less loaded. By using the above formula, engineers can determine the reduced load on the beams based on the supported area instead of assuming the worst-case scenario where every corner is fully loaded.
Exceptions to Live Load Reduction
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Live loads that exceed 4.79 kN/m² (100 lb/ft²) or more shall not be reduced for members supporting two or more floors. Live loads shall not be reduced in passenger vehicle garages or assembly uses.
Detailed Explanation
While it is common to reduce live loads in most cases, certain conditions require maintaining the full value of the live load. Specifically, if the anticipated live load is very high or in certain environments (like garages and assembly areas), the structure must be designed to support the maximum potential loads without reduction to ensure safety.
Examples & Analogies
Consider a multi-story parking garage. Vehicles can add significant loads, which wouldn’t just be spread across a very large area; therefore, engineers opt not to reduce the assumed load in those cases. This ensures that the garage will safely support the weight of multiple vehicles at once.
Tributary Areas Defined
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Definition: Beams: The area of slab that is supported by a particular beam is termed the beam’s tributary area. Columns: the area surrounding the column that is bounded by the panel centerlines. Importance: to understand and determine the vertical loads transferred from slabs to beams and columns.
Detailed Explanation
A tributary area is crucial in understanding how loads are distributed to different structural members. In essence, it refers to the area of the floor or roof contributing load to a column or beam. By calculating these areas, engineers can understand how much weight each member will have to support, leading to more accurate and safe designs.
Examples & Analogies
Think of a pizza. Each slice of pizza can represent a tributary area for a beam where that particular slice of pizza (or area of the slab) directly affects that beam and contributes load. If you were to take a slice away, you'd have to evaluate how that influences the overall balance of toppings (or loads) on the remaining slices (or structural members).
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Live Load Reduction: Reducing the prescribed uniform live load on floors and roofs based on the area's size, as certain codes (e.g., ASCE7-02) allow for this reduction.
-
Tributary Areas: The areas associated with beams and columns that influence how loads are transmitted, critical for safety and load distribution calculations.
-
LRFD: A design methodology that uses load and resistance factors to ensure structures can safely handle expected loads.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a shopping mall has a total floor area of 1,200 ft². Applying the live load reduction formula, we can determine the new reduced load, leading to resource-efficient design.
-
For a pitched roof with a tributary area of 300 ft², calculations can show how much load needs to be considered when determining whether the roof can hold potential snow or equipment.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Loads can be light or heavy, codes keep safety ready, reduce when you can, that's the plan!
📖 Fascinating Stories
-
Imagine a large shopping mall. It has a massive floor area but on busy days, not all sections are crowded. By adjusting the live load, engineers save materials without risking safety.
🧠 Other Memory Gems
-
Remember the acronym 'LOAD': L for Live load, O for Observation of area, A for Allowed reductions, D for Design codes!
🎯 Super Acronyms
Use 'SLEEDS'
- S: for Safety
- L: for Load factor
- E: for Economics
- E: for Effective design
- D: for Durability
- S: for Serviceability.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Live Load Reduction
Definition:
The act of reducing the design uniform live load allowed on a structural member based on specific parameters, particularly beneficial for large floor areas.
-
Term: Tributary Area
Definition:
The area of the slab supported by a beam or the area surrounding a column, essential for determining vertical loads.
-
Term: ASCE702
Definition:
A standard published by the American Society of Civil Engineers outlining minimum design loads for buildings and other structures.
-
Term: Load and Resistance Factor Design (LRFD)
Definition:
A design method that uses load factors applied to service loads and resistance factors applied to material strength to ensure safety and reliability.
-
Term: Structural Design
Definition:
The process of developing the specifications for a building's structure to ensure it can adequately support applied loads and meet safety standards.
