Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Loads
Unlock Audio Lesson
Today, we're going to explore the main purpose of loads in structural engineering. Can anyone tell me why understanding loads is crucial for engineers?
Are they important because they help stabilize the building?
Exactly! The primary role of a structure is to transfer loads effectively from one point to another, ensuring stability and safety. Can anyone think of a specific load type we might encounter?
What about the weight of materials used in the structure?
That's right! That falls under what we call Dead Load (DL), which is the weight of the structure itself. Now, can anyone guess what happens when we include occupancy or movable items?
That's the Live Load (LL), right?
Correct! Remember, we often treat closely spaced identical loads as uniformly distributed loads for calculations.
What about things like snow?
Great point! Snow Loads also affect structures and vary by geographic location. Let's summarize: loads help in the load transfer process, with dead and live loads being key elements.
Types of Vertical Loads
Unlock Audio Lesson
Now that we've covered the introduction, let's dive deeper into vertical loads. Can someone explain what dead load includes?
Dead load includes all the weights of the materials used in the construction, like walls and roofs.
Exactly! And live loads involve different elements. Who can tell me examples of live loads?
People, furniture, and also movable equipment.
Correct! Now, let's talk about snow loads. Why are these so variable?
Because they depend on geography and elevation!
Absolutely right! Snow loads are influenced by the roof's pitch too. The higher the pitch, the less snow accumulates. Great work identifying these key vertical loads!
Understanding Lateral Loads
Unlock Audio Lesson
Let’s shift our focus to lateral loads. What can you tell me about wind loads?
Wind loads are based on the building's height, shape, and wind speed.
Good observation! Now, how do earthquake loads differ from wind loads?
Earthquake loads are triggered by seismic activity, affecting the integrity of the structure.
Precisely! Both wind and earthquake loads need careful consideration in building design. Let's recap: lateral loads include wind and seismic forces, which significantly impact structural stability.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses the purpose of structures in transferring loads, categorizing them into vertical and lateral loads, and providing insights into various types such as dead, live, wind, and earthquake loads.
Detailed
Loads in Structural Engineering
In structural engineering, the primary purpose of a structure is to transfer loads from one point to another, such as from a bridge deck to a pier or from a column to a foundation. These loads can be categorized broadly into two categories: vertical loads and lateral loads.
Vertical Loads
Vertical loads include:
- Dead Load (DL): The permanent load due to the weight of the structure itself.
- Live Load (LL): The transient loads that can vary over time, including occupancy and movable items.
- Snow Loads: Additional loads that depend on geographic factors and can vary significantly.
To simplify the calculations for closely spaced loads, they may be treated as uniformly distributed loads. The weights of various building materials are provided to assist in determining the total dead load of a structure.
Lateral Loads
Lateral loads are those that act horizontally on structures, including:
- Wind Load (WL): Determined by factors such as wind velocity, building shape, and location.
- Earthquake Load (EL): The forces exerted by seismic activity on structures.
Understanding the distinctions and calculations required for these loads is crucial for designing safe and functional structures. This section emphasizes the classification of loads and a reference to the Universal Building Code (UBC) for detailed guidelines.

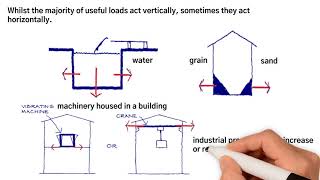

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Loads
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The main purpose of a structure is to transfer load from one point to another: bridge deck to pier; slab to beam; beam to girder; girder to column; column to foundation; foundation to soil. There can also be secondary loads such as thermal (in restrained structures), differential settlement of foundations, P-Delta effects (additional moment caused by the product of the vertical force and the lateral displacement caused by lateral load in a high-rise building).
Detailed Explanation
This part introduces the concept of loads in structural engineering. A structure's primary function is to transfer loads, which can originate from various parts like bridge decks, slabs, beams, and columns. Each of these elements has a significant role in ensuring stability and integrity. Secondary loads, such as thermal changes and differential settlement, may also impact the structure and are crucial in design considerations.
Examples & Analogies
Think of a multi-story building like a human body. Just as the human skeleton transfers weight and supports the body, each component of the building—like beams and columns—transfers loads down to the foundation safely into the ground. If a person stands on one leg, the forces acting on the leg must be strong enough to support their weight, similar to how structural elements must handle loads.
Types of Loads
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Loads are generally subdivided into two categories: Vertical Loads (gravity load) and Lateral Loads (which act horizontally on the structure). Vertical Loads include: 1. Dead load (DL) 2. Live load (LL) and also include snow loads. Lateral Loads comprise: 1. Wind load (WL) 2. Earthquake load (EL) and also include hydrostatic and earth loads. This distinction is helpful not only to compute a structure’s load but also to assign different factors of safety to each one.
Detailed Explanation
In structural engineering, loads are categorized mainly into two types: Vertical Loads and Lateral Loads. Vertical Loads, which include Dead Loads (permanently attached elements like walls and roofs) and Live Loads (temporary loads from occupants and furniture), need to be considered to ensure a structure can hold its weight. Lateral Loads, including wind and earthquake forces, exert side-to-side pressure, making it essential to design structures to withstand them, adjusting safety factors according to the nature of the load.
Examples & Analogies
Imagine a large bookshelf. The books stacked on it represent live loads that can change based on how many books you've added or removed. The shelf itself is the dead load, a constant weight it must bear. Now, if someone leans against the shelf (representing wind or earthquake forces), the shelf must be sturdy enough to prevent falling over.
Vertical Loads
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For closely spaced identical loads (such as joist loads), it is customary to treat them as a uniformly distributed load rather than as discrete loads.
Detailed Explanation
When dealing with multiple identical loads that are closely spaced, they are often simplified into a single, evenly spread load called a uniformly distributed load. This simplification helps engineers calculate the structural integrity more easily without needing to analyze each load separately.
Examples & Analogies
Consider a bus filled with passengers. Instead of thinking of each passenger as an individual weight affecting the bus's structure, we can average their weight out and think of it as a uniform weight distributed across the bus seats. This makes calculations for safety and stability much simpler.
Vertical Load Tables
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Material lb=ft2
Ceilings
Channel suspended system 1
Acoustical fiber tile 1
Floors
Steel deck 2-10
Concrete-plain 1 in. 12
These weights are crucial for understanding the total load that will act upon the structural elements.
Detailed Explanation
Construction materials have specific weights measured in pounds per square foot (lb/ft²). Tables provide these weights to help calculate the total load on a building's structural elements, which is essential for ensuring stability and safety. Each material contributes differently to the overall weight that the structure must support.
Examples & Analogies
Imagine you’re trying to fill a backpack for a hike. Every item you pick – water bottles, snacks, a first aid kit – has a weight. If you know the weight of each item, you can figure out if your backpack can hold everything without breaking. Similarly, engineers use material weight tables to make sure structures can safely hold whatever is built with them.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Vertical Loads: Include dead loads and live loads, which are essential for understanding how structures support weight.
-
Lateral Loads: Comprise wind and earthquake loads, which are critical for assessing the forces acting horizontally on a structure.
-
Snow Loads: Variable loads based on geographic location and roof pitch affecting structural design.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
To determine the total dead load of a building, engineers calculate the weight of structural materials like concrete and steel as outlined in tables of weights.
-
Can you imagine a high-rise building subjected to strong winds? Engineers must design accordingly, considering the building's height and shape to withstand lateral forces.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Dead loads are here to stay, while live loads dance away.
📖 Fascinating Stories
-
Imagine a bridge, holding heavy cars (dead loads) while people cross (live loads), but number of people changes!
🧠 Other Memory Gems
-
D.L. for Dead Load - D for Dense, L for Load you won't lose.
🎯 Super Acronyms
W.E.S. for Wind, Earthquake, Snow - the forces you need to know!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Dead Load (DL)
Definition:
The permanent load acting on a structure due to its own weight.
-
Term: Live Load (LL)
Definition:
Transient loads on a structure due to occupancy and movable items.
-
Term: Lateral Load
Definition:
Forces acting horizontally on a structure, including wind and earthquake loads.
-
Term: Snow Load
Definition:
Load imposed by the weight of snow on roofs, varying by geographical aspects.
