Transition Curves Overview
Unlock Audio Lesson
Today, we will start talking about transition curves. Can anyone explain what a transition curve is?
Isn't it the curve that connects a straight path to a circular one?
Exactly! Transition curves help vehicles change direction smoothly. Why do you think this is important?
It probably makes the ride more comfortable for passengers.
Right! A smooth change reduces sudden jerks, enhancing passenger comfort. Another reason is to allow drivers to turn their steering gradually. This gradual introduction of forces is crucial for vehicle handling. Remember the acronym 'C.A.S.E.' for Comfort, Acceleration, Steering, and Aesthetics when we think of transition curves.
Types of Transition Curves
Unlock Audio Lesson
What types of transition curves can you name?
I think there are spiral curves and cubic parabola curves?
Great! Yes, spirals are commonly used because they provide a consistent rate of change in acceleration. What do you think makes this consistent acceleration so important?
It helps prevent discomfort from abrupt changes.
Correct! When the rate of acceleration remains smooth, drivers experience better control. In your future projects, always consider the spirals as your go-to transition curve.
Length of Transition Curves
Unlock Audio Lesson
Now that we know the types of transition curves, how do we determine their lengths?
Is it based on the rate of change of centrifugal acceleration?
Yes! That's one criterion. We also consider the introduction of super-elevation and an empirical formula. Has anyone looked at how we compute the length?
I remember formulas from class. They relate factors like speed and radius.
Exactly! The length of the transition curve integrates these parameters. Keep in mind that the longest calculated length will be your design length.
Setback Distance
Unlock Audio Lesson
Next, we will discuss setback distance. What do you think it is?
Isn't it the distance required for clear visibility on curves?
Exactly! Setback distance ensures safety by allowing enough sight distance around circular curves. Can anyone tell me how it differs between single-lane and multi-lane roads?
For multi-lane, the setback might require more space due to more lanes?
Yes! Always consider lane width and the specific road type while calculating the setback to enhance safety.
Curve Resistance
Unlock Audio Lesson
Lastly, let's discuss curve resistance. What happens when a vehicle navigates a curve?
The front and rear wheels have different directions, and that affects traction, right?
Correct! Rear wheels often do not follow the same path as the front, leading to a loss of tractive force. Anyone want to quantify that with a formula?
Isn’t there an equation for curve resistance?
Yes! The equation CR = T - T cos(α) illustrates this. Stay aware of how these dynamics influence vehicle handling and road design!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses the significance of transition curves for smooth vehicle motion between straight and circular paths. It also highlights the importance of setback distance in ensuring safety and visibility at curve points. Additionally, it touches upon curve resistance encountered by vehicles on curves.
Detailed
In this section, we delve into essential aspects of horizontal alignment in transportation engineering. Transition curves are critical for gradually shifting from a straight road to a circular curve, ensuring vehicle comfort and safety. The objectives of transition curves include introducing centrifugal force smoothly, facilitating gradual steering, and enhancing aesthetic value. Different types of transition curves such as spirals, cubic parabolas, and lemniscates are explored with a focus on the IRC's recommendation of spiral curves for their consistent acceleration change. The length of transition curves is determined based on factors like centrifugal acceleration change, super-elevation, and empirical formulas provided by IRC. Furthermore, we discuss setback distance, which is vital for adequate sight distance at circular curves, and how it varies for single-lane and multi-lane roads. Lastly, the concept of curve resistance is introduced, explaining how vehicle traction is affected while negotiating curves. Overall, these designs play a pivotal role in road safety and vehicle dynamics.

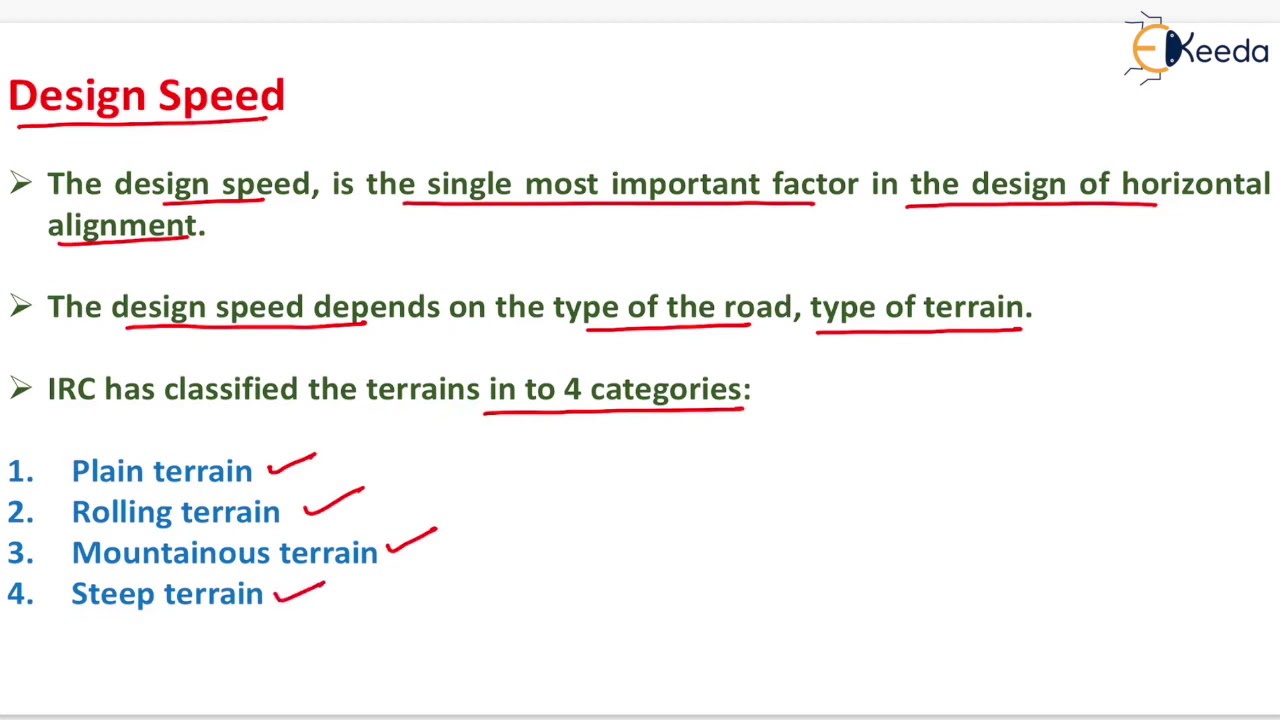

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Transition Curves and Setback Distances
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In this section we will deal with the design of transition curves and setback distances. Transition curve ensures a smooth change from straight road to circular curves. Setback distance looks in for safety at circular curves taking into consideration the sight distance aspects. A short note on curve resistance is also included.
Detailed Explanation
This section focuses on two key concepts in road design: transition curves and setback distances. Transition curves are important for ensuring that the change from a straight road to a circular curve is smooth, enhancing safety and comfort for drivers and passengers. Setback distances, on the other hand, are crucial for safety as they determine how far roads need to be from obstacles to ensure that drivers have adequate sight distance while navigating curves.
Examples & Analogies
Imagine driving on a straight highway, and suddenly you encounter a sharp curve. Without a transition curve, that change would feel abrupt and could cause discomfort or safety issues. Transition curves help to gently guide the vehicle into the curve, much like how a gentle slope eases the transition from a flat path to a hill.
Understanding Horizontal Transition Curves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Transition curve is provided to change the horizontal alignment from straight to circular curve gradually and has a radius which decreases from infinity at the straight end (tangent point) to the desired radius of the circular curve at the other end (curve point).
Detailed Explanation
A horizontal transition curve is designed to gradually shift the alignment of a road from a straight path to a circular one. At the beginning of the transition curve, the radius is virtually infinite because the road is straight. As the vehicle moves along the curve, the radius decreases until it reaches the radius of the circular curve. This gradual change is essential for maintaining comfort and safety as it allows both the vehicle and the driver to adjust smoothly.
Examples & Analogies
Think of walking from a flat surface directly into a circular track. If you just stepped into the circular track without any transition, your movement might become shaky or abrupt. However, if there is a gradual ramp leading into the track, it makes the transition smoother and helps your body adjust to the new trajectory.
Objectives of Providing Transition Curves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
There are five objectives for providing transition curves: (1) to introduce gradually the centrifugal force between the tangent point and the beginning of the circular curve, avoiding sudden jerk on the vehicle. This increases the comfort of passengers. (2) to enable the driver to turn the steering gradually for his own comfort and security, (3) to provide gradual introduction of super elevation, (4) to provide gradual introduction of extra widening, and (5) to enhance the aesthetic appearance of the road.
Detailed Explanation
Transition curves serve multiple important purposes. First, they help manage the centrifugal force experienced by vehicles as they enter curves, preventing sudden jolts that could discomfort passengers. Second, they allow drivers to turn their steering wheels gradually, which contributes to their perception of control and safety. Third, they allow for the gradual change in bank or super elevation of the road, which is critical for balance as a vehicle navigates the curve. Extra widening is also introduced to accommodate the different paths taken by vehicles of various sizes. Lastly, a well-designed transition curve adds to the visual appeal of the road, making driving a more pleasant experience.
Examples & Analogies
Consider a roller coaster that suddenly changes direction without warning. The abrupt turn can be jarring for riders. In contrast, a smooth incline leading into the turn allows for a controlled transition that enhances the thrill while maximizing safety and comfort.
Types of Transition Curves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Different types of transition curves are spiral or clothoid, cubic parabola, and Lemniscate. IRC recommends spiral as the transition curve because: (1) it fulfills the requirement of an ideal transition curve, that is; (a) rate of change or centrifugal acceleration is consistent (smooth) and (b) radius of the transition curve is at the straight edge and changes to R at the curve point (L1 ∞ s ∝ R), and calculation and field implementation is very easy.
Detailed Explanation
There are various types of transition curves used in road construction, including spirals (or clothoids), cubic parabolas, and Lemniscates. Of these, spirals are favored because they offer a consistent rate of change in curvature, which contributes to a smoother driving experience. This means that as a vehicle enters a spiral transition curve, the changes in turning tightness are gradual, allowing for better handling and less discomfort. Furthermore, spirals can be easily calculated and implemented in road design.
Examples & Analogies
Similar to how a spiral staircase allows people to ascend or descend gradually and comfortably, spiral transition curves enable vehicles to navigate road curves smoothly. Just like a tight circular staircase may cause discomfort and require more effort, a sudden sharp curve in a road can lead to discomfort for drivers.
Length of Transition Curve Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The length of the transition curve should be determined as the maximum of the following three criteria: rate of change of centrifugal acceleration, rate of change of superelevation, and an empirical formula given by IRC.
Detailed Explanation
The length of a transition curve is critical for ensuring safety and comfort. It is determined based on three main criteria: the rate at which centrifugal acceleration changes, the rate at which super-elevation changes, and an empirical formula recommended by the IRC based on terrain types. Each of these ensures that the transition happens within a comfortable range for vehicles, accommodating both the speed of travel and the physical characteristics of the road.
Examples & Analogies
Imagine teaching someone to ride a bike. If you allow them to progressively increase their speed while also helping them lean into turns, they’ll have a better experience than if you just let them go fast without guidance. The same concept applies when calculating the length of a transition curve; the right length allows drivers to adjust their speed and handling as they navigate turns comfortably.
Setback Distance Explained
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Setback distance m or the clearance distance is the distance required from the centerline of a horizontal curve to an obstruction on the inner side of the curve to provide adequate sight distance at a horizontal curve. The setback distance depends on: (1) sight distance (OSD, ISD and OSD), (2) radius of the curve, and (3) length of the curve.
Detailed Explanation
Setback distance is a crucial aspect of road design focused on safety. It represents the minimum distance needed between obstructions (like trees or poles) on the inner side of a curve and the centerline of the road. This distance is essential to ensure that drivers have a clear view as they navigate curves, significantly affecting their ability to react to any obstacles. Factors like sight distance, the radius of the curve, and the overall length of the curve dictate how far this setback should be.
Examples & Analogies
Think of this distance as the personal space someone requires to feel comfortable. Just like a person needs some space to move freely without hitting obstacles, a vehicle needs a certain setback distance to avoid potential hazards while driving around a curve.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Transition Curve: A design element enabling a smooth transition from straight to circular paths.
-
Setback Distance: A safety feature ensuring visibility at curves.
-
Centrifugal Acceleration: Acceleration caused by turning, critical for vehicle design.
-
Super-elevation: The tilt of a roadway to counterbalance lateral forces on curves.
-
Curve Resistance: The decrease in effective tractive force needed to navigate a curve.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of setting a transition curve length based on different parameters such as speed and radius.
-
Calculation of setback distance for a single-lane road providing adequate sight distance at a curve.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Curve to connect, smooth and not abrupt, for safety we ensure that vehicles don't erupt.
📖 Fascinating Stories
-
Imagine driving along a winding road. The transition curves are like gentle hands guiding you along, making sure you feel secure while taking every turn.
🧠 Other Memory Gems
-
Remember 'C.A.S.E.' for Transition Curves: Comfort, Acceleration, Steering, Aesthetics.
🎯 Super Acronyms
S.S.S. for Setback Distance
- Safety
- Sight
- Space.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Transition Curve
Definition:
A curve that connects a straight path to a circular path gradually, allowing for smooth navigation.
-
Term: Setback Distance
Definition:
The distance needed from a road's centerline to an obstruction to ensure proper sight distance.
-
Term: Centrifugal Acceleration
Definition:
The acceleration experienced due to a change in direction while navigating a curve.
-
Term: Superelevation
Definition:
The banking of a roadway at a curve, designed to counteract lateral acceleration.
-
Term: Curve Resistance
Definition:
The loss of tractive force experienced by a vehicle due to negotiating a curve.
-
Term: IRC
Definition:
Indian Roads Congress; a body that sets standards and guidelines for road construction in India.
