Introduction to Pi Networks
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to explore the Pi Network as a specific example of a two-port network. Can anyone tell me what they think a Pi Network looks like?
I think it has components that are connected in a Pi shape.
That's correct! It consists of a series admittance with two parallel admittances. Can anyone describe what Y-parameters represent in a two-port network?
They describe how input and output currents relate to input and output voltages.
Exactly! The Y-parameters allow us to create a matrix that links voltage inputs to current outputs. Let's look at the Y-matrix for our Pi Network template.
Deriving the Y-Matrix of the Pi Network
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
To derive the Y-matrix, we apply the definitions for admittance parameters. Who can give me the expressions for the Y-parameters from the Pi Network?
We have Y11 = (I1/V1) at V2 = 0 and Y12 = (I1/V2) at V1 = 0.
"That's right! So, the Y-matrix for our Pi Configuration will look like this: \[\begin{bmatrix}
Application of the Y-Matrix
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now that we have our Y-matrix, how can we use it to analyze the circuit? Can anyone provide a scenario?
We could use it to determine the output current if we know the input voltage.
Correct! We can find the output current by using the Y-matrix equation. For instance, if we plug in values for V1 and V2, we can solve for I1 and I2 from the matrix.
That helps to predict the behavior of the overall network!
Yes! The Pi Network, along with its Y-parameters, facilitates efficient circuit design, especially for amplifiers and filters. Let's summarize what we've learned today.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The Pi Network example illustrates how admittance parameters (Y-parameters) can effectively represent the behavior of a two-port network, including how to derive the Y-matrix based on the configuration of the network's components.
Detailed
The Pi Network is a classic example of a two-port network described using admittance (Y) parameters. In a Pi configuration, the network consists of two admittance components connected in parallel with a third admittance component in series with the output. The admittance matrix (Y-matrix) describes the input-output relationships of the network through a simultaneous set of equations, allowing engineers to analyze and design circuits effectively. Specifically, the Y-matrix derived for the Pi configuration is given by:
\[\begin{bmatrix}
Y_1 + Y_3 & -Y_3 \
-Y_3 & Y_2 + Y_3
\end{bmatrix}\]
This matrix facilitates calculations related to input and output currents based on input-output voltages, forming an essential component in designing and analyzing complex circuits.

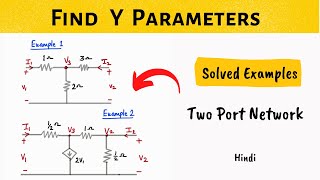

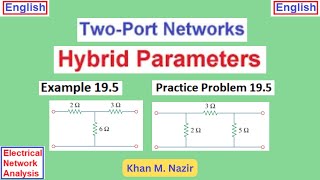

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Pi Network Diagram
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Y1 Y2 V1 ββ||βββ¬ββ||ββ V2 β Y3 β GND
Detailed Explanation
The above diagram represents a Pi network, which is a type of two-port network. In this configuration, there are two admittance elements Y1 and Y2 connected in parallel and another admittance Y3 connected in series with them. The voltage V1 is applied at the input terminal, and V2 is the voltage measured at the output terminal. The GND (ground) indicates the reference point of the circuit.
Examples & Analogies
You can think of the Pi network configuration like a water distribution system where Y1 and Y2 are two pipes that can accommodate additional water flow, while Y3 represents a water reservoir that helps maintain a steady flow of water to different areas β much like how these elements work together in an electrical circuit.
Y-Matrix Representation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Y-Matrix:
$$
\begin{bmatrix}
Y_1 + Y_3 & -Y_3 \
-Y_3 & Y_2 + Y_3
\end{bmatrix}
$$
Detailed Explanation
The Y-Matrix for the Pi network is shown above. It encapsulates the electrical relationships within the network using admittance parameters. The elements Y11 and Y22 represent the total admittance for the input and output terminals, while Y12 and Y21 represent the transfer characteristics between the two ports. In a Pi network, these relationships help in defining how the current and voltage behave across the network.
Examples & Analogies
Imagine the Y-Matrix as a recipe that describes how different ingredients (admittance values) come together to create a dish (the network performance). Just like adding more ingredients changes the flavor, adjusting the admittance values influences how the circuit operates, showing how each part contributes to the overall behavior.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Y-Parameters: They connect voltages and currents for two-port networks.
-
Pi Network Structure: Composed of two parallel and one series admittance.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A Pi filter is often used in power supply circuits to eliminate high-frequency noise.
-
In radio frequency applications, Pi networks manage impedance matching to enhance signal transmission.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
In a Pi Network where currents flow, admittance is key to the currents we show.
π Fascinating Stories
-
Imagine building a bridge shaped like Pi, connecting two currents that need to get by, each admittance helps us see how they align.
π§ Other Memory Gems
-
PIT: Pi Networks, Input-Output, and Transfer functions emphasize how they interact.
π― Super Acronyms
PINE
- Pi Interconnections with Networks Explained.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Pi Network
Definition:
A type of two-port network arranged in a Pi shape to model circuit behaviors with specific components.
-
Term: Yparameters
Definition:
Admittance parameters used to describe the relationship between voltages and currents in two-port networks.
-
Term: YMatrix
Definition:
A matrix representation of a two-port network that relates input and output voltage and current.
