Listen to a student-teacher conversation explaining the topic in a relatable way.
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to talk about the basic circuit configuration of a MOSFET. A typical circuit will include a DC supply voltage applied to the drain through a resistor. Can anyone tell me what role the gate voltage plays in this setup?
Is the gate voltage what controls the current flowing through the MOSFET?
Exactly! The gate voltage controls the state of the transistor. It's crucial for determining whether the transistor is in saturation or triode region. Can someone remind me what saturation means in this context?
Saturation occurs when the transistor is fully 'on' and allows maximum current to flow.
Yes! Remember that saturation is critical for amplification. Now, let's summarize: The MOSFET's gate voltage enables control over the current between drain and source, essential for achieving saturation.
Signup and Enroll to the course for listening the Audio Lesson
Next, let’s talk about how we find the current and voltage in the circuit. To start, what is the formula for the drain current when the MOSFET is in the saturation region?
I believe it's I_DS = K(V_GS - V_th)^2, where K is a constant.
Great! And what does V_GS represent?
That's the gate-to-source voltage.
Right! After calculating the drain current, how do we find the voltage drop across the resistor?
You multiply the current by the resistance, V_R = I_DS * R.
Perfect! To recap, we use the drain current formula to identify how much current flows, and we apply Ohm’s law to find the voltage drop across the resistor.
Signup and Enroll to the course for listening the Audio Lesson
Now, let's dive into the relationship between input and output in a common source amplifier configuration. What do you expect the output to look like when we apply a varying input signal?
I think we will see an amplified version of the input signal as the output.
Exactly! We convert variation in input into a corresponding change in output, amplifying the signal. What factors might affect this amplification?
The gain of the amplifier and the configuration of the circuit will play a significant role.
Good points! So, remember, the output in a common source MOSFET amplifier shows amplification based on input variations, influenced by several circuit parameters.
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
The section explores the basic circuit configurations involving MOSFETs, how to determine the current-voltage relationships, and the output variations for different input signals, especially in the context of common source amplifiers.
In this section, we delve into the analysis of simple non-linear circuits that utilize a MOSFET as the primary active device. We start by discussing the basic circuit configuration, where a single transistor is employed. The connection of supply voltage and the role of the drain-to-source current are examined, along with the conditions for the transistor's saturation region. Through examples, particularly focusing on common source amplifiers, we derive expressions for circuit currents and voltages, establishing the input-output transfer characteristics. The importance of parameters like the channel length modulation factor is highlighted, and comparisons to BJT circuits are made to underscore the differences in analysis methods. This section is crucial for understanding how MOSFETs function within analog electronic circuits, laying the groundwork for more advanced topics.
Dive deep into the subject with an immersive audiobook experience.
Signup and Enroll to the course for listening the Audio Book
So, dear students welcome back to this Analog Electronics Circuit. Myself Pradip Mandal from IIT Kharagpur, I am associated with E and ECE Department of the institute. So, we are going through the second module and so, it is continuation of that namely we are going through Analysis of non-linear simple non-linear circuit containing BJT and MOSFET. In the previous sub-module we have seen that the circuit containing BJT how to analyze it and today we will be going to similar kind of analysis, but containing MOSFET, and we will also see what will be the difference.
In this chunk, the speaker introduces the topic, stating that the focus will be on analyzing a simple non-linear circuit that contains a MOSFET. It serves as a follow-up to previous lessons on BJT circuits, highlighting that the method of analysis will be similar yet distinct due to the characteristics of the MOSFET.
Think of understanding how various car engines work. In a previous lesson, you learned about gasoline engines (BJTs), and now you're transitioning to learn about electric engines (MOSFETs). Similar principles apply, but specific components and functions differ.
Signup and Enroll to the course for listening the Audio Book

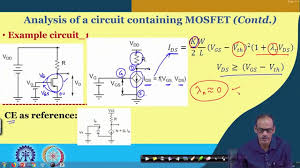

So, let us see the basic circuit configuration. So, here we do have the example circuit, we called example circuit-1 and you see where we do have supply voltage. Main DC supply voltage V which is giving supply to the drain of the transistor through resistor R DD normally referred as load and at the gate we are applying V G.
This chunk describes the basic configuration of the MOSFET circuit. The main components are a supply voltage connected to the drain of the MOSFET, a resistor that acts as a load, and a gate voltage applied to control the transistor. This setup is crucial as it determines how the MOSFET will behave in the circuit.
Consider this circuit as a water system where V is the water supply, R is a pipe that controls the amount of water flow, and V G is the tap that controls how much water is allowed to flow through. By adjusting the tap (V G), you can control the flow to the output.
Signup and Enroll to the course for listening the Audio Book
And, we are assuming that the device it is in saturation region which is equivalent to active region of operation of BJT; namely, in the channel if you see the drain end the channel pinch off it is happening. And if that condition is satisfied...
In this chunk, the speaker explains the operating condition of the MOSFET, specifically that it is in the saturation region. This means that enough voltage is applied to ensure that the channel for current flow is fully open. The characteristics of this operational region are crucial for understanding how the MOSFET behaves as an amplifier.
Imagine a full stadium (saturation region) where all the seats are filled, allowing a concert (current flow) to happen perfectly. If the stadium were only half full (not saturated), the concert wouldn't have the same energy or output.
Signup and Enroll to the course for listening the Audio Book
And, we will be seeing that what will be the output for varying inputs and then from that we will be giving a giving any thought towards what may be the output variation whenever we are changing the input.
This section discusses how altering the input affects the output of the common source amplifier. It emphasizes that the output can be predicted based on patterns of input signals, particularly when examining the transfer characteristics derived from MOSFET operation.
Imagine a volume knob that adjusts the loudness of your music based on how much you turn it. If you turn it slightly, the increase may be small, but if you turn it a lot, the sound is much louder. Similarly, the output voltage changes in response to small and large input variations.
Signup and Enroll to the course for listening the Audio Book
So, in this module namely week-2 modules, we are going through this non-linear circuit containing only one transistor and as I said that previously we have covered circuit containing one BJT. And, today we will be going through similar kind of circuit containing MOSFET one MOSFET...
This concluding section summarizes the analytical steps taken throughout the study of simple non-linear circuits featuring MOSFETs. It reiterates the differences between the equivalent circuit, analysis procedure, and the significance of the parameters involved, paving the way for future studies in more complex configurations.
It's like preparing a recipe where the previous steps were learning a similar dish (BJT) and now preparing a slightly different but related dish (MOSFET). Each recipe has unique flavor and preparation techniques, yet the core fundamentals of cooking remain the same.
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
Saturation Region: This is the operational state of a MOSFET where it allows maximum current flow, enabling amplification.
Input-Output Transfer Characteristic: Understanding how varying input voltages affect the output signals in an amplifier circuit.
See how the concepts apply in real-world scenarios to understand their practical implications.
Example of a common source amplifier circuit analysis where varying input affects output.
Calculation of drain current in a MOSFET given the gate-source voltage.
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
MOSFET's gate, it controls the flow, without this switch, the current won't grow.
Imagine you have a gatekeeper (gate voltage) who allows only certain friends (current) to enter the castle (MOSFET) when they show their ID (V_GS).
Remember 'G-I-S' (Gate, Input signal, Saturate) to recall the three important steps in MOSFET signal processing.
Review key concepts with flashcards.
Review the Definitions for terms.
Term: MOSFET
Definition:
A type of transistor that uses an electric field to control the flow of current.
Term: Saturation Region
Definition:
The state in which a MOSFET is fully 'on', allowing maximum current to flow through the device.
Term: V_GS
Definition:
The voltage difference between the gate and the source terminals of a MOSFET.
Term: I_DS
Definition:
The drain-source current flowing through a MOSFET.
Term: Threshold Voltage (V_th)
Definition:
The minimum gate-to-source voltage required to create a conducting path between the drain and source.
