Introduction to Compressible Flow
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Welcome class! Today, we will dive into the basics of compressible flow. Can anyone tell me what we mean by compressible flow?
Isnβt it when the density of the fluid changes significantly with pressure and temperature?
Exactly! Compressible flow primarily refers to gases under high velocities. This tends to occur when the Mach number, which indicates the speed of the flow relative to the speed of sound, is greater than 0.3. Remember this formula: M > 0.3!
What are the main equations governing this flow?
Great question! The main governing equations are the continuity equation, momentum equation, energy equation, and the ideal gas lawβessentially, these form the foundation of understanding fluid behavior in compressible flows.
Can you explain a bit more about these equations?
Of course! The continuity equation ensures mass conservation, the momentum equation addresses forces in the flow, and the energy equation accounts for energy transfer. Lastly, the ideal gas law relates pressure, volume, and temperatureβan essential aspect for gases.
What happens when we have gases at high speeds?
When speeds are high enough, compressible effects become significant. That's when we start seeing much variation in densityβwhich can drastically change how the flow behaves.
In summary, compressible flow is crucial for understanding how gases behave under various conditions, especially in high-speed applications.
Stagnation Properties
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, letβs talk about stagnation properties. Who can explain what stagnation means?
Is it the state of a fluid when itβs brought to rest?
"Perfect! When we bring a fluid to rest isentropically, we can calculate its stagnation temperature, pressure, and enthalpy. Let's explore each one.
Isentropic Flow through Nozzles
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Moving on to nozzles, can anyone tell me the difference between a convergent and a convergent-divergent nozzle?
Convergent nozzles accelerate subsonic flow while convergent-divergent nozzles can accelerate flow to supersonic speeds.
Exactly! In a convergent nozzle, as the area decreases, the velocity of the gas increases. This is true until the Mach number reaches 1. Can anyone define what choked flow is?
Choked flow occurs when the flow reaches Mach 1 at the throat of the nozzle.
Correct! Once choked, the mass flow rate is maximized and independent of downstream pressure. But what happens beyond this point?
It turns into supersonic flow in a diverging section.
Exactly! In contrast, in a divergent nozzle, as the area increases, the velocity of the gas continues to increase for supersonic flow. Hence, itβs crucial to understand the area-Mach number relation.
In summary, understanding how flow transitions through nozzles is essential for effectively utilizing them in propulsion and energy systems.
Choked Flow and Shocks
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Next, letβs discuss choked flow and normal shocks. Who remembers what choked flow signifies in compressible flow?
Itβs when the flow reaches Mach 1, and the mass flow rate is maximized and doesn't change with downstream conditions.
Great! Itβs a critical condition in many applications. Now, what about normal shocks?
Normal shocks are abrupt changes in flow properties when the flow moves from supersonic to subsonic.
Exactly! These shocks lead to several changes: a decrease in Mach number, and an increase in pressure, temperature, and entropy. What does that tell us about entropy in this case?
Entropy increases across a normal shock, meaning the process isnβt isentropic.
Correct! Understanding these phenomena is crucial for engineers dealing with high-speed aerodynamics. To summarize, choked flow signifies critical speeds, while shocks represent abrupt, irreversible changes that affect the flow state and efficiency.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The Basics of Compressible Flow section covers the essential principles associated with fluid dynamics when density changes significantly. It discusses the governing equations, stagnation properties, flow characteristics through nozzles, and key phenomena like choked flow and normal shocks, highlighting their implications in engineering applications.
Detailed
Basics of Compressible Flow
Compressible flow refers to the behavior of fluids, primarily gases, whose density varies significantly with changes in pressure and temperatureβmost commonly observed when the Mach number exceeds 0.3. This section introduces the governing equations of compressible flow, including the continuity, momentum, and energy equations, as well as the ideal gas law which serves as the equation of state.
Stagnation Properties
The concept of stagnation properties is fundamental in compressible flow, representing the conditions a fluid would reach if it were brought to rest isentropically. Key stagnation properties are:
- Stagnation Temperature (Tβ): Relates temperature to Mach number and specific heat ratio.
- Stagnation Pressure (Pβ): Adjusted for Mach number to account for pressure changes.
- Stagnation Enthalpy (hβ): Combines internal energy and kinetic energy.
Isentropic Flow and Nozzles
Isentropic flow occurs in nozzles, both convergent and convergent-divergent, facilitating the acceleration of gases. The section emphasizes the area-Mach number relationship and the phenomenon of choked flow where the Mach number reaches 1 at the throat, highlighting subsonic and supersonic flow behaviors.
Choked and Normal Shocks
Choked flow represents maximum mass flow with independence from downstream pressure, while normal shocks depict abrupt changes in flow properties within supersonic conditions, affecting Mach number, pressure, temperature, and entropy.
Ideal Gas Tables and Real Fluids
The use of ideal gas tables is introduced for calculating properties during isentropic flows and normal shocks. The section also addresses the complexities of real fluids, such as steam and refrigerants, requiring specialized tables and considerations for phase changes and non-ideal behaviors.
Diffusers
The final part of this section explains the role of diffusers in compressible flow, where they convert kinetic energy into pressure, and describes their operation in both subsonic and supersonic regimes.

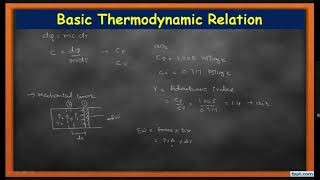

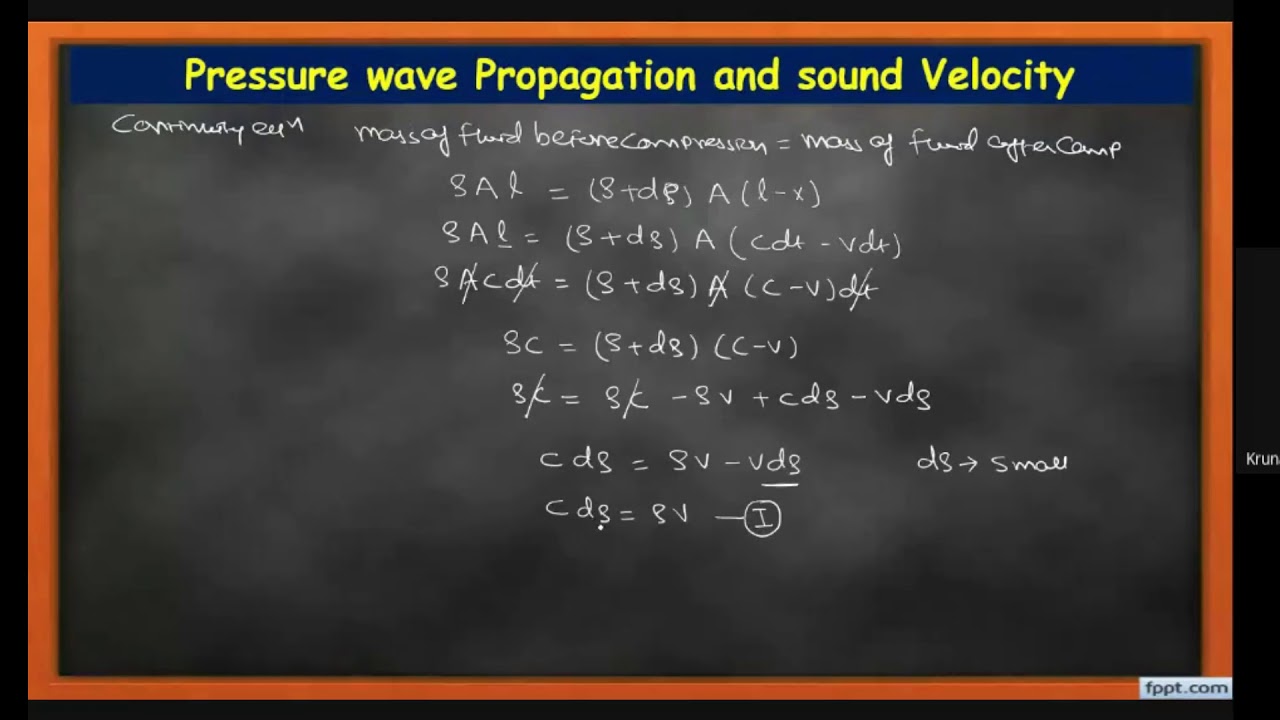

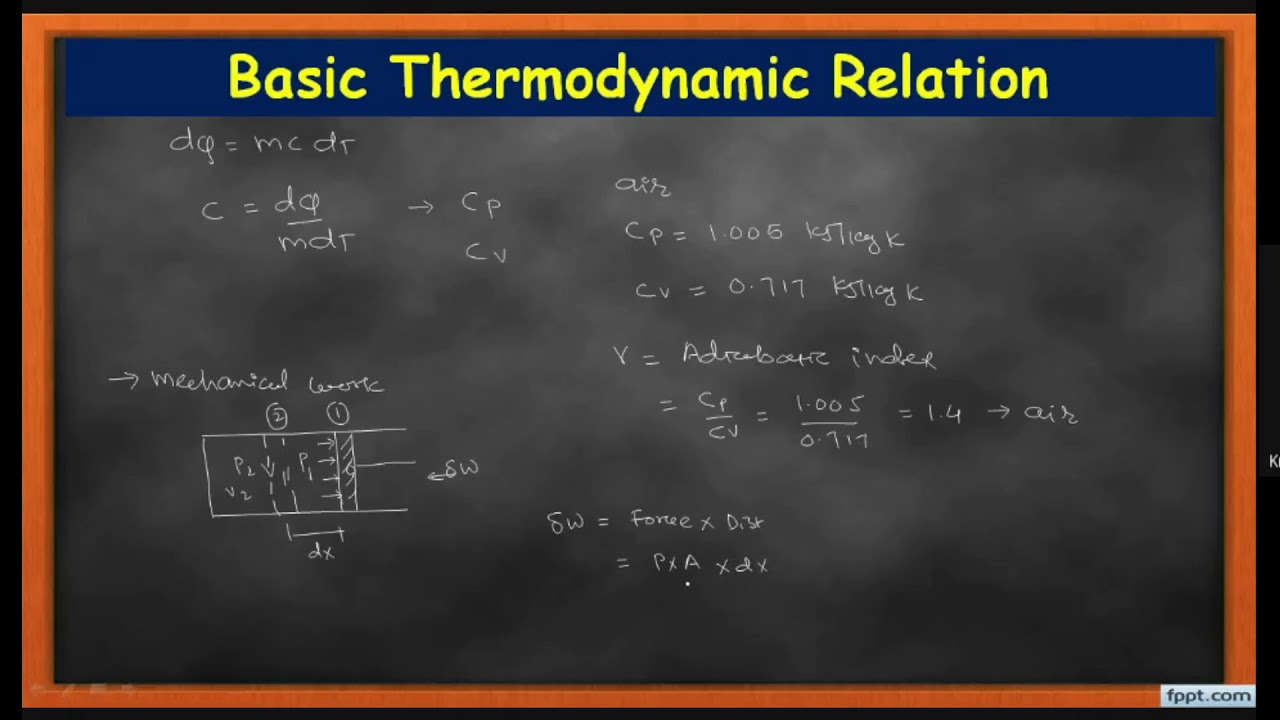

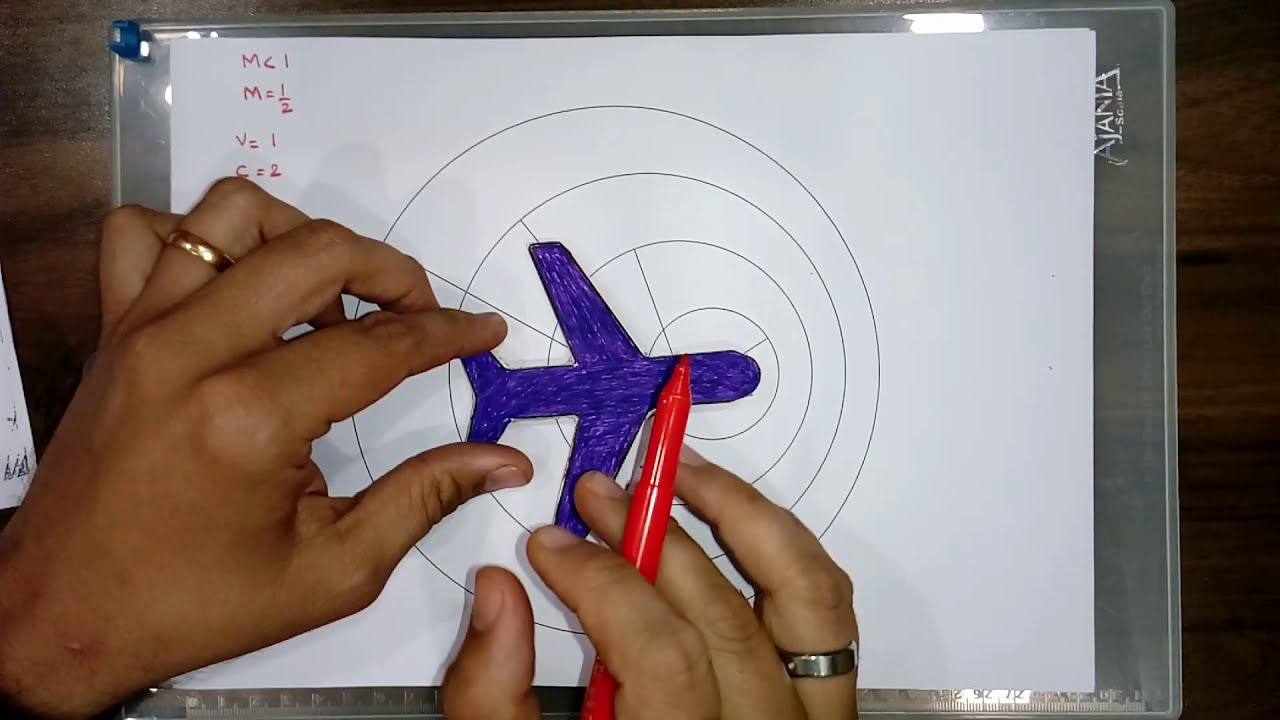

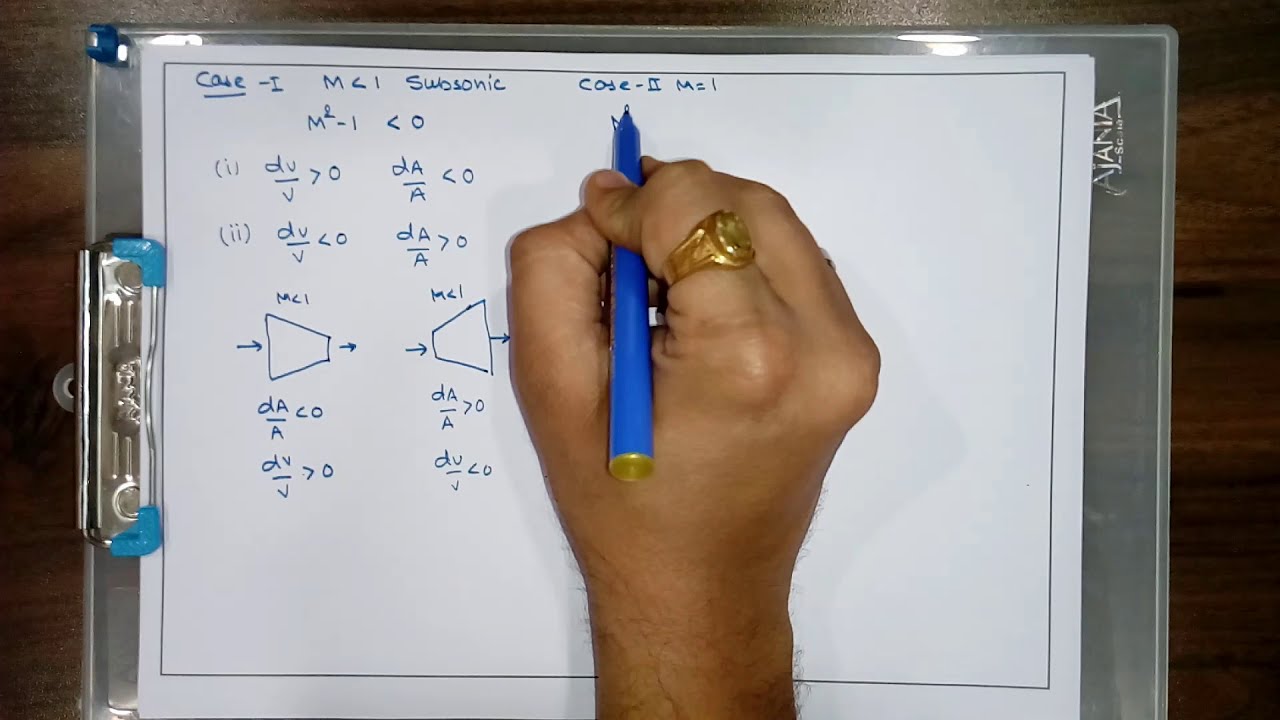

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Compressible Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
β Compressible flow deals with fluids whose density changes significantly with pressure and temperature.
β Typically applies to gases at high velocities (Mach number M>0.3M > 0.3).
Detailed Explanation
Compressible flow refers to the behavior of fluids (predominantly gases) when their density changes significantly due to variations in pressure and temperature. This behavior is crucial in scenarios where fluids travel at high velocities, specifically when the Mach number exceeds 0.3. The Mach number is a dimensionless quantity used in fluid dynamics to represent the ratio of the fluid's speed to the speed of sound in that medium. Hence, in high-speed flows, especially gases, compressibility effects become important and must be considered in analysis.
Examples & Analogies
Think of compressible flow like a balloon filled with air. When you squeeze the balloon, the pressure increases, and the air gets 'compressed,' leading to a change in density. Similarly, when gases are forced through engines or nozzles at speeds greater than a certain threshold, their density varies significantly, just like the air in the balloon under pressure.
Governing Equations of Compressible Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
β Governing equations include:
β Continuity equation
β Momentum equation
β Energy equation
β Equation of state (Ideal Gas Law)
Detailed Explanation
The behavior of compressible flow is mathematically described by several key equations. The continuity equation ensures mass conservation, expressing how mass flows through a control volume. The momentum equation relates to the forces acting on the fluid, providing insight into how the fluid accelerates. The energy equation covers the relationship between the thermal energy of the fluid and its velocity. Finally, the equation of state, often the Ideal Gas Law, connects pressure, volume, and temperature for an ideal gas, helping to quantify the effects of compressibility in the flow.
Examples & Analogies
Imagine a crowded concert where people move from one area to another. The 'continuity equation' is like ensuring everyone gets out without leaving someone behind (mass conservation). The 'momentum equation' is like understanding how a wave of people flows through the crowd, pushing others along. The 'energy equation' reflects how excited the crowd's energy changes as they move faster or slower, while the 'Ideal Gas Law' is like recognizing that not everyone can fit into one part of the venueβthe conditions of pressure and space matter.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Compressible Flow: Refers to the behavior of gases where density changes significantly with pressure and temperature under high velocities.
-
Stagnation Properties: Key properties like stagnation temperature, pressure, and enthalpy that represent the state of fluid when at rest.
-
Choked Flow: Condition where the flow speed reaches Mach 1 at a constriction, maximizing mass flow rate.
-
Normal Shock: Abrupt change in flow properties in supersonic flows that lead to a decrease in Mach number.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a converging nozzle, as the cross-sectional area decreases, the gas velocity increases until reaching Mach 1 at the throatβa demonstration of choked flow.
-
During a supersonic flight, shock waves form around aircraft, leading to sudden changes in pressure and raising the importance of understanding normal shocks.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
In compressible flows, the speed must show, as density changes when velocities go!
π Fascinating Stories
-
Imagine a race car speeding down a highway. As it accelerates, the air density around it changes, creating waves of pressure behind. This is similar to compressible flow where gases behave differently at high speedsβunderstanding this is key for engineers.
π§ Other Memory Gems
-
Remember 'S-C-C-N' for the key topics: Stagnation, Choked flow, Compression, Normal shocks!
π― Super Acronyms
To recall stagnation properties, use 'TPS'
- T: for stagnation temperature
- P: for stagnation pressure
- and S for stagnation enthalpy.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Compressible Flow
Definition:
Flow where the density of the fluid changes significantly with pressure and temperature, commonly observed in gases at high velocities.
-
Term: Mach Number
Definition:
A dimensionless quantity representing the ratio of the speed of a fluid to the speed of sound in that fluid.
-
Term: Stagnation Properties
Definition:
The properties of a fluid when brought to rest isentropically, including stagnation temperature, pressure, and enthalpy.
-
Term: Choked Flow
Definition:
A condition where the flow velocity reaches the speed of sound (Mach 1) at a constriction, allowing maximum mass flow rate.
-
Term: Normal Shock
Definition:
A discontinuity in a supersonic flow where properties abruptly change, leading to a decrease in Mach number.
-
Term: Isentropic Process
Definition:
A process that is both adiabatic and reversible, meaning no heat is exchanged, and entropy remains constant.
-
Term: Ideal Gas Law
Definition:
An equation of state for an ideal gas that relates pressure, volume, and temperature.
