Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Basic Rankine Cycle
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we'll discuss the Basic Rankine Cycle, which is crucial for steam power plants. It involves an isentropic process, constant pressure heating, expansion through turbines, and heat rejection in condensers.
Can you explain what isentropic means?
Great question! Isentropic refers to a process that is both adiabatic and reversible, meaning no heat is lost or gained during compression or expansion. This ensures maximum efficiency.
Whatβs the significance of calculating thermal efficiency in this cycle?
Thermal efficiency indicates how well the cycle converts heat into work. For example, Ξ· = (h3 - h4) - (h2 - h1) / (h3 - h2) helps us understand performance.
That makes sense! How can we improve the efficiency?
Efficiencies can be improved through superheating, reheating, and regeneration. Each method helps in maintaining the highest possible average temperature of heat addition.
So, these methods directly influence the heat input and performance. Thatβs interesting!
Exactly! To summarize, the Basic Rankine Cycle consists of four processes and its efficiency can be enhanced with various modifications. Understanding these helps in designing more efficient power plants.
Exergy Analysis of Rankine Cycle
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's talk about exergy analysis. Can someone tell me what exergy represents?
Isn't it the potential to do useful work?
Correct! Exergy indicates the maximum amount of useful work that can be derived from a system. It helps identify inefficiencies within our components.
What happens when we have exergy destruction?
Exergy destruction points out inefficiencies, indicating a lack of performance in components like boilers and turbines. This ultimately affects the overall cycle efficiency.
How do we calculate exergy balance?
Itβs represented by: Exergy input - Exergy output = Exergy destroyed. This balance is crucial for optimizing our systems.
So, improving that balance means increasing our efficiency?
Absolutely! To conclude, exergy analysis is vital for understanding and improving the performance of vapor power cycles.
Supercritical Cycles
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's shift our focus to supercritical Rankine cycles. What do you think characterizes these cycles?
They operate above the critical pressure, right?
Exactly! Supercritical cycles operate above 22.1 MPa, and ultra-supercritical cycles exceed 25 MPa. This results in better thermal efficiency and no distinct phase change.
Why do they achieve higher efficiencies?
Higher pressure and temperature increase efficiency. Plus, the continuous phase transition reduces energy losses.
Do these cycles have any downsides?
Yes, they require advanced materials to handle the extreme conditions. However, the advantages often outweigh the challenges, especially in modern power plants.
So, they are a key part of advancing power technology?
Precisely! Supercritical and ultra-supercritical cycles are becoming increasingly dominant in power generation. In summary, their efficiency lies in high operating pressures and the absence of phase change.
Combined Gas and Vapor Power Cycles
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Finally, let's discuss combined gas and vapor power cycles, such as what we're seeing in combined cycle gas turbine plants.
How do these cycles work together?
They combine the Brayton cycle from gas turbines and the Rankine cycle from steam turbines, utilizing the high-temperature exhaust from the gas cycle to heat the steam cycle.
What are the benefits of this integration?
The main advantage is a significant increase in overall thermal efficiency. It optimizes fuel use and output.
Are these systems common?
Yes, they are widely used in power generation facilities, particularly for meeting the growing energy demands sustainably.
So they are crucial for future energy solutions!
Absolutely! To conclude, combined gas and vapor cycles represent a step towards more efficient energy production.
Vapor Compression Refrigeration Cycle
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now we will look at the vapor compression refrigeration cycle, a significant part of modern refrigeration systems. Can anyone name the key components?
Sure, they include the compressor, condenser, expansion valve, and evaporator, right?
Exactly! These components work together to cycle refrigerant through the system. What is the overall process?
The process starts with isentropic compression, followed by heat rejection, throttling, and ends with heat absorption.
Well done! And how do we calculate efficiency in this cycle?
We use the Coefficient of Performance or COP formula, right?
Thatβs correct! The COP = Q_L / W, where heat removed divided by work input gives us a measure of efficiency.
What properties should refrigerants have?
Ideal properties include high latent heat, low boiling points, and minimal environmental impact, including low ozone depletion potential.
To wrap up, understanding the vapor compression cycle and its components is essential for anyone working with refrigeration technologies.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on the basic Rankine cycle as the ideal cycle for steam power plants, including its processes, efficiency, modifications for improved thermal performance, and the exergy analysis. Additionally, it covers supercritical cycles and gas power cycles, highlighting their operational mechanisms and efficiency enhancements.
Detailed
Detailed Summary of Vapor Power Cycles
The vapor power cycle is a critical concept in thermodynamics, particularly for steam power plants, where the Rankine cycle serves as its idealized representation.
1. Basic Rankine Cycle
The ideal Rankine cycle involves four key processes:
- Isentropic Compression (Pump): Water is pressurized to the boiler pressure.
- Constant Pressure Heat Addition (Boiler): Heat is added at a constant pressure to generate steam.
- Isentropic Expansion (Turbine): Steam expands in the turbine, producing work.
- Constant Pressure Heat Rejection (Condenser): Steam is condensed back to liquid, completing the cycle.
The thermal efficiency (Ξ·) of the cycle can be calculated from the enthalpy differences involved:
; Ξ· = (h3 - h4) - (h2 - h1) / (h3 - h2)
2. Modifications to Improve Efficiency
Adjustments such as superheating, reheating, and regeneration can enhance cycle efficiency. Superheating raises the average temperature of heat addition, whereas reheating uses multiple expansions. Regeneration preheats the feedwater using extracted steam from the turbine, optimizing the performance.
3. Exergy Analysis of Rankine Cycle
Exergy measures the useful work potential, highlighting inefficiencies within cycle components. An exergy analysis helps identify and mitigate irreversibilities.
4. Supercritical and Ultra-Supercritical Rankine Cycles
These cycles operate beyond the critical pressure of water, achieving higher thermal efficiencies due to continuous liquid-vapor transitions. However, they require advanced materials due to their operational conditions.
5. Gas Power Cycles
The section also briefly covers gas power cycles, including the Otto, Diesel, and Brayton cycles. Each cycle has unique characteristics and efficiencies based on compression and heating methods, with the Brayton cycle being vital for gas turbines.
6. Combined Gas and Vapor Power Cycles
By integrating Brayton and Rankine cycles, thermal efficiency is significantly enhanced. This method is prominently featured in modern combined cycle gas turbine (CCGT) power plants.
7. Vapor Compression Refrigeration Cycle
Furthermore, the vapor compression cycle is introduced, a fundamental process in refrigeration systems, along with the essential properties and common refrigerants.

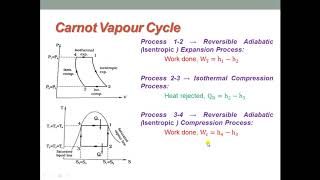

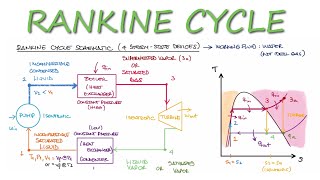

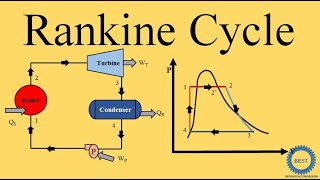

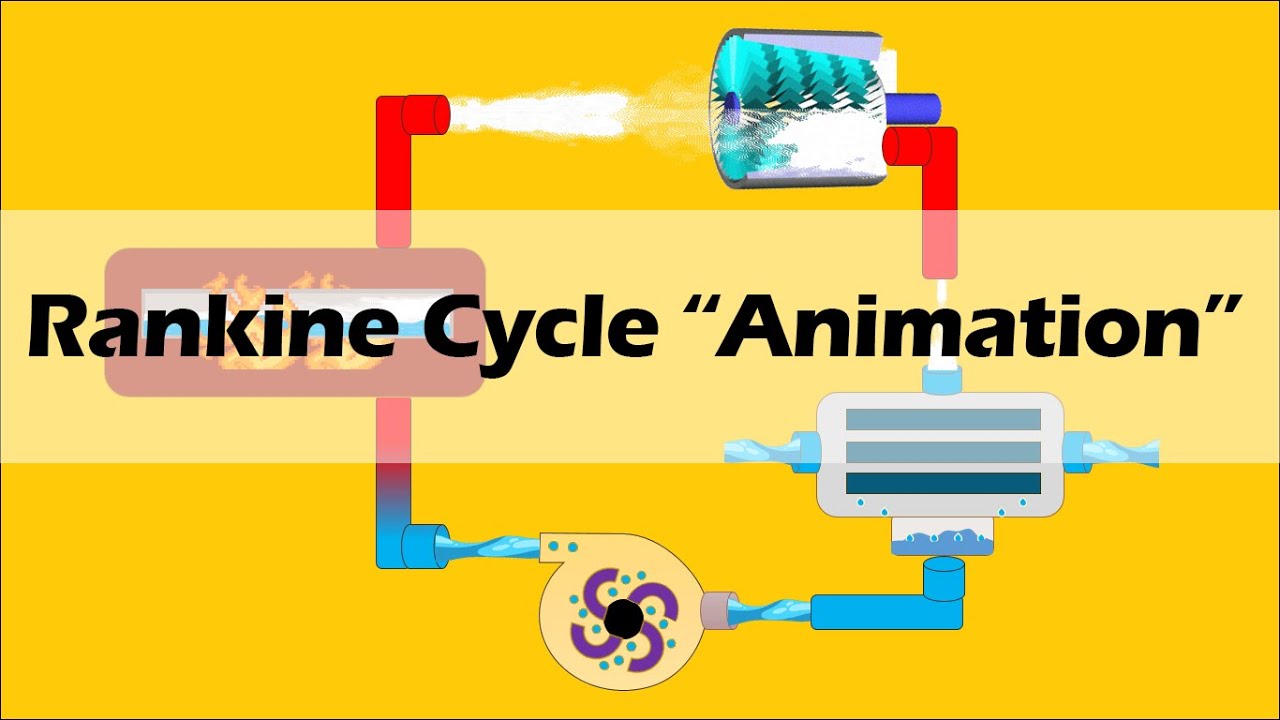

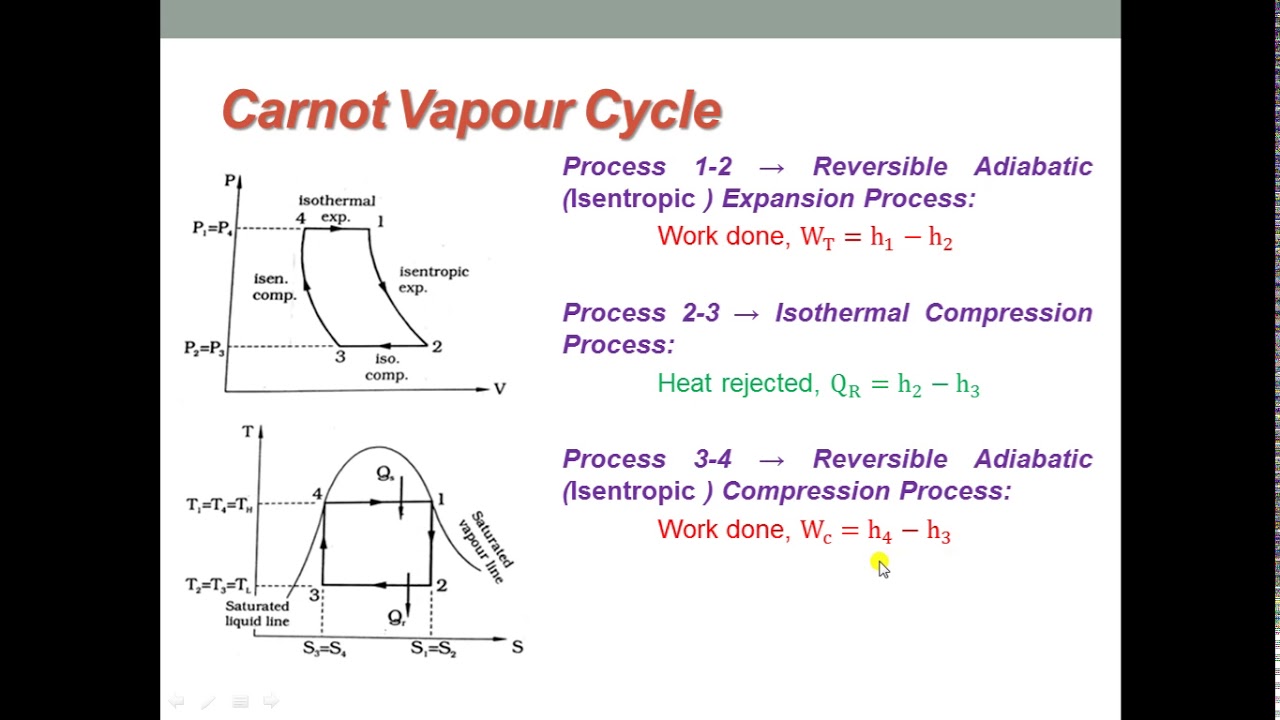

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.

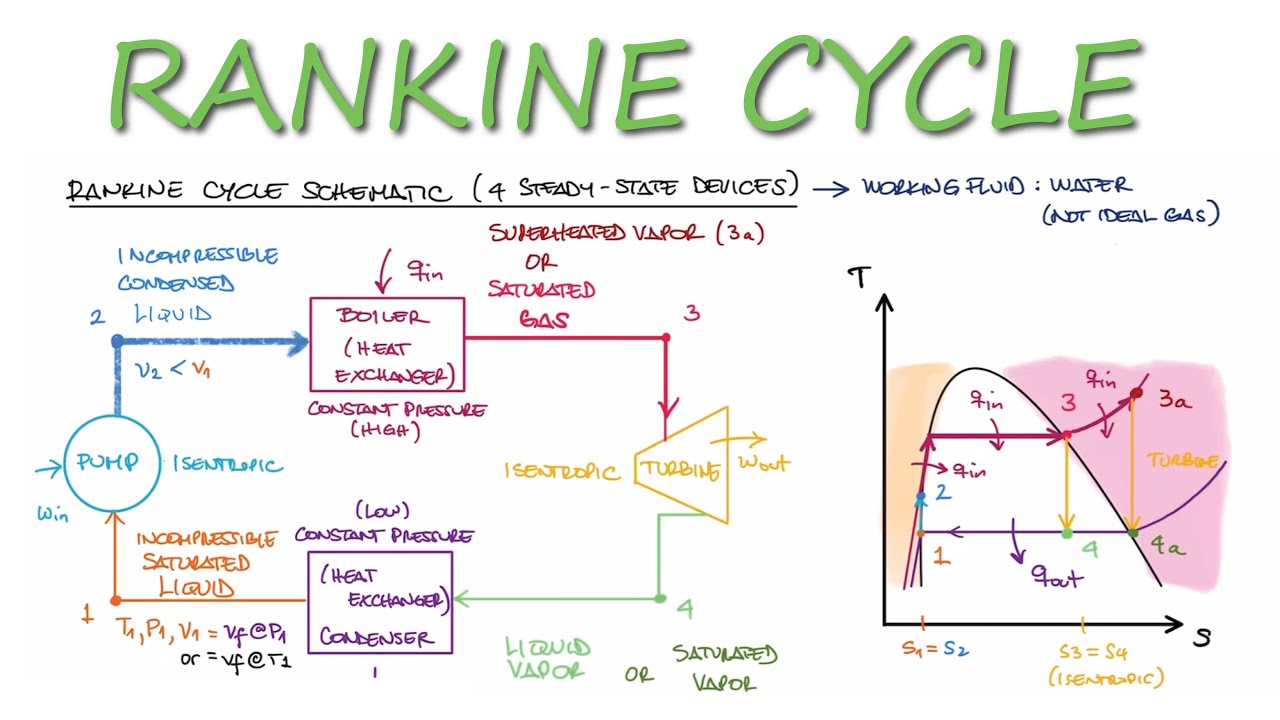

Basic Rankine Cycle
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
β Ideal cycle for steam power plants
β Processes:
1. Isentropic compression (pump)
2. Constant pressure heat addition (boiler)
3. Isentropic expansion (turbine)
4. Constant pressure heat rejection (condenser)
β Thermal efficiency:
Ξ·=WnetQin=(h3βh4)β(h2βh1)h3βh2Ξ· = \frac{W_{\text{net}}}{Q_{\text{in}}} = \frac{(h_3 - h_4) - (h_2 - h_1)}{h_3 - h_2}
Detailed Explanation
The Basic Rankine Cycle is a fundamental thermodynamic cycle used in steam power plants to convert heat into mechanical energy. It consists of four key processes:
1. Isentropic Compression (Pump): The liquid water is pressurized by a pump, ensuring that there are no changes in entropy, which means that the process is efficient without heat loss.
2. Constant Pressure Heat Addition (Boiler): The pressurized water enters the boiler, where it is heated at constant pressure until it converts into steam.
3. Isentropic Expansion (Turbine): The high-pressure steam then flows into a turbine where it expands and does work, converting thermal energy into mechanical energy. Again, this process is isentropic, implying a reversible expansion without heat loss.
4. Constant Pressure Heat Rejection (Condenser): Finally, the steam enters the condenser, where it releases heat to the surroundings at a constant pressure and converts back to liquid water, ready to restart the cycle.
The thermal efficiency of the cycle is expressed in a formula that compares the net work produced to the heat added. It reflects how efficiently the cycle converts heat to work and is determined by the enthalpy values at different stages of the cycle.
Examples & Analogies
Think of the Rankine cycle like a water wheel in a river. Just as the wheel rotates when water flows over it, gaining energy, the turbine in the Rankine cycle gains energy from the steam flowing through it. The initial pumping of water (the river's water) builds up pressure, just like a water dam holds water high to create potential energy that can be released as kinetic energy when allowed to flow.
Modifications to Improve Efficiency
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
β Superheating: Increases average temperature of heat addition
β Reheating: Steam is expanded in stages with reheating in between
β Regeneration: Extraction of steam to preheat feedwater, improving thermal efficiency
Detailed Explanation
To enhance the efficiency of the Rankine cycle, several modifications can be made:
1. Superheating: This process involves heating the steam to a temperature higher than the boiling point at a given pressure. By increasing the steam's temperature before it enters the turbine, more energy can be extracted during expansion, thus improving efficiency.
2. Reheating: After the steam has done work in the turbine, it is partially condensed and then reheated before entering the turbine again. This two-stage expansion allows for more work extraction and reduces condensation, resulting in better efficiency.
3. Regeneration: By using some of the steam from the turbine to preheat the feedwater (the water entering the boiler), we take advantage of residual heat, thereby reducing the energy required to heat the water from a cold state. This, in turn, enhances overall thermal efficiency.
Examples & Analogies
Imagine cooking pasta. If you preheat some water before adding in the pasta, it cooks faster than if you start with cold water. This is similar to regeneration in the Rankine cycle, where preheating the feedwater (the cold ingredient) allows for more efficient heating, just like starting with hot water allows for quicker boiling.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Rankine Cycle: A thermodynamic cycle ideal for steam power plants, involving several processes, including heat addition and rejection.
-
Thermal Efficiency: A measure of the effectiveness of a cycle in converting heat into work.
-
Exergy Analysis: A technique used to assess the potential work and inefficiencies within thermodynamic cycles.
-
Supercritical Cycle: A technology that shifts operations to beyond critical thresholds for efficiency gains.
-
Coefficient of Performance (COP): A key indicator of efficiency for refrigeration systems.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example: In a steam power plant utilizing a Rankine cycle, the thermal efficiency can significantly increase with the implementation of regenerative heating techniques.
-
Example: For refrigeration applications, using R-134a allows operation with a high latent heat capacity and low boiling point, making it an effective refrigerant.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
Rankine's four steps are clean and bright, Pump, boil, turn, cool β cycle done right!
π Fascinating Stories
-
Imagine a hero named Rankine, who traveled through a kingdom of steam. He had to pump, heat with a boiler, try and expand for power, and then cool down the kingdom β all to create energy efficiently!
π§ Other Memory Gems
-
For the Rankine Cycle, think 'P-B-E-C': Pump, Boiler, Expansion, Condensation.
π― Super Acronyms
To remember the COP's role in refrigeration, use 'QLW'
- Quality of cooling
- Less Work.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Rankine Cycle
Definition:
An idealized thermodynamic cycle for steam power plants, consisting of isentropic compression, constant pressure heat addition, isentropic expansion, and constant pressure heat rejection.
-
Term: Exergy
Definition:
The maximum useful work potential of a system, taking into account its energy content and the second law of thermodynamics.
-
Term: Supercritical Cycle
Definition:
A cycle that operates above the critical pressure and temperature of a fluid, allowing for higher efficiency through continuous phase changes.
-
Term: Coefficient of Performance (COP)
Definition:
A measure of the efficiency of a refrigeration cycle, calculated as the ratio of heat removed from the cold reservoir to the work input.
-
Term: Refrigerants
Definition:
Substances used in refrigeration cycles for heat transfer, characterized by specific thermal and thermodynamic properties.
