1. Reciprocating Compressors

Welcome everyone! Today, we will be discussing reciprocating compressors. Does anyone know what a reciprocating compressor is?

Is it a type of machine that compresses air or gas?

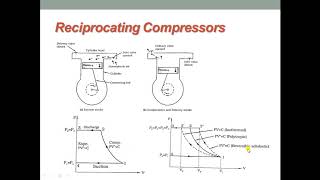

Exactly! Reciprocating compressors are positive displacement machines that use a piston-cylinder arrangement to compress air or gas. They are commonly found in refrigeration systems, air compressors, and gas pipelines.

What are the main components of a reciprocating compressor?

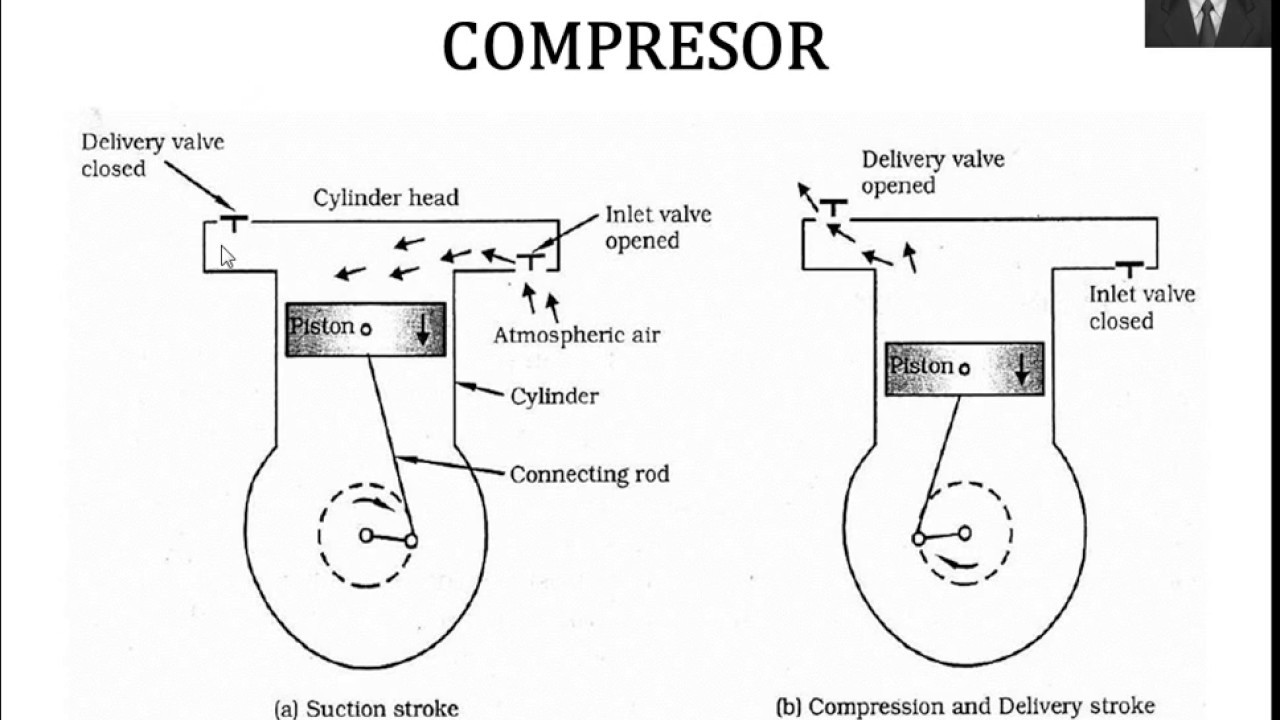

Great question! The key components include the cylinder, piston, inlet and outlet valves, and the crankshaft. These components work together to facilitate the compression process.

How does the compression process work, and what is 'polytropic'?

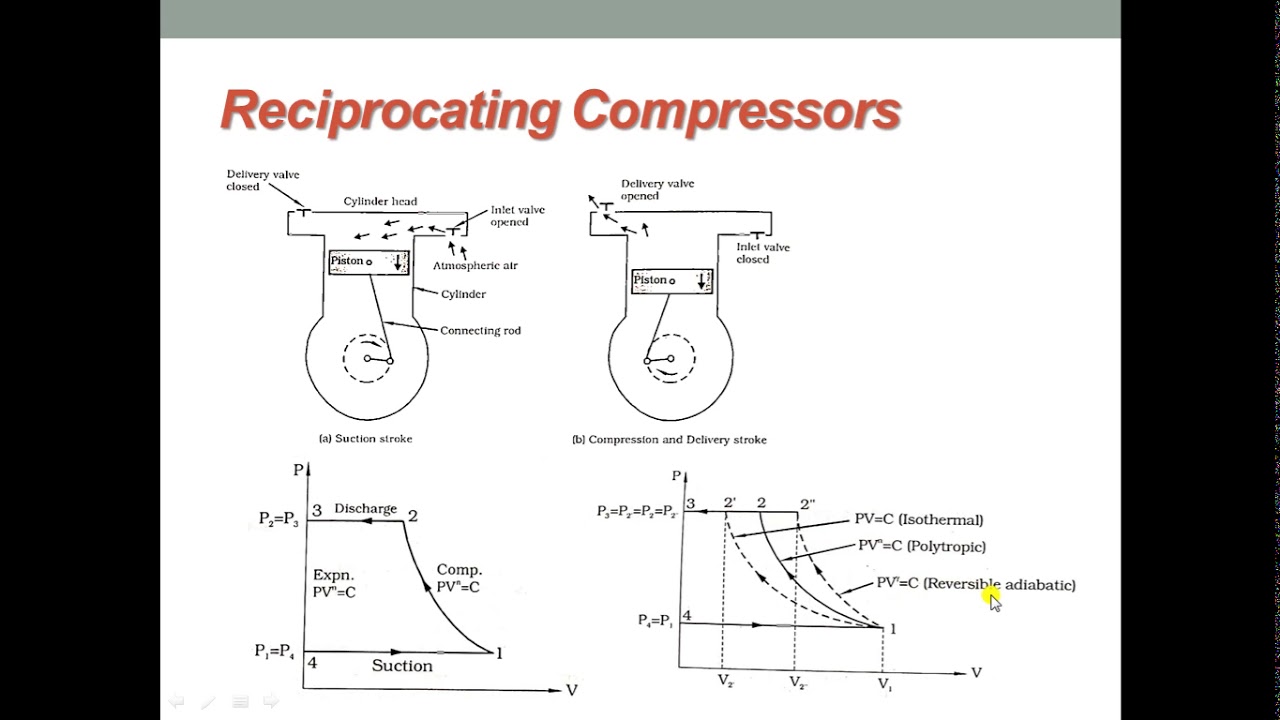

The compression process is often modeled as polytropic, explained by the formula $PV^n = \text{constant}$. Here, 'n' represents the polytropic index, which varies depending on the process. Would anyone like to know how to calculate the work input during this process?

Yes, I would!

The work input for polytropic compression is given by: $W = \frac{n}{n - 1} P_1 V_1 \left[ \left( \frac{P_2}{P_1} \right)^{\frac{n - 1}{n}} - 1 \right]$. This formula helps us determine how much energy is needed to compress the gas.

Let's summarize: Reciprocating compressors use a piston-cylinder mechanism to compress gases, and they have essential components like the cylinder, piston, and valves. The compression process can be described polytropically, involving specific calculations for work input.

In our last session, we discussed the fundamentals of reciprocating compressors. Now, let’s talk about why we use multiple stages in compression.

What are the benefits of using multiple stages?

Excellent question! Multi-stage compression helps reduce the work required compared to single-stage compression. It also allows for better thermal control and improves overall efficiency and mechanical reliability.

How do we calculate the optimal pressure ratio in each stage?

For minimum total work in a two-stage compressor, the intermediate pressure $P_{intermediate}$ should equal $\sqrt{P_1 \cdot P_2}$. This ensures that each stage operates efficiently.

What about when there are multiple stages?

Good point! The general formula for the optimal pressure ratio per stage, when there are $n$ stages, is $\left( \frac{P_2}{P_1} \right)^{\frac{1}{n}}$. This helps distribute the pressure load evenly across each compression stage.

To recap, multi-stage compression is beneficial for minimizing work and improving efficiency. We calculate optimal pressure ratios to enhance performance across multiple stages.

Now let's dive into interpoling. Can anyone tell me what intercooling is?

Is it cooling the air before it enters the next stage of compression?

Exactly! Intercooling involves cooling the air between compression stages using a heat exchanger. This process can be either perfect or imperfect.

What are the advantages of intercooling?

Intercooling reduces the work input, controls discharge temperature, and prevents overheating of components. This leads to enhanced efficiency in the system.

What would you consider is the best case scenario for intercooling?

The ideal scenario is perfect intercooling, where the temperature of the compressed air is brought back down to the inlet temperature before entering the next stage.

To summarize, intercooling is essential for improving compressor performance by reducing work, controlling temperature, and improving component longevity. Remember, perfect intercooling is the goal!

In our previous session, we talked about intercooling. Now let’s explore how to achieve minimum work for multistage compressors.

What conditions must be met for this minimum work?

Great question! Minimum work is achieved when intercooling is perfect, stage pressure ratios are equal, and clearance volume is minimized during compression.

What happens if these conditions aren't met?

If the conditions are not met, the efficiency of the compressor declines and more energy is consumed, leading to increased operational costs.

Can you tell us the formula for calculating minimum work?

Certainly! The total minimum work for ideal multistage compression with intercooling is given by: $W_{min} = n \cdot \frac{P_1 V_1}{k - 1} \left[ \left( \frac{P_2}{P_1} \right)^{\frac{k - 1}{kn}} - 1 \right]$. This formula considers the number of stages and the inlet condition.

To recap, achieving minimum work in multistage compressors is critical for efficiency and cost-effectiveness. Conditions such as perfect intercooling and equal pressure ratios are fundamental.
