11.6. RESISTANCE OF A SYSTEM OF RESISTORS

Interactive Audio Lesson

Session 1: Understanding Resistors in Series

Unlock the classroom podcast

The transcript is above and free to read. A free account plays the conversation back.

Create a free account
Sarah
SarahInstructor

Let's start by understanding what happens when resistors are connected in series. Can anyone tell me what their current would measure in such a setup?

Noah
Noah

I think the current should be the same throughout?

Sarah
SarahInstructor

Correct! In a series connection, the same current flows through each resistor. Remember, we can represent this with the acronym IS - 'I Same' for Series.

Akash
Akash

And what if we want to calculate the total resistance?

Sarah
SarahInstructor

Good question! The total resistance in a series is simply the sum of all individual resistances. We can express it as R = R1 + R2 + R3.

Isabella
Isabella

What about the voltage across each resistor?

Sarah
SarahInstructor

The total voltage is the sum of voltages across each resistor, as per Ohm's law, V = I x R. Remember—Voltage adds up in a series!

Sarah
SarahInstructor

So to recap, in series circuits, we have the same current throughout, the total resistance is the sum of individual resistances, and the total voltage is divided among the resistors.

Session 2: Exploring Resistors in Parallel

Unlock the classroom podcast

The transcript is above and free to read. A free account plays the conversation back.

Create a free account
Robert
RobertInstructor

Great job on series! Now, how do resistors behave when connected in parallel?

Ananya
Ananya

I think each resistor will have the same voltage across it?

Robert
RobertInstructor

Exactly! In a parallel arrangement, all resistors experience the same voltage. You can remember this with the mnemonic 'V for Voltage Equal.'

Noah
Noah

So, how do we find the total current in the circuit?

Robert
RobertInstructor

The total current is the sum of the currents through each parallel branch, I = I1 + I2 + I3. That's a big difference from series!

Isabella
Isabella

And how about equivalent resistance?

Robert
RobertInstructor

The equivalent resistance for resistors in parallel is given by the formula 1/R_total = 1/R1 + 1/R2 + 1/R3. So the total resistance actually decreases when you add more resistors in parallel.

Robert
RobertInstructor

To wrap up, keep in mind that voltage in parallel is the same, total current is the sum, and the formula for total resistance is a reciprocal one.

Session 3: Application of Resistors in Circuits

Unlock the classroom podcast

The transcript is above and free to read. A free account plays the conversation back.

Create a free account
Sarah
SarahInstructor

Now let’s connect what we just learned to real-world applications. Why do you think we use a combination of series and parallel circuits in our homes?

Akash
Akash

I know in parallel we can have different devices that can operate independently.

Sarah
SarahInstructor

Exactly! In a parallel configuration, if one device fails, others can still operate, preserving function in our homes.

Ananya
Ananya

What about the series circuits?

Sarah
SarahInstructor

Series are used where the same current is required, such as Christmas lights. Remember, if one bulb goes out, the whole circuit can go dark!

Noah
Noah

How can we calculate total resistance if we have both series and parallel combined in one circuit?

Sarah
SarahInstructor

You tackle them step by step! Calculate the total resistance for series components together, then substitute that into your parallel calculations.

Sarah
SarahInstructor

Let’s summarize: Series circuits keep the same current; parallel circuits allow for independent operation, and combining them requires careful calculations.

Overview

Short Summary

This section covers the behavior and characteristics of resistors connected in series and parallel configurations, highlighting their impacts on current, voltage, and overall resistance.

Medium Summary

In this section, students learn how resistors behave when connected in series versus parallel. The section provides insights into how current remains constant in series connections while the voltage is divided, and how total resistance can be calculated for different configurations, emphasizing the practical applications of these concepts.

Detailed Summary

Resistors in Series and Parallel

This section explores two fundamental configurations for connecting resistors in an electric circuit: series and parallel connections. In a series circuit, the same current flows through each resistor, resulting in a total resistance equal to the sum of individual resistors. Understanding this allows for the calculation of total voltage across the circuit using Ohm's Law, which states that the total potential difference across the series combination is equal to the sum of the potential differences across each resistor.

In contrast, in a parallel configuration, the total current is the sum of the currents through each branch, and the voltage across each resistor is the same. The equivalent resistance in parallel is calculated using the reciprocal formula as it results in a lower total resistance overall. This differentiates the applications of series and parallel configurations in practical electrical systems, such as household wiring and circuit design.

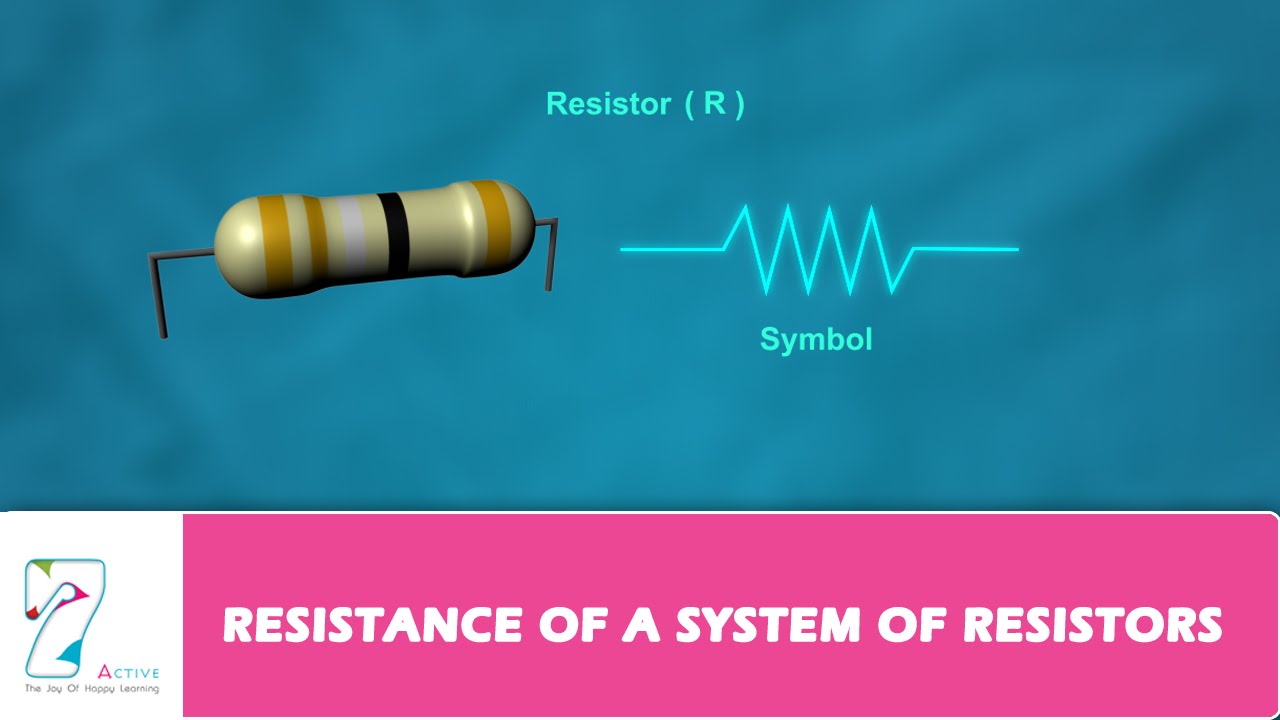

Reference YouTube Videos

Audio Book

Voice:
Resistors in Series

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

What happens to the value of current when a number of resistors are connected in series in a circuit? What would be their equivalent resistance? Let us try to understand these with the help of the following activities.

Join three resistors of different values in series. Connect them with a battery, an ammeter and a plug key. You may use the resistors of values like 1 Ω, 2 Ω, 3 Ω etc., and a battery of 6 V for performing this Activity.

Detailed Explanation

When resistors are connected in series, the same current flows through each resistor. By measuring the current with an ammeter at different positions in the circuit, you will find that the current remains constant regardless of where you measure it. The total voltage across the combination of resistors is equal to the sum of the individual voltage drops across each resistor. Mathematically, if you denote the total voltage as V, and the individual resistances as R1, R2, and R3, then the total potential difference across the series combination, V = V1 + V2 + V3, holds true. The equivalent resistance Rᵢ for resistors in series can be calculated using the formula Rᵢ = R1 + R2 + R3.

Examples & Analogies

Imagine a long line of people passing a message from one to another. Each person (resistor) has to then pass the message (electric current) along to the next. The same message flows through everyone in sequence, just like current flows through each resistor in series. If one person stops passing the message (as in a faulty resistor), the entire process halts, showing that the entire series depends on every individual part functioning.

Voltage in Series Resistors

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

In Activity 11.4, insert a voltmeter across the ends X and Y of the series combination of three resistors. Plug the key in the circuit and note the voltmeter reading. It gives the potential difference across the series combination of resistors. Now measure the potential difference across the two terminals of the battery.

Detailed Explanation

Connecting a voltmeter in parallel to the series combination of resistors allows us to measure the total voltage across all resistors at once. Then, by measuring the voltage across each individual resistor, you can see how the voltage divides across each component. If you note the voltages across each resistor, they will add up to equal the total voltage from the battery, confirming the relationship V = V1 + V2 + V3.

Examples & Analogies

Think of this like water flowing through a series of taps (the resistors). The total amount of water pressure (voltage from the battery) needs to push equally against all taps before it flows into the next part of the system. Each tap uses some of that pressure, reflecting how voltage 'drops' across each resistor in the series.

Equivalent Resistance in Series

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

It is possible to replace the three resistors joined in series by an equivalent single resistor of resistance Rᵢ, such that the potential difference V across it, and the current I through the circuit remains the same. Applying Ohm’s law to the entire circuit, we have V = I Rᵢ.

Detailed Explanation

When resistors are connected in series, you can simplify the circuit by replacing the combination with a single equivalent resistor. This equivalent resistor will be equal to the sum of the resistances of the individual resistors. Thus, using Ohm's Law, knowing the total current and voltage allows you to find the equivalent resistance that would maintain the same electrical behavior as the original combination.

Examples & Analogies

Imagine a long hallway (representing resistors) where you can only pass one person (the current) at a time. If you consolidate this hallway into a smaller one (the equivalent resistor), the same number of people can still move through, but it is more manageable and easier to analyze the flow.

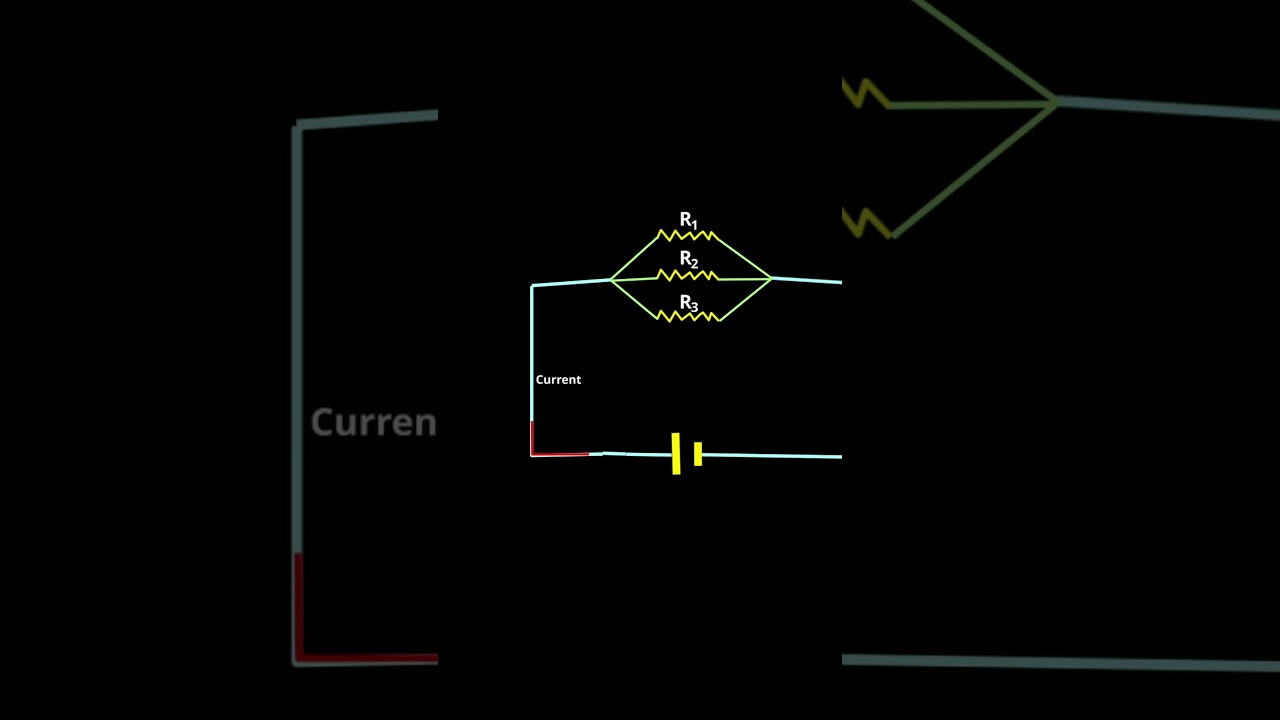

Resistors in Parallel

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

Now, let us consider the arrangement of three resistors joined in parallel. Make a parallel combination XY of three resistors having resistances R1, R2, and R3, respectively. Connect it with a battery, a plug key and an ammeter.

Detailed Explanation

In a parallel circuit, each resistor is connected across the same two points, which means that each one has the same voltage across it. The total current flowing from the battery is divided among the different paths available for current to flow through. Thus, if R1, R2, and R3 represent the individual resistances, the total current (I) is equal to the sum of the currents through each resistor: I = I1 + I2 + I3. The total equivalent resistance in parallel reduces overall current in the circuit, calculated by the formula 1/Rᵢ = 1/R1 + 1/R2 + 1/R3.

Examples & Analogies

It's like a multi-lane highway where cars (the current) can choose different paths (the resistors). Each lane has an equal speed limit (voltage), and cars can take any lane, making traffic flow smoother and faster. The more lanes available, the easier it becomes for cars to move through the area.

--

Key Concepts

Core takeaways and short definitions to help you quickly recall the key ideas from this section.

Series Connection: Resistors in series have the same current; total resistance is the sum of all resistances.

Parallel Connection: Resistors in parallel have the same voltage; total current is the sum of individual currents; use the reciprocal formula for total resistance.

Examples

Step-by-step examples to apply the section's ideas and test your understanding.

1

Example of resistors in series: R1 = 3Ω, R2 = 5Ω → Total Resistance = 3Ω + 5Ω = 8Ω.

2

Example of resistors in parallel: R1 = 6Ω, R2 = 3Ω → Total Resistance = 1/(1/6 + 1/3) = 2Ω.

Memory Aids

Interactive tools to help you remember key concepts

🎵

Rhymes

In series, the current stays, together it flows, it always plays.
📖

Stories

Imagine a racecar track (series) where the same car passes all checkpoints; meanwhile, parallel is like multiple cars on separate tracks, racing independently but sharing the same start line.
🧠

Memory Tools

For voltage in parallel, remember VVP: Voltage is the same across all Paths.
🎯

Acronyms

R = I x V helps you recall Ohm's Law where Resistance equals current times voltage.

Flash Cards

Glossary

Resistance

The property of a material that opposes the flow of electric current, measured in ohms (Ω).

Ohm's Law

A fundamental principle stating that the current through a conductor between two points is directly proportional to the potential difference across the two points.

Voltage

The electric potential difference between two points, measured in volts (V).

Current

The flow of electric charge in a circuit, measured in amperes (A).
