5.4.1. 5.4.1 Geometric Isomerism

This type of isomerism arises in heteroleptic complexes due to different possible geometric arrangements of the ligands. Important examples of this behaviour are found with coordination numbers 4 and 6.

Geometrical isomerism occurs when the ligands in a coordination compound can be arranged in different spatial orientations around the central metal atom. Heteroleptic complexes, which contain two or more different types of ligands, exhibit this kind of isomerism. It is particularly evident when there are coordination numbers 4 and 6, as these arrangements can provide distinct spatial configurations.

Think of geometrical isomerism like arranging furniture in a living room with two different layouts. You can have a 'cis' layout where chairs are placed next to each other, and a 'trans' layout where chairs are opposite each other. Both layouts use the same furniture but have different spatial arrangements, creating different feels in the room.

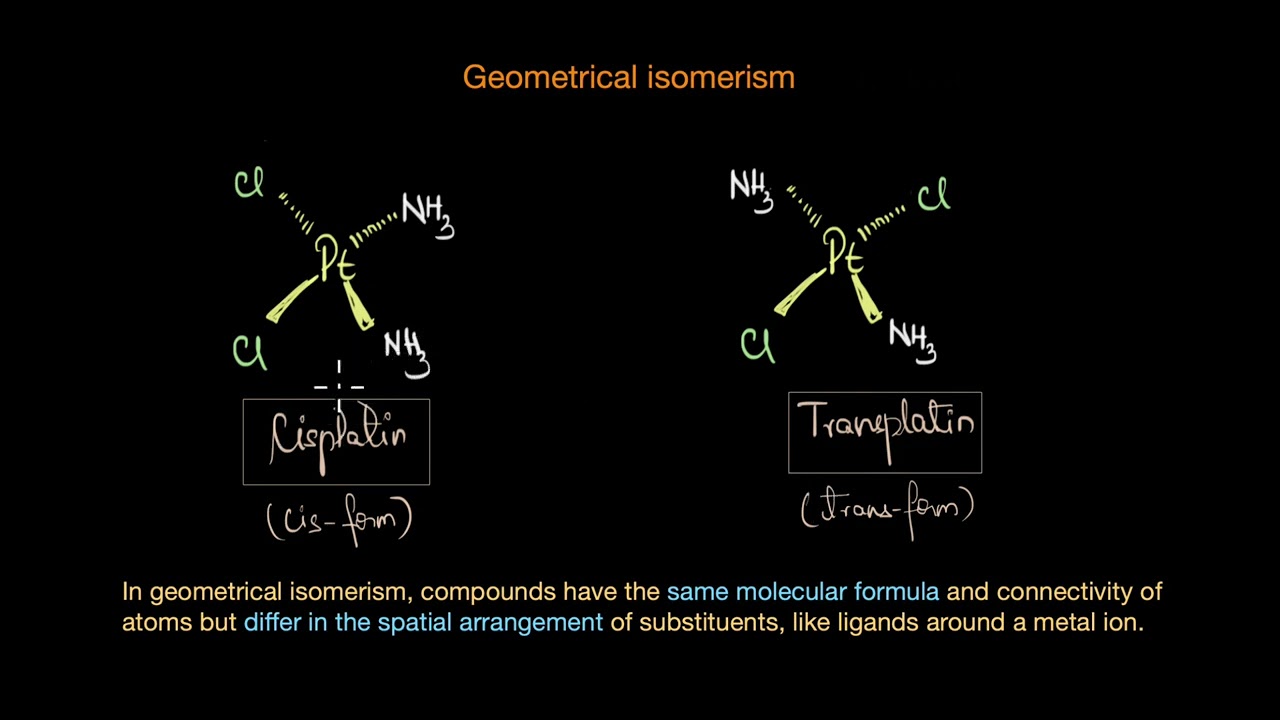

In a square planar complex of formula [MX2L2] (X and L are unidentate), the two ligands X may be arranged adjacent to each other in a cis isomer, or opposite to each other in a trans isomer as depicted in Fig. 5.2.

In square planar complexes, the arrangement of ligands significantly impacts properties such as stability and reactivity. When two identical ligands are adjacent to each other, it is called the 'cis' isomer. Conversely, if the identical ligands are far apart (opposite each other), it forms a 'trans' isomer. Each configuration exhibits unique characteristics and behaviors in chemical reactions.

Imagine a dance formation where dancers can either stand next to each other ('cis') or on opposite sides ('trans'). The overall performance changes based on the formation, just as the properties of a complex change based on its geometrical structure.

Such isomerism is not possible for a tetrahedral geometry but similar behaviour is possible in octahedral complexes of formula [MX2L4] in which the two ligands X may be oriented cis or trans to each other (Fig. 5.3).

In octahedral complexes, geometrical isomerism can occur with ligands that are positioned relative to each other in either a cis or trans orientation. In a configuration with four identical ligands and two different ones, the positioning leads to distinct isomers due to the unique spatial arrangements of the ligands around the central metal. However, tetrahedral complexes do not demonstrate this type of isomerism due to their symmetrical shape.

Think of a pyramid where the apex is fixed, and the base has interchangeable points. In the case of octahedral complexes, you can create different visually distinct shapes by rearranging points at the base. Unlike the tetrahedral setup, which lacks the flexibility to change, the octahedral formation benefits from its geometry allowing for multiple configurations.

Another type of geometrical isomerism occurs in octahedral coordination entities of the type [Ma3b3] like [Co(NH3)3(NO2)3]. If three donor atoms of the same ligands occupy adjacent positions at the corners of an octahedral face, we have the facial (fac) isomer. When the positions are around the meridian of the octahedron, we get the meridional (mer) isomer.

In octahedral complexes with three identical ligands and three different ones, two unique geometrical isomers can arise: fac and mer. The facial (fac) isomer has identical ligands forming a triangle on one face of the octahedron, while the meridional (mer) isomer has identical ligands positioned around the central axis, producing a different three-dimensional structure. This distinction significantly affects the properties and reactivity of the complexes.

Picture the layout of seats in a movie theater. In the fac arrangement, multiple seats (like the ligands) fill one row completely, creating a specific visual group, while in the mer layout, the same number of seats are spread throughout creating a different visual impact due to their positioning. Such arrangements can affect accessibility and viewing experience, much like how properties change in coordination compounds.

--
