13.4 - MASS-ENERGY AND NUCLEAR BINDING ENERGY

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Mass-Energy Equivalence

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're discussing Einstein's mass-energy equivalence. Who can tell me the famous equation he introduced?

Student 1
Student 1

Is it E = mc²?

Teacher
Teacher

Excellent! This equation shows that mass can be converted into energy. Can anyone explain what this means?

Student 2
Student 2

It means that if we lose some mass, we can release a lot of energy!

Teacher
Teacher

Exactly! For instance, if 1 gram of matter is converted to energy, how much energy do we release?

Student 3
Student 3

It releases 9 × 10¹³ joules!

Teacher
Teacher

Great! So, this is the power behind nuclear reactions. Remember this as we move to binding energy. Let’s summarize: E = mc² highlights the interconversion of mass and energy.

Understanding Nuclear Binding Energy

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s talk about nuclear binding energy. What happens when we look at the mass of a nucleus versus its components?

Student 4
Student 4

The mass of the nucleus is actually less than the total mass of the individual protons and neutrons!

Teacher
Teacher

Correct! This difference is called the mass defect. Can anyone tell me why is it significant?

Student 1
Student 1

It shows us how much energy is needed to separate the nucleons!

Teacher
Teacher

Right again! This energy, which is needed to disassemble a nucleus, is the binding energy. Let's summarize: Binding energy reflects how strongly nucleons are held together.

Calculating Binding Energy

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's calculate the binding energy of oxygen-16 now. Who remembers the formula?

Student 2
Student 2

We need to find the mass defect and multiply it by c²!

Teacher
Teacher

Exactly! If the mass defect is 0.13691 u, what is that in MeV?

Student 3
Student 3

It's about 127.5 MeV!

Teacher
Teacher

Perfect! So, the binding energy for separating the nucleons in oxygen-16 requires 127.5 MeV. Remember: binding energy per nucleon is an important concept for nuclear stability.

Binding Energy Per Nucleon

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Next, let’s analyze how binding energy relates to the number of nucleons. What trends do we see?

Student 4
Student 4

The binding energy per nucleon is pretty constant for medium mass nuclei but lower for very light or heavy nuclei!

Teacher
Teacher

Correct! This constancy indicates that there’s a saturation property of nuclear forces. Can anyone provide an example?

Student 1
Student 1

Iron-56 has a maximum binding energy per nucleon around 8.75 MeV.

Teacher
Teacher

Excellent example! Hence, we can conclude that nuclei with more nucleons typically have greater stability. Let’s summarize: medium mass nuclei have stable binding energy around 8 MeV.

Applications of Binding Energy

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Finally, let’s consider the implications of binding energy in fission and fusion. What happens during these processes?

Student 2
Student 2

In fission, heavy nuclei break apart, releasing energy because the fragments are more tightly bound!

Teacher
Teacher

Great point! And what about fusion?

Student 3
Student 3

Lighter nuclei fuse to form heavier ones, which releases energy as well!

Teacher
Teacher

Exactly! The energy released is a result of moving from a less stable arrangement to a more stable one. Remember: nuclear processes release enormous amounts of energy compared to chemical reactions.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section introduces the concept of mass-energy equivalence and explores nuclear binding energy.

Standard

It outlines Einstein's mass-energy equivalence principle, discusses nuclear binding energy, including mass defect and binding energy per nucleon, and emphasizes the significance of these concepts in nuclear reactions.

Detailed

In this section, we delve into the relationship between mass and energy, as introduced by Einstein's famous equation E = mc². This fundamental principle states that mass can be converted into energy and vice versa. The section also elaborates on nuclear binding energy—the energy required to disassemble a nucleus into its constituent protons and neutrons. This energy is crucial in understanding nuclear stability and reactions.

The concept of mass defect is introduced, highlighting how the actual mass of a nucleus is less than the sum of the masses of its individual nucleons due to the energy binding them together. The binding energy per nucleon is presented, illustrating how this value is approximately constant for nuclei of medium mass numbers, and its implications for nuclear reactions such as fission and fusion. The section concludes by discussing energy production through these nuclear processes, emphasizing the efficiency of nuclear reactions compared to chemical reactions.

Youtube Videos

Nuclei 05 : Mass Energy Equivalence II Mass Defect - Binding Energy & Nuclear Stability JEE/NEET
Nuclei 05 : Mass Energy Equivalence II Mass Defect - Binding Energy & Nuclear Stability JEE/NEET
What is Nuclear Binding Energy? (and BE per nucleon curve)
What is Nuclear Binding Energy? (and BE per nucleon curve)
Binding Energy Per Nucleon Versus Mass Number Curve, Features & Conclusion, Class 12 Term 2 2022
Binding Energy Per Nucleon Versus Mass Number Curve, Features & Conclusion, Class 12 Term 2 2022
Mass-Energy and Nuclear Binding Energy || in Hindi for Class 12
Mass-Energy and Nuclear Binding Energy || in Hindi for Class 12
Class 12th – Binding Energy | Nucleus | Tutorials Point
Class 12th – Binding Energy | Nucleus | Tutorials Point

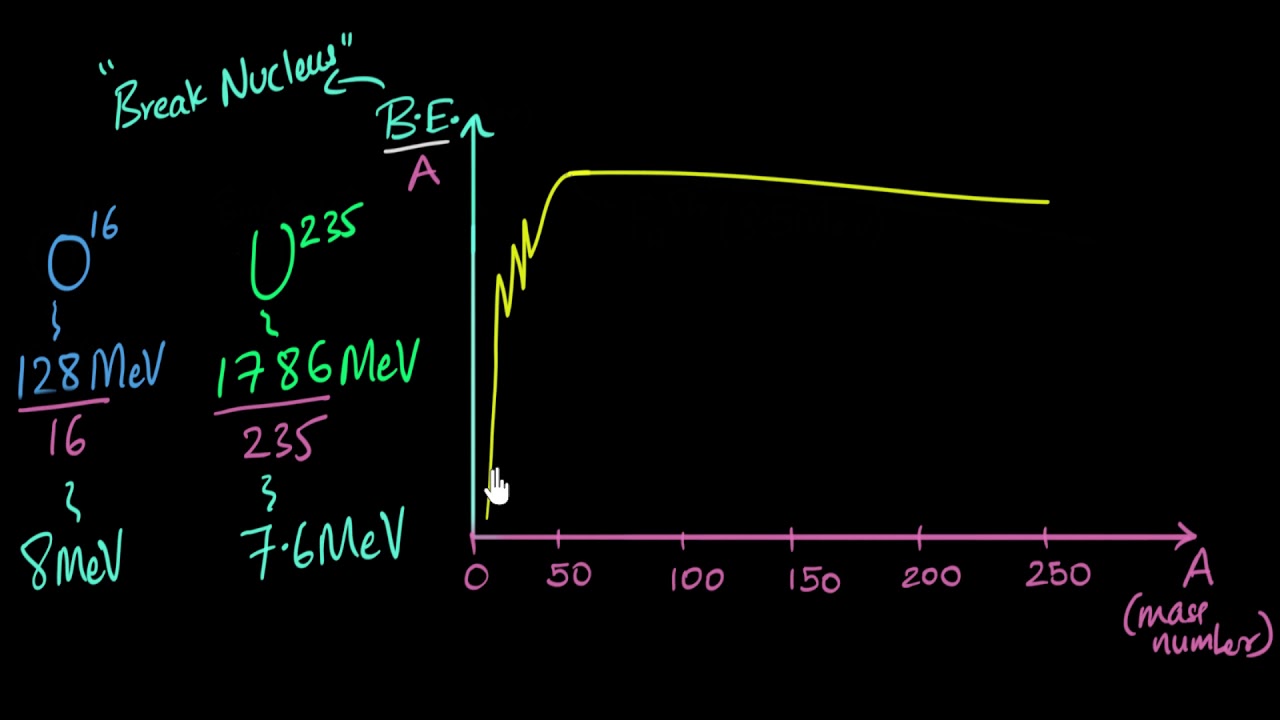

Binding energy graph | Nuclei | Physics | Khan Academy
Binding energy graph | Nuclei | Physics | Khan Academy
Nuclear Binding Energy || 3D Animated explanation || class 12th physics || Atoms & Nuclei ||
Nuclear Binding Energy || 3D Animated explanation || class 12th physics || Atoms & Nuclei ||
21. Binding energy per nucleon, Nuclear fission and fusion | Pledge 2023 | Nuclei | CBSE | NCERT
21. Binding energy per nucleon, Nuclear fission and fusion | Pledge 2023 | Nuclei | CBSE | NCERT
Class 12th Physics | Mass-Energy & Nuclear Binding Energy | Example 13.2 & 13.3 | Chapter 13 | NCERT
Class 12th Physics | Mass-Energy & Nuclear Binding Energy | Example 13.2 & 13.3 | Chapter 13 | NCERT
Nuclear Binding Energy, Mass Defect, Binding Energy Per Nucleon, Class 12 Physics Term 2 2022
Nuclear Binding Energy, Mass Defect, Binding Energy Per Nucleon, Class 12 Physics Term 2 2022

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Mass-Energy Equivalence

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Einstein showed from his theory of special relativity that it is necessary to treat mass as another form of energy. Before the advent of this theory of special relativity it was presumed that mass and energy were conserved separately in a reaction. However, Einstein showed that mass is another form of energy and one can convert mass-energy into other forms of energy, say kinetic energy and vice-versa.

Einstein gave the famous mass-energy equivalence relation

E = mc² (13.6)

Here the energy equivalent of mass m is related by the above equation and c is the velocity of light in vacuum and is approximately equal to 3×10⁸ m s⁻¹.

Detailed Explanation

This chunk discusses the concept of mass-energy equivalence introduced by Albert Einstein. According to his theory of special relativity, mass and energy are not separate entities; they can be converted into each other. The equation E = mc² defines this relationship, where 'E' is the energy, 'm' is the mass, and 'c' is the speed of light squared, highlighting how even a small amount of mass can be converted into a large amount of energy due to the c² factor being a huge number. This is a paradigm shift from earlier beliefs that mass and energy were conserved independently.

Examples & Analogies

Consider a small battery that powers a flashlight. When you turn off the flashlight, the battery has stored energy that gets converted into light energy. In a similar way, when mass is converted in nuclear processes, like in stars, it is transformed into vast amounts of energy—the same principle allows for energy generation in atomic bombs.

Energy Equivalent of Mass

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Example 13.2 Calculate the energy equivalent of 1 g of substance.

Solution
Energy, E = 10⁻³ × (3 × 10⁸)² J
E = 10⁻³ × 9 × 10¹⁶ = 9 × 10¹³ J
Thus, if one gram of matter is converted to energy, there is a release of enormous amount of energy.

Detailed Explanation

This chunk provides an example of calculating the energy equivalent of a small mass (1 gram) using Einstein's equation. Since 1 gram is a very small mass, when calculated through the mass-energy equivalence formula, it shows that even a tiny amount of mass can yield an enormous amount of energy—approximately 90 trillion joules. This immense energy output illustrates why nuclear reactions can release so much energy compared to chemical reactions.

Examples & Analogies

Think of a log of wood. When burned, it releases a certain amount of energy. However, if you could convert that wood into pure energy following Einstein's equation, you would unleash energy equivalent to the power of several atomic bombs from just a small log. This helps to show the potential of mass-energy conversion in nuclear reactions.

Nuclear Binding Energy

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In Section 13.2 we have seen that the nucleus is made up of neutrons and protons. Therefore it may be expected that the mass of the nucleus is equal to the total mass of its individual protons and neutrons. However, the nuclear mass M is found to be always less than this. For example, let us consider 16O; a nucleus which has 8 neutrons and 8 protons.

Mass of 8 neutrons = 8 × 1.00866 u
Mass of 8 protons = 8 × 1.00727 u
Mass of 8 electrons = 8 × 0.00055 u

Therefore the expected mass of 16O nucleus = 8 × 2.01593 u = 16.12744 u.

The atomic mass of 16O found from mass spectroscopy experiments is seen to be 15.99493 u. Subtracting the mass of 8 electrons (8 × 0.00055 u) from this, we get the experimental mass of 16O nucleus to be 15.99053 u. Thus, we find that the mass of the 16O nucleus is less than the total mass of its constituents by 0.13691u.

Detailed Explanation

This chunk discusses nuclear binding energy, emphasizing that the actual mass of a nucleus is always less than the sum of the individual masses of its protons, neutrons, and electrons. This difference in mass is called the mass defect. In the case of Oxygen-16, the expected mass did not account for the binding energy within the nucleus which holds the nucleons together. This binding energy accounts for the missing mass and is a crucial factor in understanding nuclear stability and energy requirements in reactions.

Examples & Analogies

Imagine a group of kids holding hands in a circle. Individually, they have certain weights when standing alone, but when they stand together as a tight circle, they form a 'team' that effectively weighs less than the sum of their individual weights due to a sort of 'mutual strength'—this represents binding energy. The closer they hold hands (or the stronger the binding), the less 'weight' they effectively have, just like nucleons in a nucleus.

Mass Defect and Binding Energy

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The difference in mass of a nucleus and its constituents, ΔM, is called the mass defect, and is given by

ΔM = [Zmp + (A-Z)mn] - M (13.7)

What is the meaning of the mass defect? It is here that Einstein’s equivalence of mass and energy plays a role. Since the mass of the oxygen nucleus is less than the sum of the masses of its constituents (8 protons and 8 neutrons, in the unbound state), the equivalent energy of the oxygen nucleus is less than that of the sum of the equivalent energies of its constituents. If one wants to break the oxygen nucleus into 8 protons and 8 neutrons, this extra energy ΔE must be supplied.

Detailed Explanation

This chunk explains the significance of the mass defect in nuclear physics. The mass defect indicates that the mass of a bound system (the nucleus) is less than the mass of its unbound components (protons and neutrons alone). This deficit of mass is a measure of the nuclear binding energy, which is the energy required to disassemble the nucleus into its constituent particles. Essentially, the binding energy provides a sense of stability; the more binding energy, the more stable the nucleus.

Examples & Analogies

Consider a group of tightly packed people in a small room. If everyone leaves the room (disassembly), the space feels lighter and more chaotic. The 'weight' they carried together as a solid group reflects their combined strength (or binding energy) within that small area. Thus, breaking the bonds and letting everyone go requires energy to pull them apart, representing the mass defect.

Binding Energy Per Nucleon

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

A more useful measure of the binding between the constituents of the nucleus is the binding energy per nucleon, E_b, which is the ratio of the binding energy E_b of a nucleus to the number of the nucleons, A, in that nucleus:

E_b = E / A (13.9)

We can think of binding energy per nucleon as the average energy per nucleon needed to separate a nucleus into its individual nucleons.

Detailed Explanation

This chunk focuses on the concept of binding energy per nucleon, which provides insights into how tightly the nucleons are bound within a nucleus. It is calculated by dividing the total binding energy of the nucleus by the number of nucleons (protons + neutrons). This value helps compare different nuclei easily; higher binding energy per nucleon indicates a more stable nucleus. It is particularly useful for understanding nuclear processes like fission and fusion.

Examples & Analogies

Think of binding energy per nucleon as the 'cost of admission' to being part of a concert group. The total cost to get the whole band together is divided by the number of band members, giving you an idea of how tightly they are bound together as a group. If the average cost (or energy) per band member is high, it means they are more tightly integrated, just as tighter binding energy indicates a more stable nucleus.

Trends in Binding Energy

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Figure 13.1 is a plot of the binding energy per nucleon E_b versus the mass number A for a large number of nuclei. We notice the following main features of the plot:
(i) the binding energy per nucleon, E_b, is practically constant, i.e. practically independent of the atomic number for nuclei of middle mass number (30 < A < 170).

(ii) E_b is lower for both light nuclei (A<30) and heavy nuclei (A>170).

Detailed Explanation

This chunk discusses trends observed in the binding energy per nucleon as depicted in a plot. For mid-range mass nuclei, the binding energy per nucleon remains relatively constant, suggesting a consistent interaction among nucleons. However, lighter and heavier nuclei display lower binding energies per nucleon, indicating that they are less stable. As the mass number increases or decreases significantly from the mid-range, the added nucleons do not contribute effectively to stability, thus affecting the binding energy.

Examples & Analogies

Imagine a team of workers in a factory. If the number of workers is just right (mid-range), they are efficient and work well together. However, if too few workers (light nuclei) or too many workers (heavy nuclei) are present, the efficiency drops and they become less productive. This scenario mirrors how nuclear stability and binding energy relate based on the number of nucleons.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Mass-Energy Equivalence: The concept that mass can be converted to energy, illustrated by E=mc².

  • Nuclear Binding Energy: The energy required to dismantle a nucleus, related to its stability.

  • Mass Defect: The difference in mass between a nucleus and its constituent nucleons, significant for calculating binding energy.

  • Binding Energy per Nucleon: An important metric that reflects the stability of nuclei across different elements.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • If 1 g of matter is converted to energy, it produces approximately 9 x 10^13 joules.

  • For oxygen-16, the binding energy needed to separate the nucleons is about 127.5 MeV.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Mass can turn to energy, it's what we see, E equals mc-squared, a nuclear spree!

📖 Fascinating Stories

  • Imagine a small nucleus uneasy and tight, it holds its parts like a knight. When energy is needed, the parts fight in the night, separating them brings a powerful light.

🧠 Other Memory Gems

  • M.A.B.E = Mass-energy, Atomic number, Binding energy, Energy needed for separation.

🎯 Super Acronyms

C.E.N.E

  • Convert Energy
  • Nuclear Energy
  • E=mc².

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: MassEnergy Equivalence

    Definition:

    The principle that mass can be converted into energy and vice versa, represented by the equation E=mc².

  • Term: Binding Energy

    Definition:

    The energy required to disassemble a nucleus into its individual nucleons.

  • Term: Mass Defect

    Definition:

    The difference between the mass of a nucleus and the total mass of its individual component protons and neutrons.

  • Term: Binding Energy per Nucleon

    Definition:

    The ratio of the binding energy of a nucleus to the number of nucleons.
